Comparison of LD-A40, LD-B20, D16PRO-200, BDS 200, and VDS 200 Drone Soccer Drones | |||||

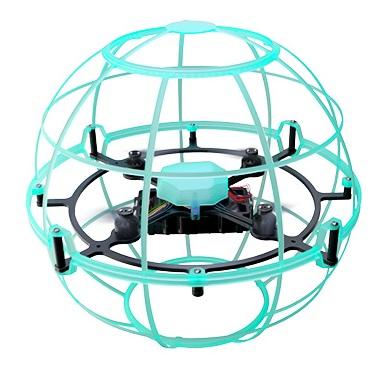

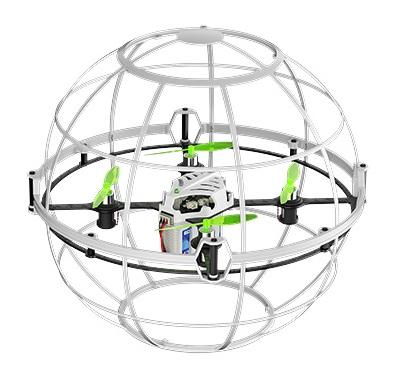

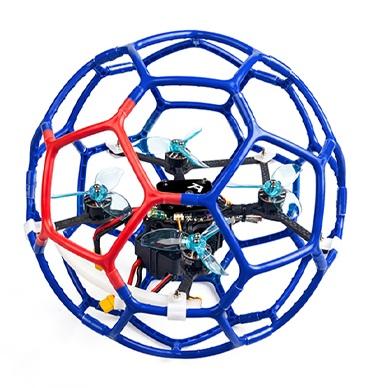

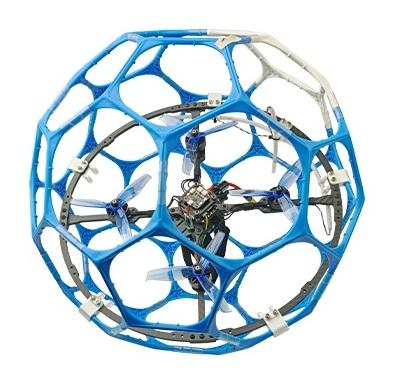

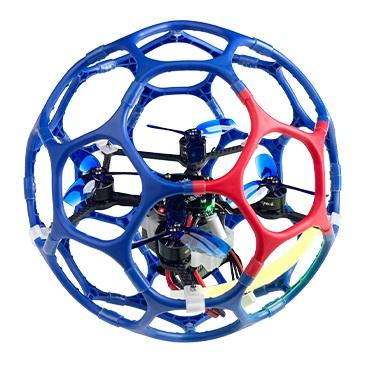

Product Images |
|
|
|
|
|
Model | LD-A40 | LD-B20 | D16PRO-200 | BDS 200 | VDS 200 |
Competition Grade | F9A-A(Class 40) | F9A-B(Class 20) Brushless | F9A-B(Class 20) Brushless | F9A-B(Class 20) Brushless | F9A-B(Class 20) Coreless |
Flight Mode | Stabilize Mode, Turtle Mode | Stabilize Mode, Turtle Mode | Altitude-hold Mode, Stabilize Mode, and Turtle Mode | Altitude-hold Mode, Stabilize Mode, and Flip Over after Crash | AltHold Mode(Low-Speed), AltHold Mode(High-Speed), Stabilize Mode |
Dimension | 402mm | 198mm | 200mm | 200mm | 200mm |
Takeoff Weight | 1153g | 286g | 200g | 170g | 116g |
Flight Time | 5-6 Minutes | 5-6 Minutes | 5-6 Minutes | 5-6 Minutes | 5-6 Minutes |
Flight Distance | 3000 Meters | 3000 Meters | 3000 Meters | 2000 Meters | 2000 Meters |
Material | Carbon Fiber (Frame), Eco-Friendly Modified Polypropylene Material (Ball Shells, Battery Case) | Carbon Fiber (Frame), Eco-Friendly Modified Polypropylene Material (Ball Shells, Battery Case) | Carbon Fiber (Frame), Eco-Friendly Modified Polypropylene Material (Ball Shells, Battery Case) | Carbon Fiber (Frame), Plastic (Ball Shells, Mainboard Cover, and Battery Case) | Carbon Fiber (Frame), Plastic (Ball Shells, Battery Case) |
Flight Environment | Indoors/Outdoors | Indoors/Outdoors | Indoors/Outdoors | Indoors/Outdoors | Indoors/Outdoors |
Low Battery Alarm | The alarm voltage is 22.0V by default. When the battery voltage is lower than 22.0V, the T12D will emit a beeping alarm. And, the drone will automatically land when the voltage reaches 21.5V. | The alarm voltage is 14.7V by default. When the battery voltage is lower than 14.7V, the T12D will emit a beeping alarm. And, the drone will automatically land when the voltage reaches 14V. | The alarm voltage is 11.1V by default. When the battery voltage is lower than 11.1V, the T8S will emit a beeping alarm. And, the drone will automatically land when the voltage reaches 9.9V. | When the battery is lower than 7.2V, the green light of the flight control starts to blink slowly | When the power battery voltage is lower than 7V, the green light of the flight controller starts to flash slowly to indicate the return of flight. If the voltage is lower than 6.7V, the green light of the flight controller flashes quickly, and the soccer drone slowly descends to ensure a safe landing. |
LED Light Switch | LD-A40 has a tail LED light and a ring light strip. They have 7 colors that can be switched, namely red, green, blue, yellow, purple, cyan, and white. Short-press the button on the light board to switch their light color or turn off the light. | LD-B20 has a tail LED light and a ring light strip. They have 7 colors that can be switched, namely red, green, blue, yellow, purple, cyan, and white. Short-press the button on the light board to switch their light color or turn off the light. | D16PRO-200 has a tail LED light and a ring light strip. They have 7 colors that can be switched, namely red, green, blue, yellow, purple, cyan, and white. Short-press the button on the light board to switch the light color or turn off the light. | Without | Without |
Motor | SZ-SPEED 2408-1850KV Brushless Motors | SZ-SPEED 1507-4000KV Brushless Motors | SZ-SPEED 1404-4600KV Brushless Motors | SZ-SPEED 1303 8000KV Brushless Motors | SZ-SPEED 1020 Coreless Motor |
Propeller | GEMFAN 5-inch (5055S-3) Propellers | Gemfan 2.5-inch(2828) Propellers | Gemfan 2.5-inch Propellers | Gemfan 2520 1.5 Axle Hole Propellers | GEMFAN 75mm |
Battery | Gensace 6S 22.2V 2100mAh 150C 46.62Wh Lipo Battery | Gensace 4S 850mAh 40C Lipo Battery | Gensace 3S 680mAh 30C Lipo Battery | Gensace 7.4V 850mAh 35C Lipo Battery | Gensace 2S 7.4V 450 30C Battery |
Competition | ① FIDA(Class 40)② FAI World Drone Soccer Championships(F9A-A)③ Volume F9 Drone Sports(F9A-A Provisional class) | ① FAI World Drone Soccer Championships(F9A-B)② Volume F9 Drone Sports(F9A-B Provisional class)③ U.S. Drone Soccer(20cm Drone Soccer Gameplay) | ① FAI World Drone Soccer Championships(F9A-B)② Volume F9 Drone Sports(F9A-B Provisional class)③ U.S. Drone Soccer(20cm Drone Soccer Gameplay) | ① FAI (Fédération Aéronautique Internationale)② Academic Drone Soccer③ US Drone Soccer | ① National Championship② Drone Soccer World Cup③ FIDA World Championship(class20)④ FAI Sporting Code (F9A)⑤ US Drone Soccer(U19 Drone Soccer) |
