CM210 Balance Charger

Compact and Portable, But Charging Fast

USB Type-C Input

Charging Fast

Repair Mode

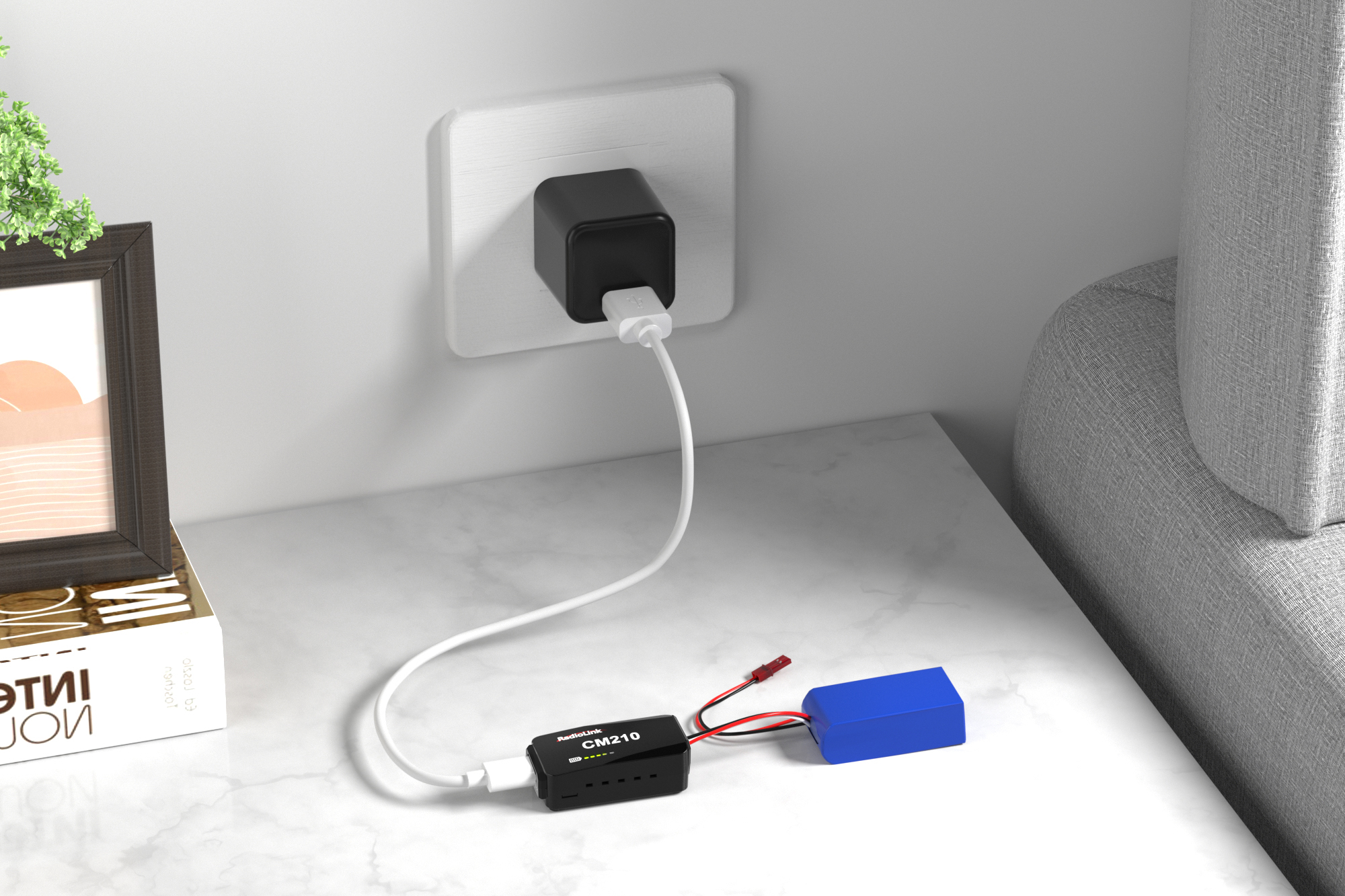

Power Supply Self-adapting

Multiple Protection

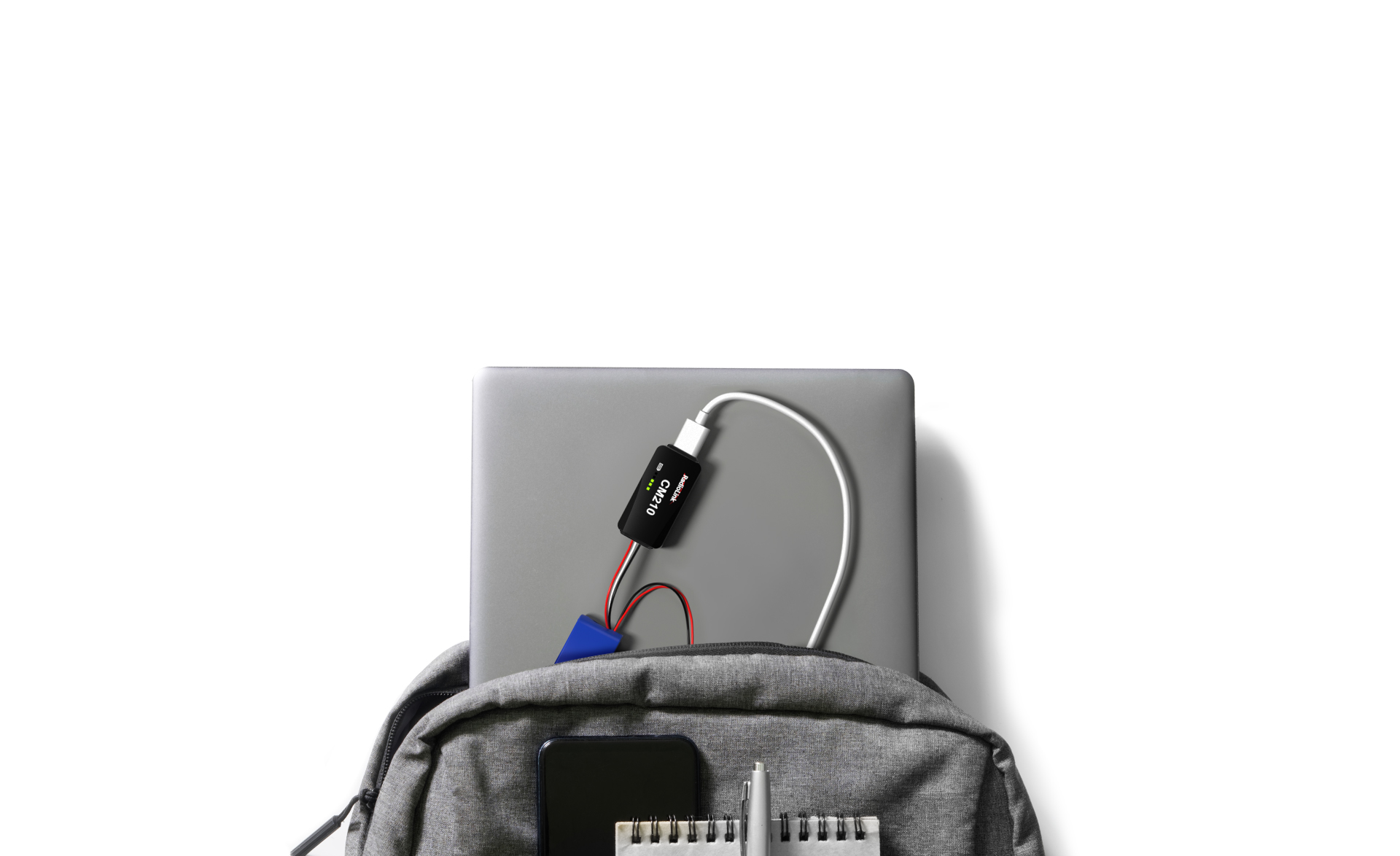

Compact and Portable

Compact and Portable

Pocket-sized and extremely portable, CM210 is a tiny charger with almost negligible size and weight*

that can be carried anywhere without stress.

(size: 40.5*21*15mm, weight: 9g)

Fast Charge + Efficient Pre-balance

Outfield Racing, Running, Flight without Waiting

It adopts series charging and bypass balance.

The maximum 1.5A pulse charging technology helps achieve maximum battery protection while achieving fast charging.

Different from the traditional charger that detection of low-current charging when the battery is fully charged, CM210 adopts dynamic balance in the whole charging process that greatly shortens the balance time.

A 500mAh 2S LiPo battery can be fully charged in 20 minutes if charged by CM210*.

CM210

other similar chargers

1.5A Charging Current, 0.8A Balance Current

0.8A Charging Current, 0.8A Balance Current

* Laboratory test data, the specific time is related to the maximum current of the power supply equipment.

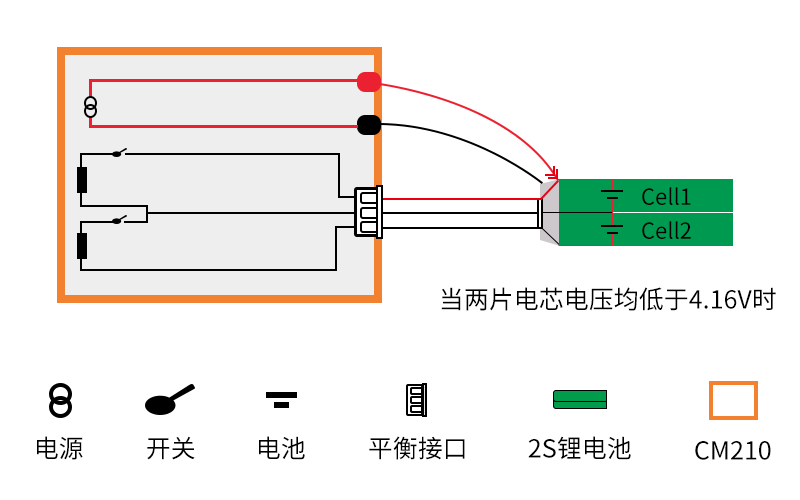

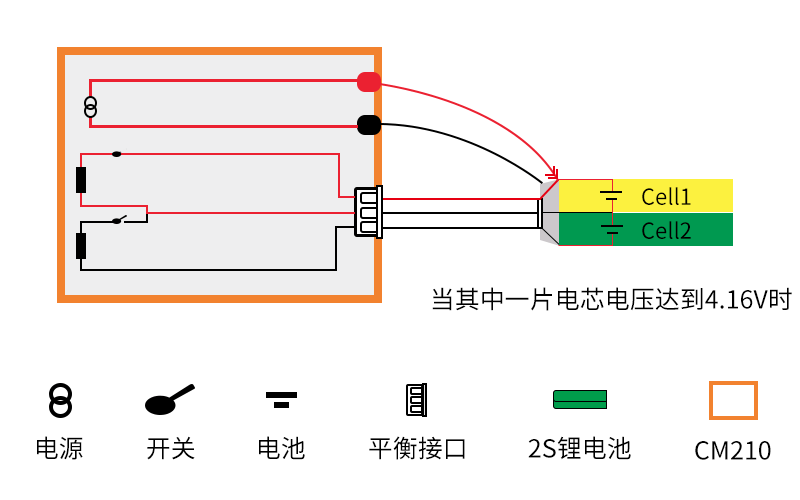

Series Charging, Bypass Balance

Power Supply

Switch Circuit

Battery

Balance

(Charging) Port

2S LiPo Battery

CM210

All the battery cells lower than 4.16V

One of the battery cells enough to 4.16V

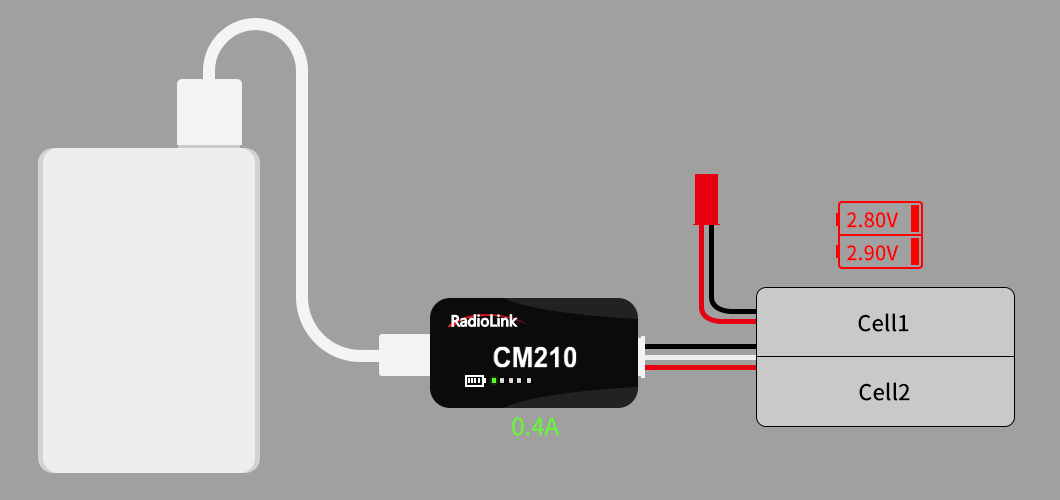

Low Voltage Pre-charge + Repair Mode

It's not only a Charger but also a Money Saver

When it is detected that the single-cell battery is lower than 3.0V, the battery repair mode is activated to restore the battery capacity, so that the over-discharged battery can return to strong power and prolong the battery life.

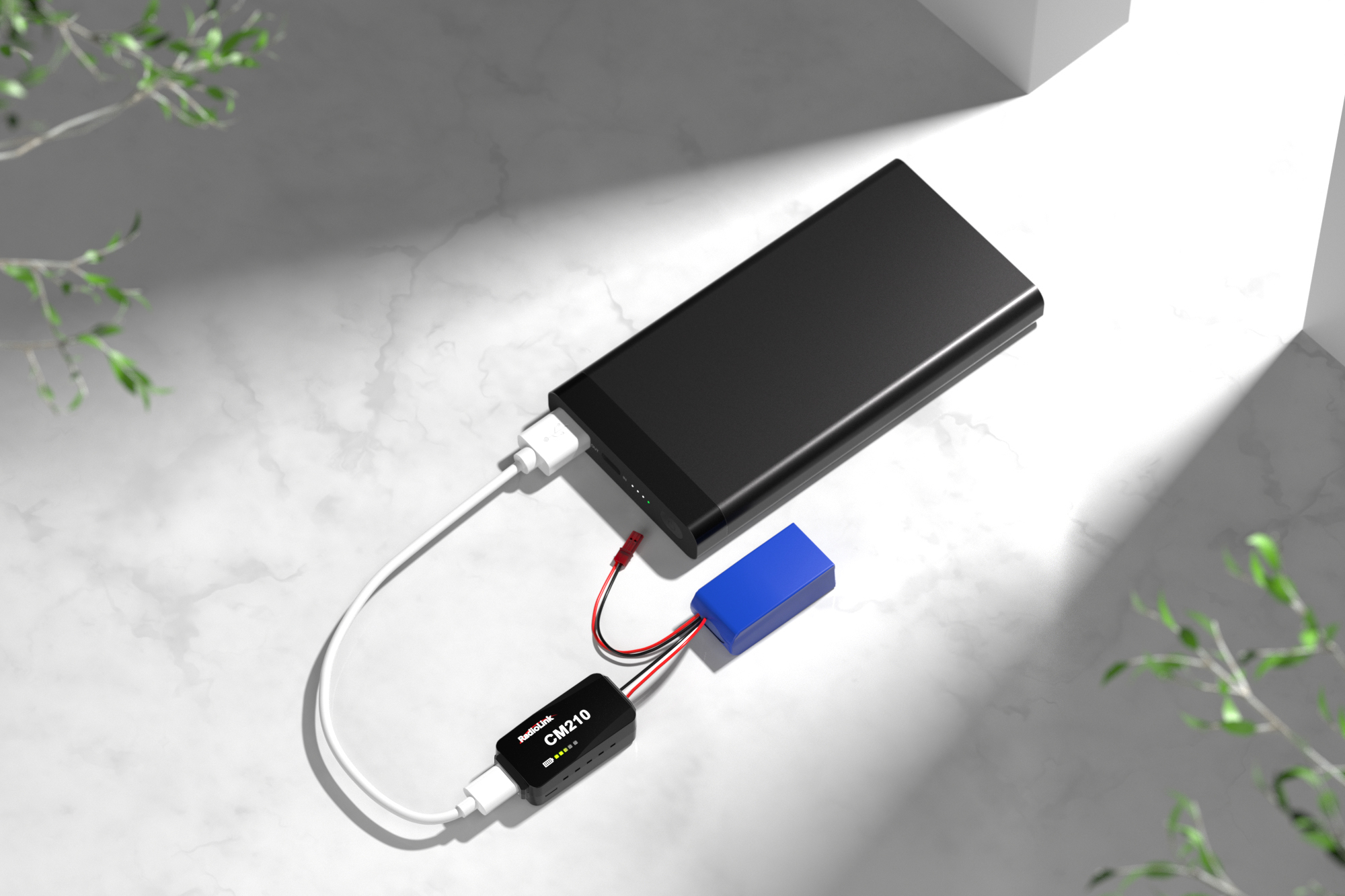

Mobile Power Bank

2S LiPo Battery

CM210 Charger

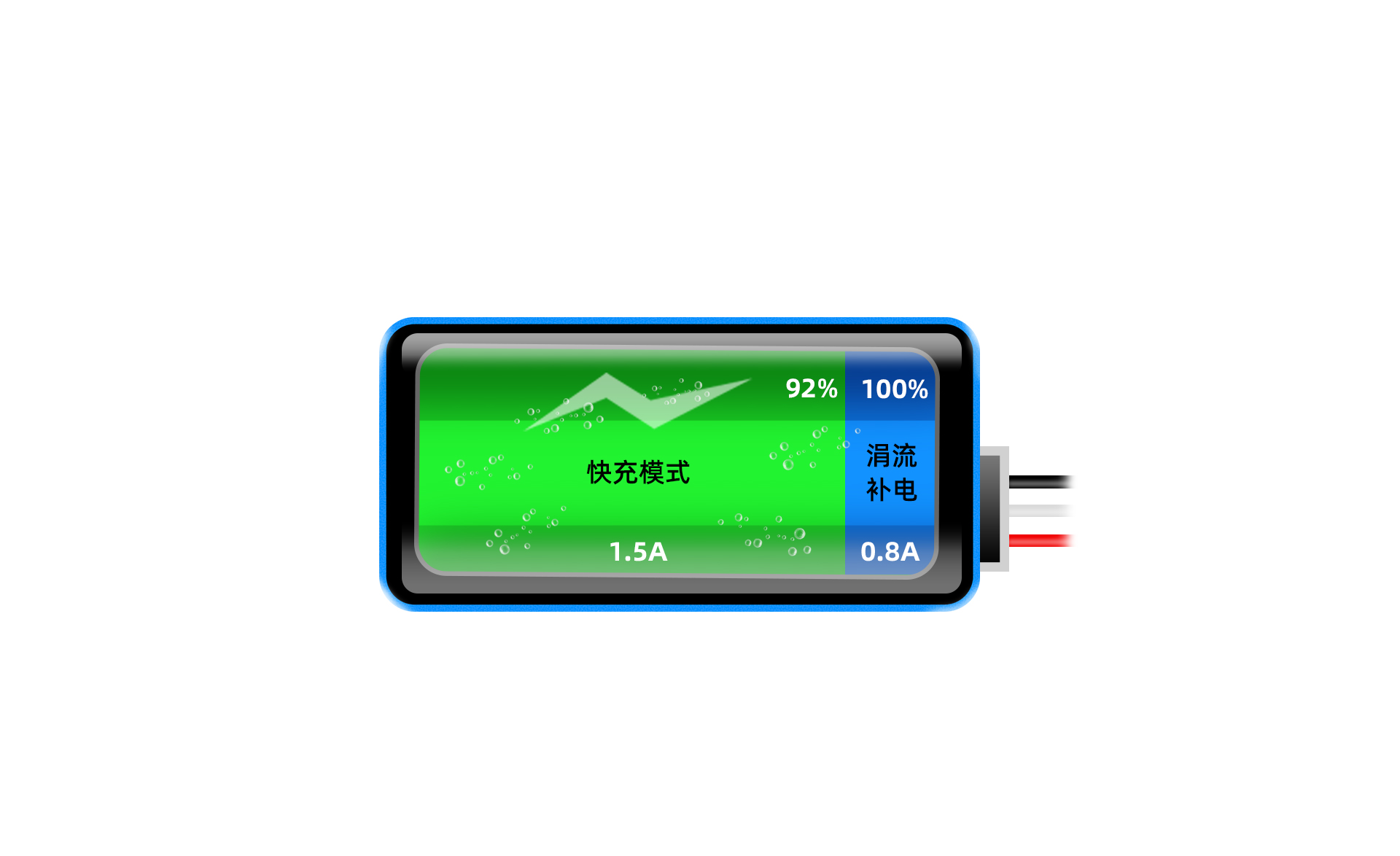

Trickle Charging Mode

More Power and Longer Playtime

The battery capacity will be detected automatically during the charging process. When the battery is nearly fully charged (when the voltage is charged to 4.16V), it will switch to the trickle charging mode automatically, that is, it adjusts to the best 1C charging automatically, which improves the battery life while charging efficiently. Ensure the strong power of the battery and maximize the battery play life.

Security Algorithm

Multiple Protection, Safer Charging

Software logic safety algorithm helps the charger will stop charging automatically when the charger's circuit or battery occurred error. Charging safer.

Over Temperature Protection

The real-time current adjustment ensures charging safety.

When the charger is detected that the circuit temperature is higher than the safe value, the charging current will be reduced automatically. While the circuit temperature is detected to fall back to the safe value, the charging current will automatically be restored to the predetermined current to continue charging.

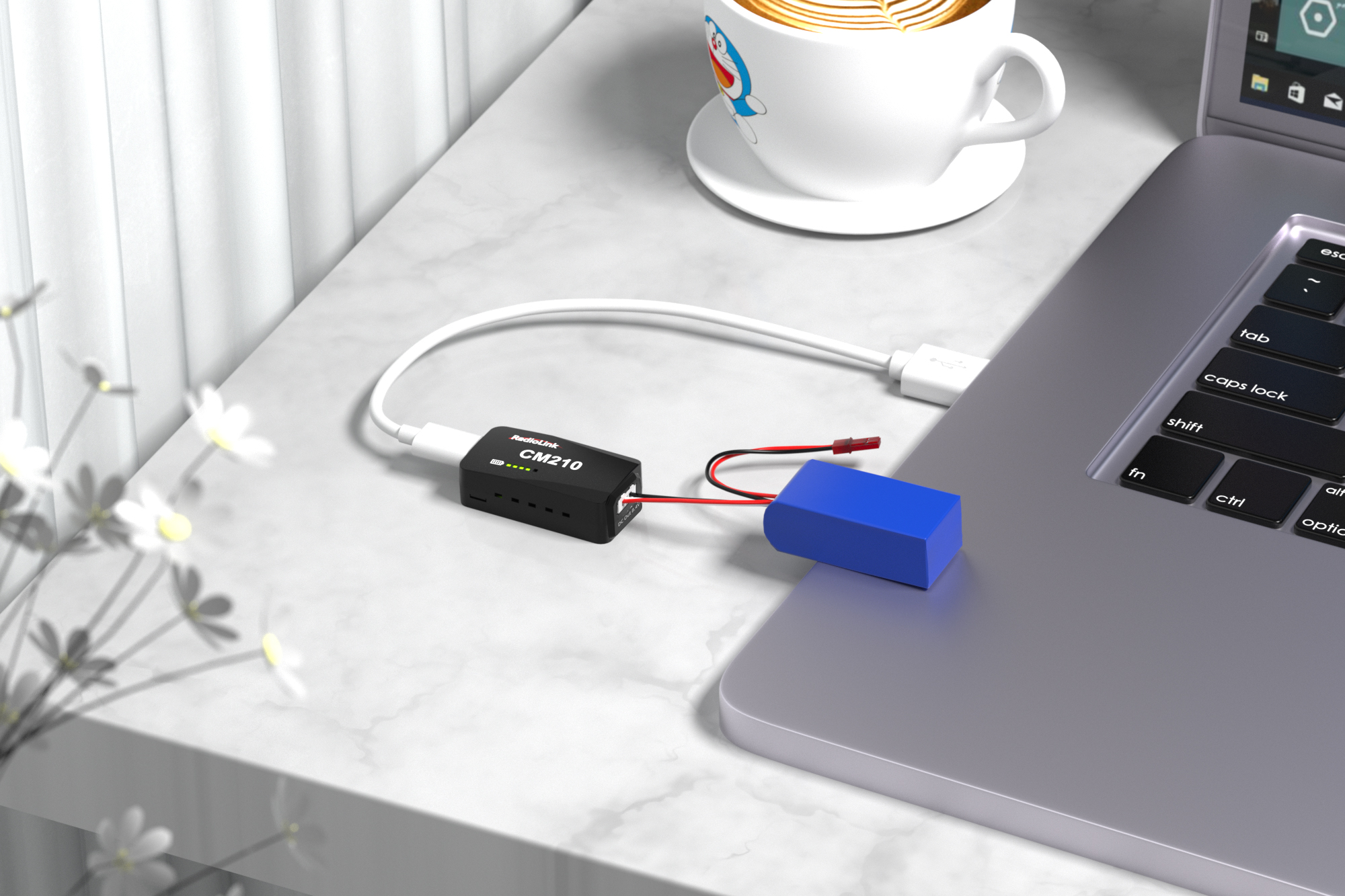

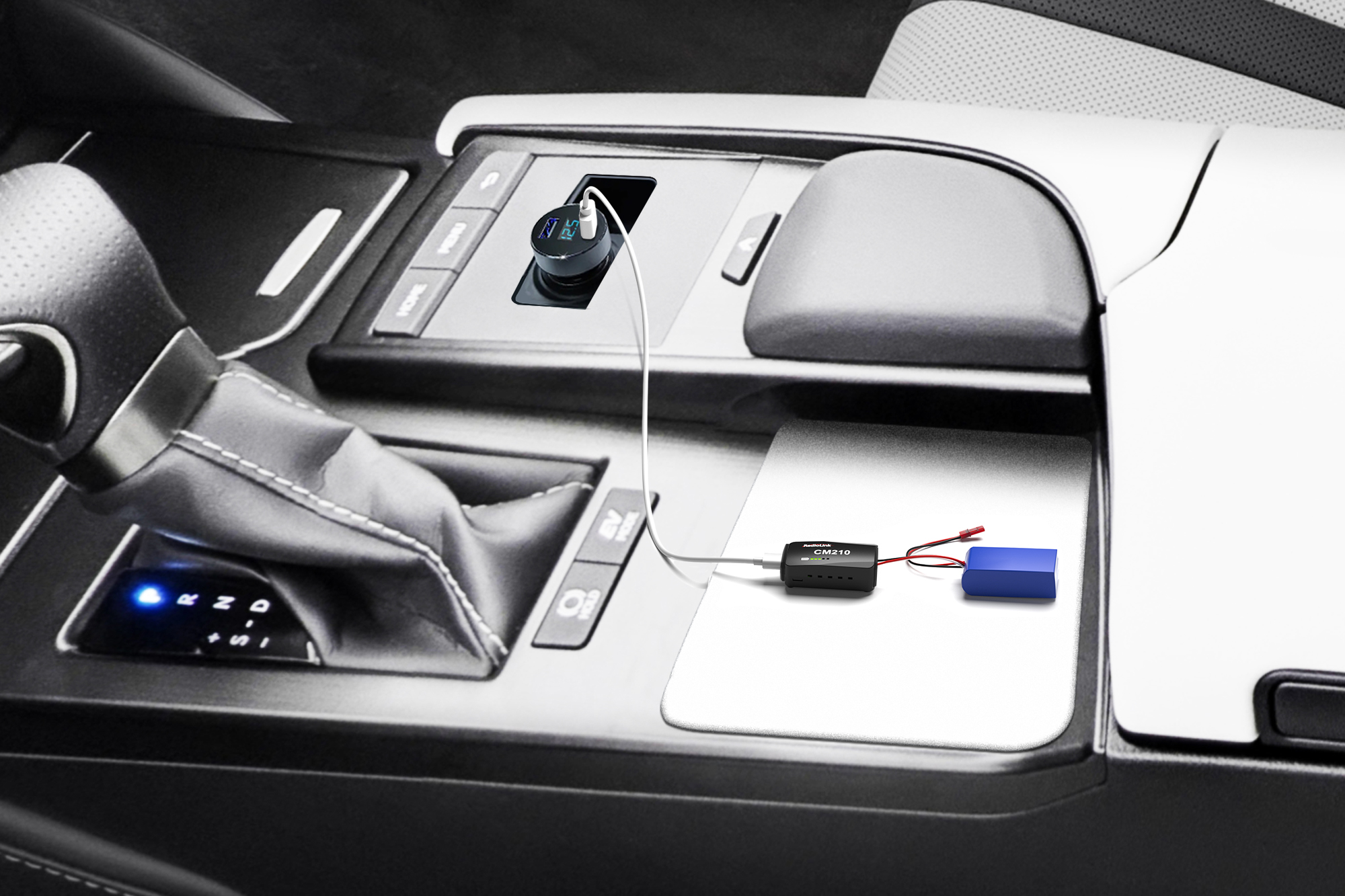

Power Supply Self-adapting

When it is detected that the power supply voltage is pulled down to 3.7V, the current will fall back to the predetermined current automatically to adapt to various power supplies of different specifications.

Alarm Timely

When CM210 detects that there is no current for a long time, it will stop charging automatically and the red LED of CM210 will flash.

High Efficiency but Low Consumption

Real-time Power Display

The charging precision is 0.02V and the charging efficiency is up to 82%.

The battery power indicator LEDs of CM210 help to check the charging progress, and the real-time charging power can be seen immediately.

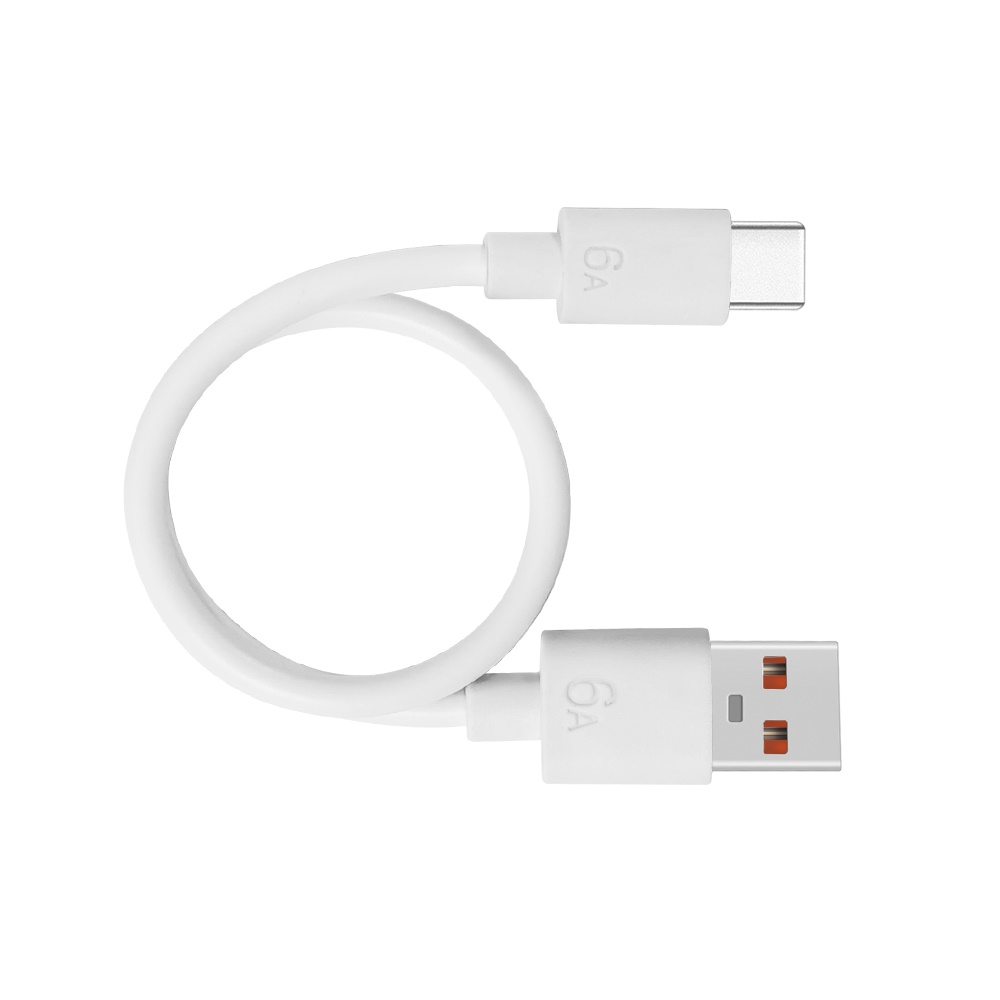

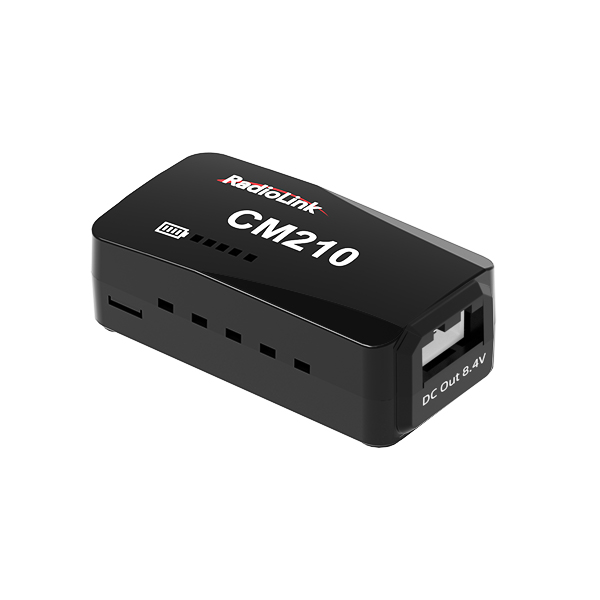

CM210 Packing List
