R8EF
Buy Now

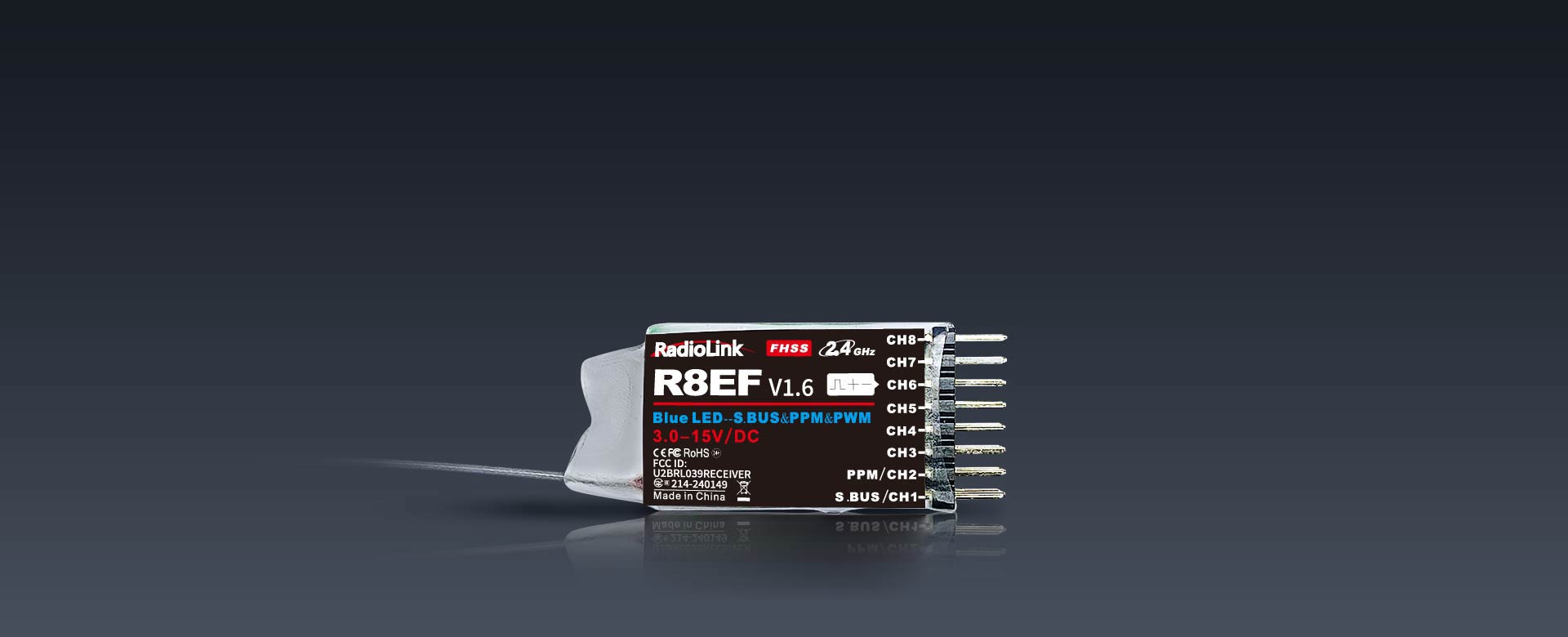

R8EF

8 Channels Receiver

* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.

* Maximum range is tested in an unobstructed area free of interference.

R8EF英文_02

2000 Meters Control Distance





Same FHSS* spread spectrum algorithm as AT9S and 67-channel pseudo-random frequency hopping help reduce overall signal interference.

2KM (1.24 Miles) * Range enables all possible RC fun.

The maximum PWM jitter is 1.84us with a standard of just 0.5us.

R8EF signals

SBUS/PPM and PWM Signals Output





8 channels.

SBUS/PPM and PWM can operate simultaneously for seamless user control.

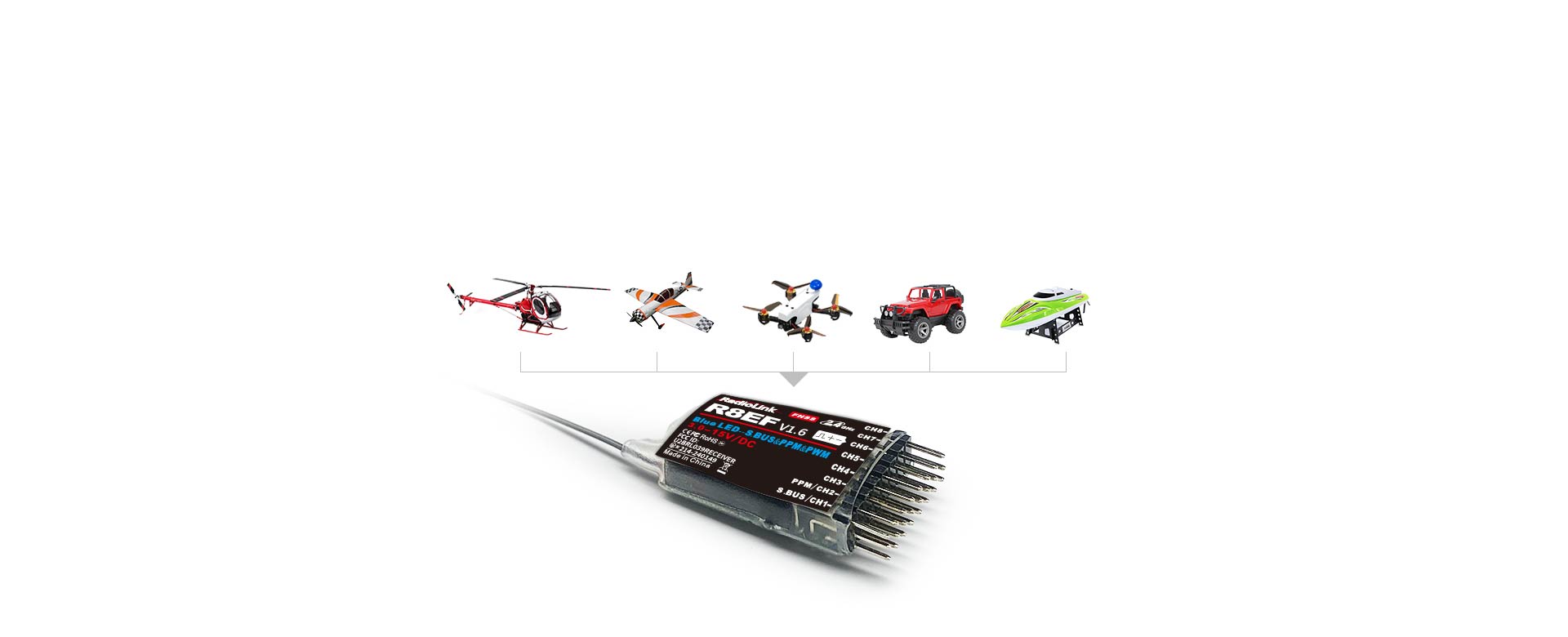

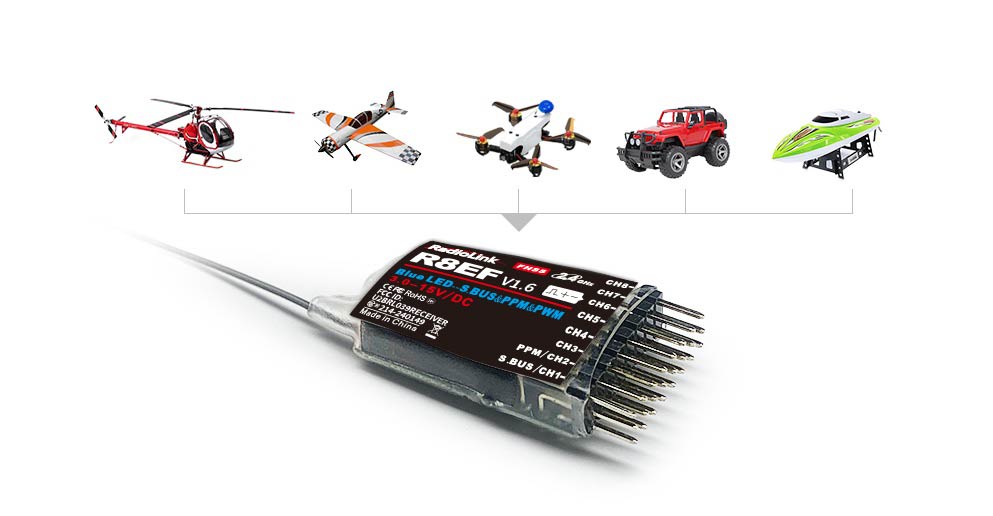

Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat and Robot.

Wide operating voltage tolerance that from 4.8 to 10 volts.

R8EF spec

Specifications

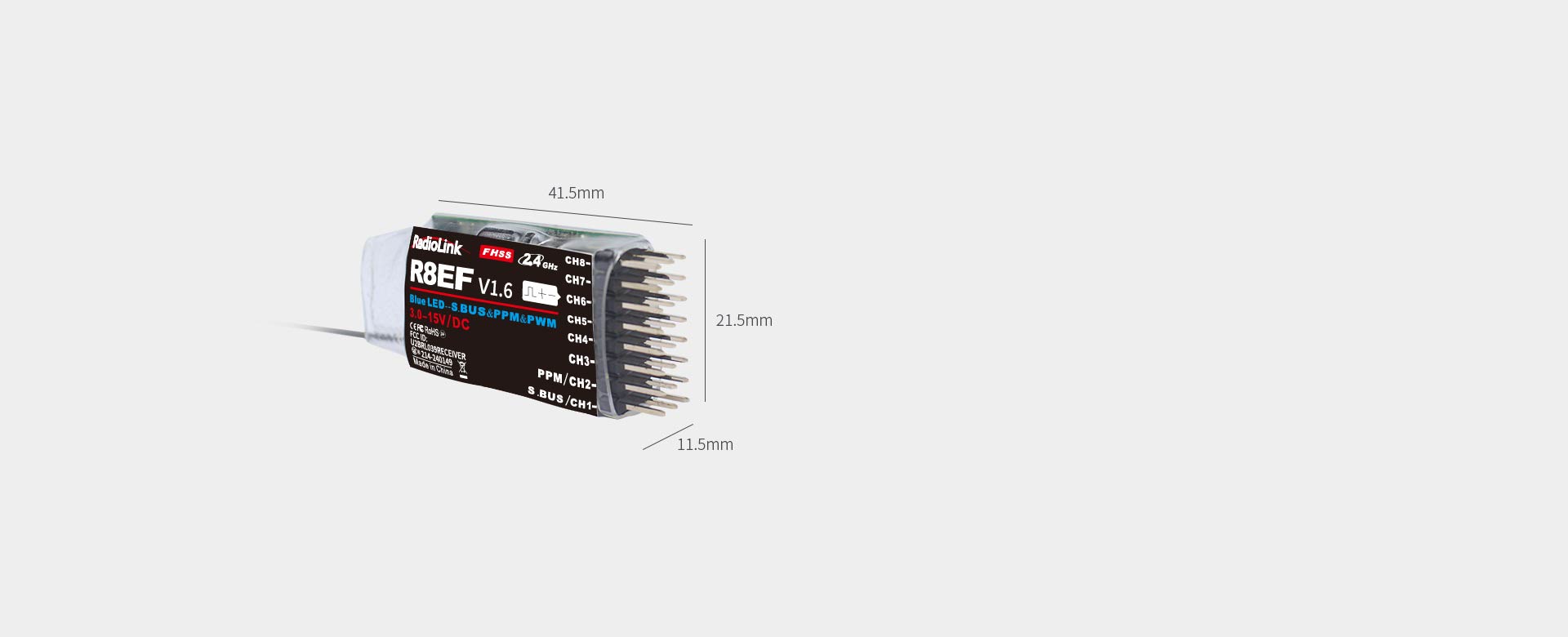

Size: 41.5*21.5*11.5mm (1.63” *0.85” *0.45”)

Weight:7g (0.25oz)

Channels Qty: 8 channels

Signals: SBUS/PPM&PWM

Operating Voltage: 3~12V

Operating Current: 38-45mA@5V

Section Precision: 4096, 0.25us per section

Control distance: 2000 meters(1.24Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Compatible transmitter: T8S/T8FB/RC6GS V2/RC4GS V2/RC6GS/RC4GS

41.5mm
11.5mm
