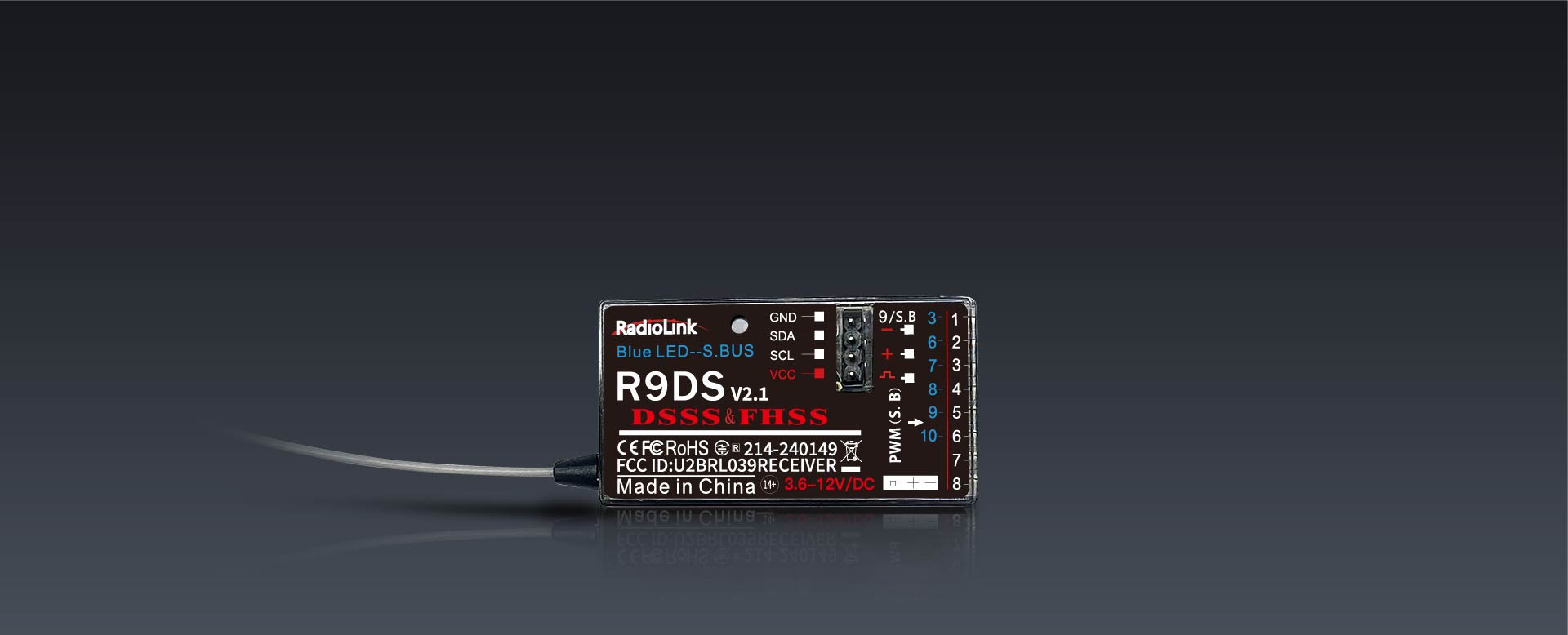

R9DS

9/10 Channels Receiver

4000 Meters Control Distance

DSSS* and FHSS* hybrid spread spectrum, 16 channels pseudo-random frequency hopping, and QPSK* modulation ensures excellent anti-interference performance, highly constant, and stable transmission signal present on all 10 channels of R9DS.

4000 meters(2.48miles) * Range enables all possible RC fun.

Maximum PWM jitter is 1.84us with a standard of just 0.5us.

* Direct Sequence Spread Spectrum transmissions multiply the data by a "noise" signal. This noise signal is a pseudorandom sequence of 1 and -1 at a frequency higher than that of the original signal.

* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.

* Maximum range is tested in an unobstructed area free of interference.

SBUS and PWM Signals Output

9/10 channels.

SBUS and PWM can operate simultaneously for seamless user control.

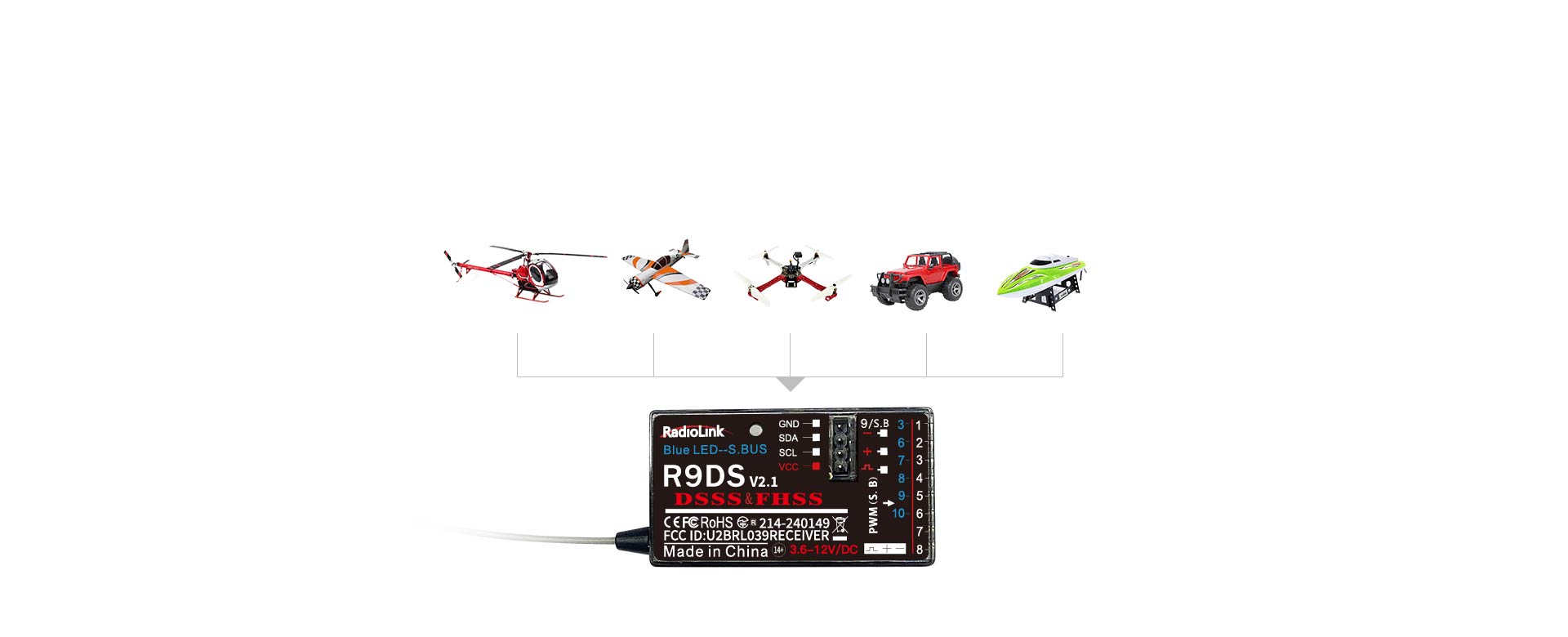

Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat, and Robot.

Wide operating voltage tolerance from 3 to 10 volts.

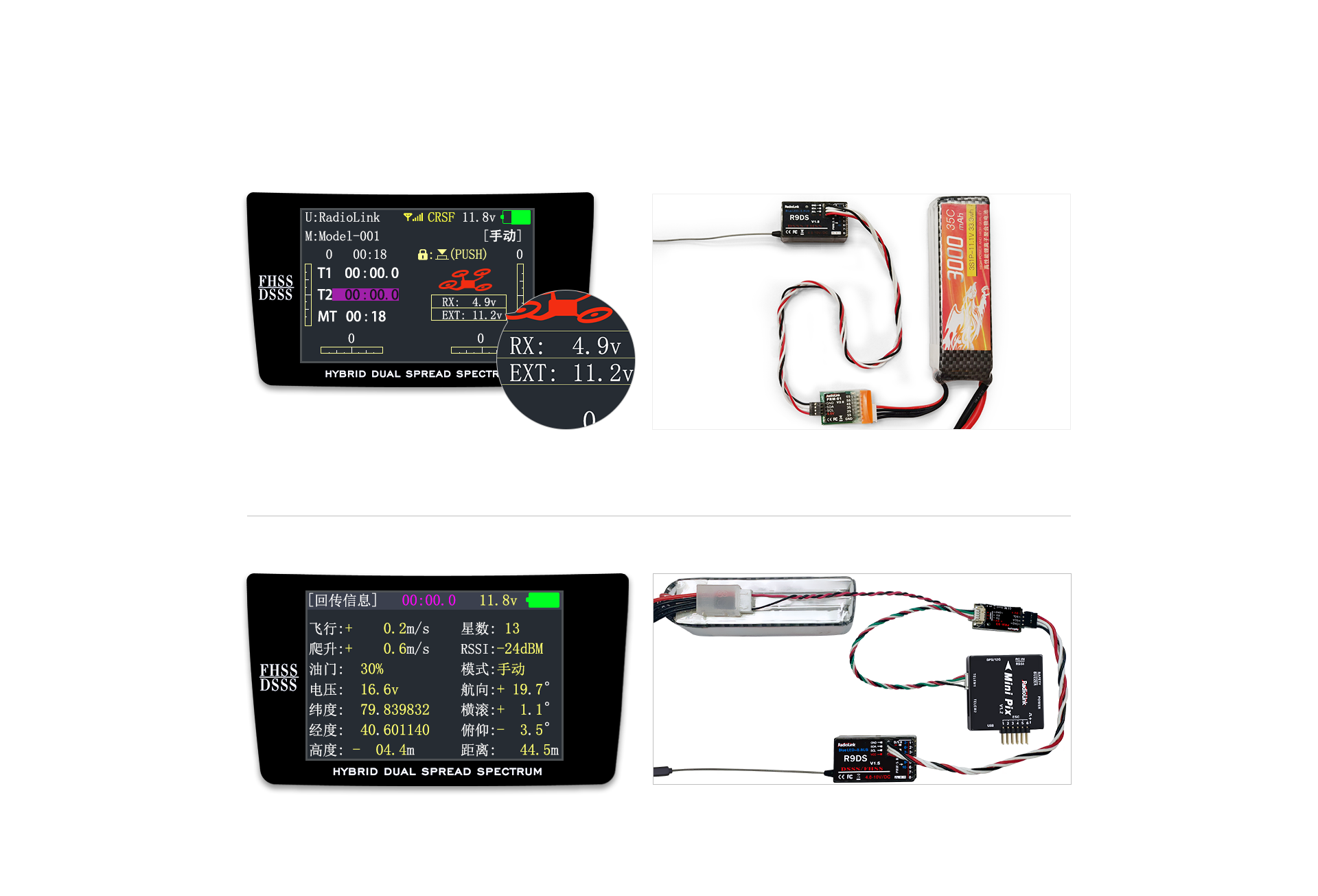

Real-time Telemetry

Real-time model data allows users to receive crucial information on the model's systems.

When paired with flight module PRM-01, model voltage is display on the transmitter screen.

With flight module PRM-03, model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance are on the transmitter screen.

Specifications

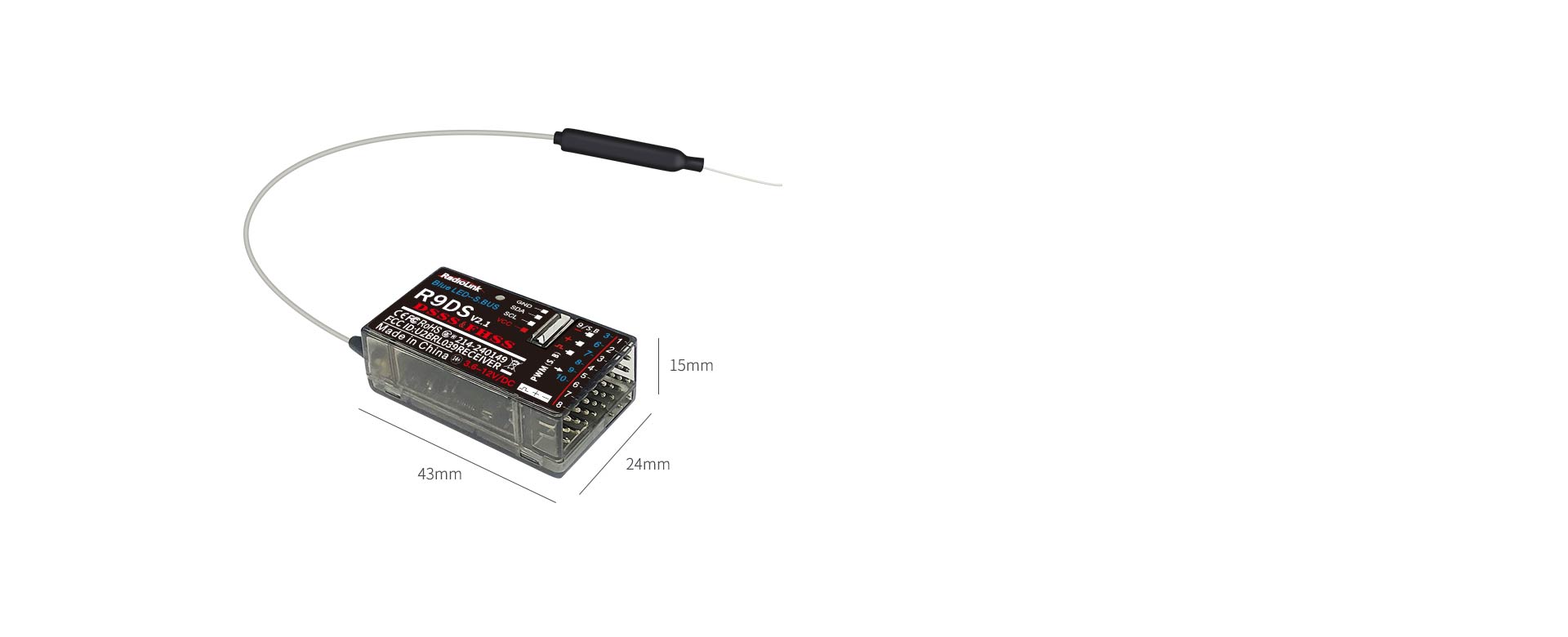

Size: 43*24*15mm (1.69"*0.94"*0.59")

Weight: 10.5g (0.37oz)

Channels Qty: 9 channels for PWM signal output;

10 channels for SBUS&PWM signal output.

Signals: SBUS&PWM

Operating Voltage: 3.6-12V

Operating Current: 38-45mA@5V

Section Precision: 4096, 0.25us per section

Control distance: 4000 meters(2.48Miles) in the air(Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Compatible with extended telemetrymodule PRM-01 and PRM-03.

Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9
