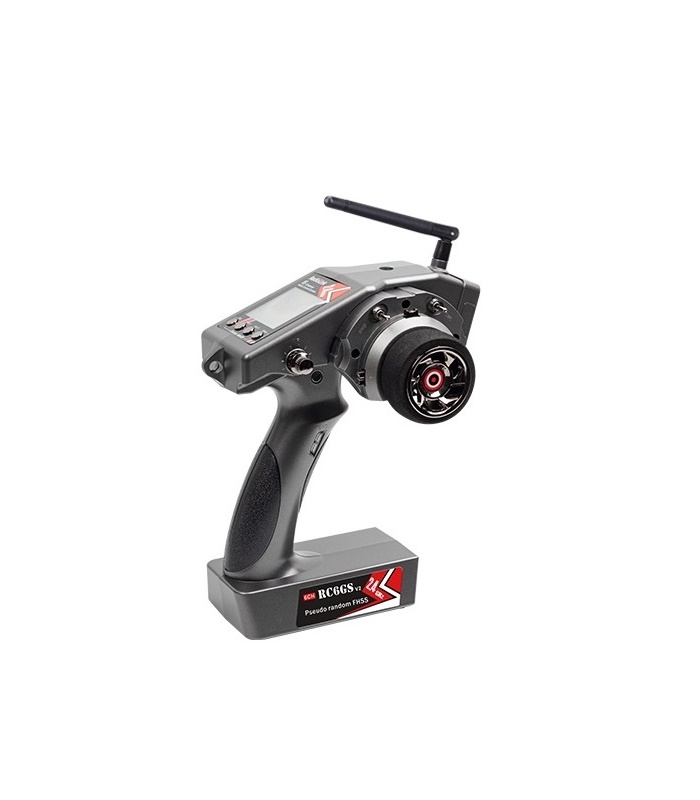

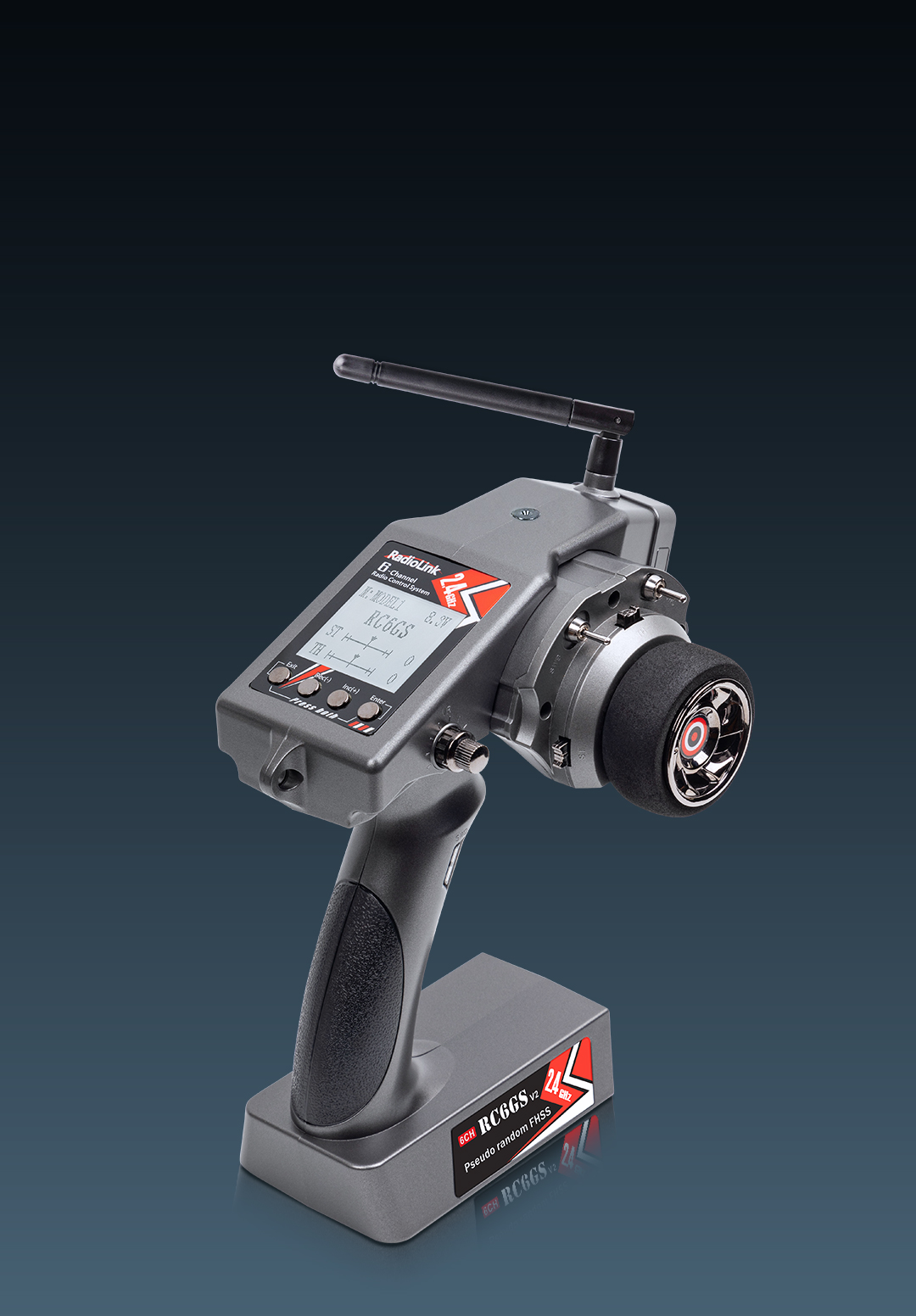

RC6GS V2

6 channels transmitter for cars and boats

600 meters control distance

Telemetry of Max 8S Model Battery Voltage

Support FPV Head Track Function

Compatible with TBS Crossfire

Compatible with R7FG, R8FG, R8EF, R8F, R6FG, R6F, R4FGM, R4F

600 Meters Ground Distance

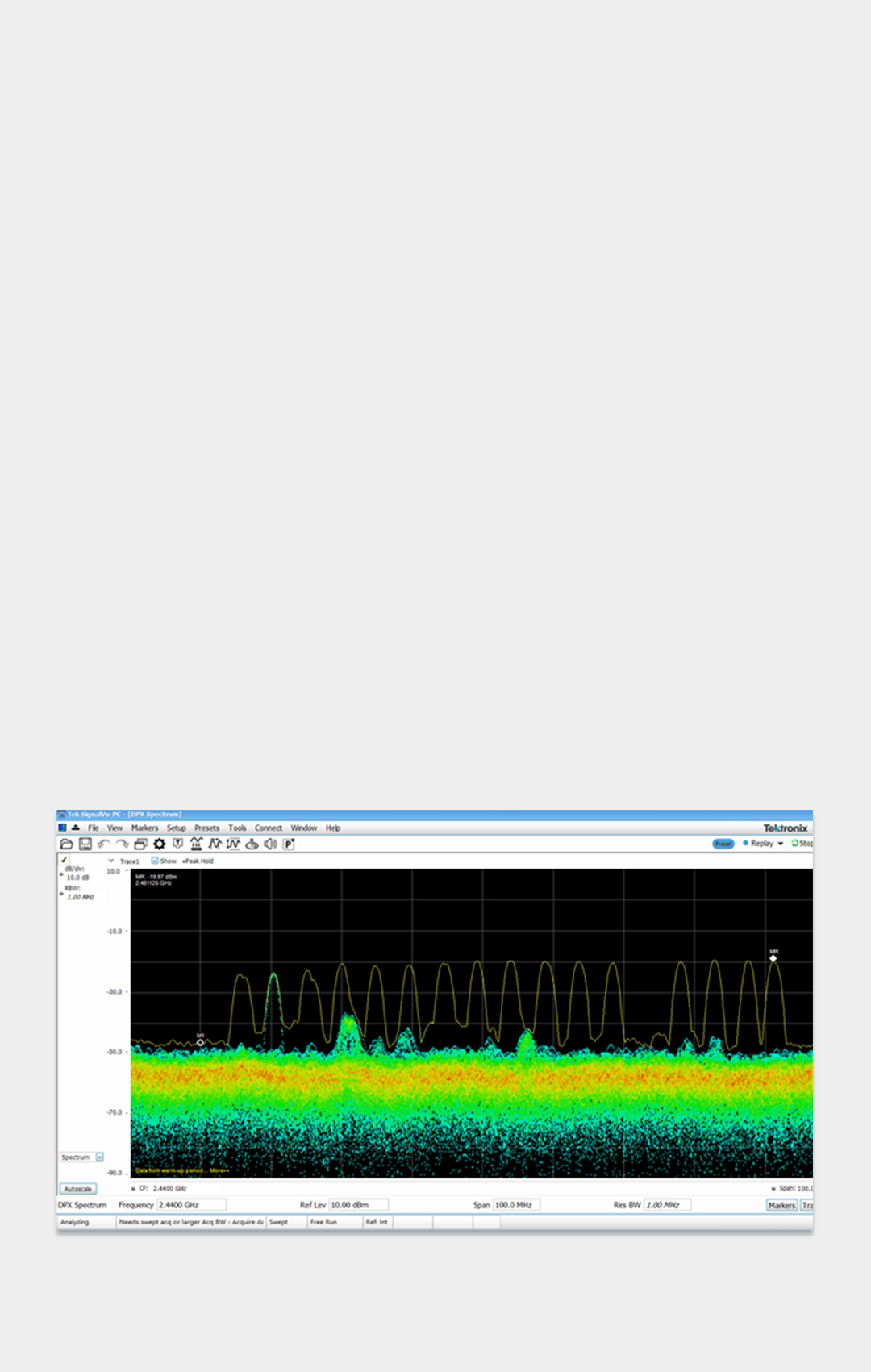

With the same FHSS spread spectrum of AT9S Pro and 67 channels, pseudo-random frequency hopping makes RC6GS V2 have the superior anti-interference ability both at the same frequency band and different frequency bands.

The control distance is up to 600 meters.

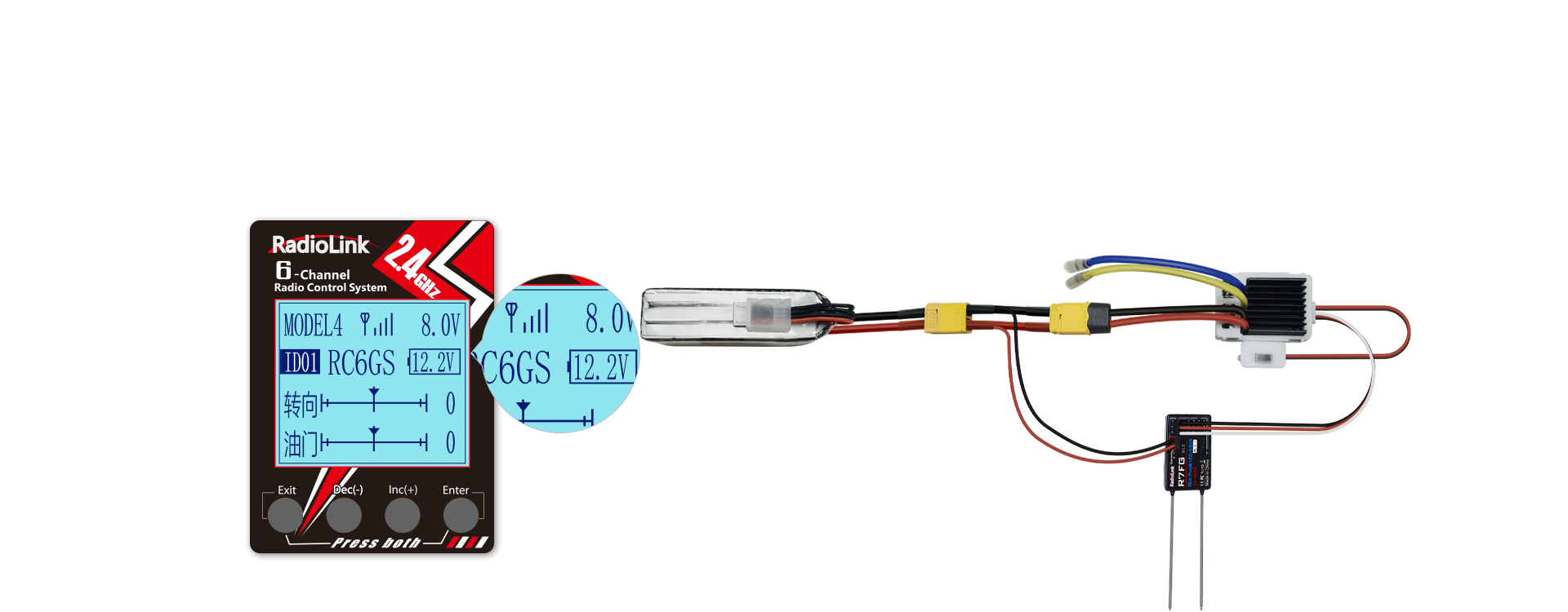

Real-time Telemetry of Model Battery Voltage

Telemetry is capable of RSSI, receiver, and model battery voltage.

RSSI and receiver voltage data will display once binding complete.

The model voltage will display by connecting the wire to the ESC, battery, and Telemetry port of receiver R7FG/R8F, no extra module needed.

Telemetry of maximum 8S battery supported.

Cruise Control System

Crawler is difficult in controlling the throttle on the downhill slope, the cruise control system of RC6GS V2 helps the driver easily set the optimal throttle volume for RC crawler car.

FPV Head Track Function*

RC6GS V2 used FPV goggles to control the up, down, left, and right movement of the camera on the RC car.

What's more, RC6GS V2 is compatible with TBS Crossfire by connecting it to the DSC port.

Get more than 600 meters of controller distance by connecting to the TBS crossfire, and work with the PFV head track function to fully enjoy the funny of First-Person View of racing or crawl.

*To support head track function, the RC6GS V2 needs upgrade the firmware to V6.3.2 first, it defaults the channels 5 and 6 for this function.

Dual Programmable Mix Control

6 channels transmitter.

Arbitrary 2 channels can be easily set as mix control, easy to understand.

For crawler: CH1 is the rudder, CH2 is the throttle, CH3 can set up to control the transfer case, CH4 can set up to control the shift gear, CH5 can set up to control the front locker and CH6 can set up to control the rear.

For Timber Truck: dual programmable mix control makes front wheel mix with rear-wheel come true, which can reduce the turning radius.

12ms Response

With the transmitter chip of STM32F103RB and the receiver chip as the industrial 32bits M0, all channels of RC6GS V2 can respond simultaneously within 12ms, ensuring the superior ability of anti-sparks interference even enjoy with an oil tanker.

6 Channels for

Multiple Types of Models

RC6GS V2 is an ideal partner for all types RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting RC Car, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car, GP RC Car, EP RC Car and other types of RC cars or boats.

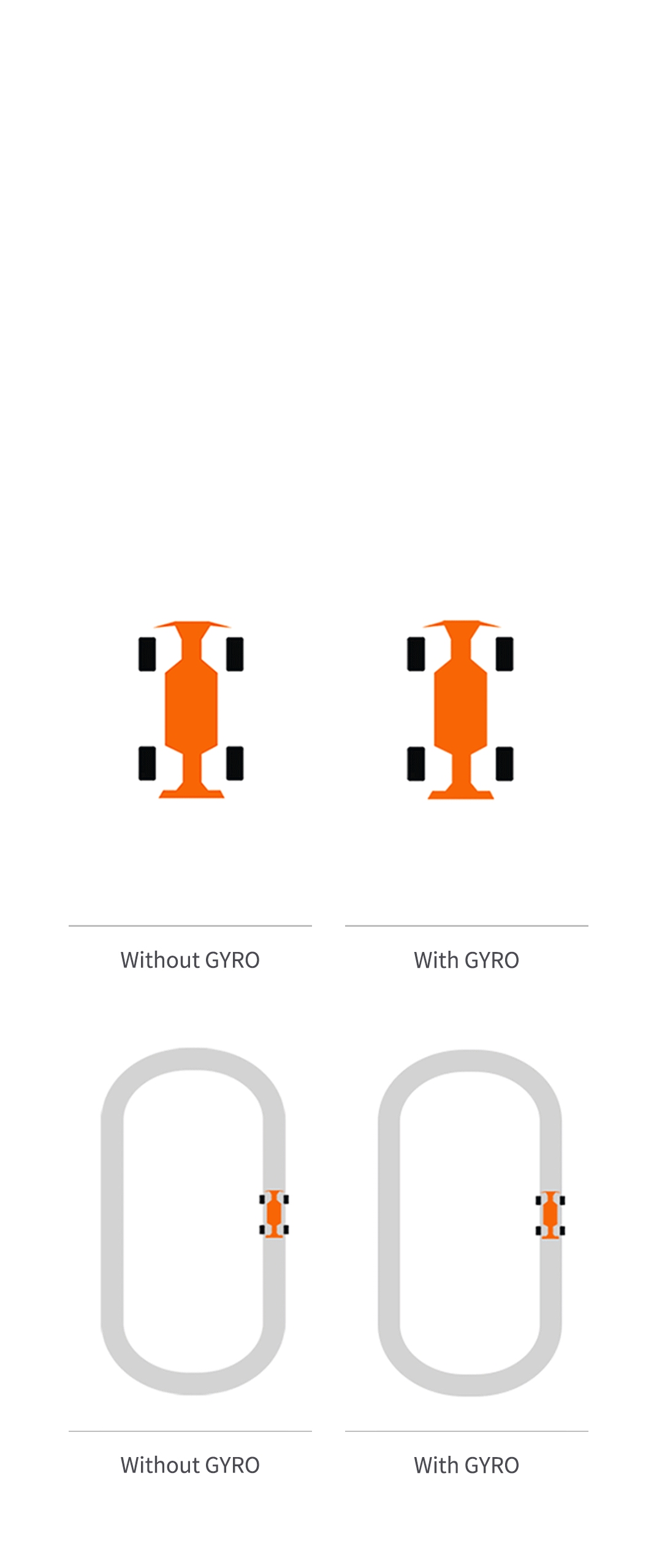

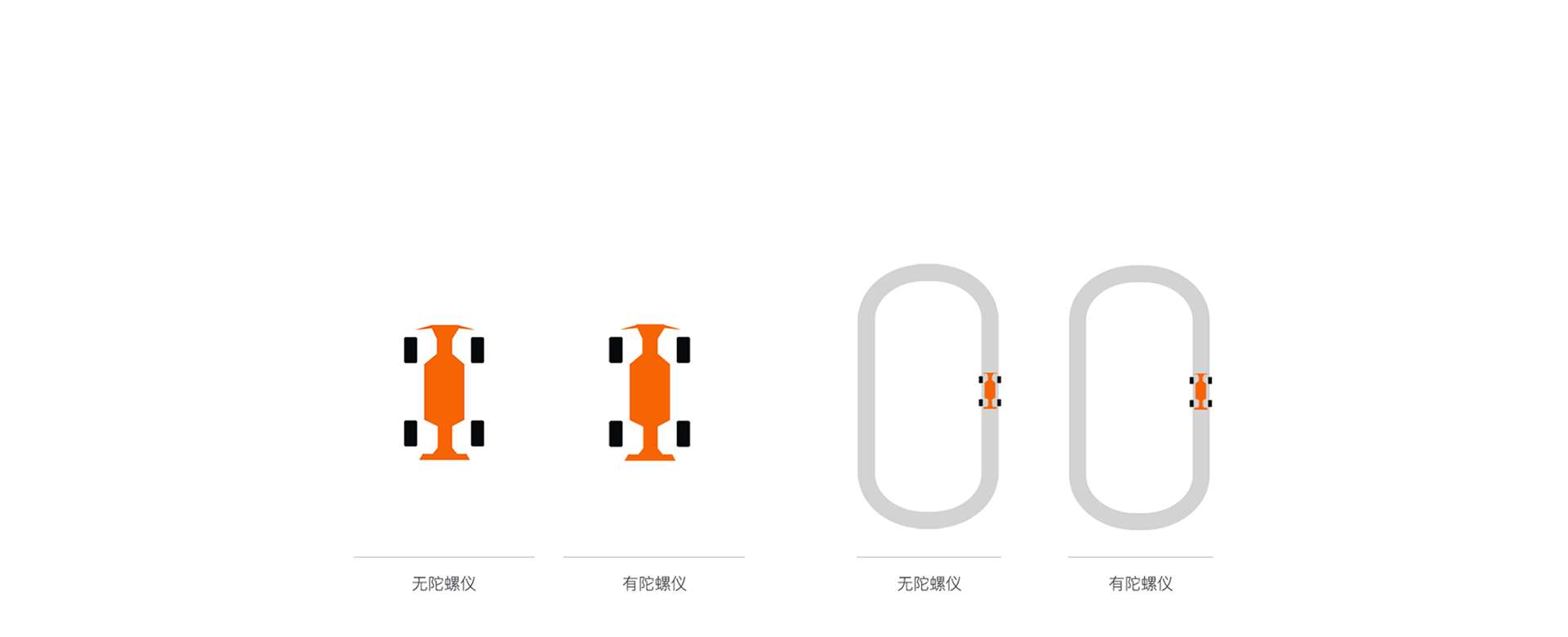

Receiver with Gyro Integrated

Standard receiver R7FG packed is the receiver with built-in gyro and supports high voltage servo.

It is anti-slip and keeps the uni-direction. With the integrated gyro in R7FG installed, the vehicle turns more smoothly, and drifting from high speed can be prevented.

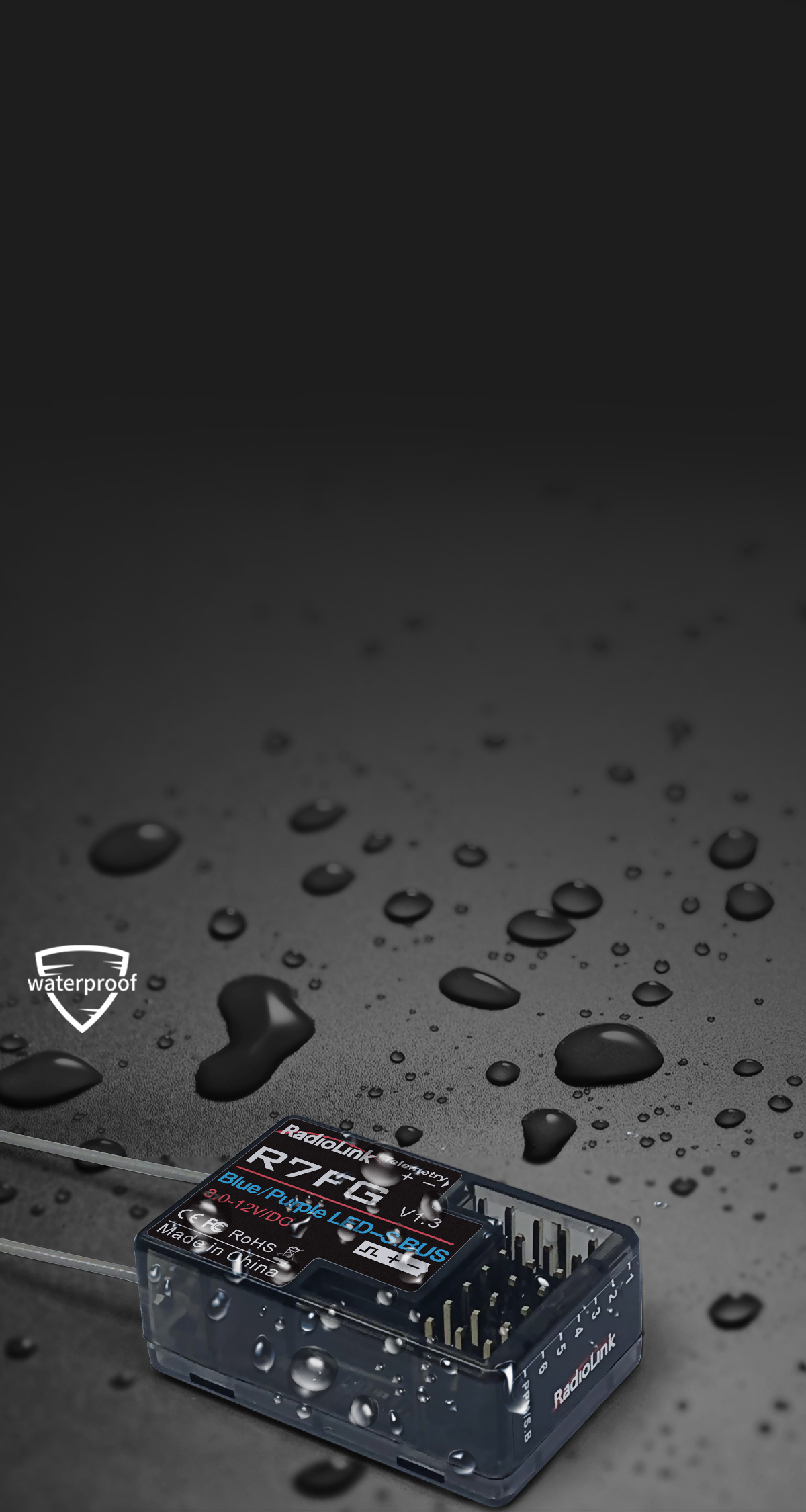

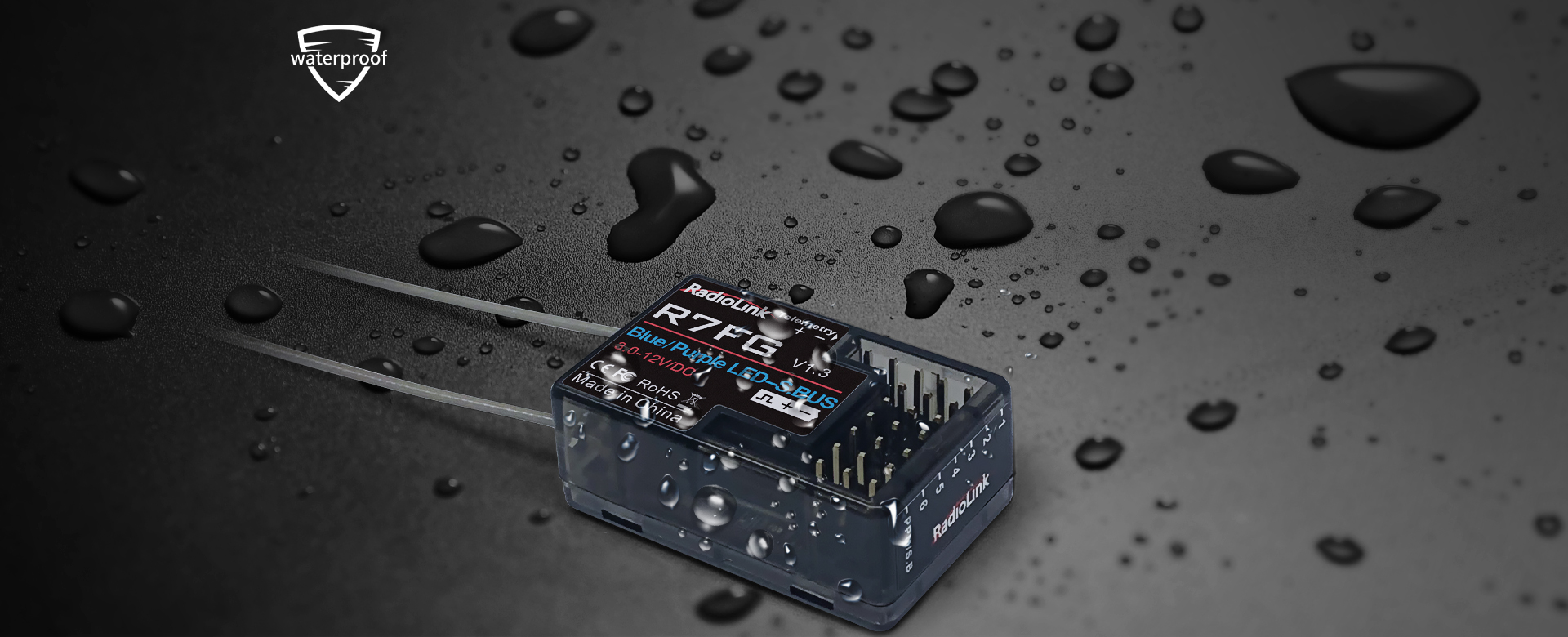

Water Splash Proof (IPX4) for Receiver R7FG

A receiver R7FG will packed with RC6GS V2.

The PCB board and pins of R7FG have the same waterproof treatment as the mobile phone, that is, nano-coating technology treatment and the waterproof grade is IPX4.

IPX4: The IP×× rating standard recommended by the International Electrotechnical Commission (IEC). Both the V1.2 and V1.3 versions of R7FG have been designed as Water Splash Proof (IPX4).

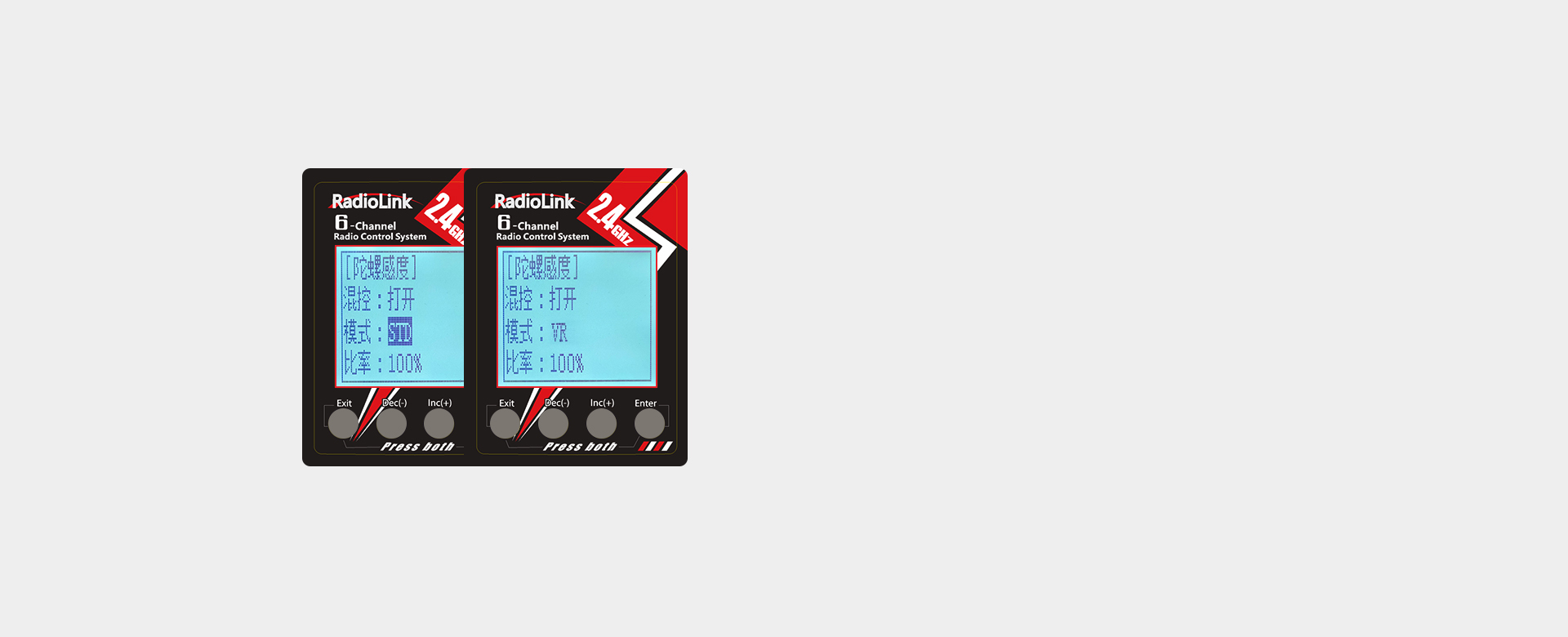

Customizable Gyro Sensitivity

The easy setting ensures better control of gyro stabilization.

Gyro sensitivity can be adjusted by STD or CH3 which is controlled by VR switch by default to maximize or minimize the gyro function.

Performance Upgrade:

Ergonomically Designed for Hours of Fun

Base on the feedback of hundreds of experienced RC racers, we redesigned the throttle trigger, the thickness of the grip, and the location of each switch to achieve a better comfortable driving experience.

Redesigned the Throttle Trigger

Adjustable throttle trigger length and tension, make easy and accurate for throttle adjustment.

Threaded design helps antiskid when the drivers at the long-time practice or in hot weather.

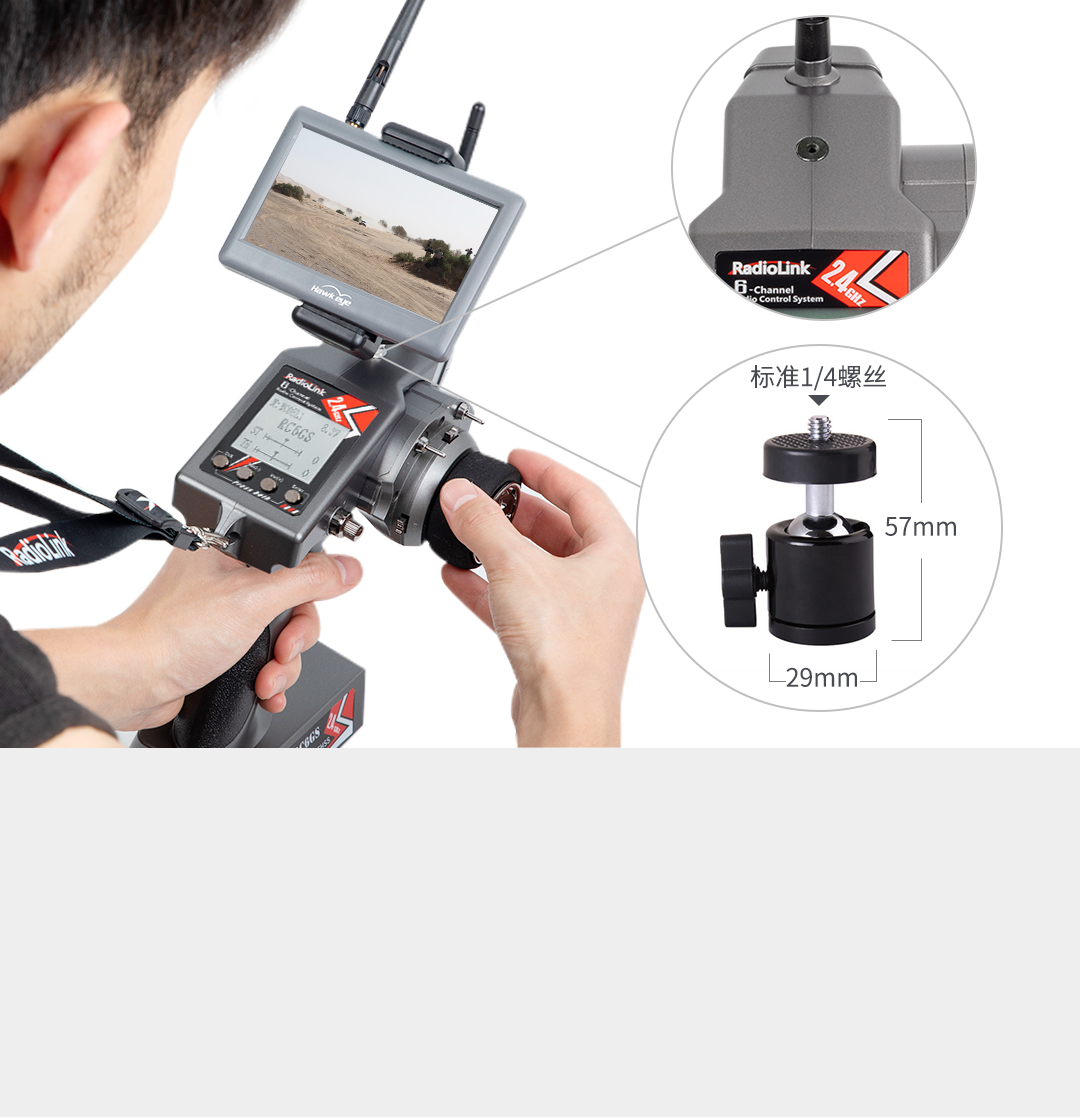

FPV display holder design helps the drivers enjoy the fun of F1.

An aperture of FPV display holder: M6 thread (1/4 thread) (English screw)

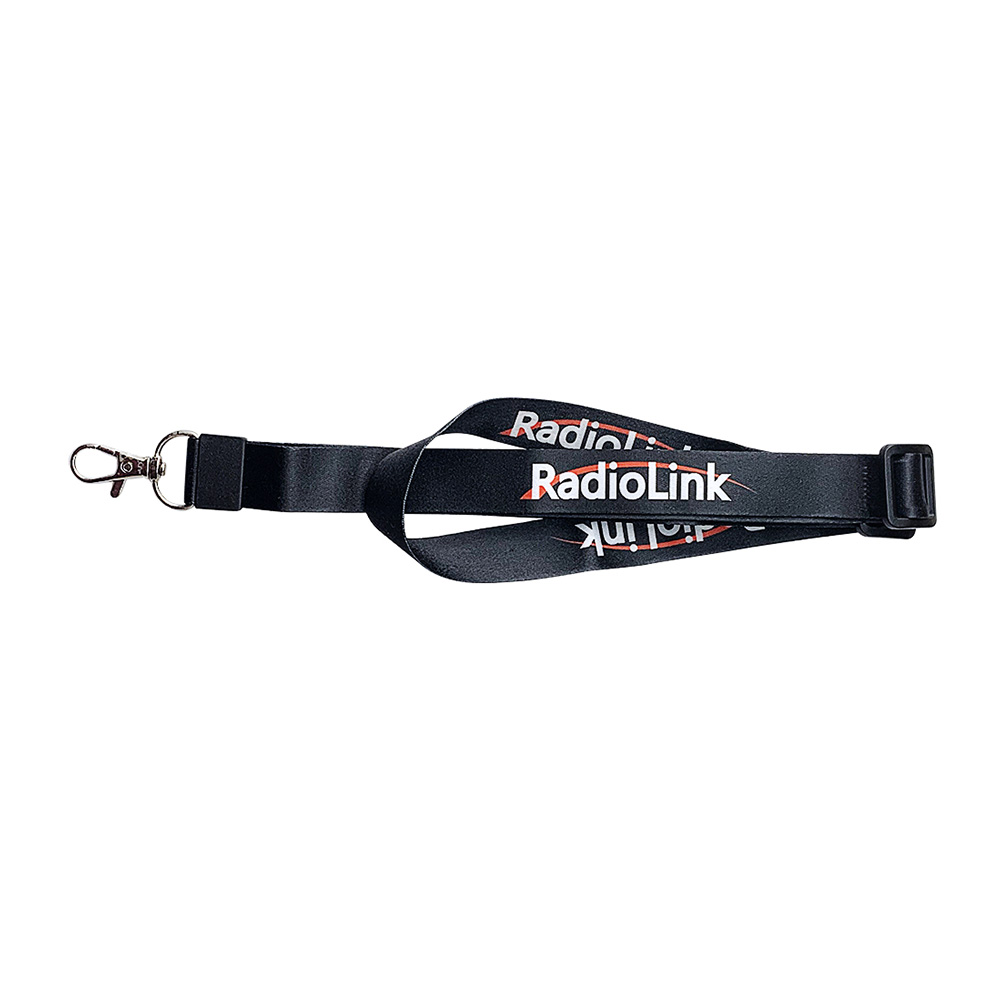

A lanyard (comes with RC6GS V2) to make the suitable weight to highly compatible with drivers control habits make the long drive more pleasant.

User-friendly design for each operation and handling.

Various styles switch for easy recognition and usage.

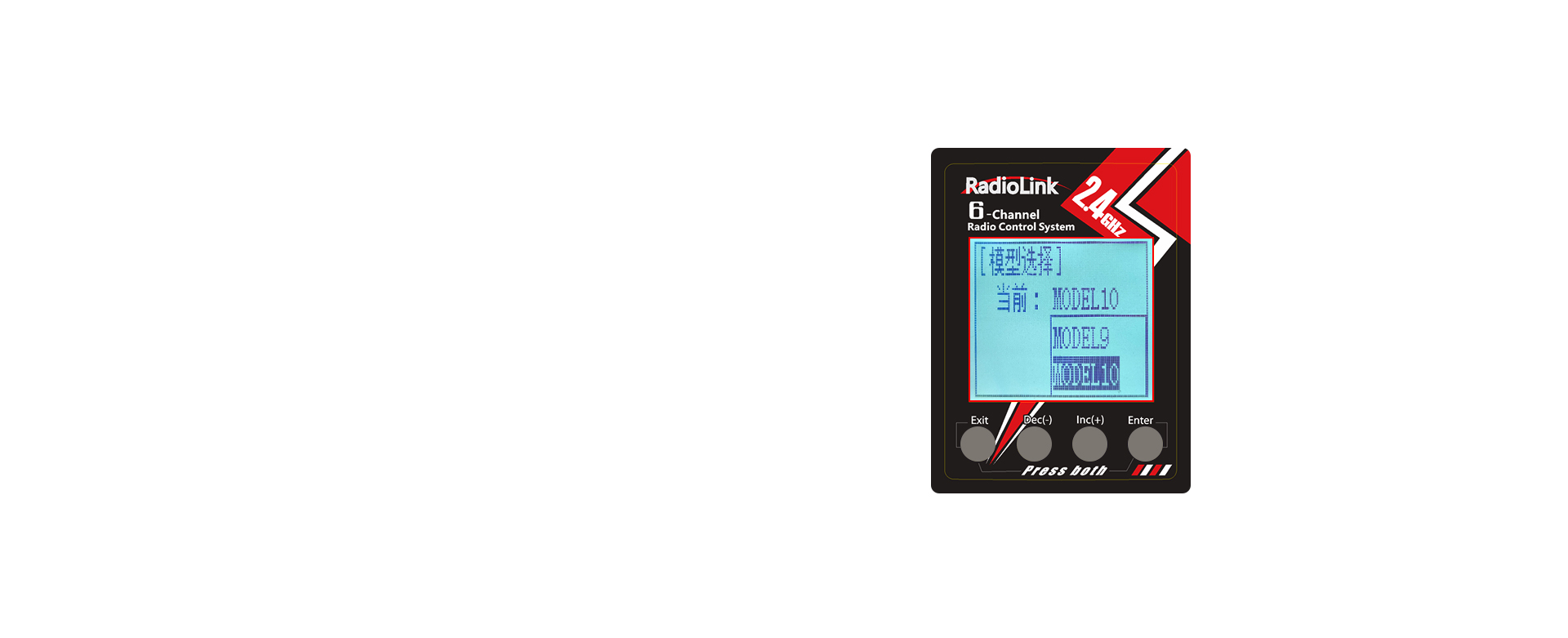

Onboard Memory for 10 Models

RC6GS V2 can keep a maximum of 10 pcs model parameters saved.

Subsidiary ID

RC6GS V2 is capable of an arbitrary ID designation among a maximum of 10 binding receivers, making long-distance rescue of RC cars or boats achievable.

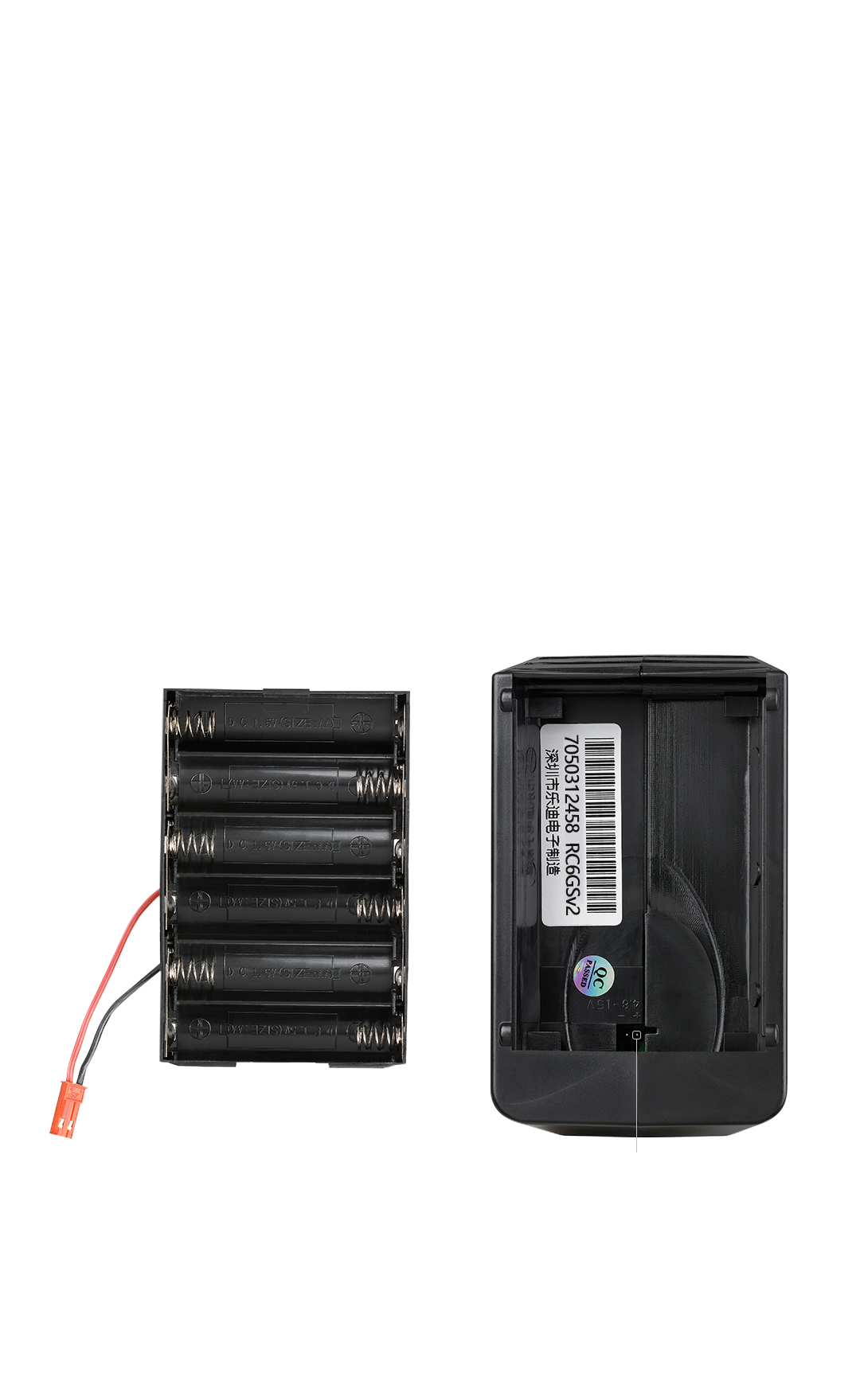

Reverse Polarity Protection Circuit

RC6GS V2 is easily adapted for various battery layouts with wide operating voltage tolerance: 6pcs of AA batteries or 2S-4S LiPo battery.

Universal JST connector with the voltage protection software of Radiolink ensures vital components are protected from a reverse polarity connection.

Dimension of battery case:

89*59*25mm (3.5” *2.32” *0.98”)

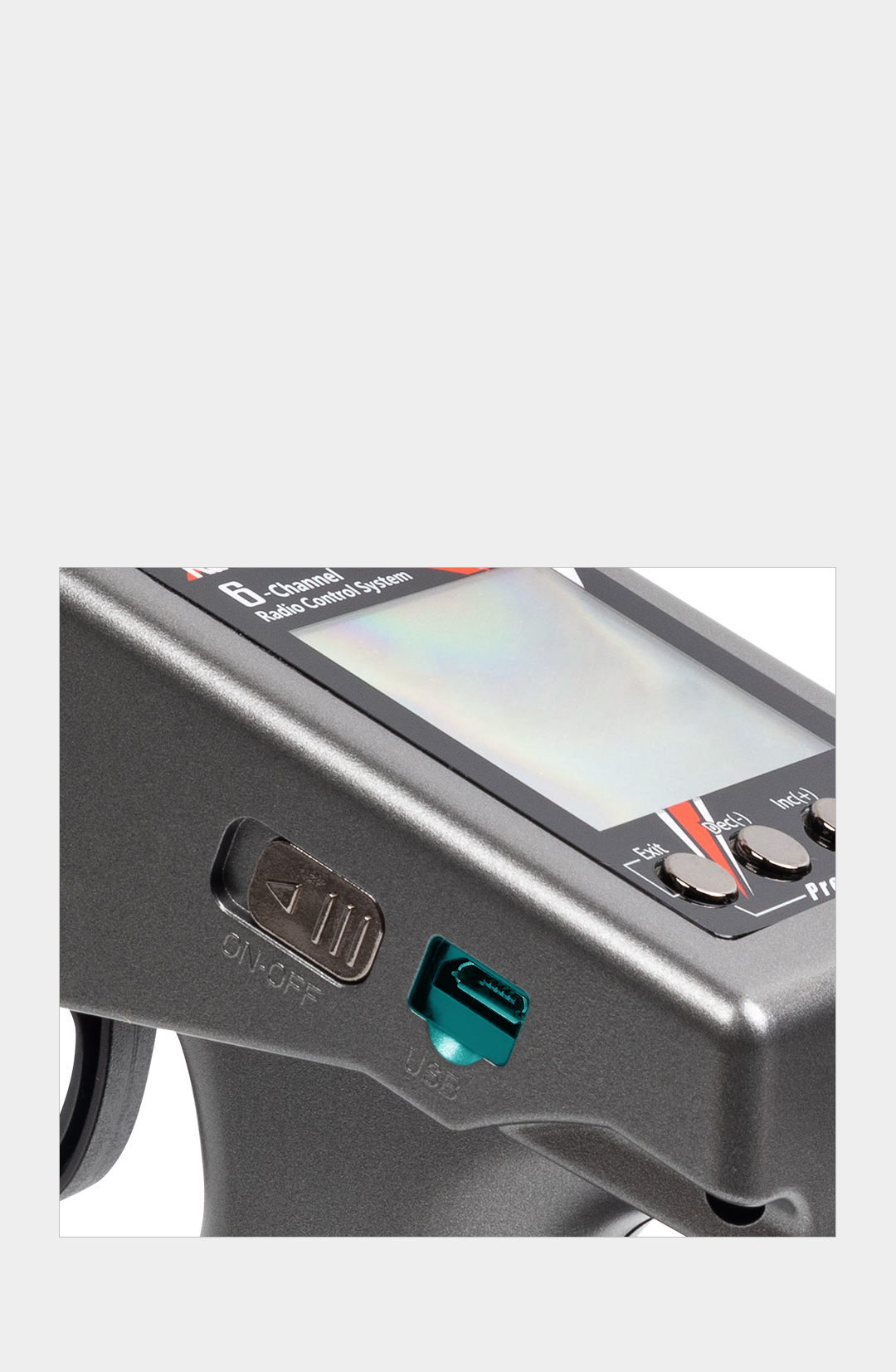

USB Upgrade

The RC6GS V2 is easily updating by the computer via a USB cable.

Intuitive software hint guides you through the process.

Note: The USB port only for upgrade, do not use it to charge.

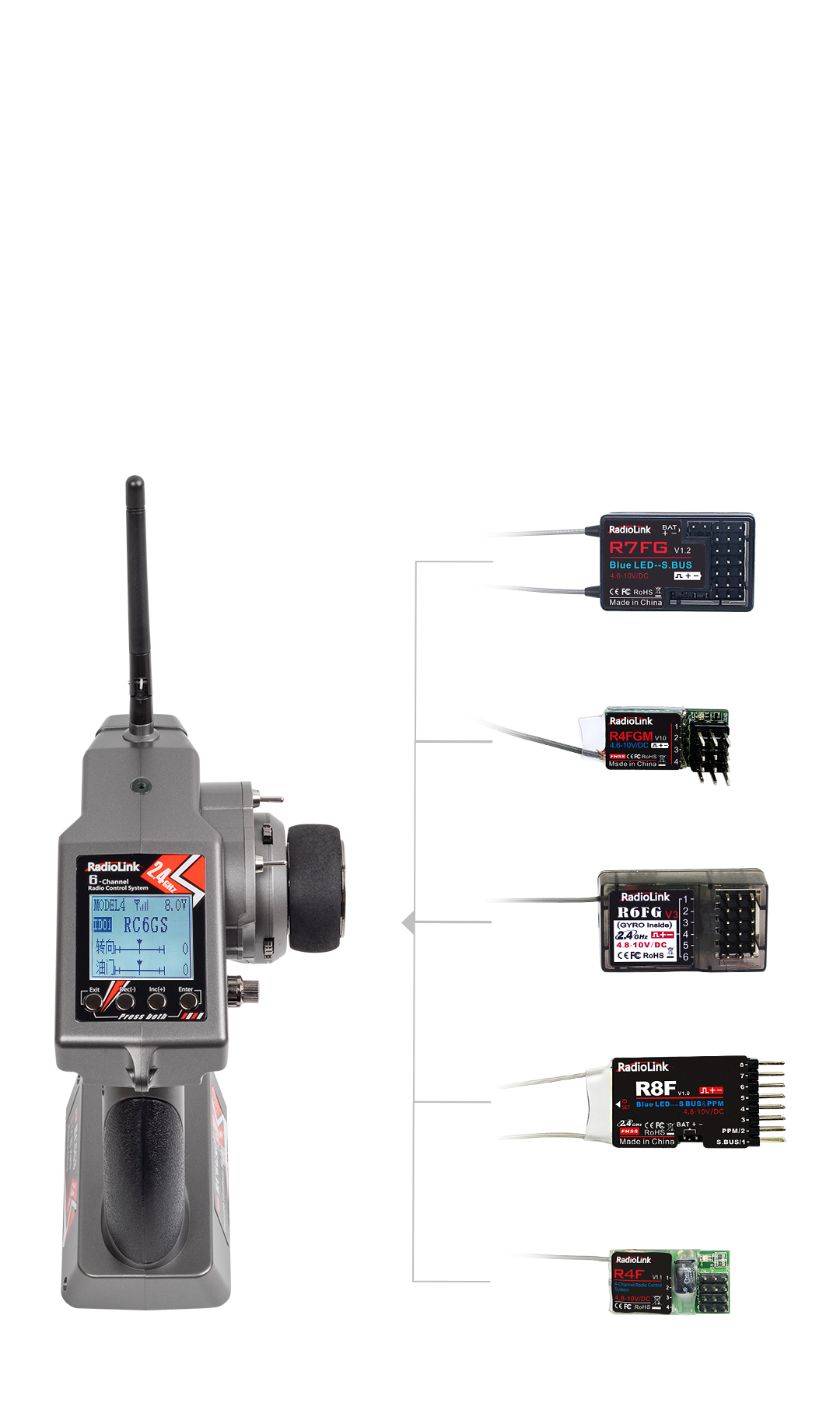

Compatible Receivers

RC6GS V2 is packing with a receiver R7FG.

R7FG is a 7 channels receiver with gyro built-in, high voltage servo support, and model voltage telemetry support.

RC6GS V2 is also compatible with the 4 channels mini receivers R4FGM/R4F designed for Mini RC cars, the 6 channels receivers R6FG/R6F, and the 8 channels long control distance receivers R8EF/R8F, which designed for RC boats.

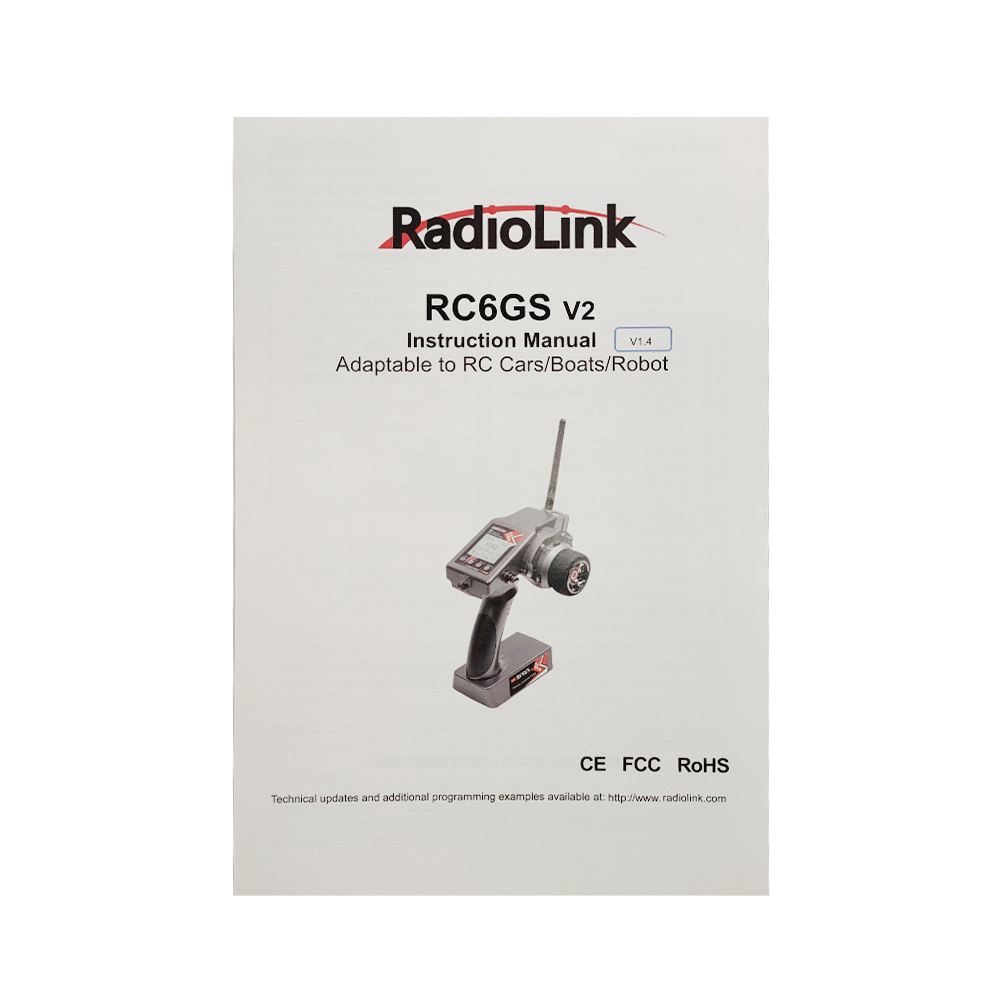

RC6GS V2 Package List
