RC8X 8 channels transmitter for cars and boats

RC8X

8 Channels with Full Color IPS Touch Screen

Applications In All One

More than Expectations

User-defined

Voice

Broadcast Pack

4.3 Inches Full

Color IPS

Touch Screen

8 Channels

for Multiple Types

of Models

600 Meters

Ground Control

Distance

200 Groups

Models Storage

16 Models

Subsidiary

ID Storage

8 Groups

Programmable

Mix Control

3ms

Response Latency

Breakthrough Communication Technology

Pseudo-Random Frequency

Hopping Technology

The tried-and-tested remote control with non-interference communication technology has been favored by many enterprises such as Xiaomi CyberDog, Dongfeng Motor Corporation, WULING Motor (SGMW), UBTECH, MUYUAN Food, OceanAlpha, etc. RadioLink transmitters become the main remote-control equipment in the fields of agriculture, industry, security, and education.

Open the Era of Model Remote Control Smart Machine

In terms of hardware, it has broken through the traditional MCU (microprocessor cortex- M) architecture of the remote control and adopts the application-level CPU (cortex-A) architecture that supports Linux (android). In terms of software, the general but non-real-time Linux system on the CPU architecture is abandoned, and it is challenging to adopt an efficient RTOS real-time operating system to achieve the perfect combination of multimedia interaction and real-time control.

Scary Faster

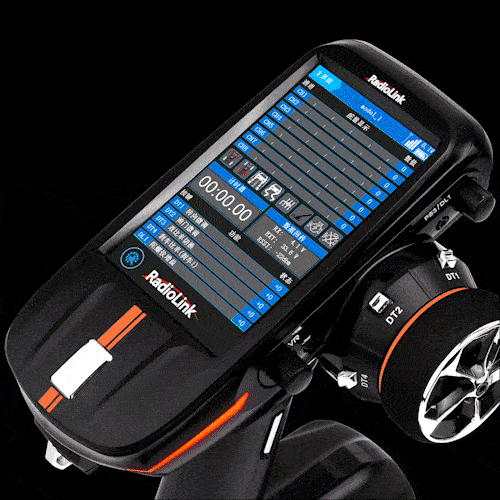

RC8X has 4.3 inches, 800*480 full-color, backlit IPS touch screen, and fast scroll without lag. There are zero delays in fast- switching function pages. Mobile phone- level screen refresh experience.

Far More Than Fast

The ultra-narrow screen frame is a challenge

from electronic to mechanical design.

Memory

Expansion

Port(Up to

64GB)

Simulator

FPV Head

Track

TBS Crossfire

Type-C Port

(for Upgrade

or Power

Supply)

3.5 mm

Headphone

Jack

Port for

FPV Display

Holder

Expanse the Screen to

FPV Screen and

Parameters Set Screen

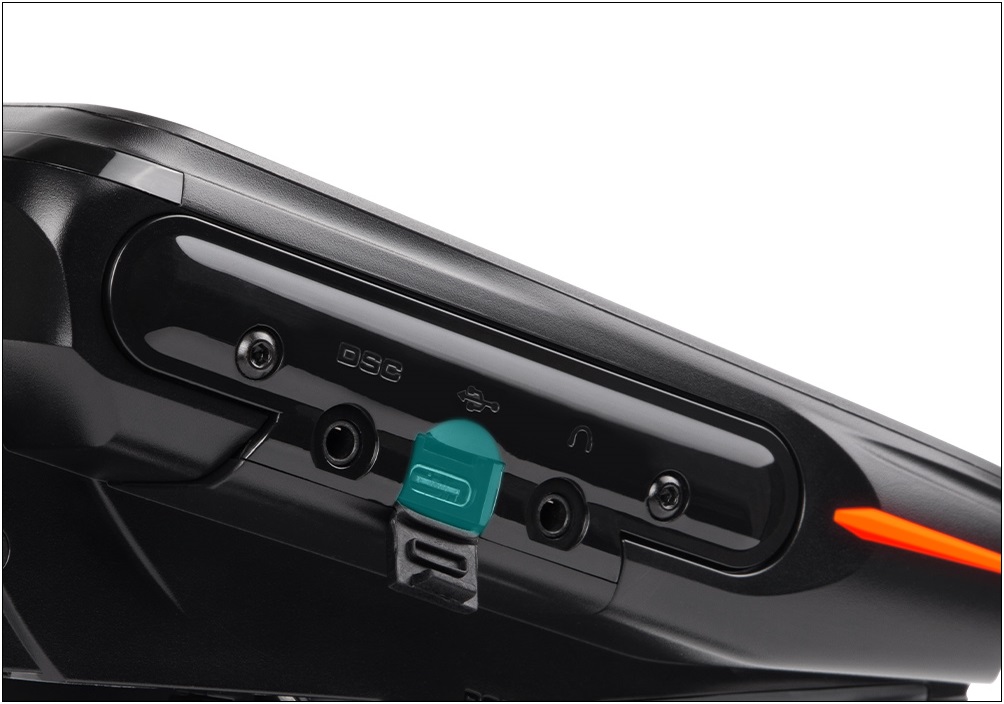

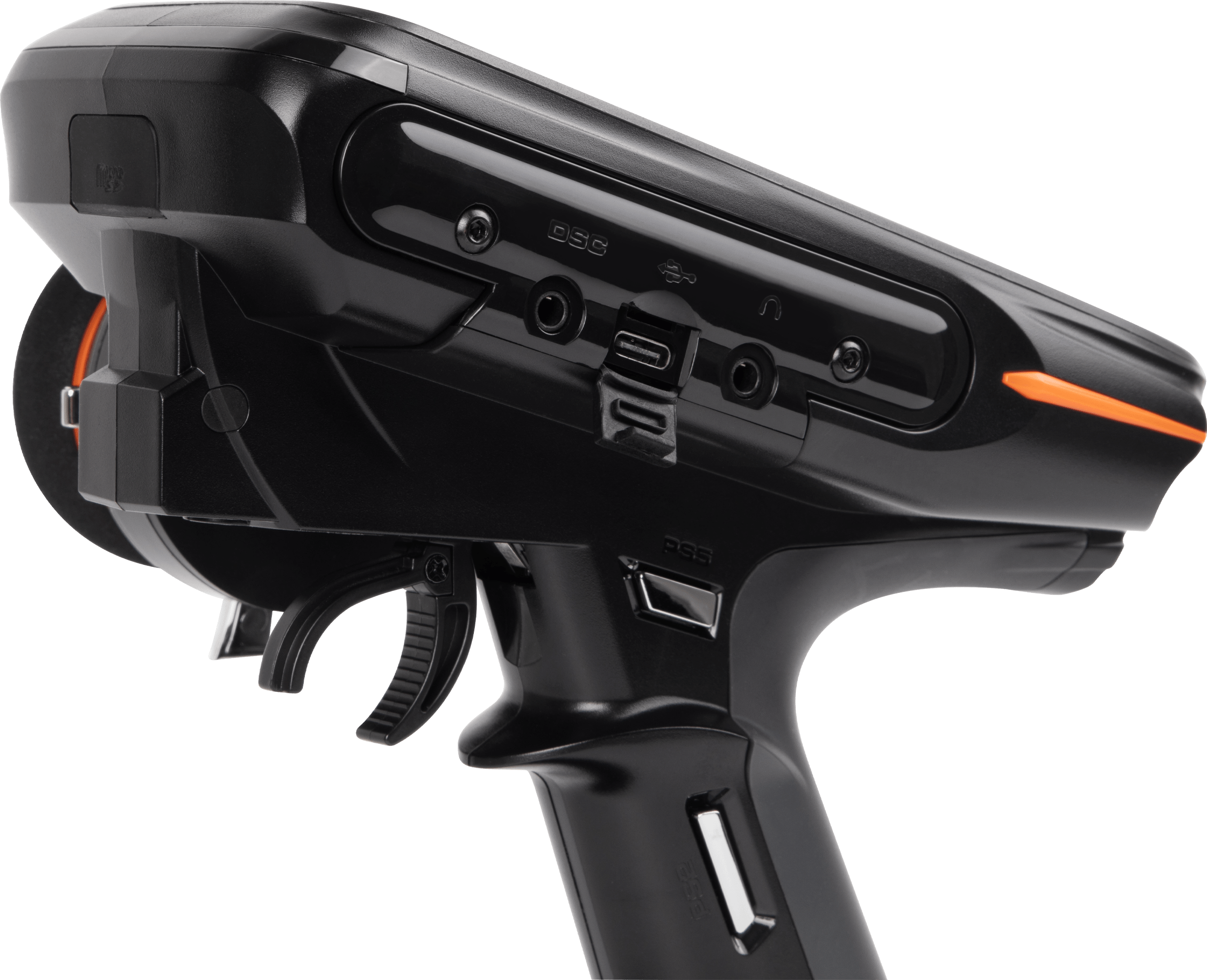

Rich Audio and Video Interfaces

Get More Variety Fun

The DSC port of RC8X can be set as the Simulator Function (support VRC Pro, CarX, Assetto Corsa Competizione, etc. simulators), you can also have a wonderful online showdown with friends at home in isolation, not boring at home. The DSC port of RC8X can be set as the FPV Head Track Function (3-axis or 2-axis track can be selected) to fully enjoy the funny of First-Person View of racing or crawling.

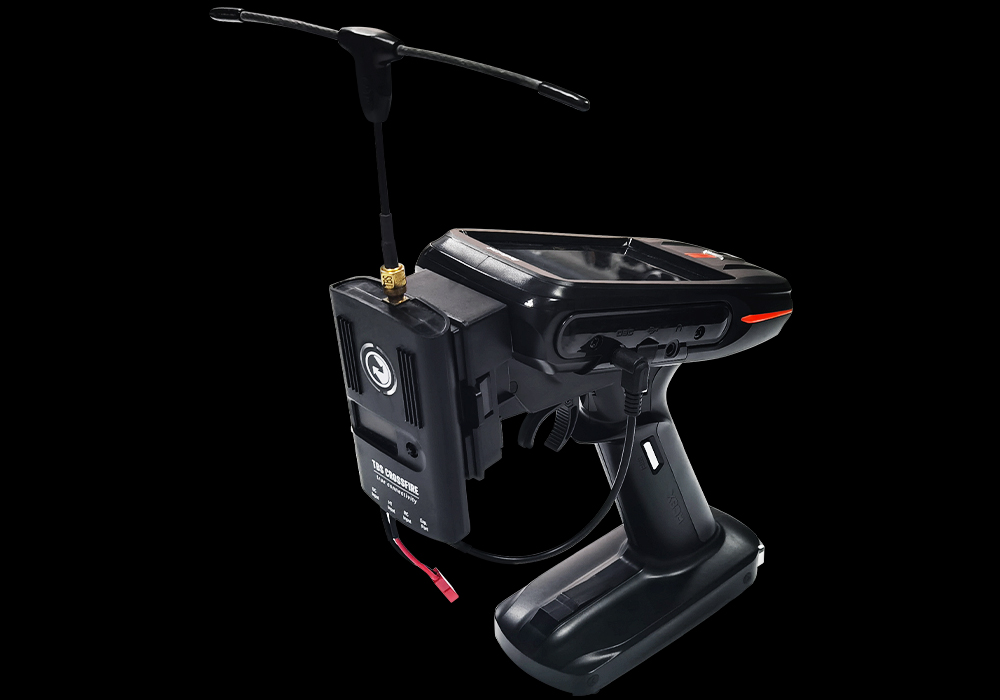

The DSC port of RC8X can be set as the TBS Crossfire Function, which greatly increases the remote-control distance in high power mode, and remote fun off-road is not a problem.

Simulator Function

Headphone Mode

TBS Crossfire Function

600 Meters Ground Control

Distance

With the same FHSS spread spectrum of AT9S Pro and 67 channels, pseudo-random frequency hopping makes RC8X have the superior anti-interference ability both at the same frequency band and different frequency bands. RC8X achieves an excellent user experience even if you are crawling, bashing, or boating in harsh conditions. The surface control distance is up to 600 meters.

3ms* Response

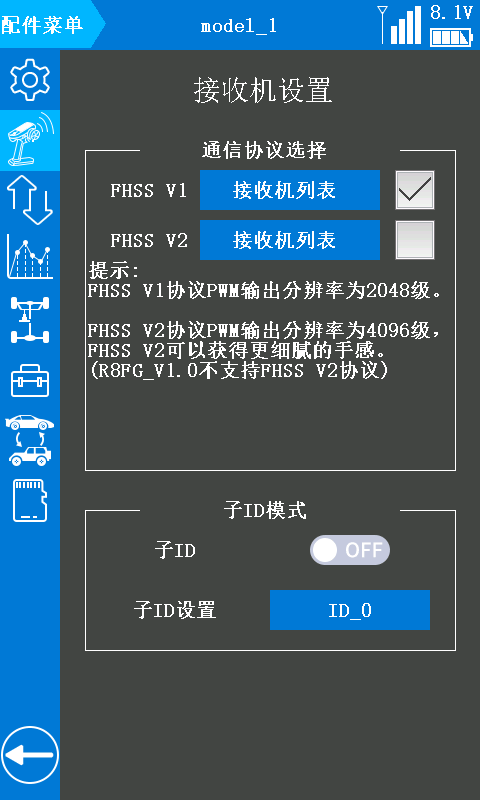

Servo speed can be selected from 14ms, 4ms, and 3ms. 14ms is suggested selected if connect with the analog servo while 4ms or 3ms is suggested selected if connect with the digital servo.

*Attention: It is necessary to update the firmware of RC8X to V1.1.5 or above, and then select FHSS V2 protocol to display this option. And make sure the R8FG is with the V2.1 tags.

FPV Head Track Function

Applications As You Wished

Imagination is Endless, Creativity

is Endless

Setting Menu, font, desktop, system theme, voice broadcast content, voice broadcast form, language, etc. can be customized,

and you can achieve a totally unique 8 channels transmitter without one code to modify.

Channel

Switch

Customization

Theme

Vioce

Customization

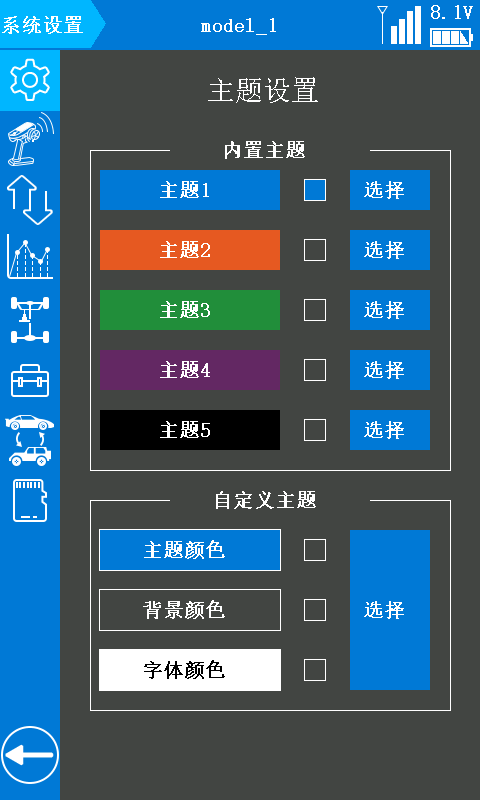

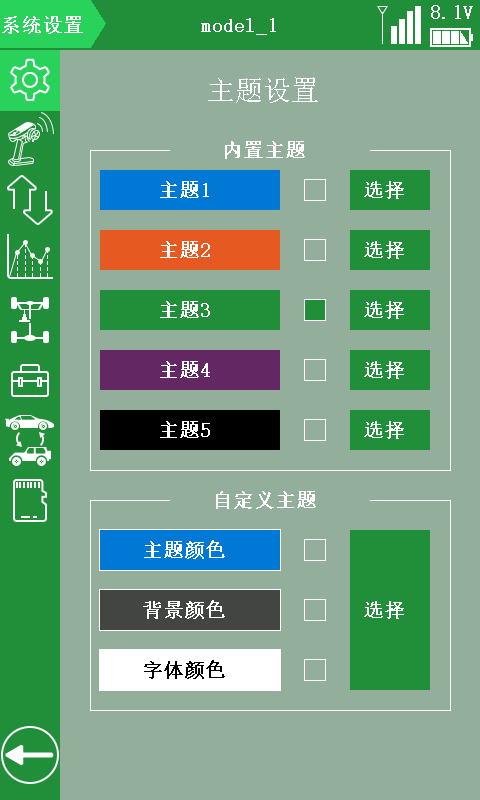

System Theme Customization

Background color, font color, function buttons, etc. can be customized according to your own preferences. You can

have a unique remote control without changing any code.

Voice Customization

Use conditional custom voice broadcast instead of fixed voice broadcast to make voice broadcast meaningful.

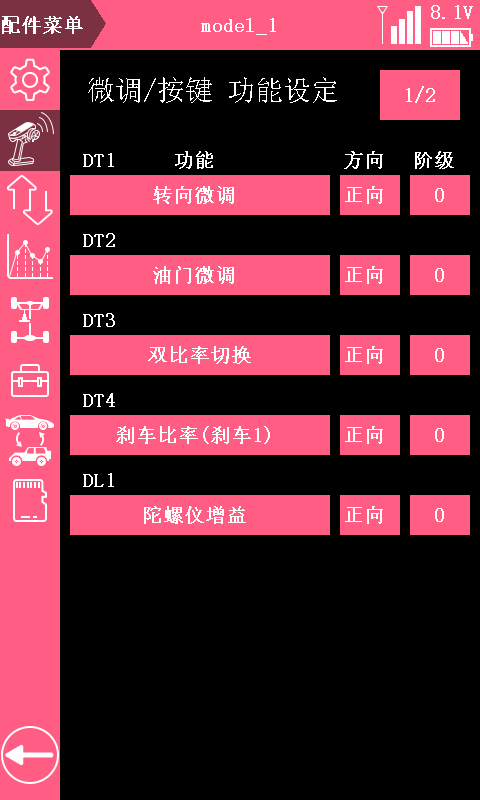

Channel Customization

All eight channels can be set functions that you need. You can define the control switch of each channel according to

your own habits, and the function setting is more convenient.

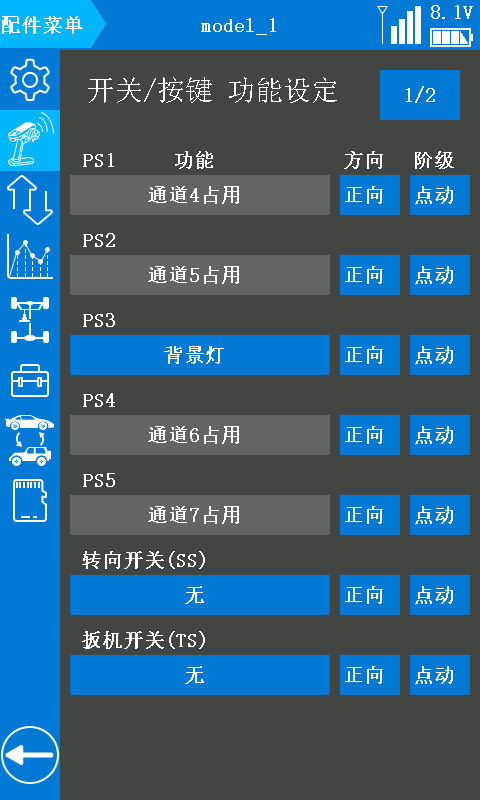

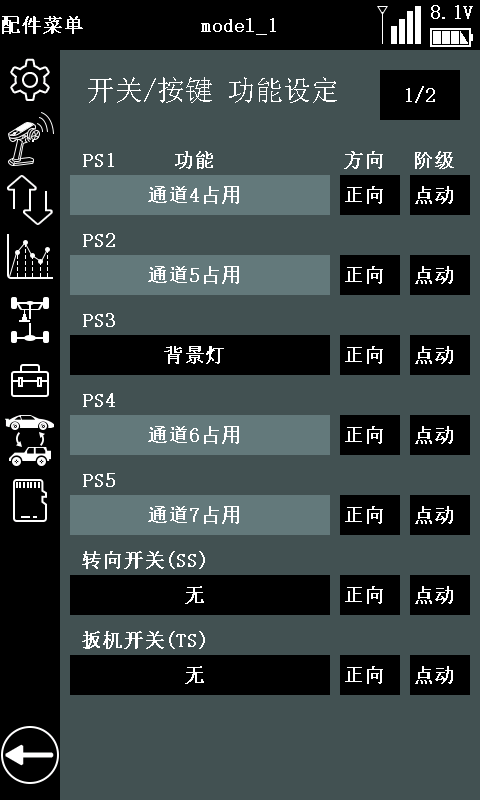

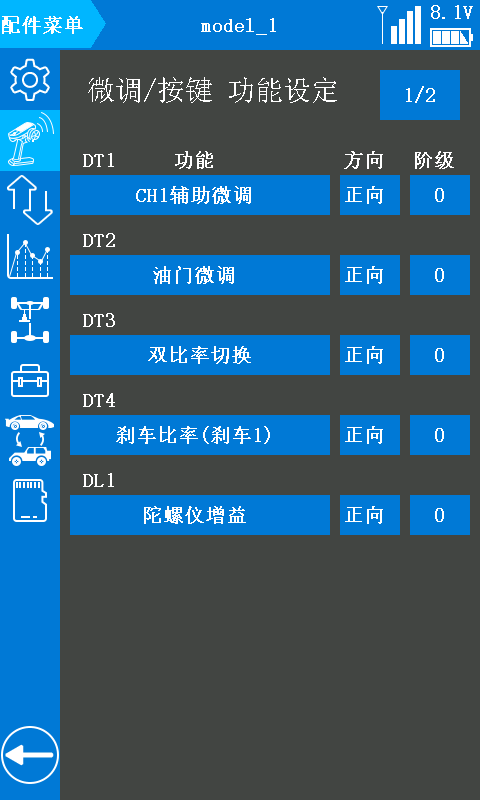

Switch Customization

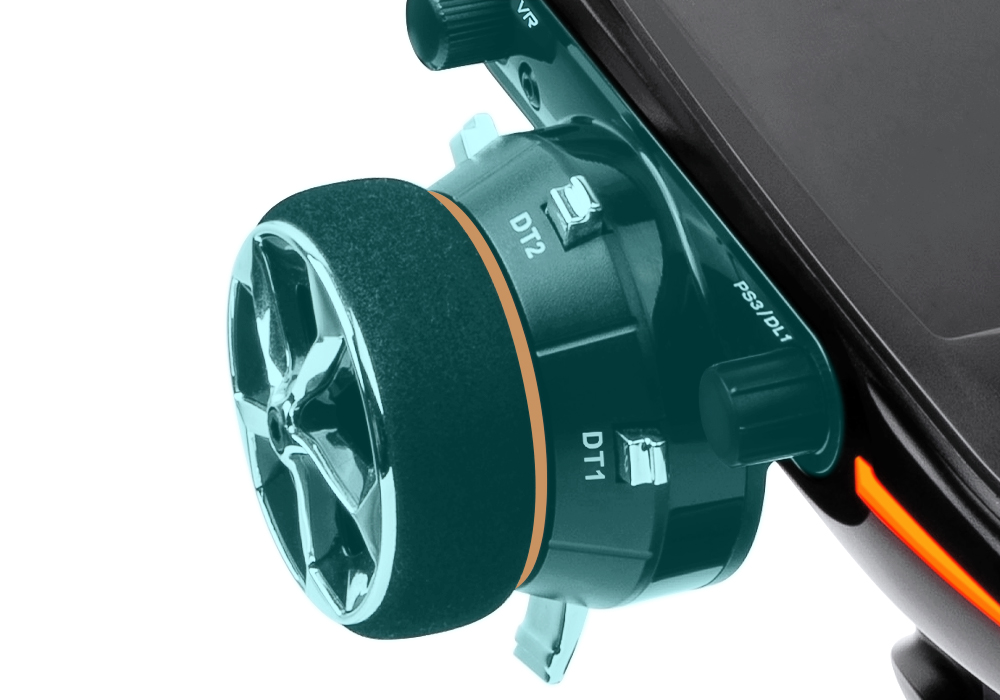

Steering wheel, trigger, 2 knob switches, 3 key switches, 4 fine-tuning buttons, 1 coding switch. It can be set as a

function shortcut button according to the needs, and the function can be switched at will.

RC8X Home Screen Wallpaper Can Be Customized

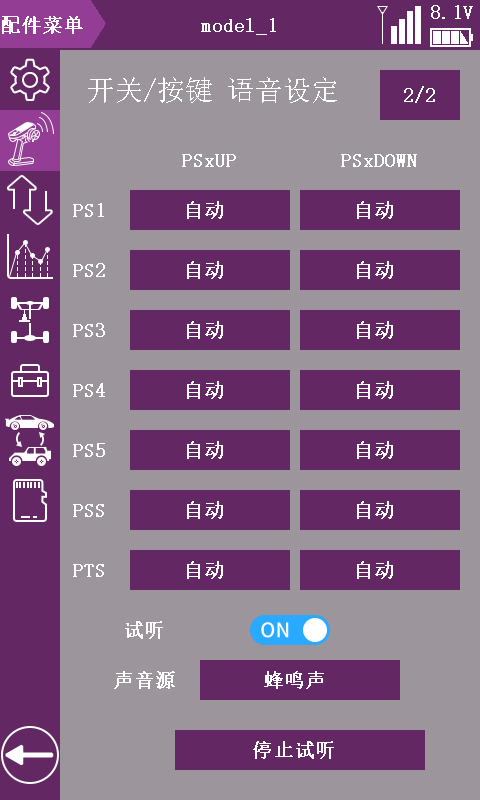

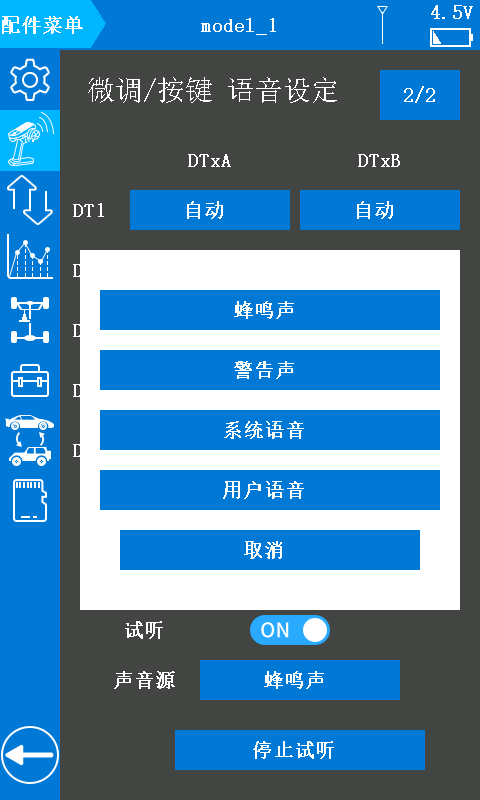

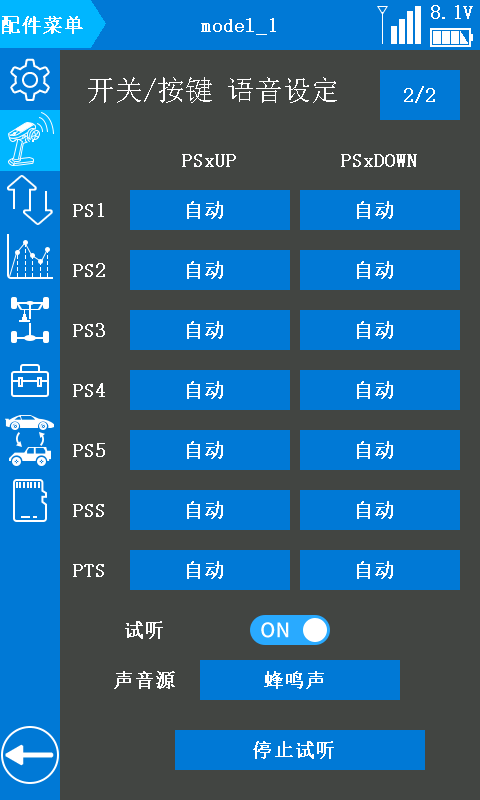

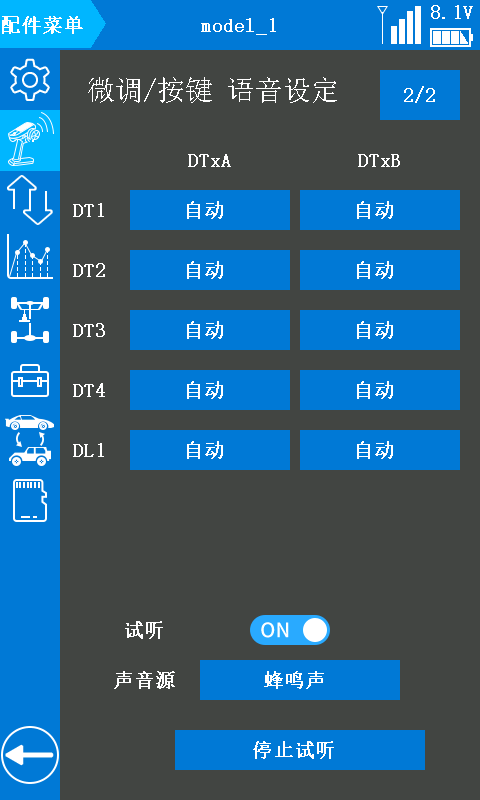

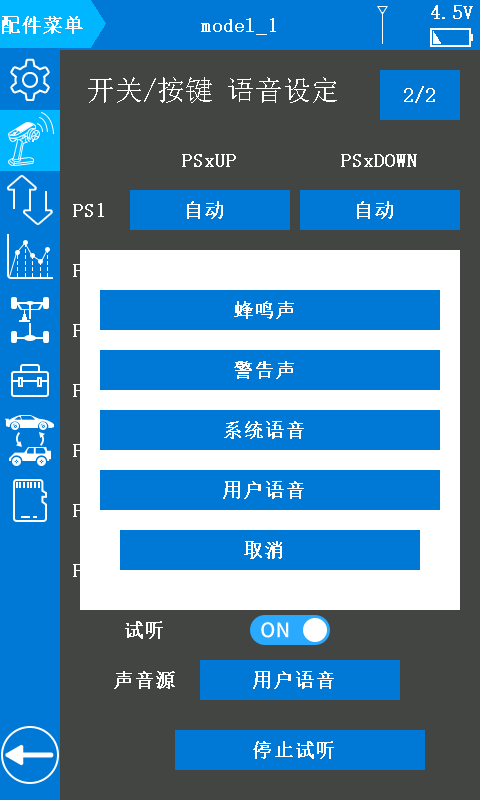

Voice Broadcast Customization

Not Only Can be Heard

But Also Sound Great

Low transmitter voltage, low receiver voltage, low model battery voltage, low RSSI, and all the operating can set alarm with voice broadcast.

Voice broadcast language, broadcast form, and broadcast content (for example differential lock on, differential lock off, turn on FPV head track function, etc.) can be customization according to actual user needs. In a noisy environment, you can listen to the voice broadcast clearly through the headphone.

In a quiet environment, you can listen to the voice broadcast through the headphone without disturbing others.

* Multi-timbre, broadcast type (sweet, natural, or business atmosphere, etc.),

broadcast intonation, speech speed, volume, dialect, live broadcast, sound great.

* Multi-timbre, broadcast type, broadcast style, broadcast intonation, speech rate, volume, dialect, etc. need to make your own voice packages according toyour own needs.

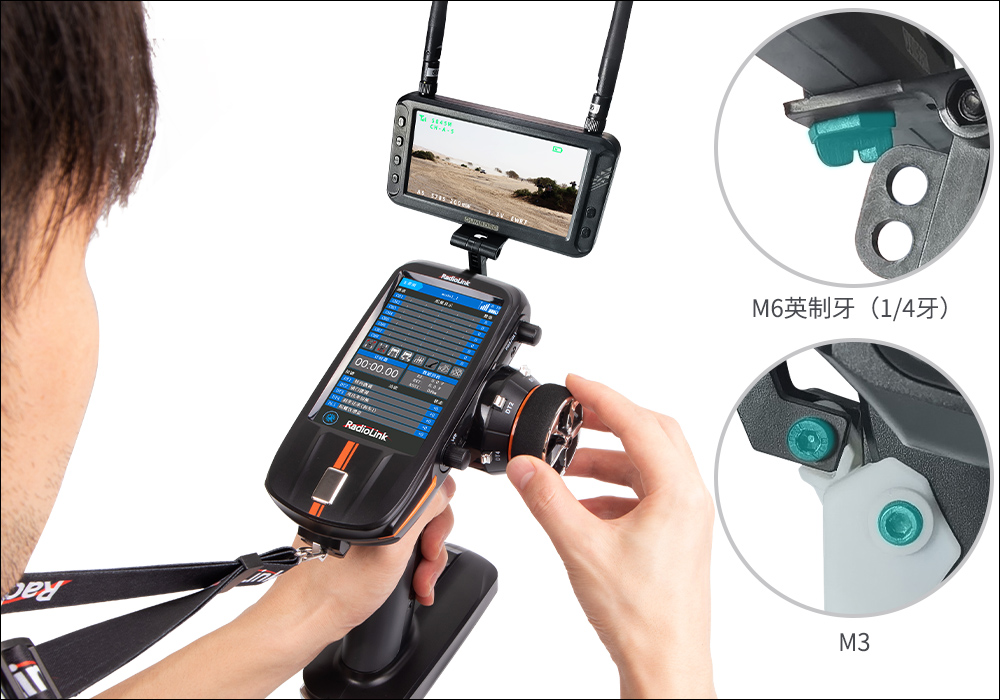

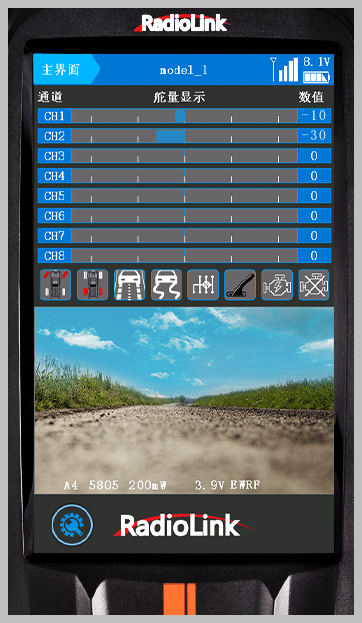

One Screen, Dual Use

It Is Both a Parameter Setup Screen and an FPV Screen

True Immersive Experience

The screen is the default for parameters setup, which has a simple and convenient logical layout, most users even beginners can complete complex programming tasks on the fly. When an external 5.8G receiver module is connected, the upper part of the RC8X screen is still the parameter setup screen,

and the lower part becomes the FPV screen.

5.8G Image Transmission

Receiver

Module

8 Channels for Multiple Types of Models

RC8X is an ideal partner for all types of RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Drag Racing Car, GP RC Car, EP RC Car, Sailboats, Trimaran, Bait Boat, Remote Controlled Lifebu oy, and other types of RC cars or boats.

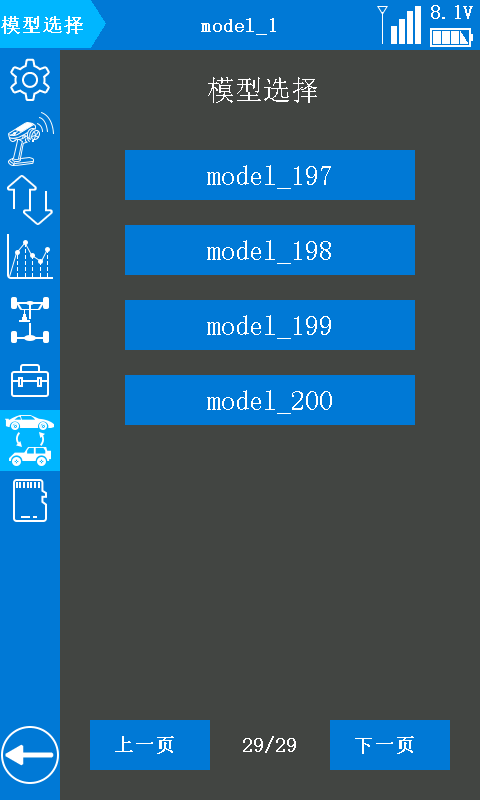

200 Groups of

Models Storage

16 Groups of Models

Subsidiary ID Storage

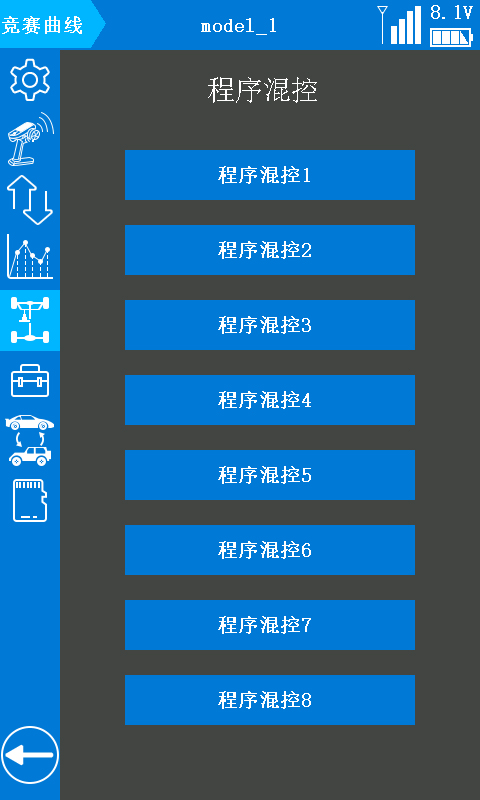

8 Groups of

Programmable Mix Control

Multiple Languages

The optional language menu includes Chinese, English, Japanese, Spanish, German, Russian, French, Korean, and Polish.Also, the voice broadcast can be customed with multiple languages.

The firmware for multiple languages can be downloaded here: https://www.radiolink.com/rc8x_firmware

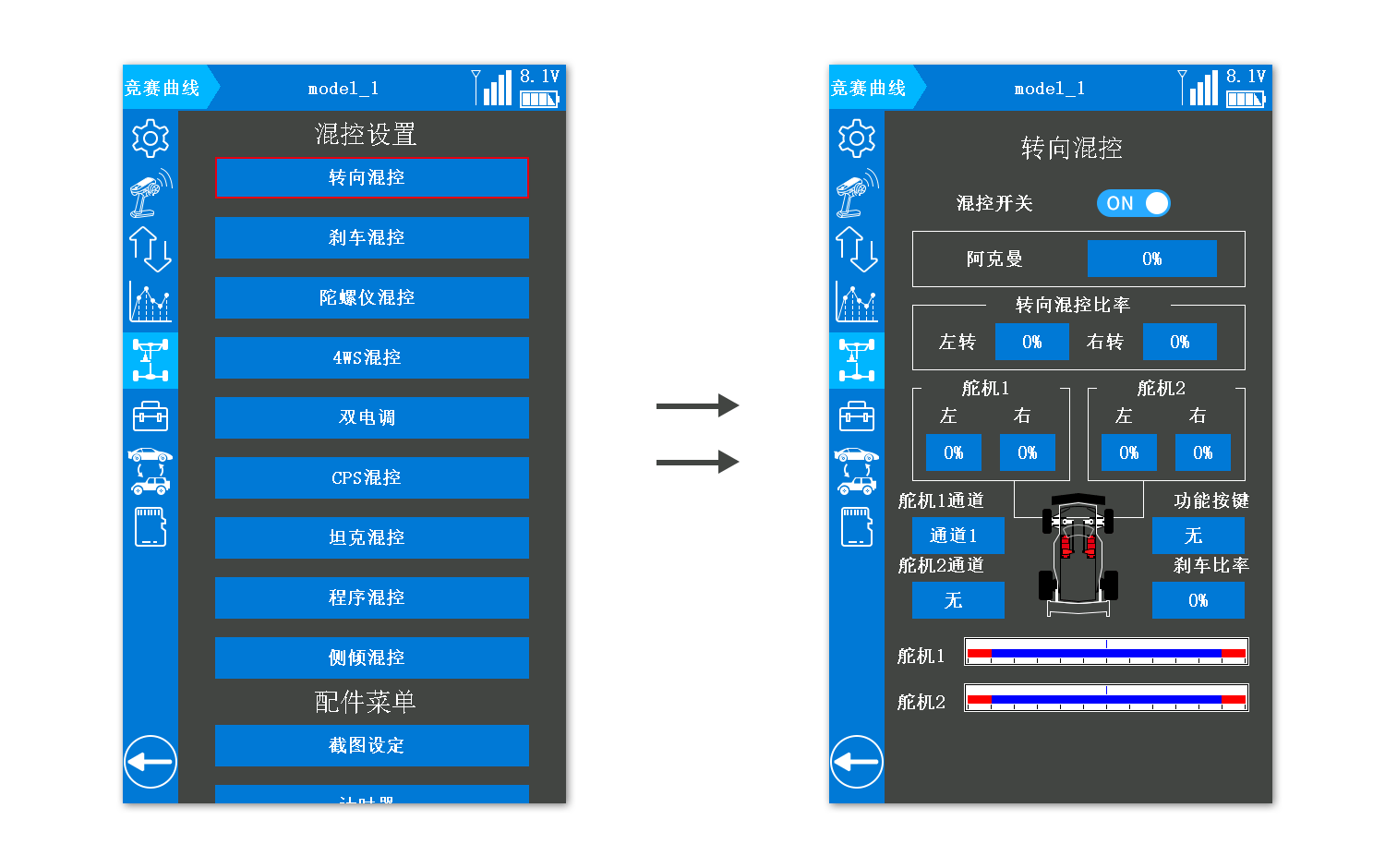

Multiple Mix Control such as 4WS

Parameters Easily to Set

4WS mixing is designed for crawlers, timber trucks, and other 4WS-type vehicles. Brake mixing makes the front and rear wheels of 1/5 gas power cars and other large cars can be adjusted independently. Tank mixing is designed for the dual engine intended for vehicles such as tanks. Tilt mixing is designed for boats, easy to set the parameters and fully enjoy the boating.

The new way to play RC cars, the party will not be left behind

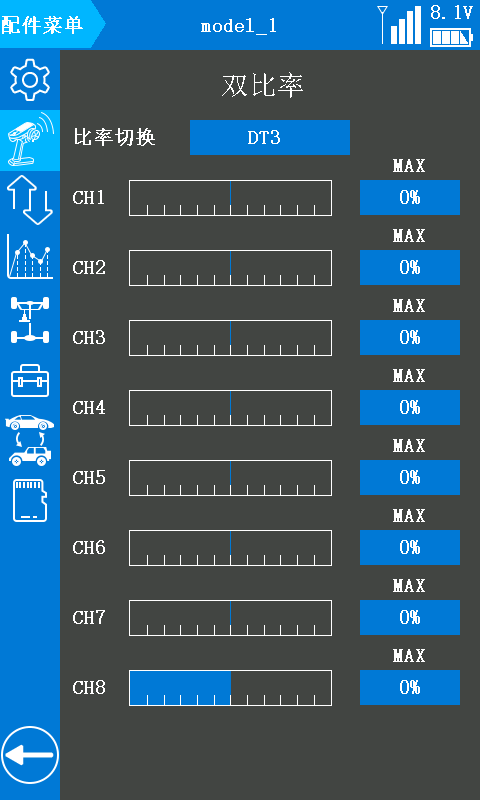

A Switch Can Be Set to Active D/R

Indulge in Parent-child Time and Entertainment

A switch/button can be set to operate D/R during the maneuvering of the car. During the weekend, before the father brings his son and daughter to have an RC car teaching, the driving parameters can be preset according to their own feel and control proficiency. Drivers can quickly switch D/R during the teaching process to make which better suits the control of adults and children. Enjoying the parent-child time, leisure, and entertainment at the same time.

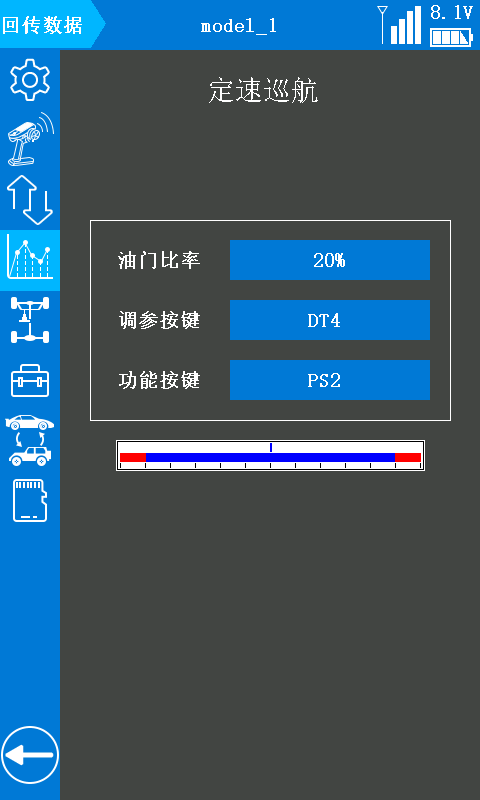

Cruise Control System

The crawler is difficult in controlling the throttle on the

downhill slope, the cruise control system of RC8X helps the

driver easily set the optimal throttle volume for the RC

crawler car.

Real-time Built-In Telemetry

of Model Battery Voltage

Telemetry is capable of RSSI, receiver, and model battery voltage. RSSI and receiver voltage data will be displayed once binding is complete. The model voltage will be displayed by connecting the wire to the ESC, battery And, telemetry of the maximum 14S (58.8V) battery supported if bound with R8FGH, telemetry of the maximum 8S (33.6V) battery supported if bound with R7FG, R8FG.

Receiver with Gyro Integrated

Customizable Gyro Sensitivity

Standard reeiver R8FG packed is the receiver with built-in gyro and supports high voltage servo. It is anti-slip and keeps the uni-direction. With the integrated gyro in R8FG installedc, the vehicle turns more smoothly, and drifting from high speed can be prevented. The easy setting ensures better control of gyro stabilization. Gyro sensitivity can be adjusted by CH8 which is controlled by DL1 switch by default to maximize or minimize the gyro function.

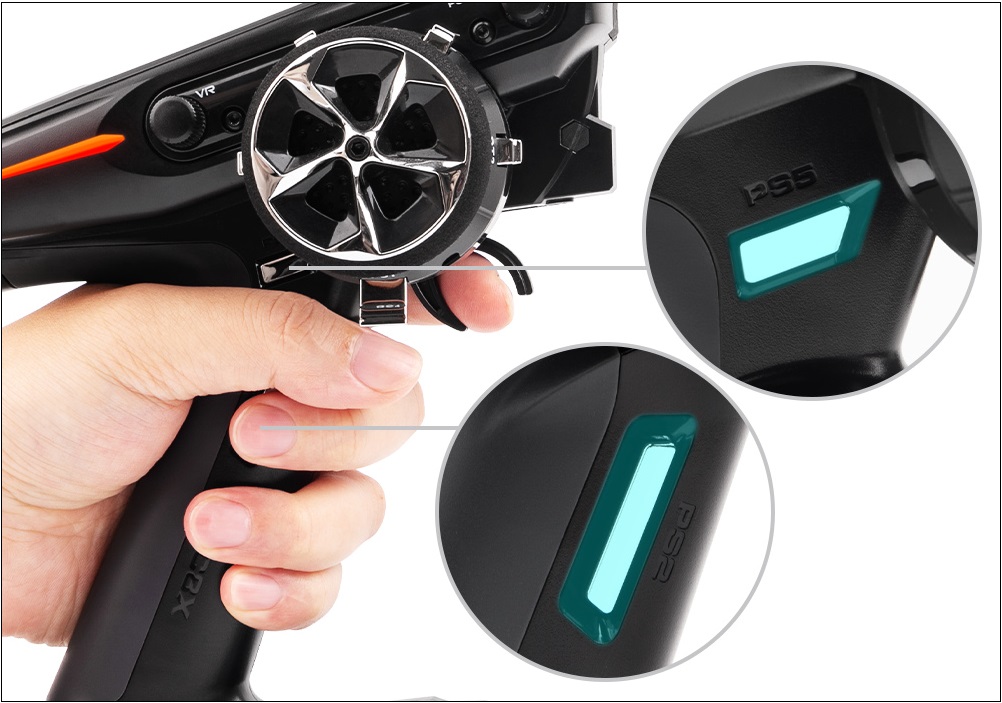

Ergonomically Designed for Hours of Fun

Threaded design helps antiskid when the drivers are at long-time practice or in hot weather.

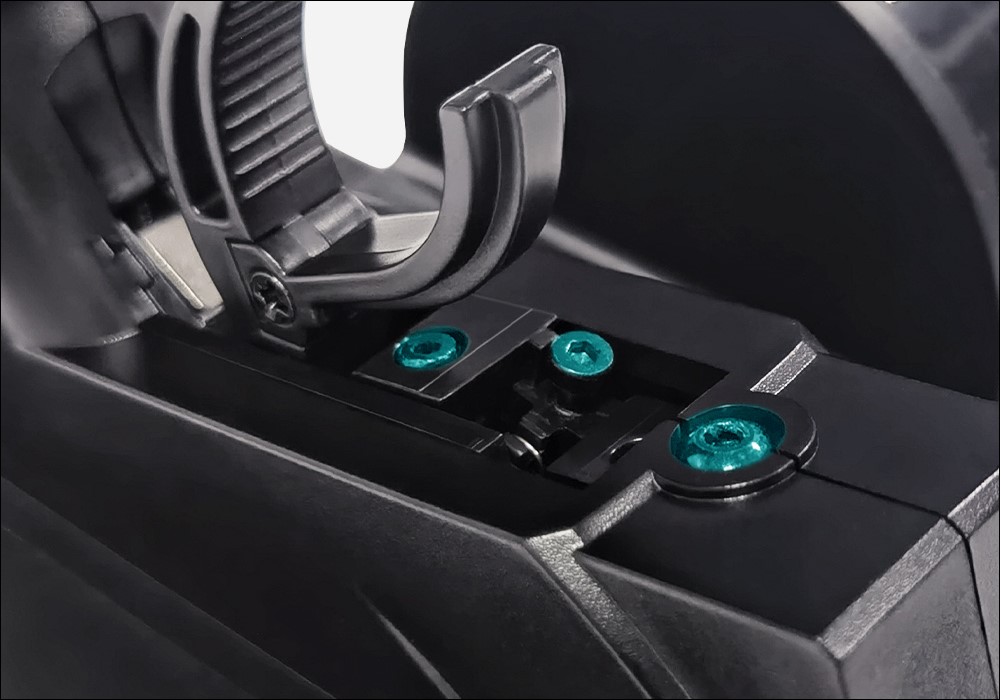

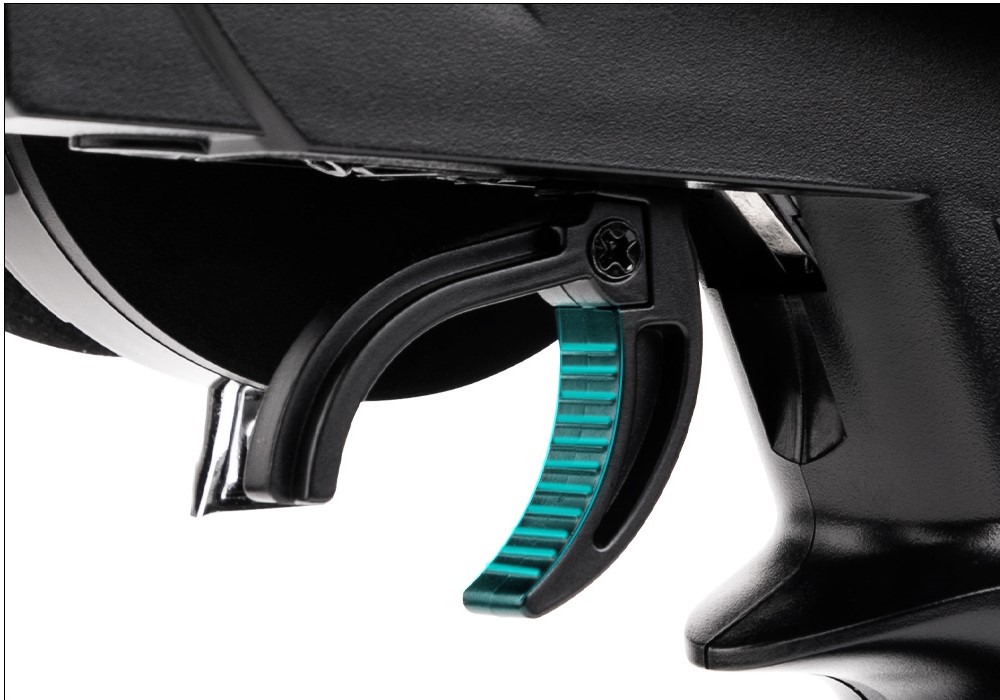

The trigger spring’s tension and trigger slide of

RC8X can be adjusted.

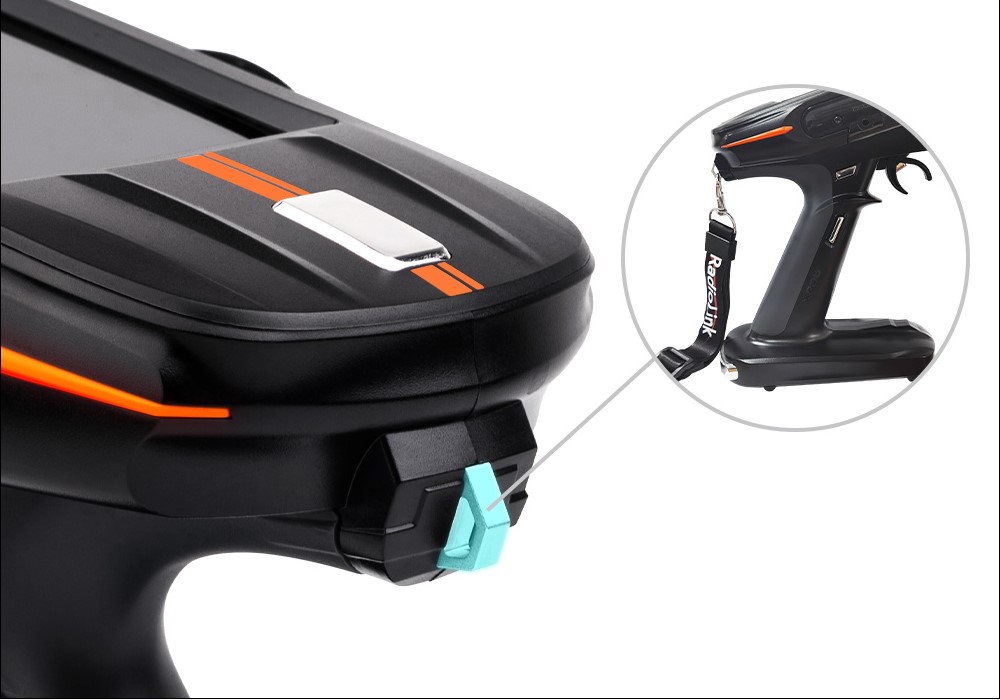

A lanyard

comes with RC8X

Various switch styles for

easy recognition and usage.

FPV display holder design helps the drivers

enjoy the FPV fun of driving

Left-handed

Support

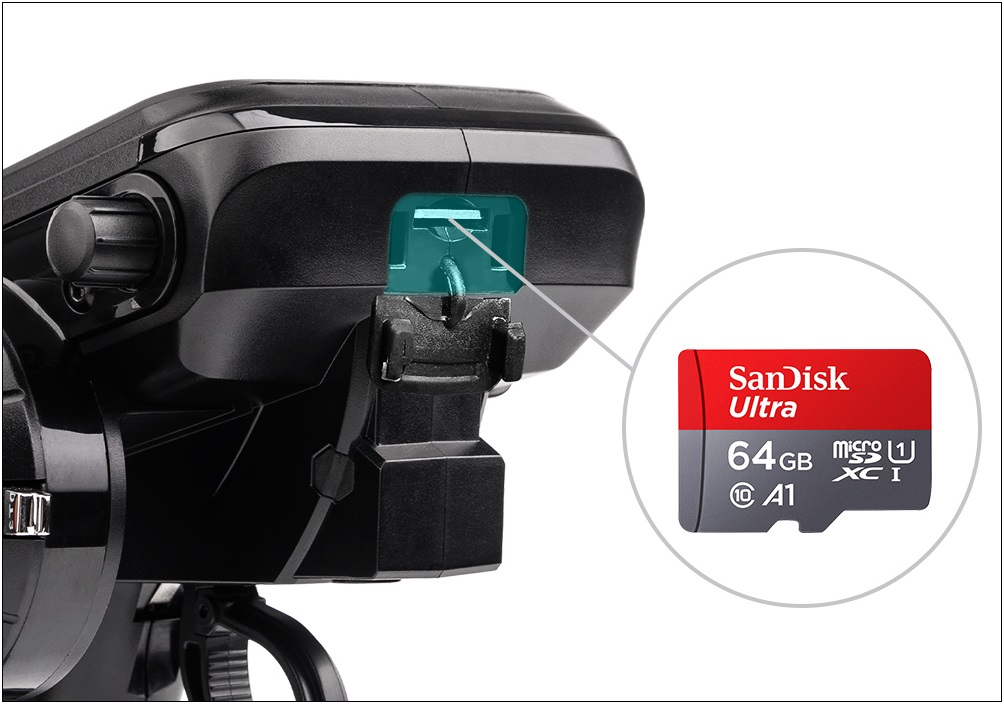

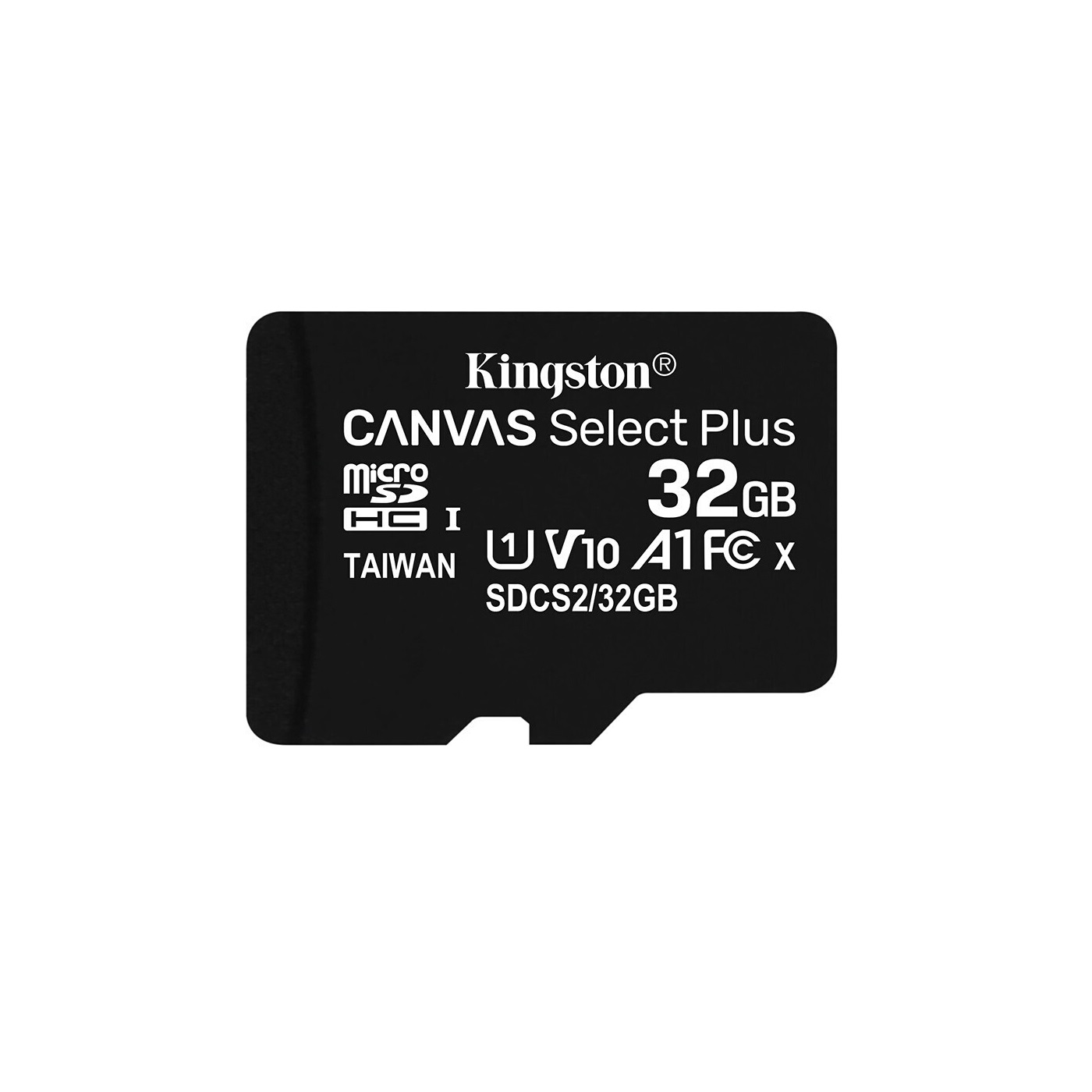

Up to 64GB Memory Expansion

USB(Type-C) Online Upgrade

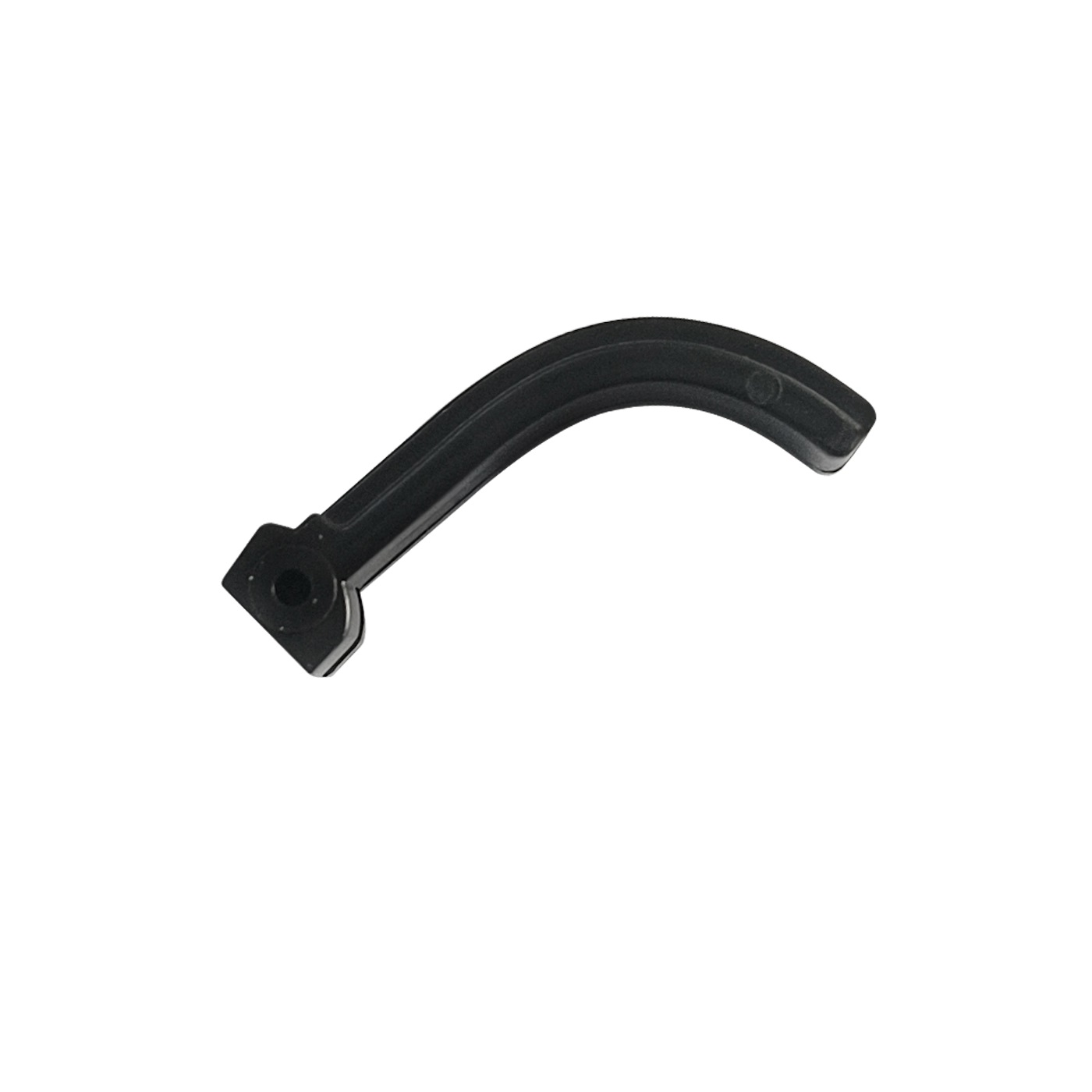

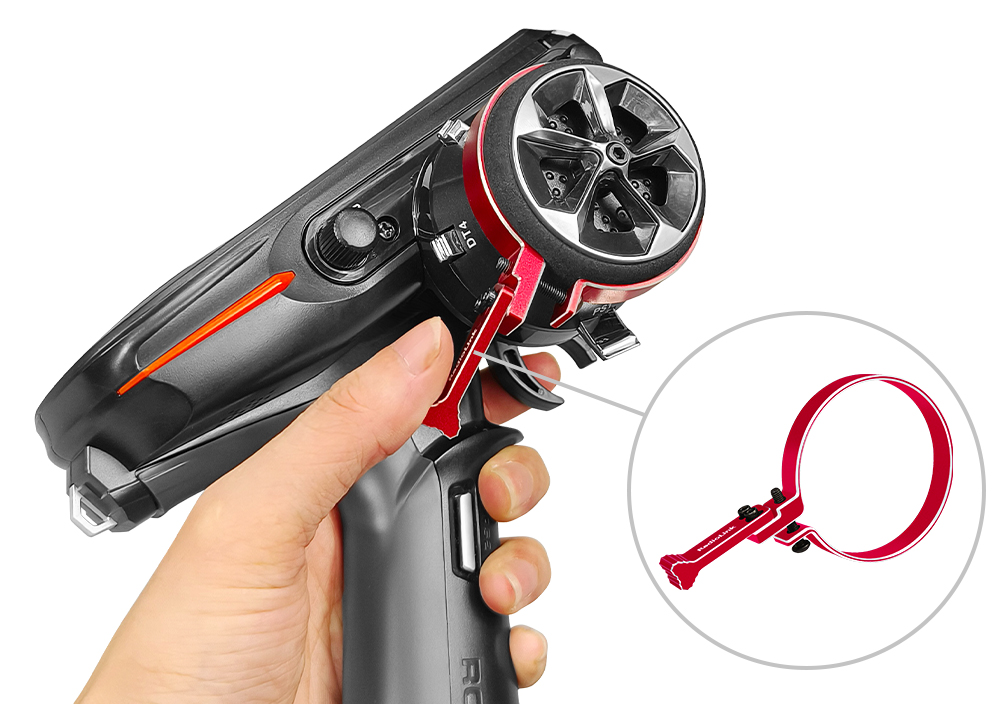

The thumb lever makes it possible

to steer one-handed safely(the thumb lever is

not included in the package, can buy it from

our official online shop).

User-friendly design for each operation and handling.

Reverse Polarity Protection Circuit

Multiple Power Supply Modes

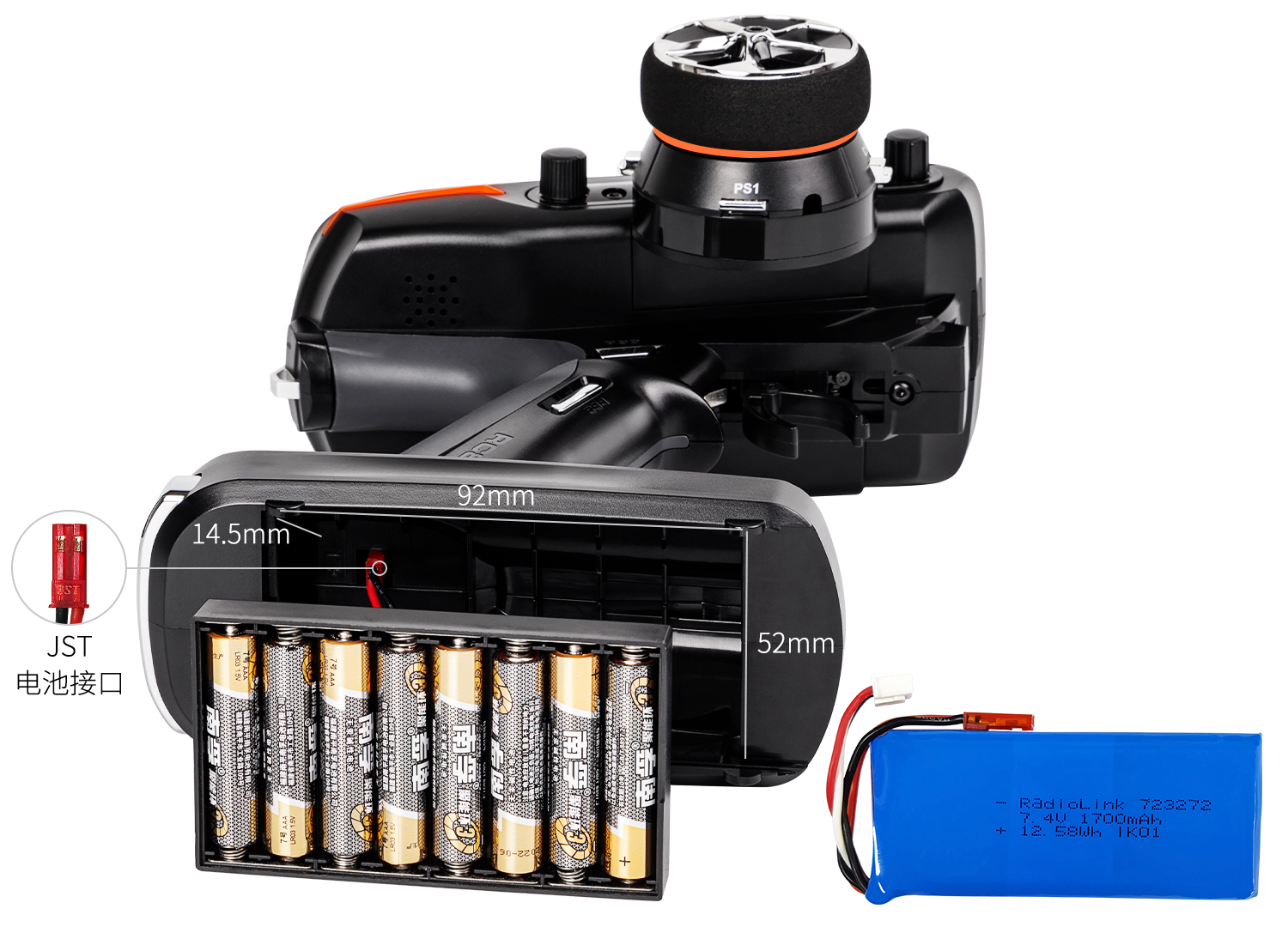

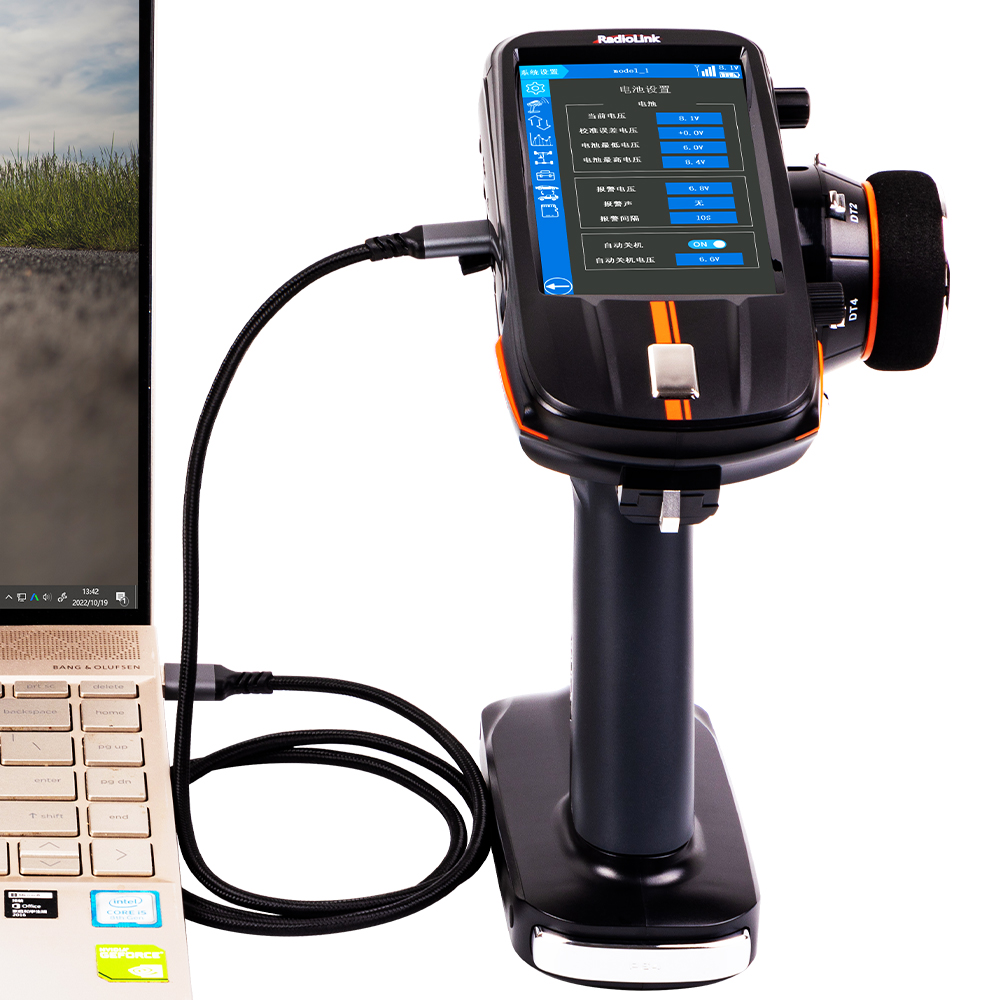

RC8X is easily adapted for various battery layouts with wide operating voltage tolerance: 8 pieces of AAA batteries, a 2S-4S LiPo battery, a 6S Ni-MH battery or powered by a computer or mobile power bank connect via Type-C cable. Universal JST connector with the voltage protection software of Radiolink ensures vital components are protected from a reverse polarity connection.

bank(connect via a Type-C cable)

2S-4S LiPo battery

Pay attention: If your RC8X is powered by a computer or mobile power bank via Type-C cable, please make sure the input voltage do not higher than 5.5V.

7.4V 1700mAh lithium battery customized according to the size of the RC8X battery compartment, the standby time is about 7 hours. The purchase link for

the battery: is https://www.aliexpress.us/item/3256802047216624.html

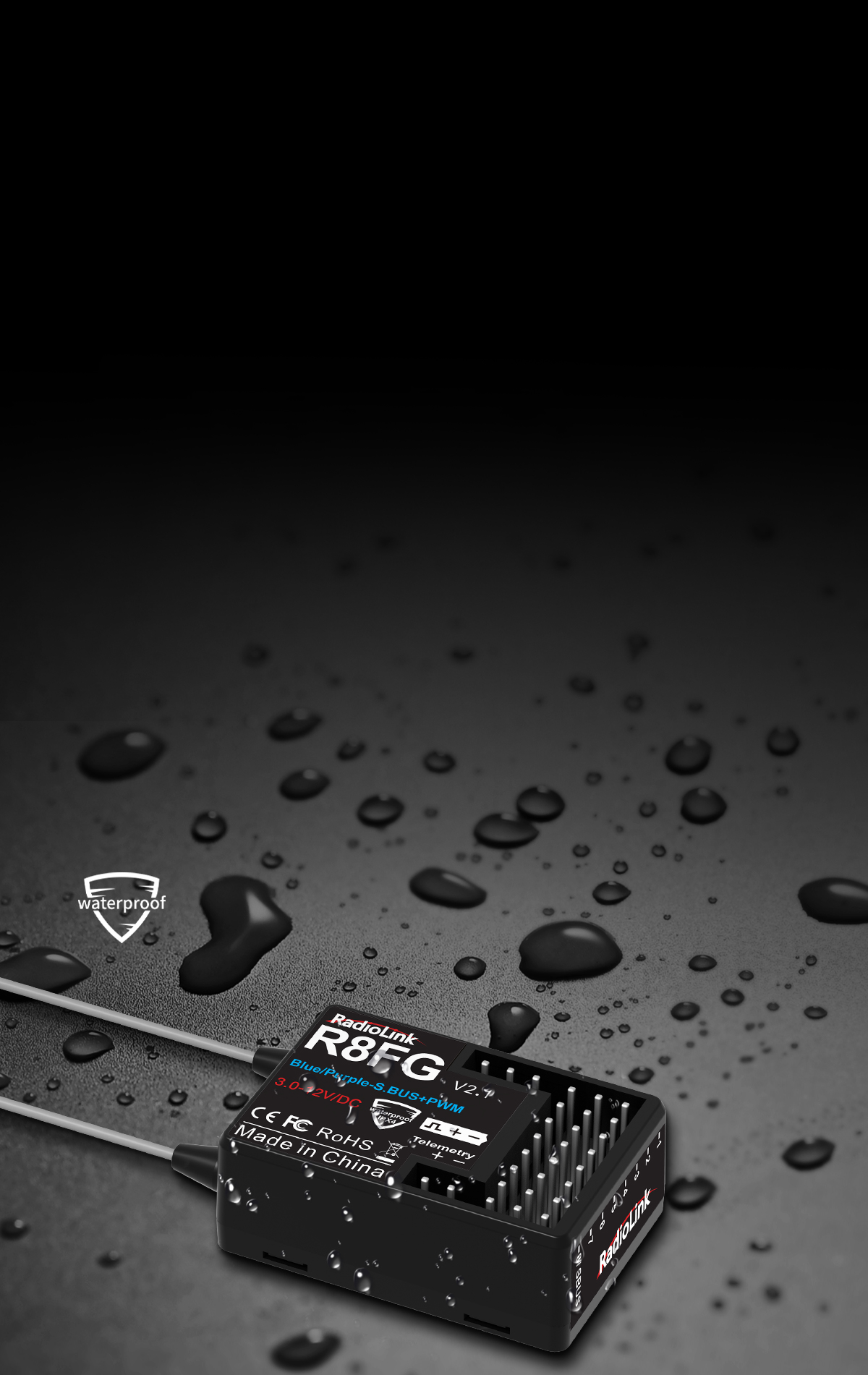

Water Splash Proof (IPX4) for

Receiver R8FG

A receiver R8FG will pack with RC8X.

The PCB board and pins of R8FG have the same waterproof treatment as the mobile phone, that is,

nano-coating technology treatment and the waterproof grade is IPX4.

IPX4: The IP×× rating standard recommended by the International Electrotechnical Commission (IEC).

Wide Receivers Compatible

Compatible with Old Version

Receivers

RC8X is packed with a receiver R8FG. R8FG is an 8-channel receiver with gyro built-in, high-voltage servo support, and model voltage telemetry support. R8FG also supports SBUS signal output that compatible with the SBUS servo to make the connection is more convenient and simpler. RC8X is also compatible with the 4 channels mini receivers R4FGM/R4F designed for Mini RC cars, the 6 channels receivers R6FG/R6F, the 7 channels receivers R7FG, and the 8 channels long control distance receivers R8EF/R8FGH, which designed for RC boats.
