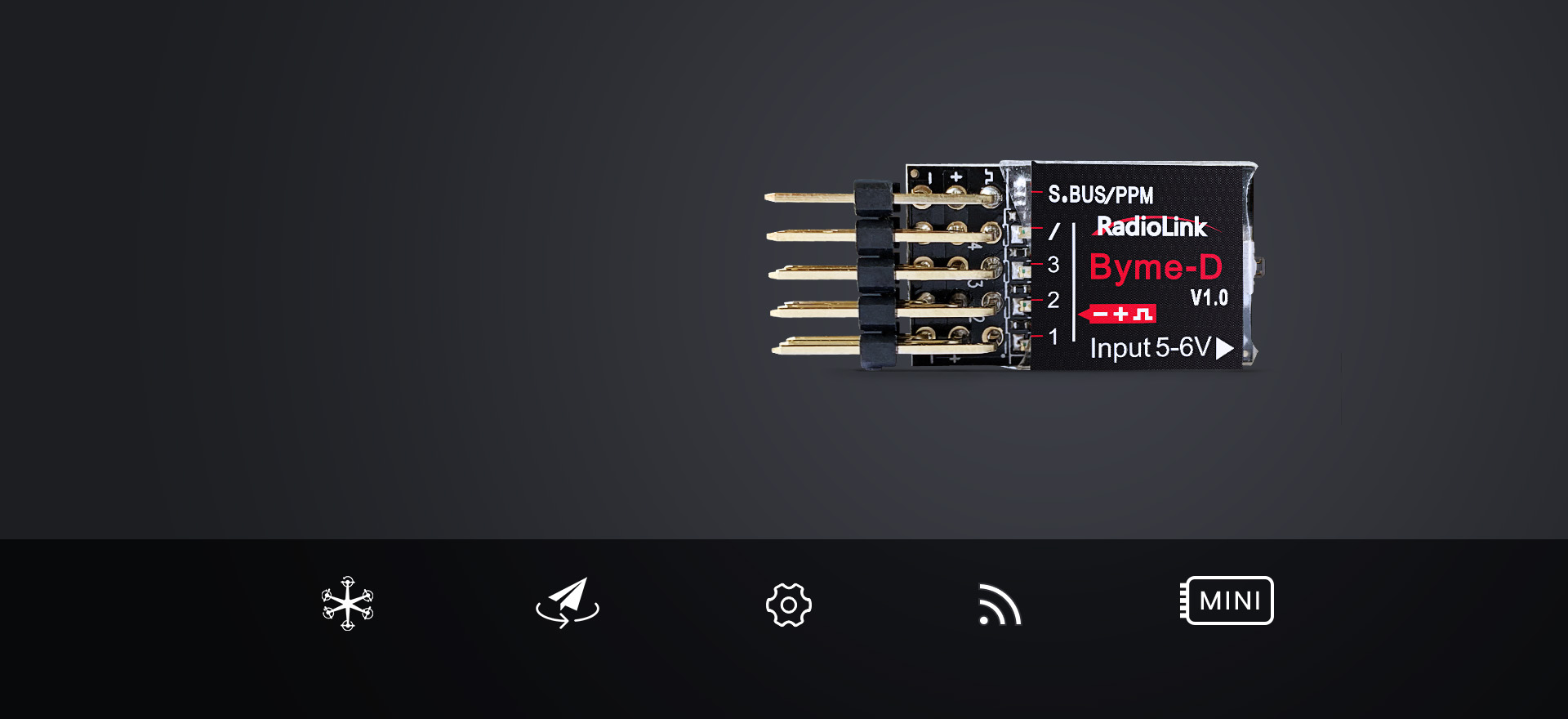

Byme-D flight controller for all model airplanes with mix elevator/aileron controls including delta wing, paper plane, SU27, F22

Byme-D

Flight Controller of Delta Wing

Stability Improved

Multiple Models Three Flight Modes

PID Autotune SBUS&PPM Supported

35.5*15.5*10.5mm

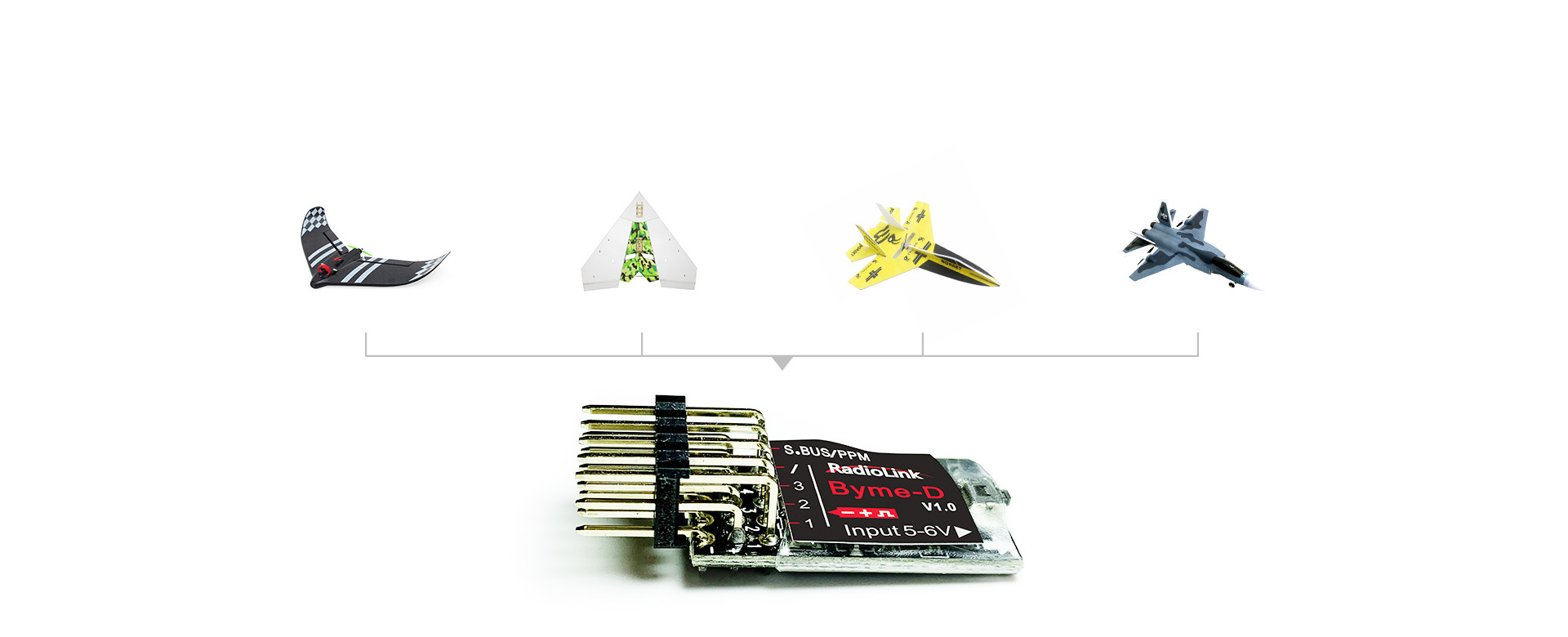

Multiple Models

Applicable to all model airplanes with mix elevator/aileron controls including delta wing, paper plane, SU27, F22.

Easy from Zero to Hero

Byme-D, with the full attitude algorithm, control algorithm, and digital filter, combined with the three-axis gyroscope and three-axis acceleration sensor, makes beginners easily achieve professional vertical flight even at first try.

Pilots can practice with any of the five flight modes (Stabilize Mode/Gyro Mode/Manual Mode) as wish.

Stabilize Mode

Unlike Manual Mode, Stabilize Mode has a flight controller assisting to balance aircraft and is suitable for beginners to practice level flight.

With Stabilize Mode, the max inclination angle of rolling is 70°, and the max inclination angle of pitching is 45°.

ROLL

Pitch

Gyro Mode

Gyro helps to enhance the flight balance but the aircraft will not back level automatically.

Pilots with RC experience will achieve better control of fixed-wing if practice with the Gyro Mode.

Manual Mode

Without any assistance from the flight controller, algorithm, or gyro, all flight movements are realized manually, which requires the most advanced skills. Various freestyles such as backward, roll, loop, snake and over-low altitude flight can be easily achieved with Manual Mode.

No Need of Parameters Setting, Easy Setup

Byme-D is developed with the best PID parameters by experienced pilots and engineers repeatedly studied flight tests for over a year. Pilots only need to pull both joysticks to outside corners to calibrate without especially setting parameters.

Receiver: SBUS/PPM

CH4：Null

CH3: Throttle

CH2: Servo

at Right

CH1: Servo

at Left

Indicator: Status/

Servo Phase

Button: Servo phase adjustment

Aircraft Head
