OSD Module
Buy Now

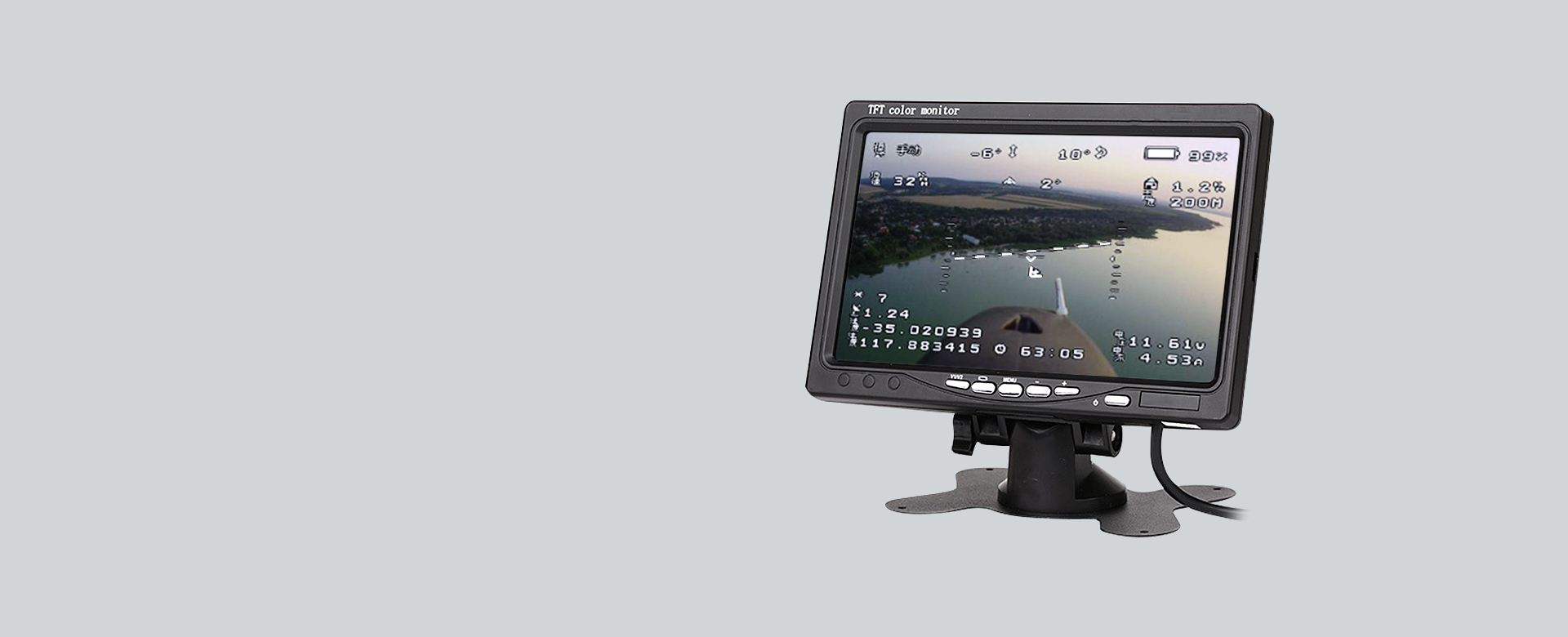

 Mini OSD for Image Transmission







Real-time Gesture Visualization Display



Chinese/English Parameter Setup Software

四通道可编程                             600米控制距离                            接收自带陀螺仪                          贴心电子防反插                      支持动力电池电压回传                     USB在线免驱升级

Smallest OSD module with Complete Functions







Extremely light weight of 3.5g(0.12oz), mini size of 16*16mm(0.63”0.63”), even 210 racing drone can easily carry.

Compatible with all flight controllers with MAVlink serial protocol, real-time display of flight information such as flight mode, distance, GPS stars, longitude and latitude, vertical speed, magnetic deviation, current time, battery voltage, current, wind speed, return route, exact route, vibration status, direction, etc. Rich parameter display and thoughtful setup make safer flight.

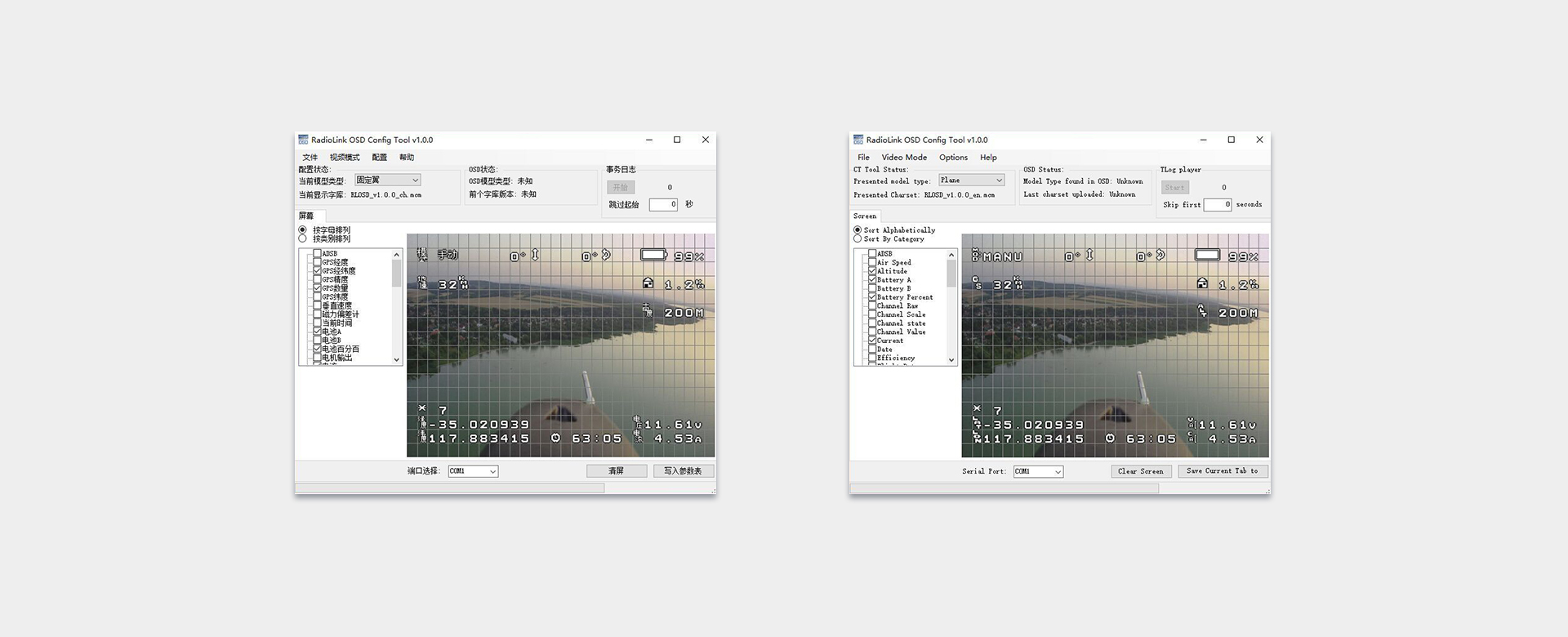

Param. Setup Software, USB Online Upgrade







English/ Chinese parameter setup software, users can personalize flight parameters display layout and font style.

Adding new functions by USB upgrade makes your OSD module always excellent.

Real-time Gesture Visualization Display







RadioLink MINI OSD module works perfectly with PIXHAWK and MINI PIX, applicable to FPV flight. Real-time visualization display shows the position and direction of the aircraft. Pilots can directly get the status and coordinates anytime and enjoy better flight experience.

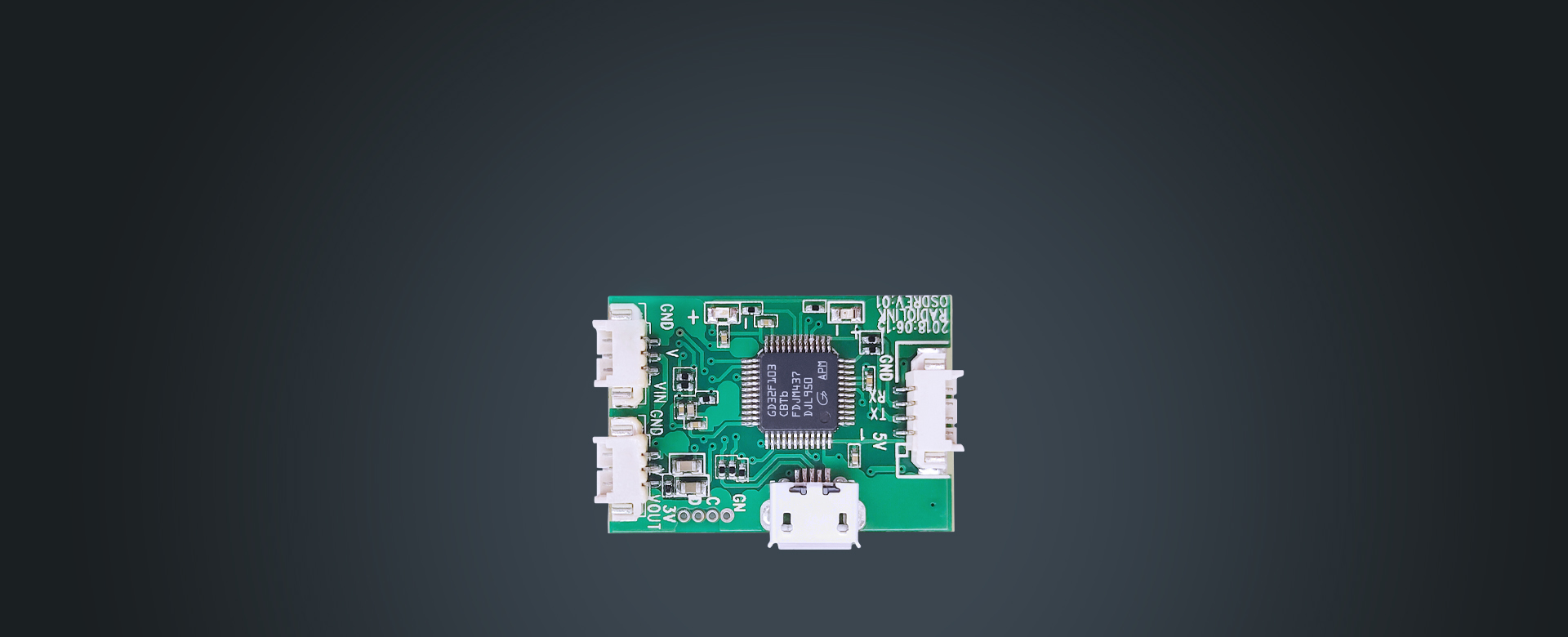

GND

5V Input

Connection

Input for Video Tx

USB Port for

Parameters Setup

5V Input

TX

GND

RX

5V

Input for

Camera

GND
