8 Channels Receiver

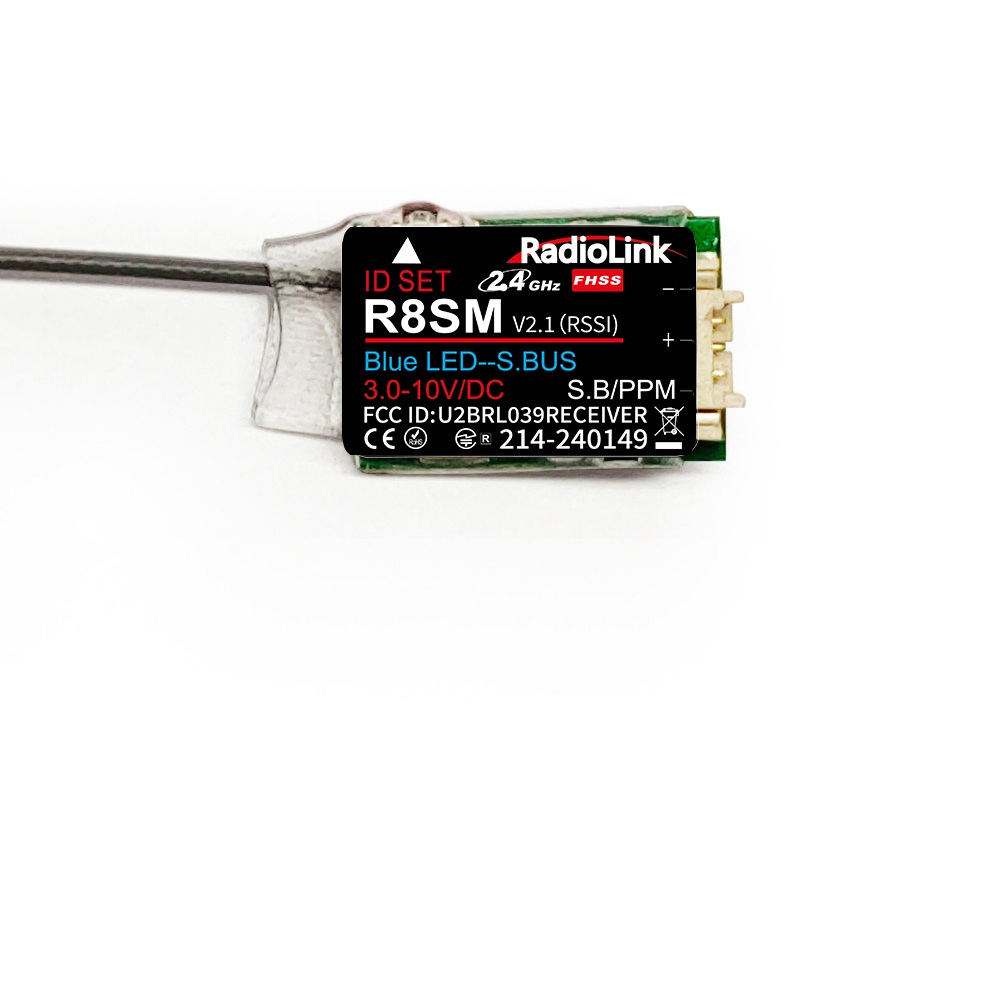

RadioLink R8SM

For Racing Drone, Multicopter

2000 Meters Control Distance

Same FHSS* spread spectrum algorithm as AT9S Pro and 67-channel pseudo-random frequency hopping help reduce overall signal interference.

2KM (1.24 Miles) * Range enables all possible RC fun.

The maximum PWM jitter is 1.84 us, with a standard deviation of just 0.25 us.

SBUS or PPM Signal Output

8 channels of SBUS/PPM signal output.

Compatible with flight controllers such as PIX6, PIXHWAK, CrossFlight-CE, CrossFlight, CrossRace Pro, CrossRace, Mini Pix, F405, F722, TURBO PIX, APM, F4, F7, etc.

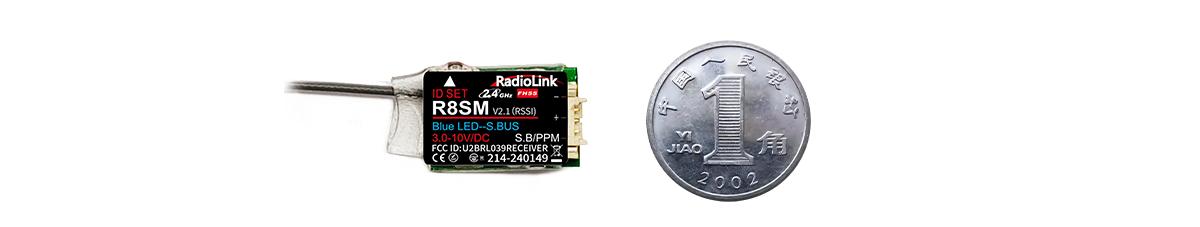

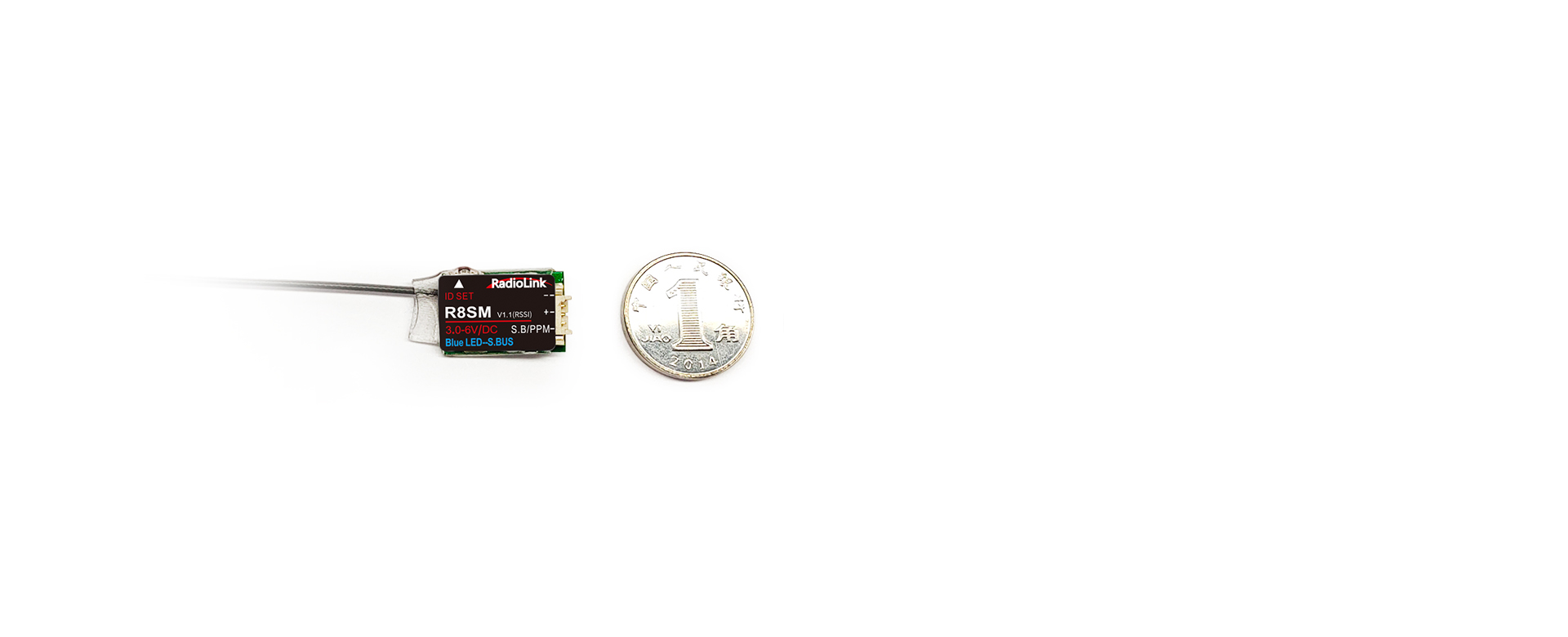

Mini Enough for Mini Racing Drone

The weight of 2g(0.07oz) and the small size of 18*13mm (0.70"*0.51") make R8SM tiny enough even for a mini racing drone and glider.

3-10V Operating Voltage Range

Compatible with RadioLink drone/airplane transmitters T16D, T12D, T8FB, and T8S.

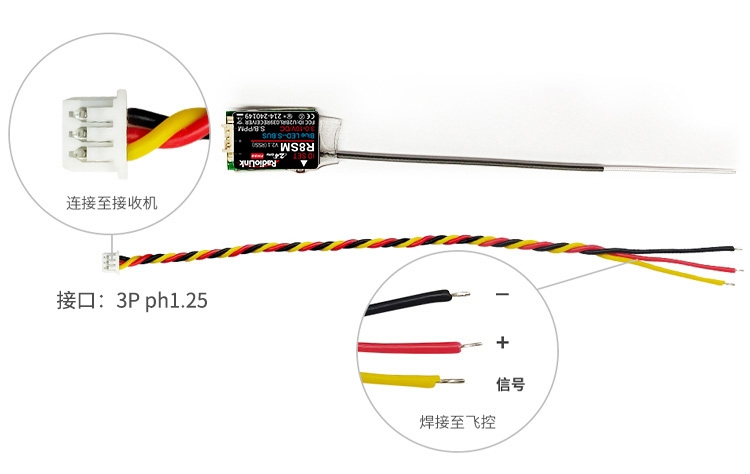

Connect to receiver

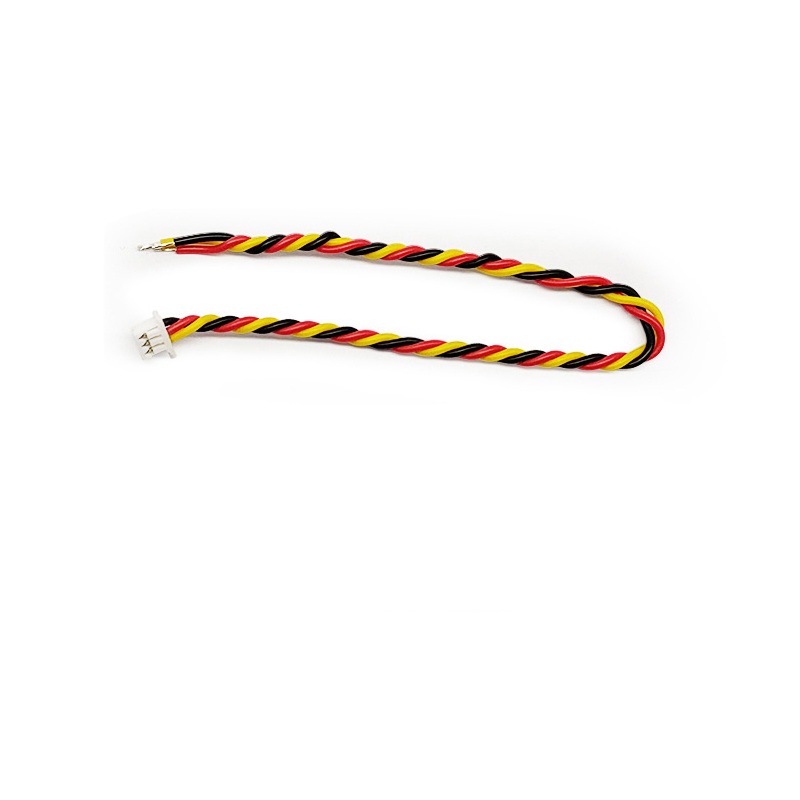

Interface: 3P ph1.25

Signal

Solder to Flight Controller

* In the process of using R8SM, if you encounter problems, you can view the manual, tutorials, or FAQ on the navigation bar of this introduction.

* After consulting all the tutorials, you still have questions about the operation. You can consult our technical support by emailing after_service@radiolink.com.cn

R8SM Package List
