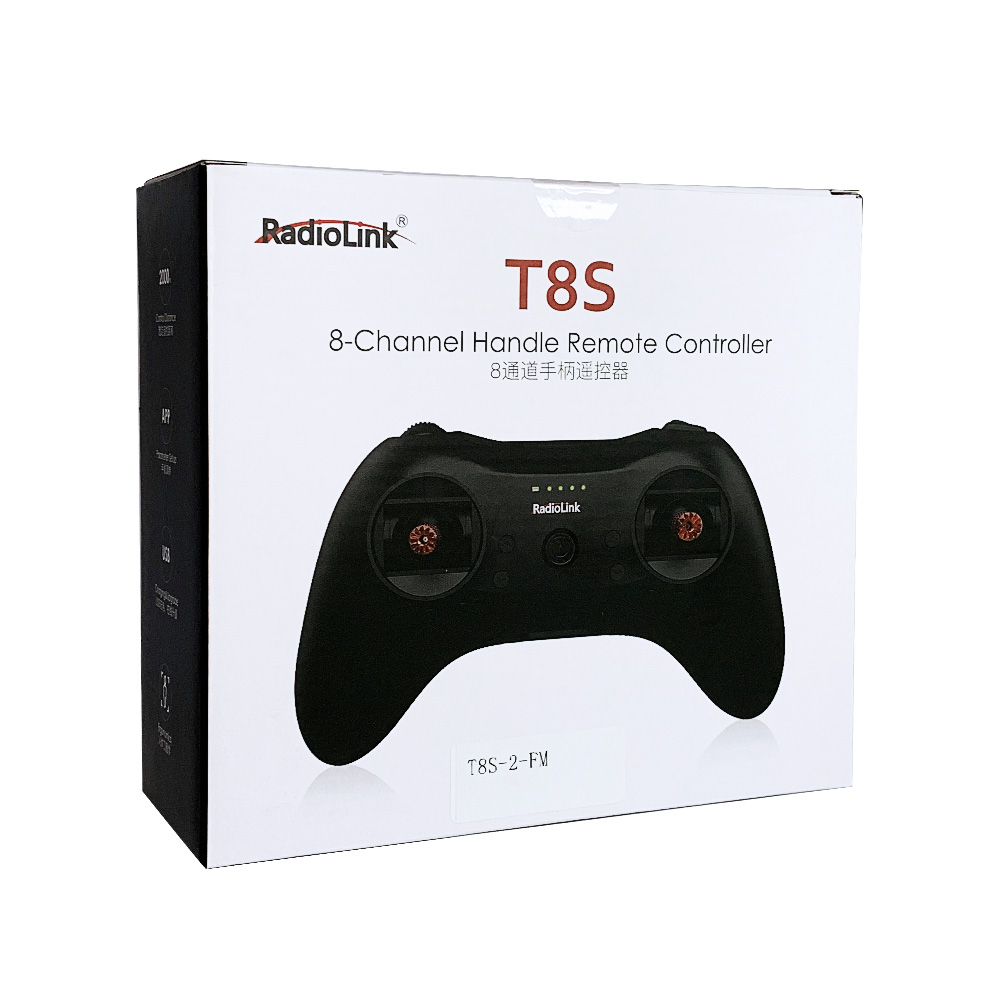

T8S(OTG)

8 channels

Handle Remote Controller

Compatible with R8EF, R8FM, R8SM, R8XM, R8FG, R8F, R7FG, R6FG, R6F, R4FGM, R4F

2KM Control Distance

T8S(OTG), with the same FHSS algorithm of AT9S Pro and 67 channels pseudo-random frequency sequence hopping, the chip TI CC2500(same as the Open TX Frsky X9D) and the transmission rate (which three times faster than Open TX), achieving the better anti-interference ability to both the same frequency band and different frequency bands.

The control distance of T8S(BT) is 2000 meters(1.24Miles) in air.

Long Flight Time

The brand new hardware design of T8S has super low battery consumption of 150mA. Total flight time lasts 5 hours long when battery is fully charged.

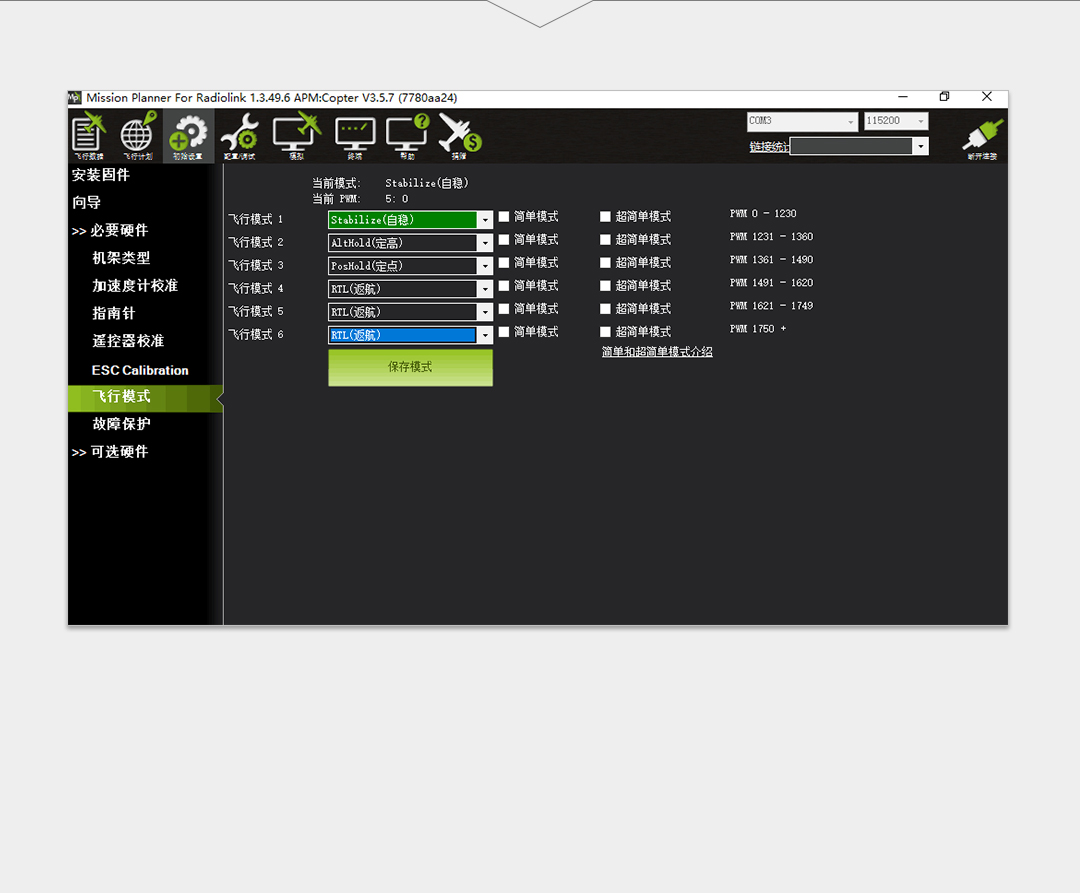

Mission Planner

0.5us Gimbal Precision

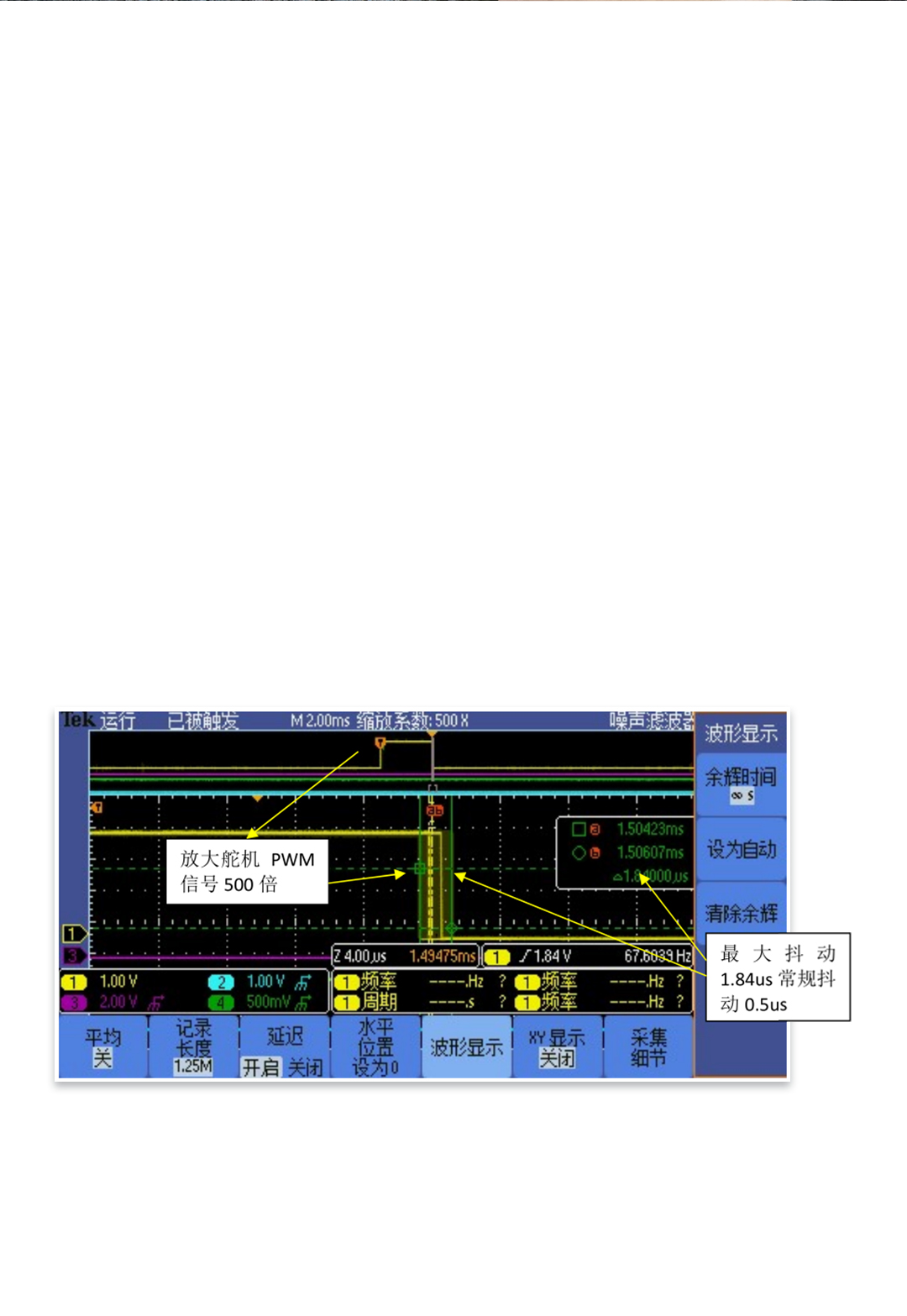

The optimal design of the PCB layout ensures maximum PWM jitter of 1.84us with a standard of just 0.5us. It is 14 times better than regular jitter 7us of the mainstream 16-channel transmitter in the market. The same joysticks components as AT9S Pro.

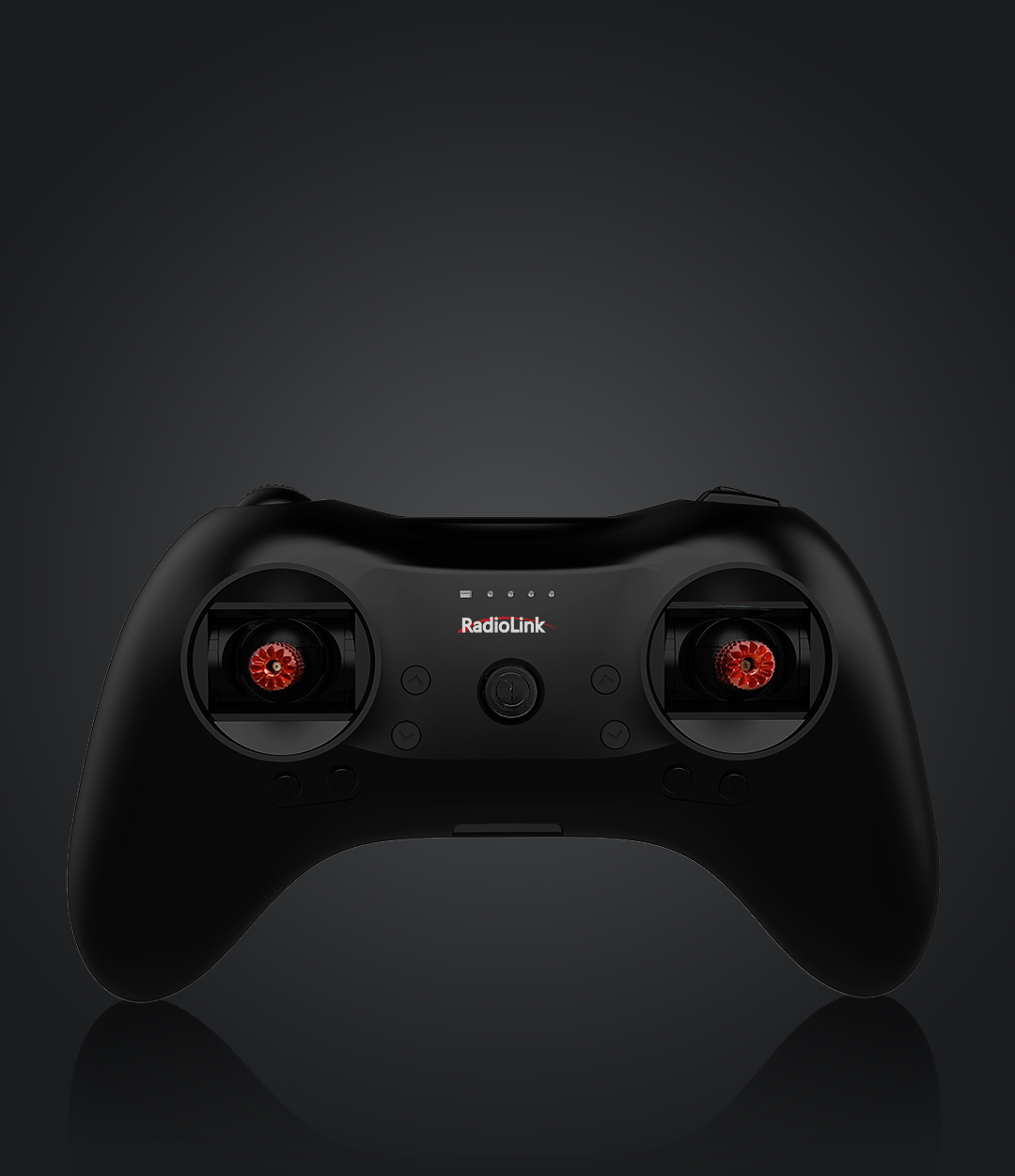

Ergonomics Design

Perfect ergonomics design with the small size and moderate weight and the removable joysticks personalized to players’ hands and control habits make the long flight more pleasant.

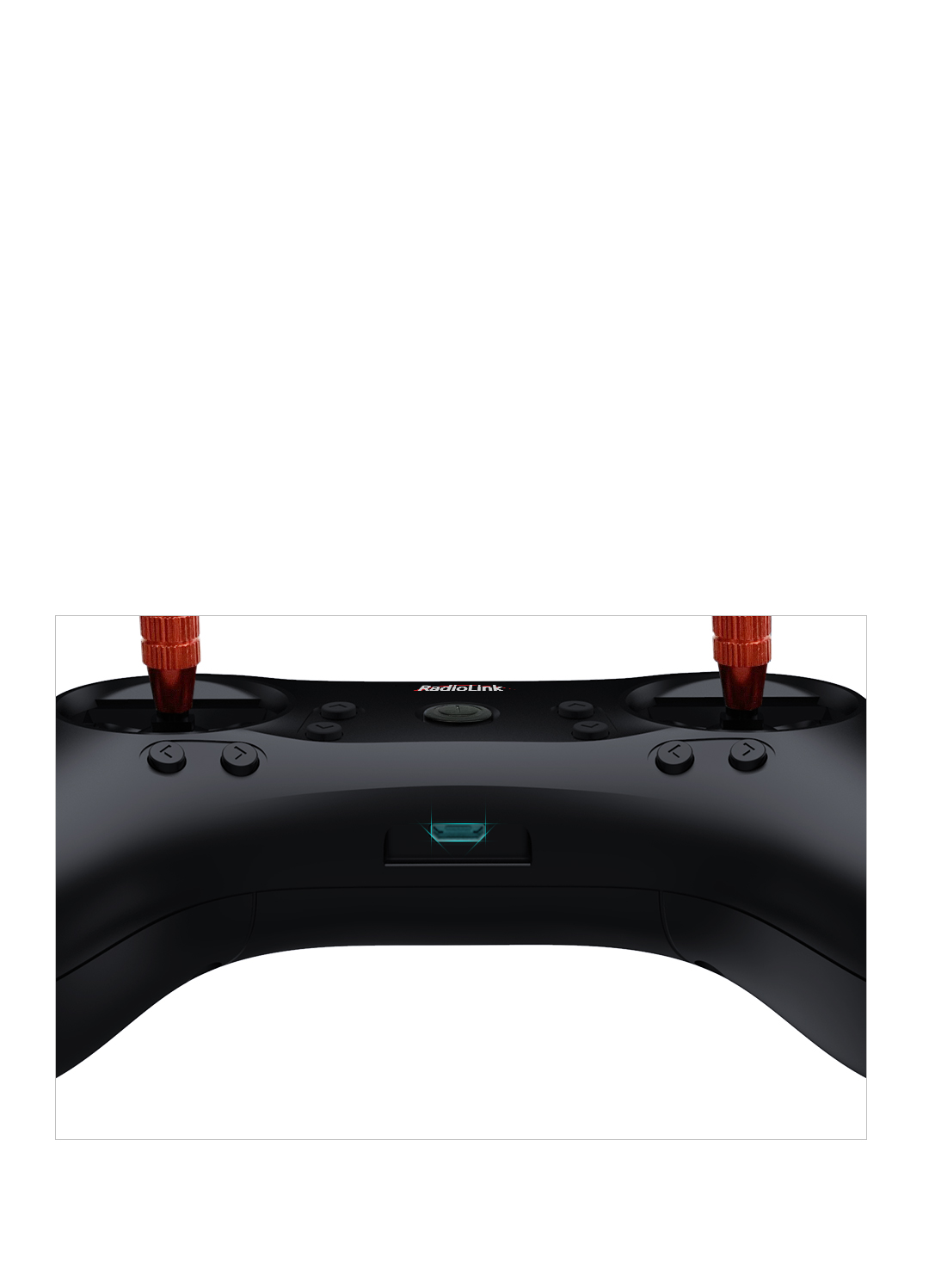

USB Charging

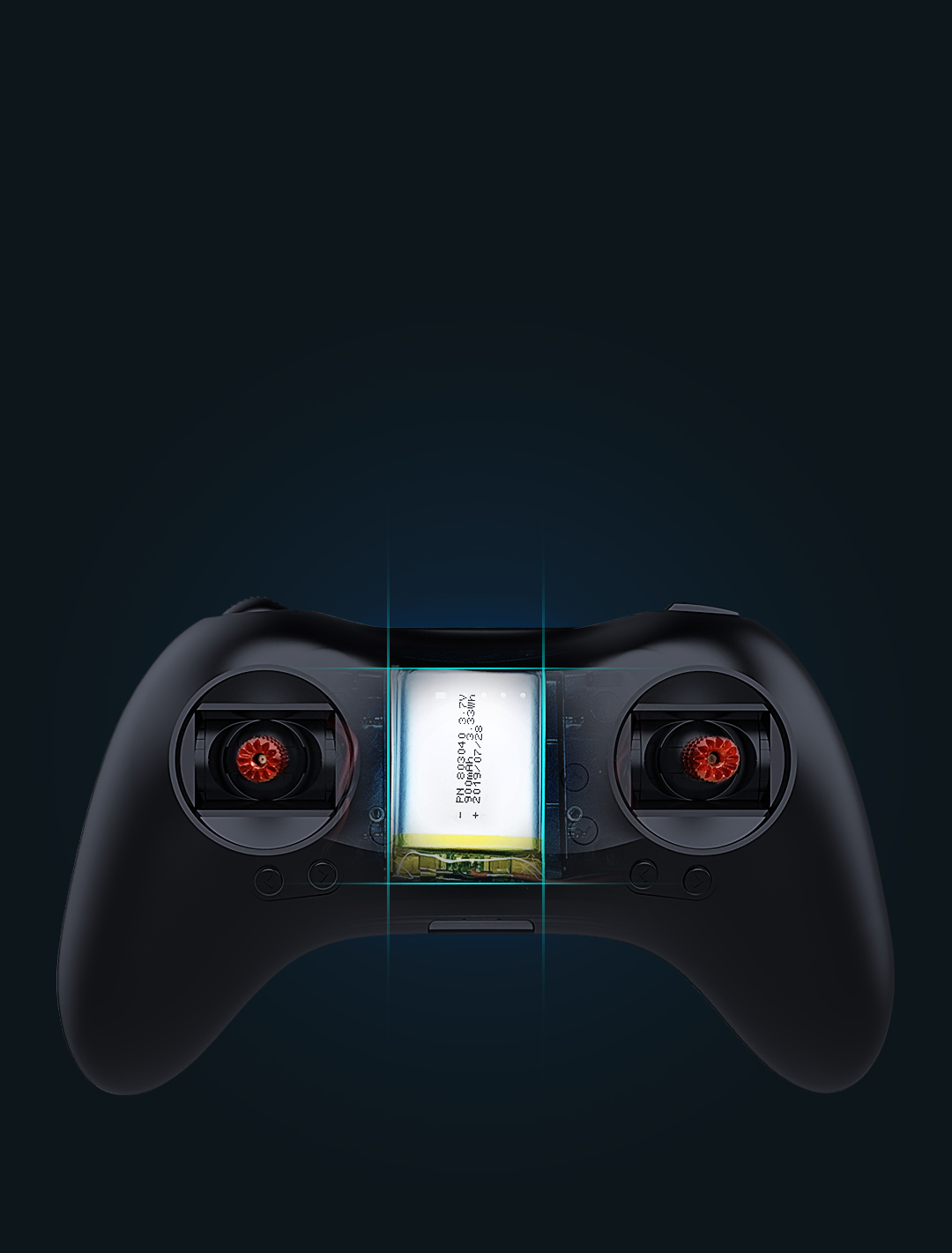

The built-in 1S 900mAh lithium battery can be directly charged by a computer or mobile charger with a USB cable.

When the voltage is less than 3.7V, the green battery indicator will flash with Dee sound as an alarm.

 Battery Indicator

Aileron/Elevator Stick

Power Button

Trimmer Buttons

Programmable Mix Control

Channels five through eight can be programmed to any advanced setting

Flight modes are set with the two 3-way switches in the flight controller PIX by default.

Even beginners can enjoy T8S without a manual.

Mode 2

Throttle/Rudder Stick

Three-way switch (SWA)

(Flight mode switch)

Three-way switch (SWB)

 (Flight mode switch)

Knob-switch (VRA)

(PTZ Adjustment)

Push-button(VRB)

(Camera shutter)

APP Parameter Setup, USB Upgrade

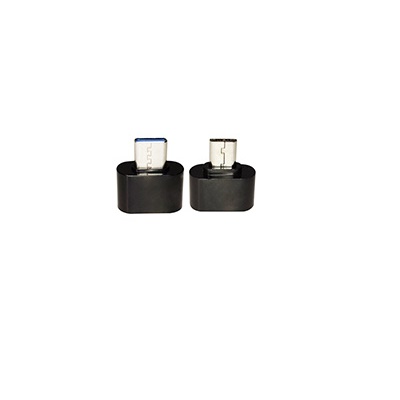

Parameters can be easily set up and modified with a mobile APP connected via OTG wire.

USB upgrades with new functions added and keeps T8S always advanced.

Countless sets of model data can be stored.

* Mobile APP is only Android mobilphone supported. Displayed language is depend on your mobile language.

* Firmware upgrades and parameter setup computer APP are only available to systems of WIN7/WIN8/WIN10/XP.

SBUS/PPM/PWM Supported

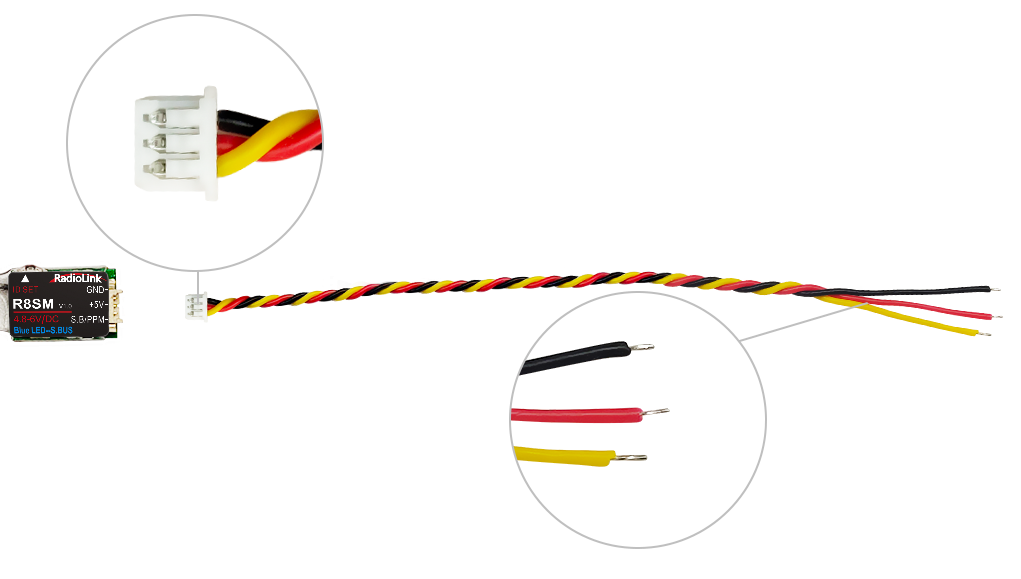

R8EF, compatible with T8S, supports SBUS, PPM, and PWM signals output, no need for extra cables or any signal converter, reducing the weight of aircraft.

When outputting the SBUS and PPM signals, channel 3 to 8 can also output corresponding PWM signal at the same time and work with the T8S turn switch to control PTZ and landing gear. With the T8S in hand to have all functions, R/C fans can fully enjoy with fun!

APP Param. Setup

 8CH Complete Function

FHSS 67CH Pseudo-Random

Frequency Hopping

2KM Control Distance

Mini Receiver

USB Charging

SBUS/PPM/PWM

USB Upgrade
