Firmware Version: CB86-PLUS_V3.3
Update Date: 5.19.2022
1. Safer Charging
① Pulse current charge mode, software optimization and circuit design optimization of new version CB86PLUS reduced the wastage of electron device, improves the service life and achieve better battery protection.
② Statistical analysis of charging trend by software, new version CB86PLUS can detect the hardware failure timely and then stop charging immediately.
2. Charging voltage and current set separately for each charging port
Different from the old version CB86PLUS, the new version CB86PLUS with V2.5 firmware or above make charging voltage and current set separately for each charging port come true. Eight charging port totally, very friendly for different capacity batteries charging at the same time.
3. Battery Doctor
① The new firmware make the charging capacity and internal resistance monitor more accurate.
② Battery repair function make the battery which discharge to lower than 3.0V regain capacity.
4. Higher Efficiency
Soft-Switching technology reduced the wastage of switch, makes the new version CB86PLUS achieved higher charging efficiency, even though the old version CB86PLUS’ operating current is as low as 135mA with charging efficiency up to 97%. With the same charging current, the new version CB86PLUS can charging faster than the old version CB86PLUS.
Power management adopts switch circuit with most efficient individual PUSH-PULL design for each charging cell. There’s no resistance consuming power when balance charging, which greatly decrease the heat.
5. Power supply self-adapting
① If the maximum power output of power supply cannot meet the charging power, the current will reduced automatically to adapt to the maximum output of the power supply.
② Power smoothing method solve the problem that some power supply cannot start rated power instantaneously.
6. Faster Refresh
7. New version CB86PLUS use Real Time Operating System (RTOS) makes the function buttons response and parameter menu switch refresh faster.
1. The latest firmware (Please do the voltage calibration after upgrade the latest firmware. This firmware is only for the V1 version of CB86-PLUS, do not upgrade V2 version with this firmware)
The old version CB86-PLUS: when connect the CB86-PLUS to the computer, your computer will not pop out a tooltip to notify format, please format the CB86-PLUS first by a Win7 computer, and then copy the file with the bin suffix.
The new version CB86-PLUS: when connect the CB86-PLUS to the computer, your computer will pop out a tooltip to notify format, click Format disk to confirm, and then copy the file with the mac suffix, new version CB86-PLUS support XP, Win7,8,10, and Mac computer to upgrade.
2. Upgrade Introduction:
How to Calibrate Voltage of CB86-PLUS after upgrade the Firmware V2.5 or above
The latest firmware (Only for the V2 version of CB86-PLUS, do not upgrade V1 version with this firmware)
The difference between CB86-PLUS(V1) and CB86-PLUS(V2)

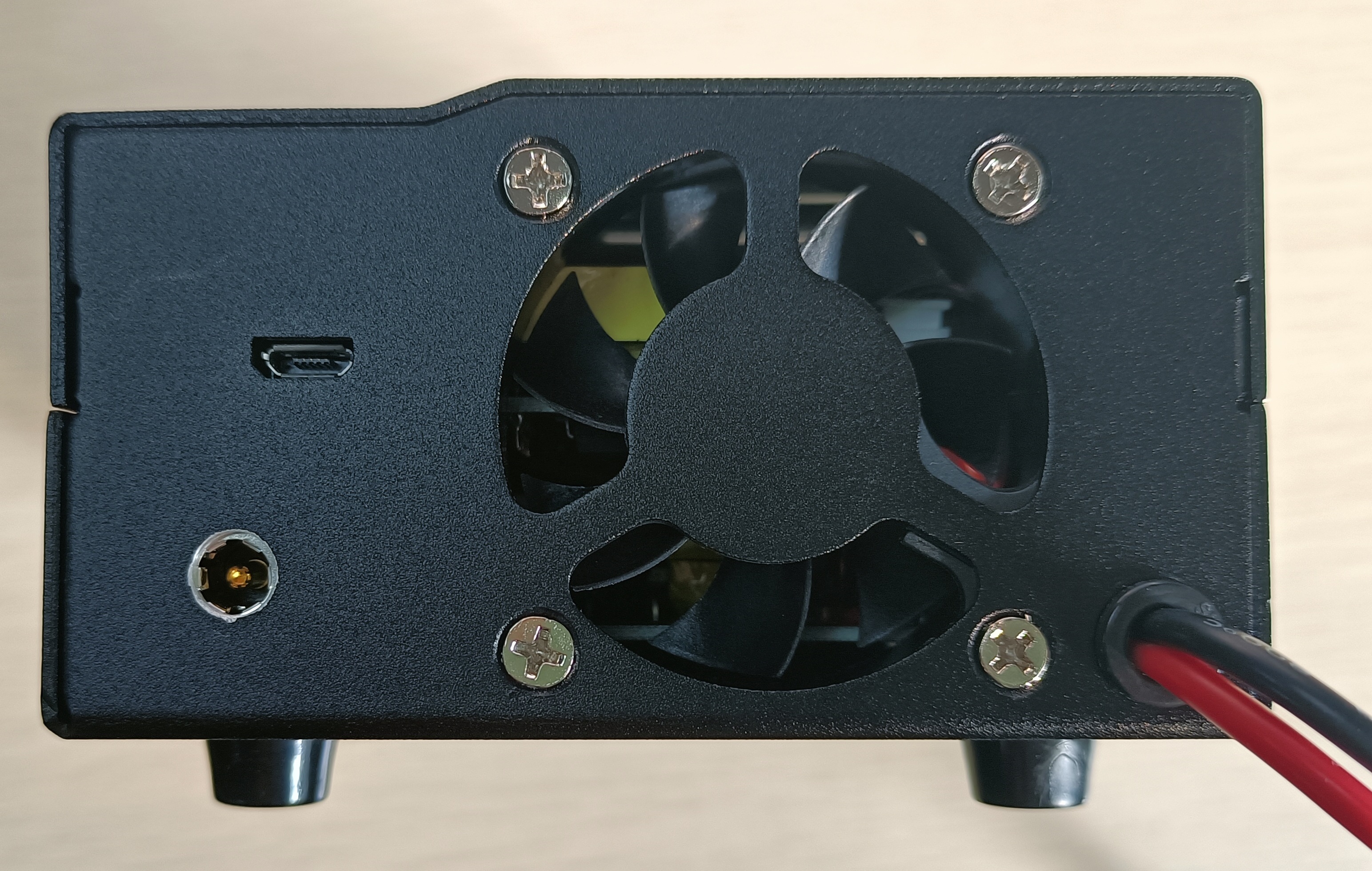

CB86-PLUS(V2), add a port(DC 5.5*2.5mm)
