R8FG
  • Specs
  • Certificates
  • Manual
  • Video
  • FAQ

60 degree beam angle

Integrated Transceiver and Receiver 0 Blind Area

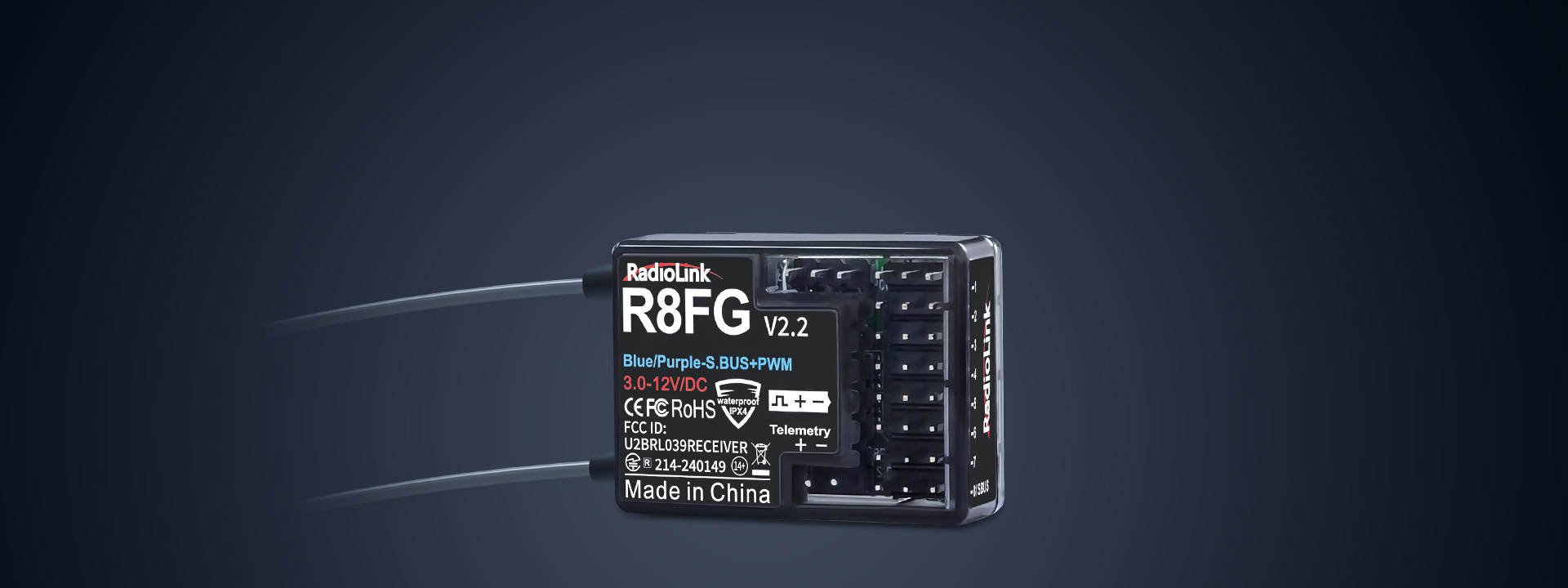

R8FG

8-Channel Dual Antenna Receiver

hardware and software dual filtering

30ms fast response

  • 끅
    • 客服电话

    • 88888888
  • 뀩
    • QQ客服
  • 뀥
    • 服务时间

    • 周一至周五 9:00-18:00
  • 낃
    • 微信二维码

  • 녕

FHSS Hopping Communication, Anti-Interference





FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance, perfect for multiplayer complete synchronously, and helps protect from fuel engine spark and ensures the safety of enjoying fuel-powered model cars.

600 Meters Control Distance





The stable remote-control distance of R8FG is up to 600 meters on the ground.

Control with the camera and the RC8X dual display function/display screen/goggle makes the drivers enjoy FPV fun.

To view this video please enable JavaScript, and consider upgrading to a web browser that

视频播放失败,请联系站点管理员!

Gyro Integrated

Customizable Gyro Sensitivity





The integrated high-performance gyro adopts the software filter and PID algorithm, timely and precisely corrects the sensitivity and improves the stability. Its good flexibility to different models and fields easily achieves professional performance even with drift cars.

Gyro sensitivity can be adjusted by the PS3 switch to maximize or minimize the gyro function.

Real-time Built-In Telemetry of Model Battery Voltage





Telemetry is capable of RSSI, receiver, and model battery voltage.

RSSI and receiver voltage data will display once the binding is complete.

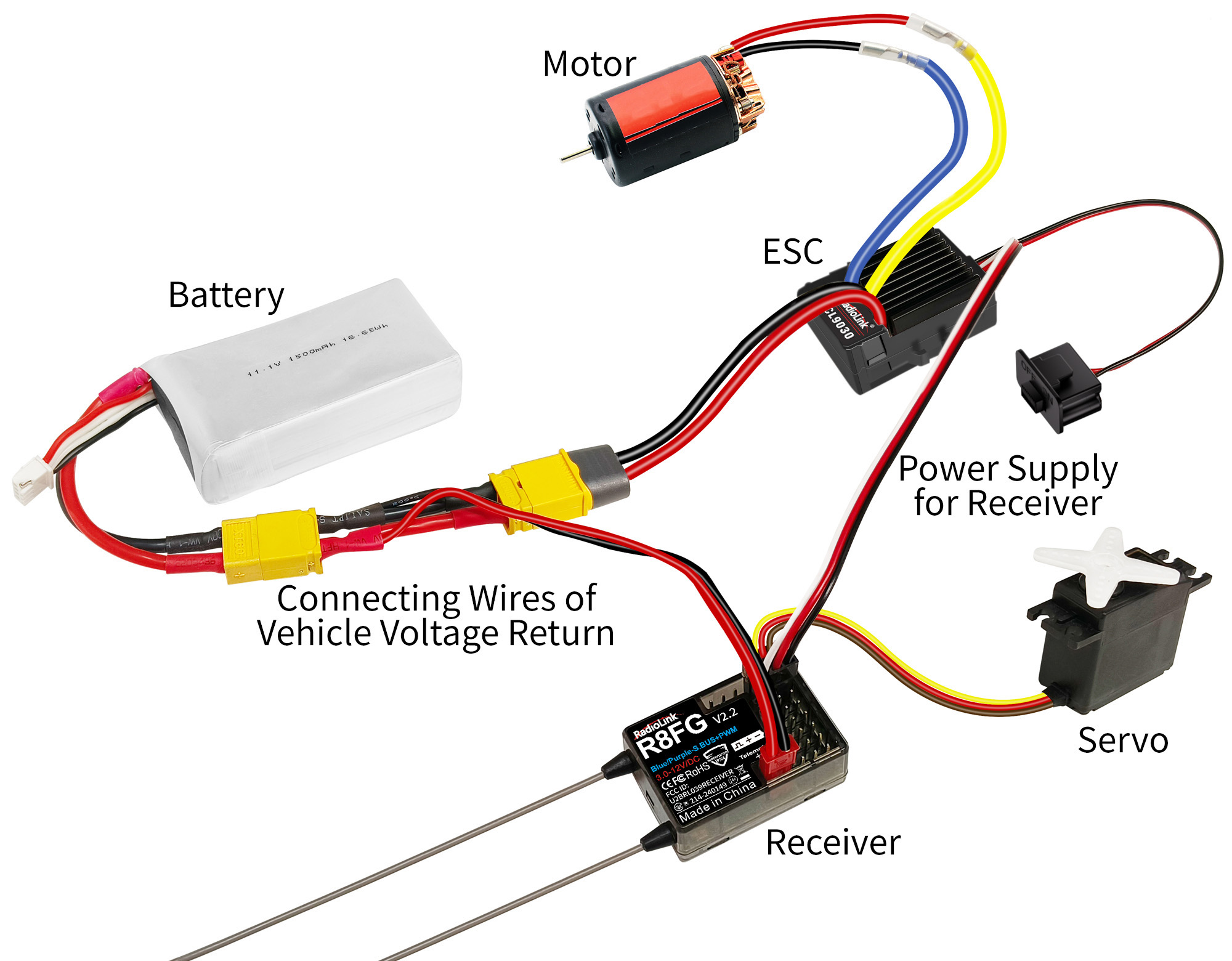

The model voltage will display by connecting the wire to the ESC, battery, and Telemetry port of receiver R8FG, no extra module is needed.

Telemetry of maximum 8S (33.6V) battery supported.

To view this video please enable JavaScript, and consider upgrading to a web browser that

视频播放失败,请联系站点管理员!

PWM, SBUS, and PPM Signal Supported





PWM working mode: Green LED or green plus red LED always on indicates PWM signal output, 8 channels Totally.

PWM+PPM+SBUS working mode: Blue LED always on indicates PWM+PPM+SBUS signals output.

CH1 to CH6 are with PWM signal output while CH7 with PPM and CH8 with SBUS signal output. Players can personalize signal output mode to fully enjoy the fun of a model bait boat or car with FPV.

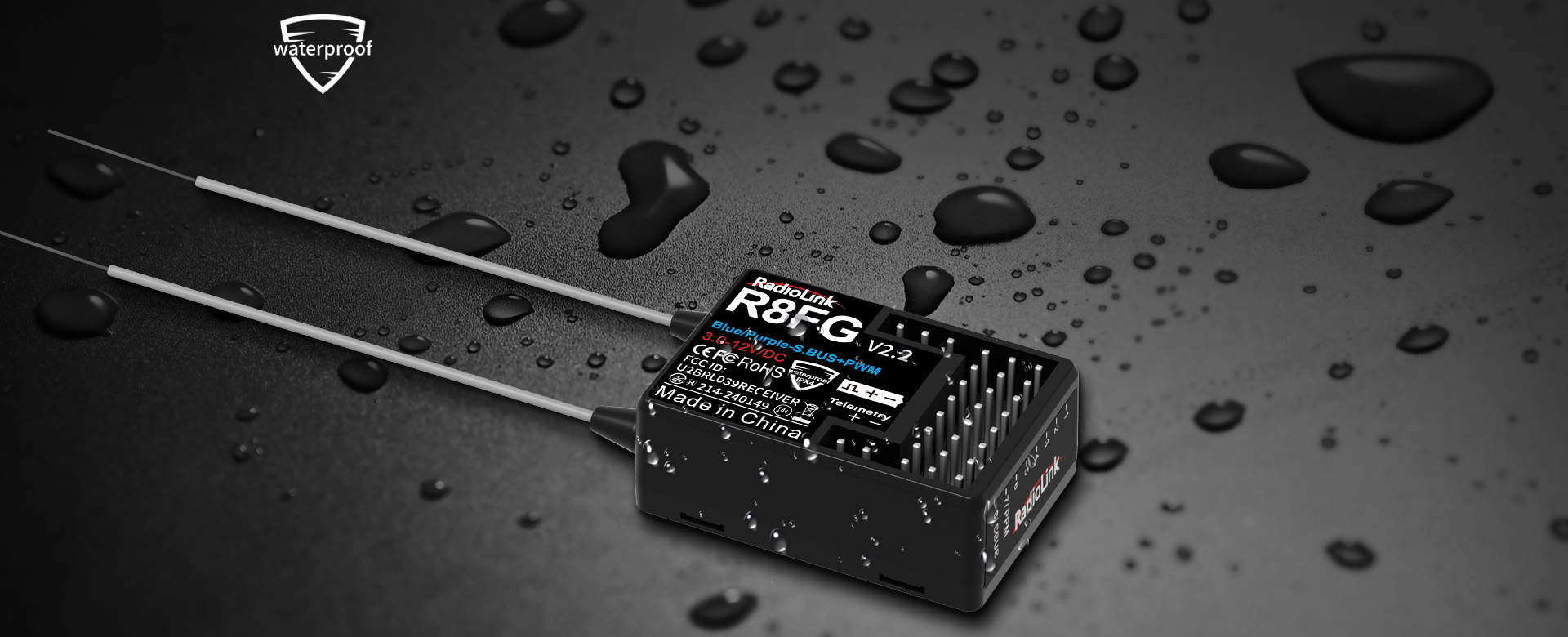

Water Splash Proof (IPX4)





The PCB board and pins of R8FG have the same waterproof treatment as the mobile phone, that is, nano-coating technology treatment and the waterproof grade is IPX4.

IPX4: The IP×× rating standard recommended by the International Electrotechnical Commission (IEC).

Subsidiary ID

Rescue, Towing, Parent-child Entertainment, and Friend Teaching in One Control





Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats.

Example of the use of the Subsidiary ID ①: Ship No. 1 is parked in the middle of the lake due to insufficient engine battery voltage. At this time, ship No. 2 can be switched to tow to rescue.

Example of the use of the Subsidiary ID Mode ②: After the No. 1 trailer consigns the No. 2 vehicle to the designated address. Switch the Subsidiary ID number of the remote control from No. 1 to No. 2 to control the No. 2 car, and let the No. 2 car reverse from the trailer.

Anti-polarity Connect Protection, Power by Wide Voltage





Even if the polarities are mistakenly connected, the receiver will not get damaged.

The power of 3-12V supports high voltage servo.

Wide Transmitters Compatible





R8FG is compatible with RadioLink transmitters such as RC8X, RC6GS V3, RC4GS V3, T8FB(BT), T8S(BT),

RC6GS V2, RC4GS V2, RC6GS, RC4GS, T8FB(OTG), and T8S(OTG).

  • RC8X
  • RC6GS V3
  • RC4GS V3
  • T8FB(BT)
  • T8S(BT)
  • RC6GS V2
  • RC4GS V2
  • RC6GS
  • RC4GS
  • OTG T8FB
  • OTG T8S

Specifications

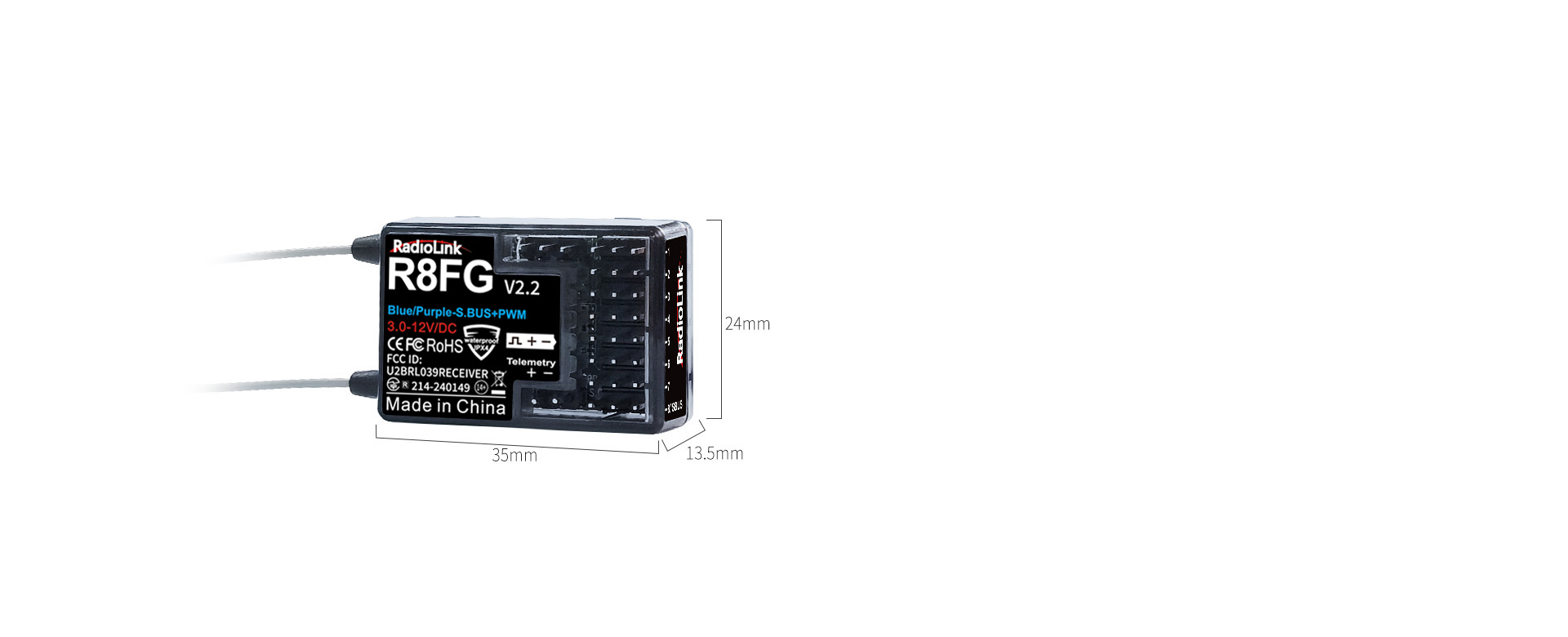

Dimensions: L*W*H =35*24*13.5mm (1.38” *0.94” *0.53”)

Antenna Length: 205mm (8.07”)

Weight: 10.5g(0.37oz)

Operating Voltage: 3-12V

Operating Current: 35mA(5V)

Channel: 8 channels

Signals: SBUS&PPM&PWM

Telemetry: Real-time built-in telemetry of model battery voltage, RSSI, and receiver voltage

Gyro: Receiver with gyro integrated, customizable gyro sensitivity

Water Splash Proof: The waterproof grade is IPX4

Applicable Model Types: Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot

Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)

Spread Spectrum Mode: FHSS, 67 channels pseudo random frequency hopping

Control Distance: 600 meters

Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/

RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /

T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)

R8FG Packing List

  • R8FG

  • Engine Voltage Telemetry Connect Cable

  • Packaging Bag
