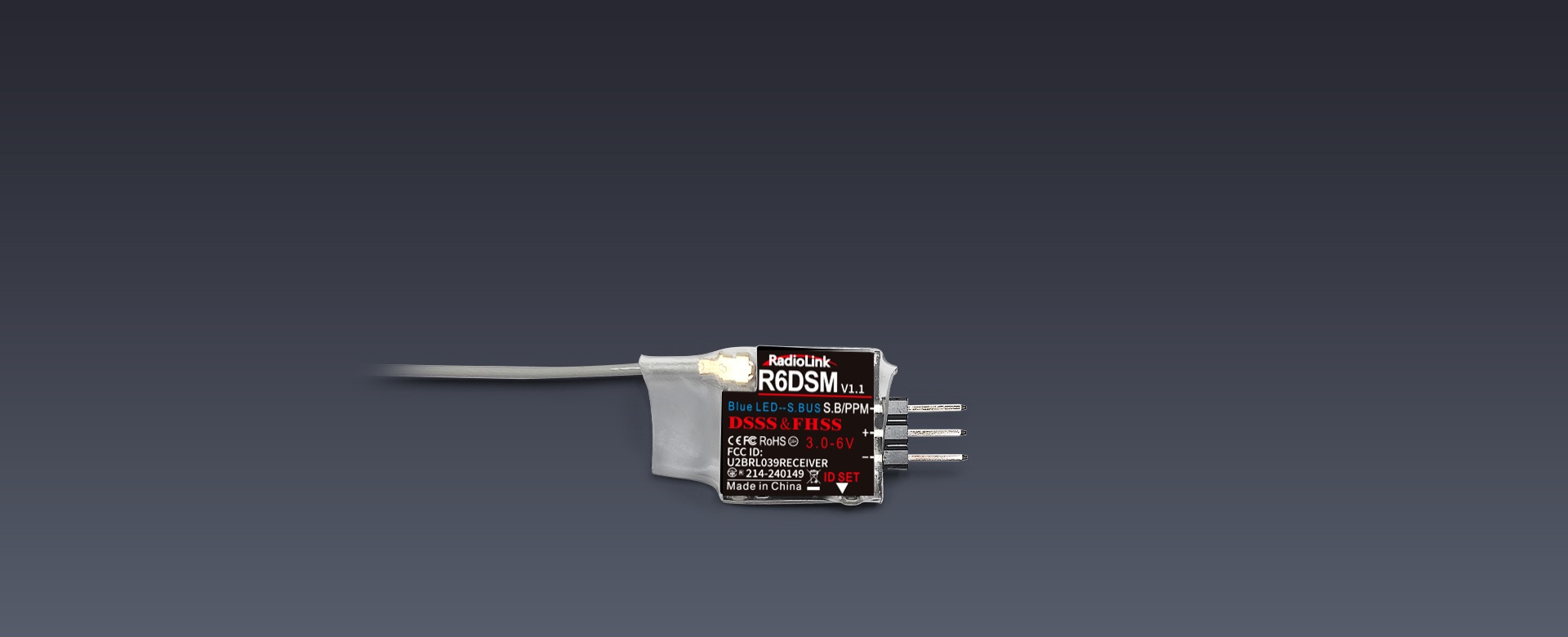

R6DSM

10 Channels Receiver

SBUS or PPM Signal Output

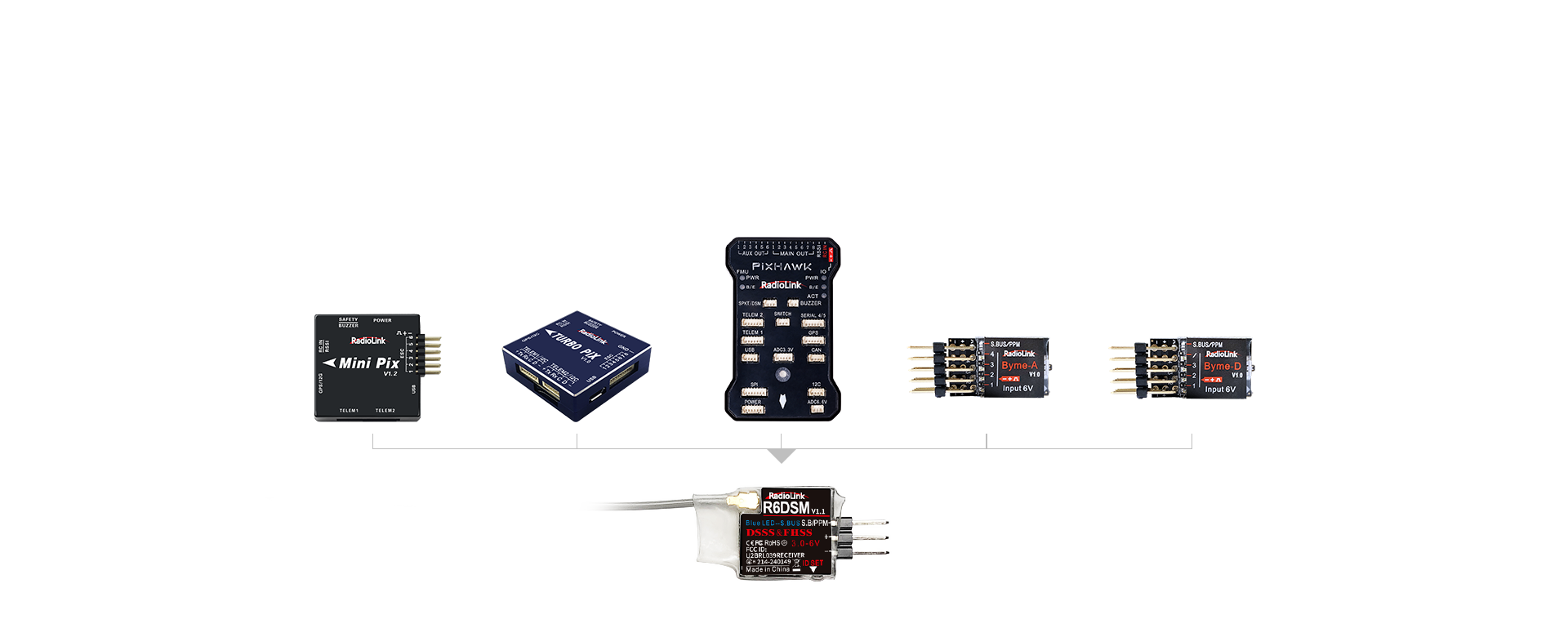

R6DSM, 10 channels of SBUS/PPM signal output, is compatible with flight controllers PIXHWAK, MINI PIX, TURBO PIX, and APM that support SBUS or PPM signal.

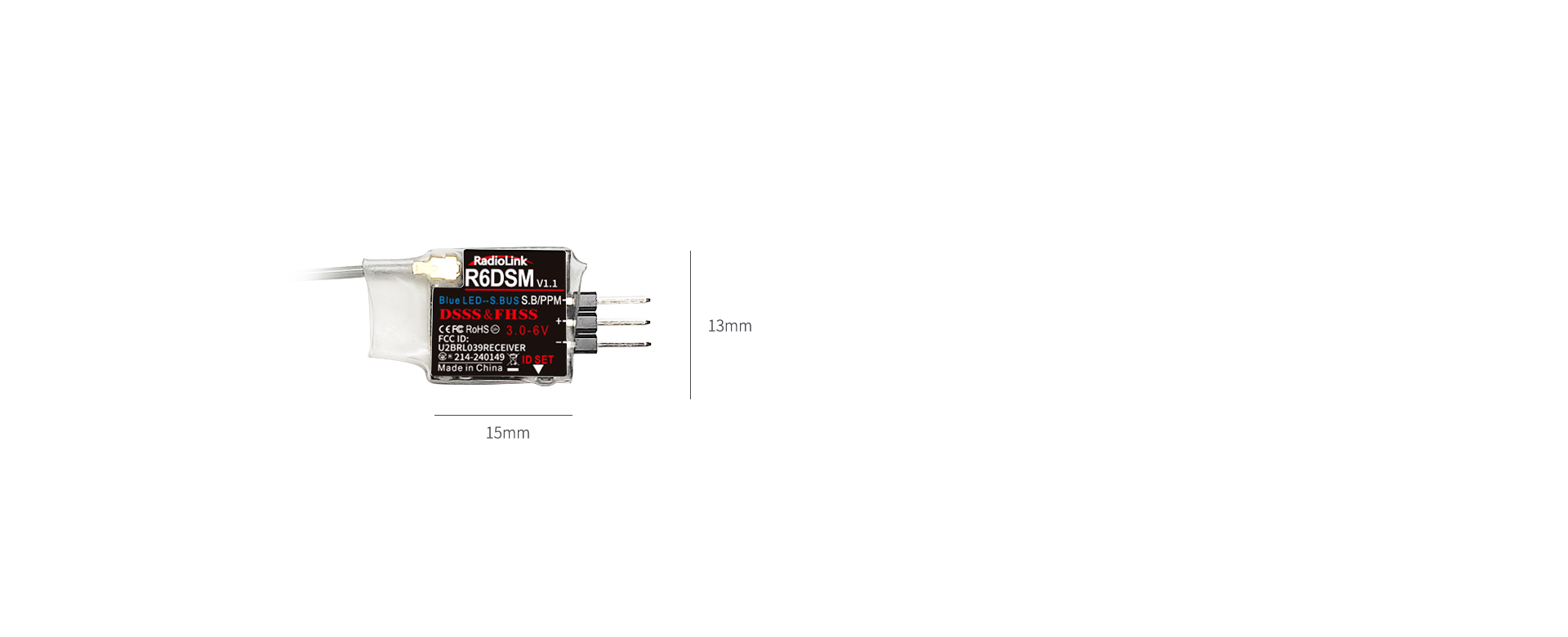

Weight of 1.5g (0.05oz) and small size of 15*13 mm (0.59"*0.51") make R6DSM is tiny enough even for mini racing drone and glider.

R6DSM英文_02

600 Meters Control Distance





DSSS* and FHSS* hybrid spread spectrum, 16 channels pseudo-random frequency hopping, and QPSK* modulation ensures excellent anti-interference performance, highly constant, and stable transmission signal present on all 10 channels of R6DSM.

600 meters (0.37 Miles) * range enables all possible RC fun.

* Direct Sequence Spread Spectrum transmissions multiply the data by a "noise" signal. This noise signal is a pseudorandom sequence of 1 and -1 at a frequency higher than that of the original signal.

* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.

* Maximum range is tested in an unobstructed area free of interference.

Specifications





Size: 15*13 mm (0.59"*0.51")

Weight: 1.5g (0.05oz)

Channels Qty: 10 channels for SBUS/PPM signal output

Signals: SBUS/PPM

Operating Voltage: 3~6V

Operating Current: 38-45mA@5V

Section Precision: 4096, 0.25us per section

Control distance: 600 meters(1968.5ft) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9

Real-time Telemetry





Real-time telemetry RSSI information allow users to receive crucial information on the model's systems.
