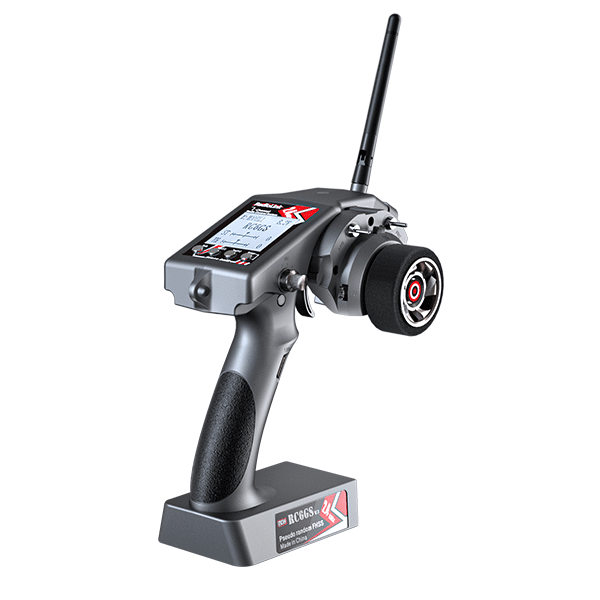

7 Channels for Cars, Boats, Lifebuoy, Tracked Robots

600 Meters Control Distance

30 Models Storage, Cruise Control System

Gyro Integrated and HV Servo Supported

Timer and FPV Head Track Function

Built-In Telemetry of Maximum 8S Model Battery Voltage

A switch can be set to active D/R

Compatible with R7FG, R8FG, R8EF, R8F, R6FG, R6F, R4FGM, R4F

7 Channels

Dual Mix Programmable

Gyro Integrated

600 Meters

Control Distance

30 Models Storage

Antiplug Protection

Built-In Real-time Telemetry

600 Meters Ground Distance

With the same FHSS spread spectrum of AT9S Pro and 67 channels, pseudo-random frequency hopping makes RC6GS V3 have the superior anti-interference ability both at the same frequency band and different frequency bands.

With the transmitter chip of ARM M4 and the receiver chip as the industrial 32bits ARM Cortex M0, ensuring the superior ability of anti-sparks interference even enjoy with an oil tanker.

The control distance is up to 600 meters.

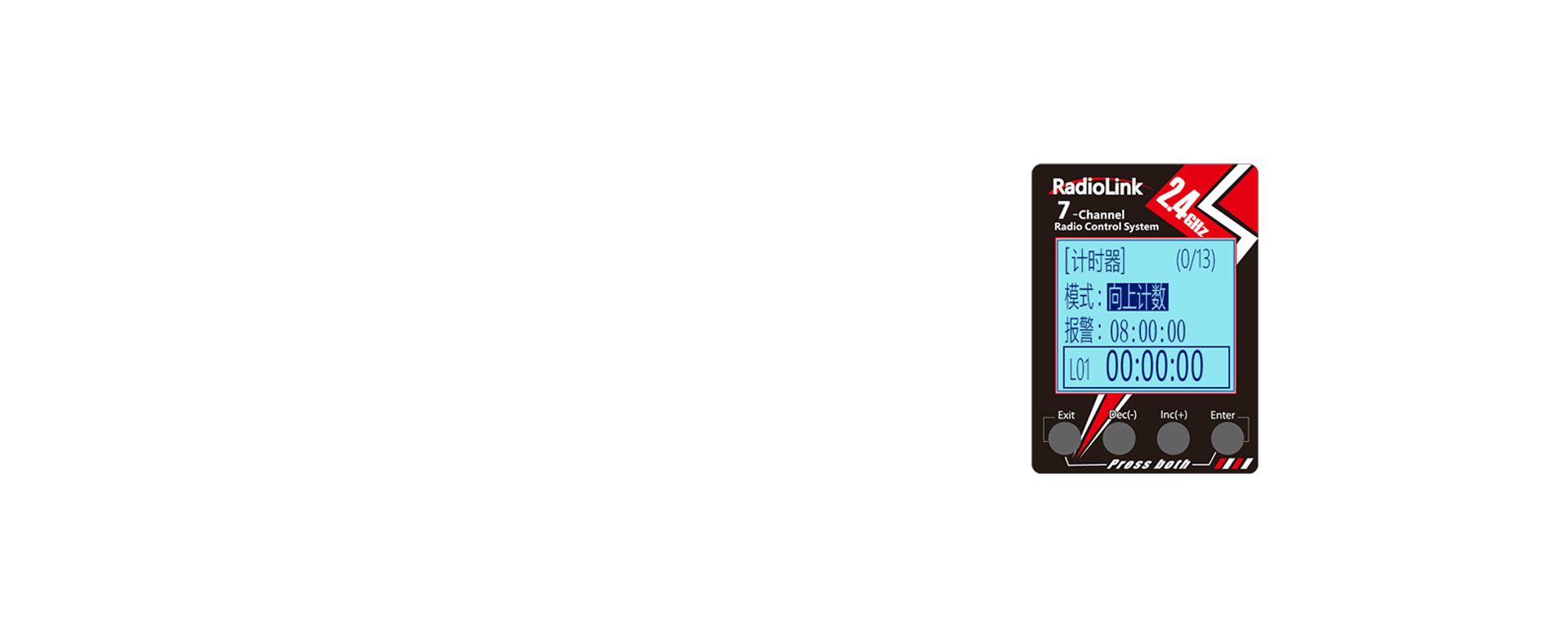

Timer Function

The timer function of the RC6GS V3 allows you to grasp the lap and complete track results in time to help you train yourself before the race.

7 Channels for Multiple Types of Models

RC6GS V3 is an ideal partner for all types RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting RC Car, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car, GP RC Car, EP RC Car, Sailboats, Trimaran, Bait Boat, Remote Controlled Lifebuoy, and other types of RC cars or boats.

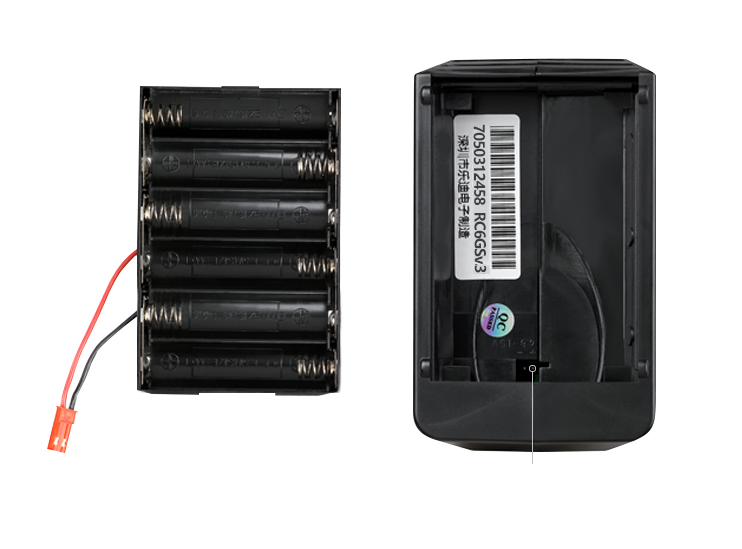

JST connector

Dimension of battery case: 89*59*25mm (3.5” *2.32” *0.98”)

Reverse Polarity Protection Circuit

RC6GS V3 is easily adapted for various battery layouts with wide operating voltage tolerance: 6pcs of AA batteries or 2S-4S LiPo or 18650 Lithium battery.

Universal JST connector with the voltage protection software of Radiolink ensures vital components are protected from a reverse polarity connection.

89mm

59mm

Pay attention: if you use a 18650 Lithium to power for RC6GS V3, please make sure the 18650 Lithium is with a JST connector and the dimension of the battery case is 89*59*25mm (3.5” *2.32” *0.98”).

Dual Programmable Mix Control

7 channels transmitter.

Arbitrary 2 channels can be easily set as mix control, easy to understand.

For crawler: CH1 is the rudder, CH2 is the throttle, CH3 can set up to control the transfer case, CH4 can set up to control the shift gear, CH5 can set up to control the front locker, CH6 can set up to control the rear, and CH7 can set to control the capstan.

For Timber Truck: dual programmable mix control makes front wheel mix with rear-wheel come true, which can reduce the turning radius.

Performance Upgrade: Ergonomically Designed for Hours of Fun

Base on the feedback of hundreds of experienced RC racers, we redesigned the throttle trigger, the thickness of the grip, and the location of each switch to achieve a better comfortable driving experience.

Rational throttle trigger length and tension, make easy and accurate for throttle adjustment.

Threaded design helps antiskid when the drivers at the long-time practice or in hot weather.

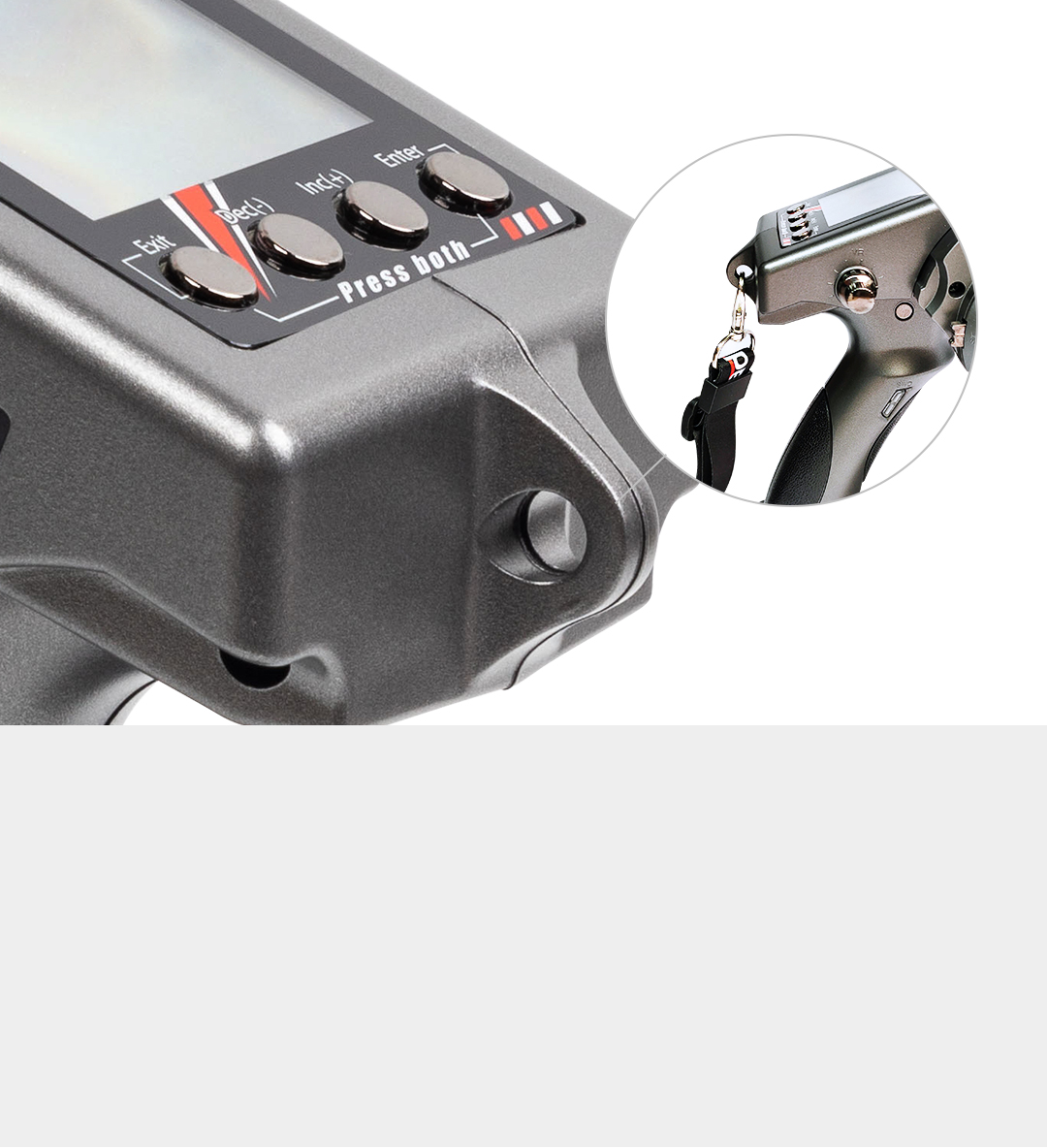

A lanyard (comes with RC6GS V3) to make the suitable weight to highly compatible with drivers control habits make the long drive more pleasant.

FPV display holder design helps the drivers enjoy the fun of driving.

An aperture of FPV display holder:

M6 thread (1/4 thread) (English screw)

User-friendly design for each operation and handling.

Various styles switch for easy recognition and usage.

Receiver with Gyro Integrated

Customizable Gyro Sensitivity

Standard receiver R7FG packed is the receiver with built-in gyro and supports high voltage servo.

It is anti-slip and keeps the uni-direction. With the integrated gyro in R7FG installed, the vehicle turns more smoothly, and drifting from high speed can be prevented.

The easy setting ensures better control of gyro stabilization.

Gyro sensitivity can be adjusted by STD or CH3 which is controlled by VR switch by default to maximize or minimize the gyro function.

Wide Compatible

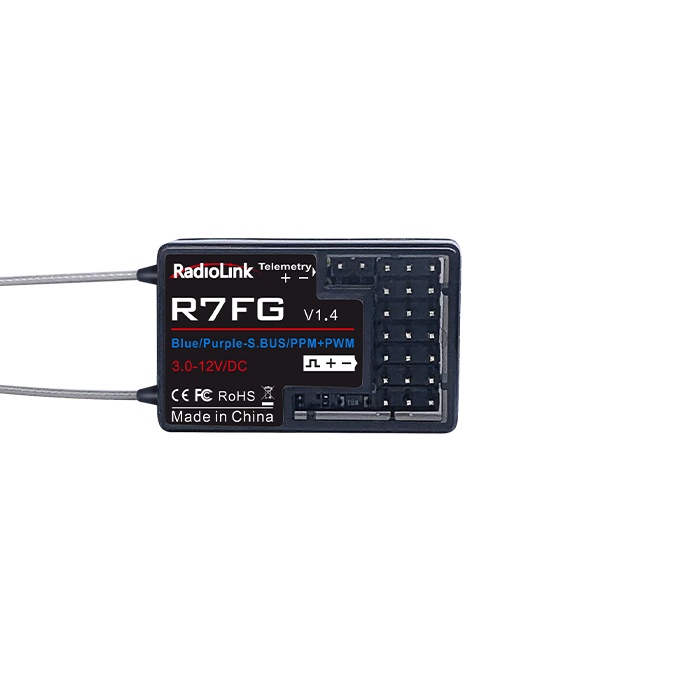

RC6GS V3 is packed with a receiver R7FG.

R7FG is a 7 channels receiver with gyro built-in, high voltage servo support, and model voltage telemetry support.

RC6GS V3 is also compatible with the 4 channels mini receivers R4FGM/R4F designed for Mini RC cars, the 6 channels receivers R6FG/R6F, and the 8 channels receivers R8FG/R8EF/R8F, which are designed for RC boats.

Real-time Built-In Telemetry of Model Battery Voltage

Telemetry is capable of RSSI, receiver, and model battery voltage.

RSSI and receiver voltage data will display once binding is complete.

The model voltage will display by connecting the wire to the ESC, battery,

and Telemetry port of receiver R7FG/R8F/R8FG, no extra module is needed.

Telemetry of maximum 8S (33.6V) battery supported.

V1.2, V1.3, and V1.4 versions of R7FG have been designed as Water Splash Proof (IPX4).

Water Splash Proof (IPX4) for Receiver R7FG

A receiver R7FG will packed with RC6GS V3.

The PCB board and pins of R7FG have the same waterproof treatment as the mobile phone, that is, nano-coating technology treatment and the waterproof grade is IPX4.

IPX4: The IP×× rating standard recommended by the International Electrotechnical Commission (IEC).

20 Years of Research and Development Experiences

Do What You Need

Maintain continuous research and development according to users’ feedback, and constantly improve and add new functions required by users, do what users need.

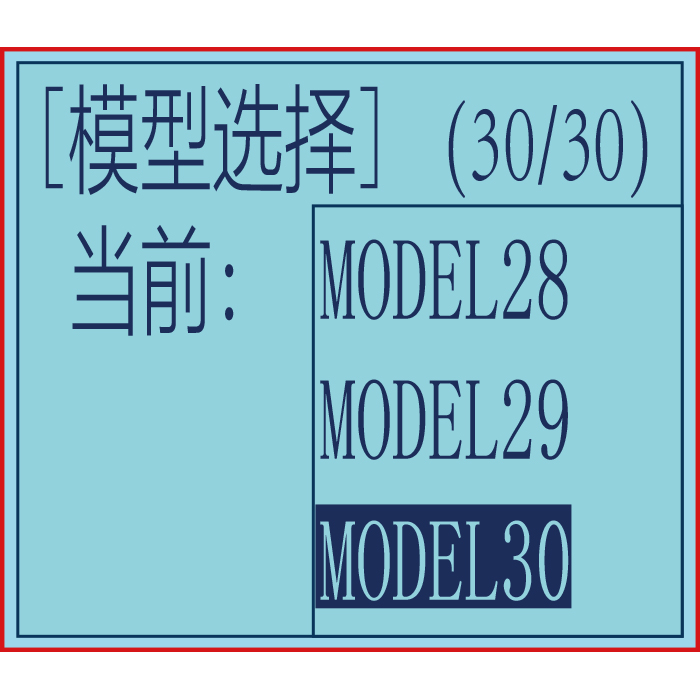

Onboard Memory for 30 Models

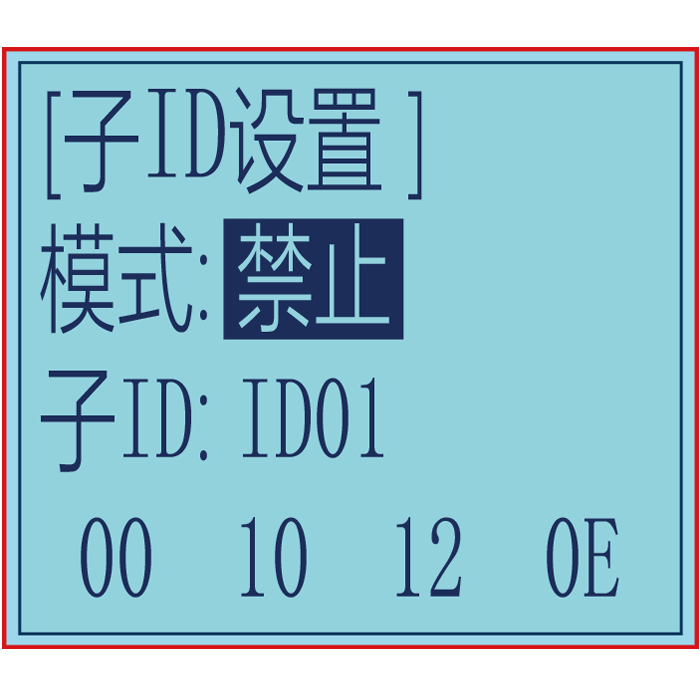

Subsidiary ID

RC6GS V3 is capable of an arbitrary ID designation among a maximum of 10 binding receivers, making long-distance rescue of RC cars or boats achievable.

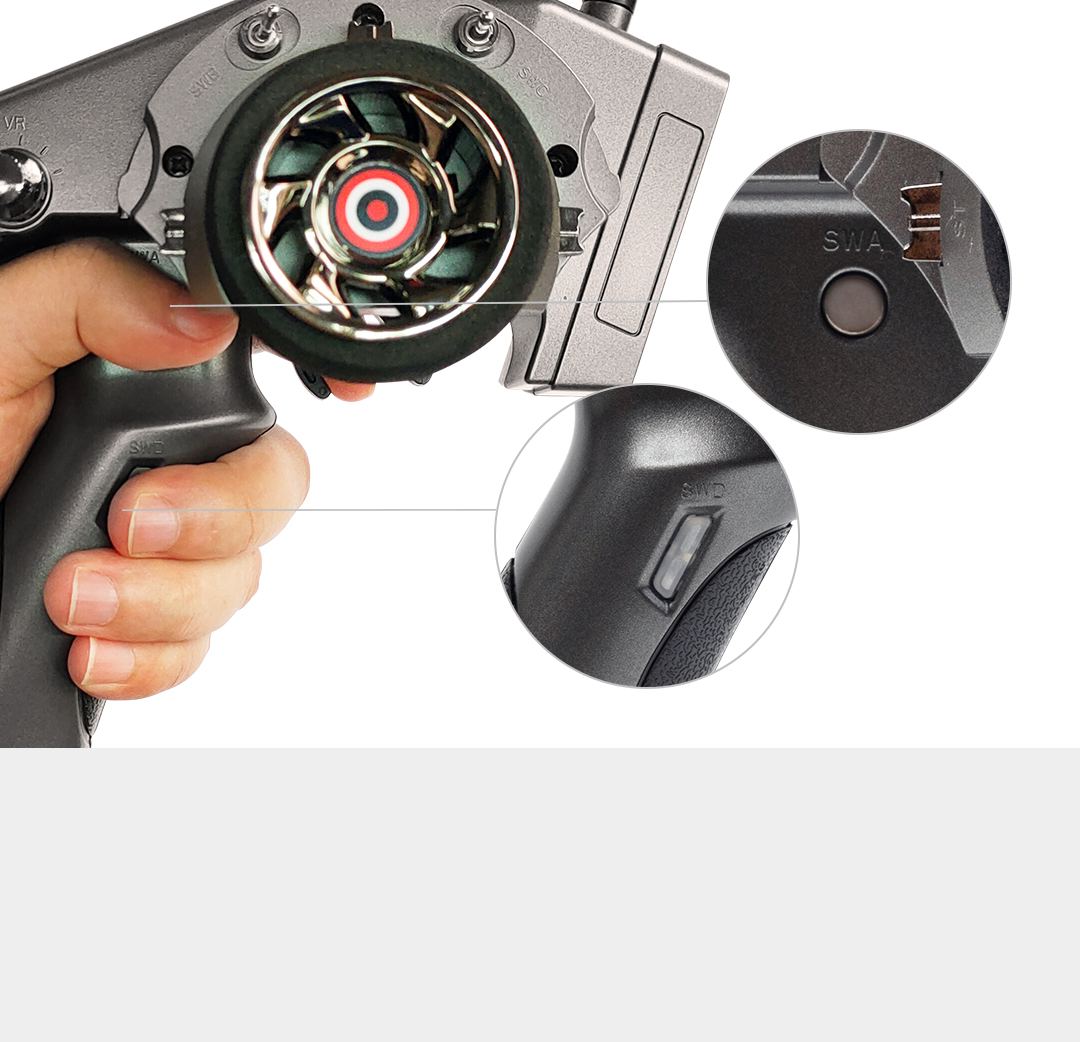

A switch can be set to active D/R

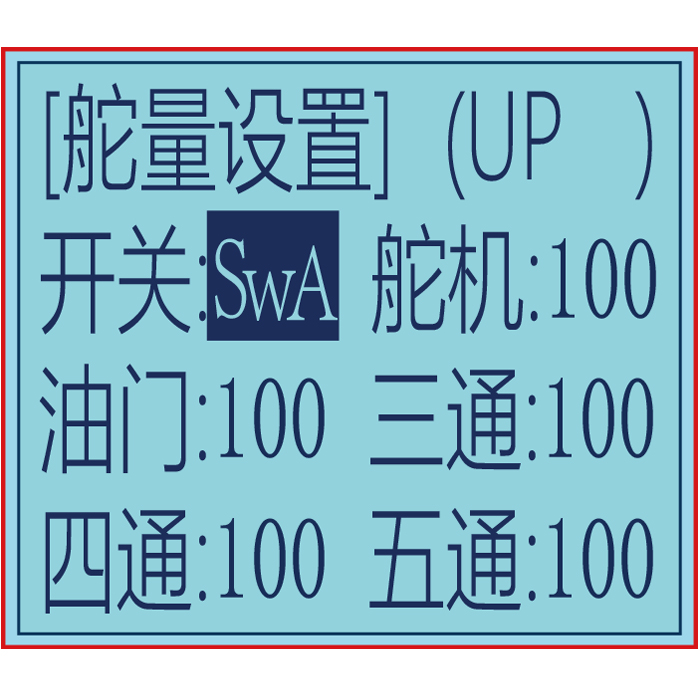

A switch/button can be set to operate D/R during the maneuvering of the car, it helps drivers quickly switch D/R during the 4-wheel drive session without having to go to LCD to press through all the menu each time.

Simulator Function

FPV Head Track Function

FPV Head Track Function*

RC6GS V3 used FPV goggles to control the up, down, left, and right movement of the camera on the RC car.
What's more, RC6GS V3 is compatible with TBS Crossfire by connecting it to the DSC port.

Get more than 600 meters of controller distance by connecting to the TBS crossfire, and work with the FPV head track function to fully enjoy the funny of First-Person View of racing or crawl.

Multiple Function for DSC Port

The DSC port of RC6GS V3 can set as the Simulator Function(support VRC Pro，CarX, Assetto Corsa Competizione, and etc. simulators),

the FPV Head Track Function(3-axis or 2-axis track can be selected), or the TBS Crossfire Function.

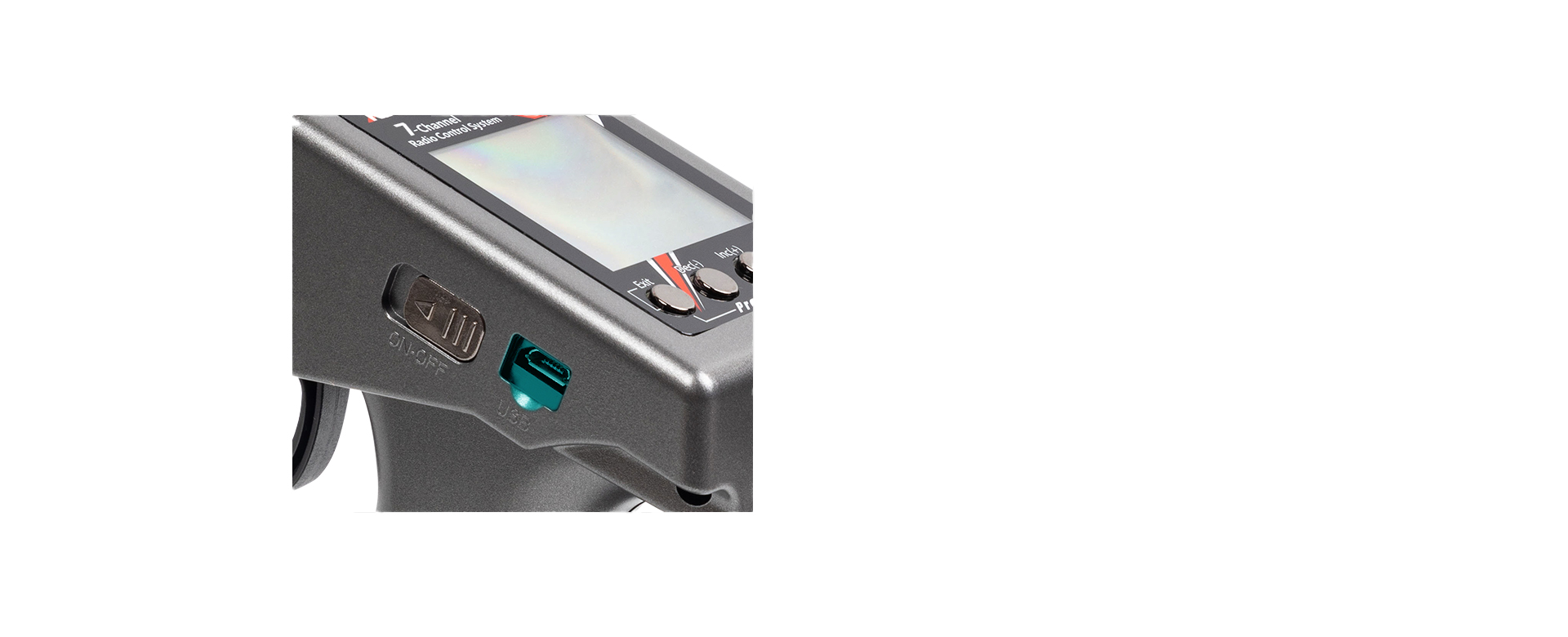

USB Upgrade

The RC6GS V3 is easily updating by the computer via a USB cable.

Intuitive software hint guides you through the process.

Note: The USB port only for upgrade, do not use it for charge.

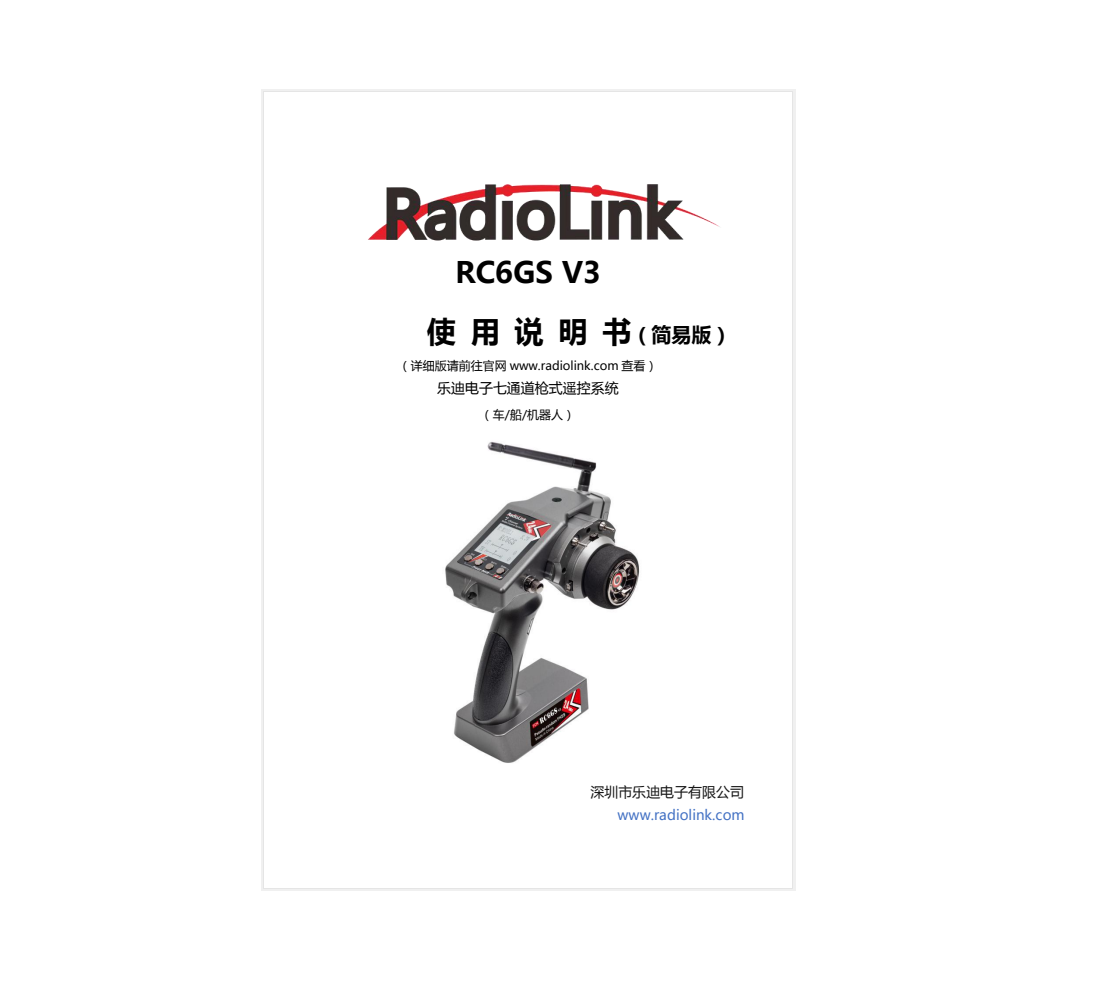

RC6GS V3 Packing List

(For the actual packing list, please refer to the sales page of the RC6GS V3 that you purchase,

or confirm it with the shop sales first.)
