FPV with 600m Control Distance
Stable remote-control distance up to 600m on the ground.
Control with camera and display screen/ goggle makes the FPV fun and cool.
600 Meters Control Distance
The stable remote-control distance of R7FG is up to 600 meters on the ground. Control with the camera and the display screen/ goggle makes the drivers enjoy FPV fun.
Capable of real-time transmission of RSSI, receiver, and model voltage.

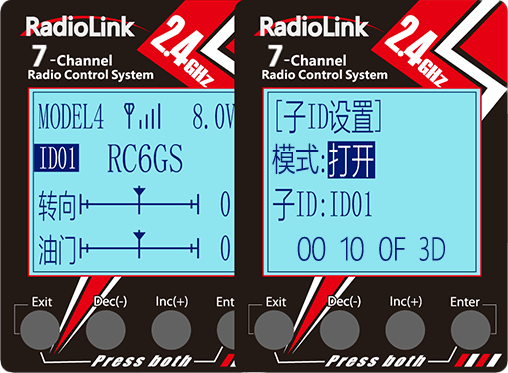

The RSSI value and receiver voltage will display on the screen once the binding complete between transmitter and receiver.

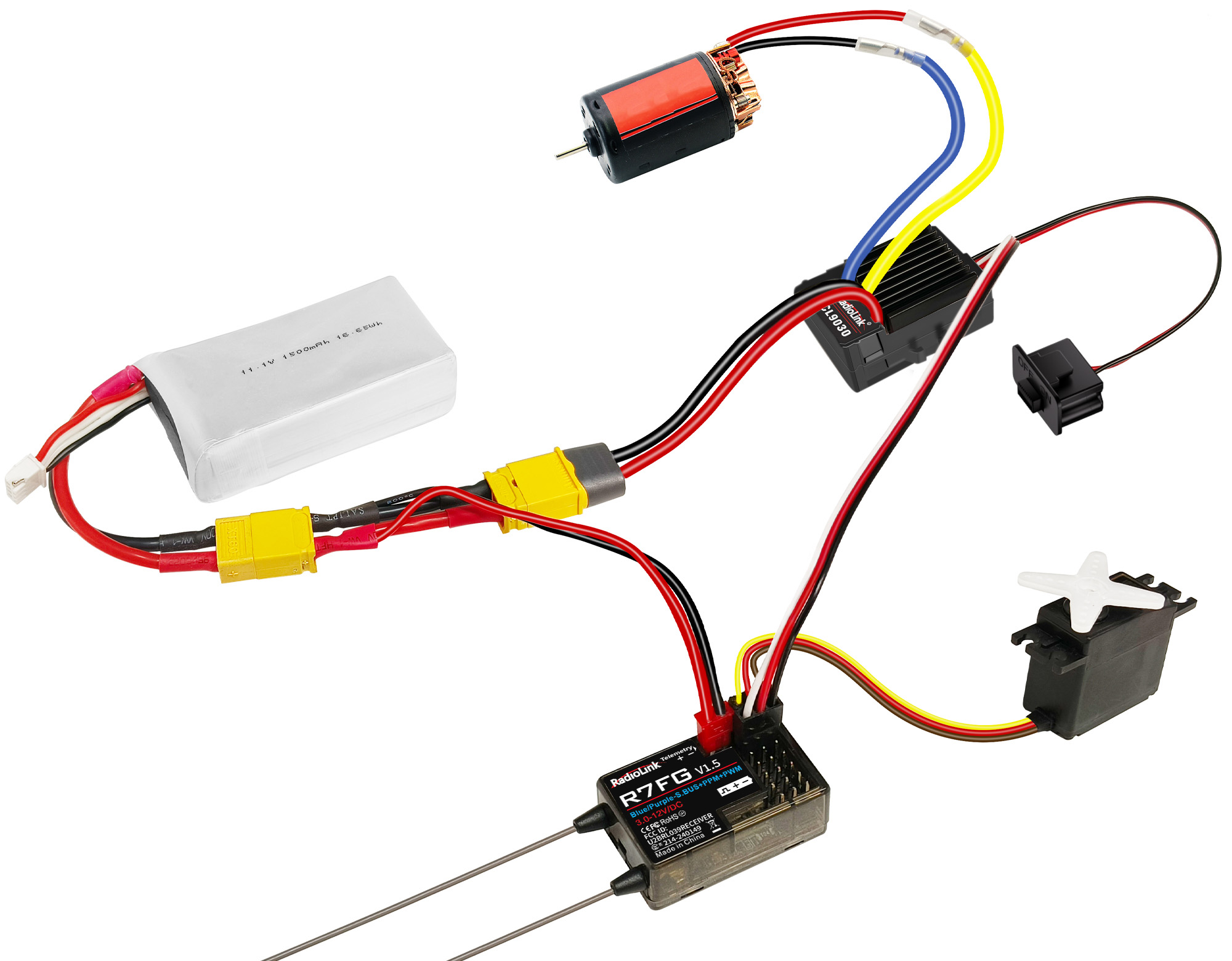

The model voltage will display on the screen by connecting the battery to the Telemetry port via the voltage feedback cable (come with R7FG),
without extra backhaul module needed.
The real-time maximum voltage can be up to 8S battery.
To support the two-way transmission function, the corresponding latest firmware needs to be flashed.
FHSS Hopping Communication, Anti-Interference
FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping
make excellent anti-interference performance, perfect for multiplayer complete synchronously.
The 32 bits industrial level M0 chip applied makes better protection from fuel engine spark and ensures the safety of enjoying fuel-powered model cars.

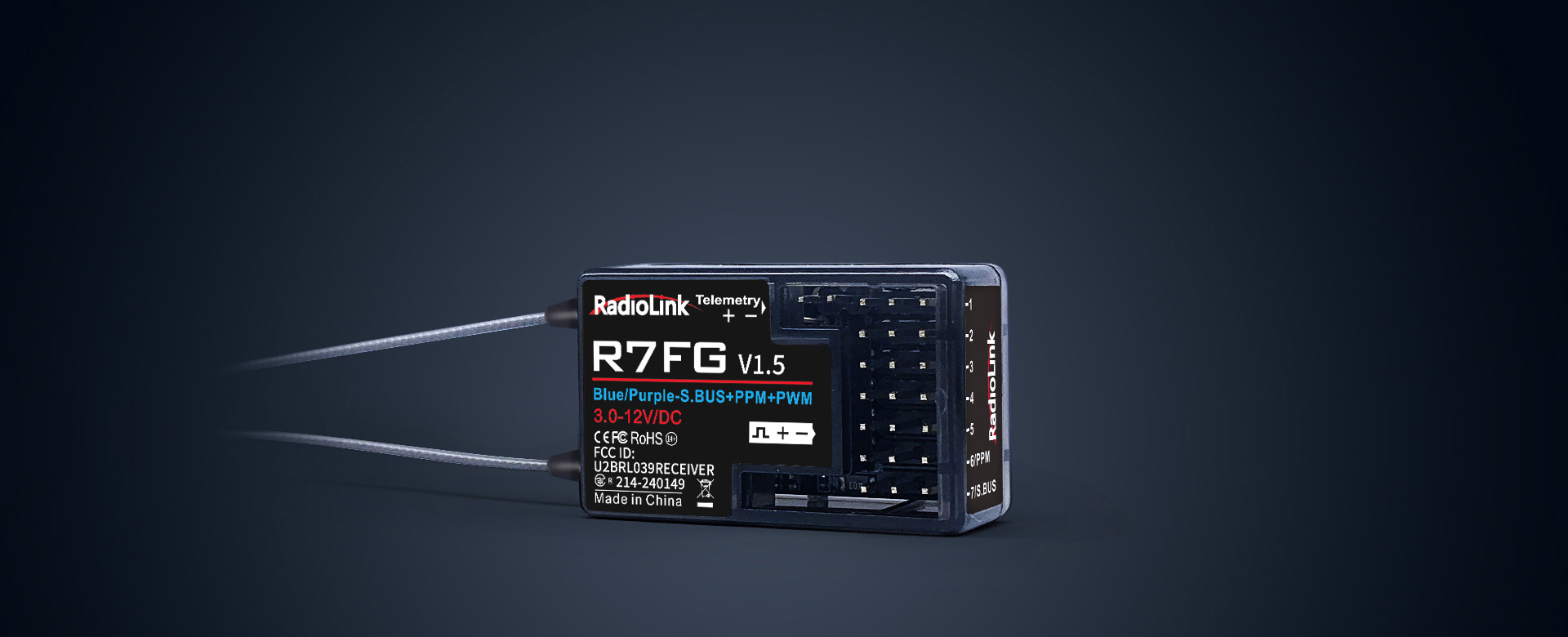

SBUS/PPM/PWM Signal Supported
PWM signal output mode: when the LED of R7FG is green or red, from CH1 to CH7 output PWM signal.
PWM+PPM/PWM+SBUS signal output mode: when the LED of R7FG is blue or purple, CH1 to CH5 are output PWM signal while CH6 with PPM and CH7 with SBUS signal output. Players can personalize signal output mode to fully enjoy the fun of model fishing-boat and car with FPV.
4096 Precision, 12ms Fast Response
The high-resolution ratio of 4096, the stability of 0.5us, the low drop-out rate, and the high-speed processor of 48MHz M0 ensure the extremely fast response within 12ms.
Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats. There can be a total of 10 subsidiary ID stored.
Anti-polarity Connect Protection, Power by Wide Voltage
Even the polarities are mistakenly connected, the receiver will not get damaged.
The power of 3-12V supports high voltage servo.
Connecting Wire of Vehicle Voltage Return

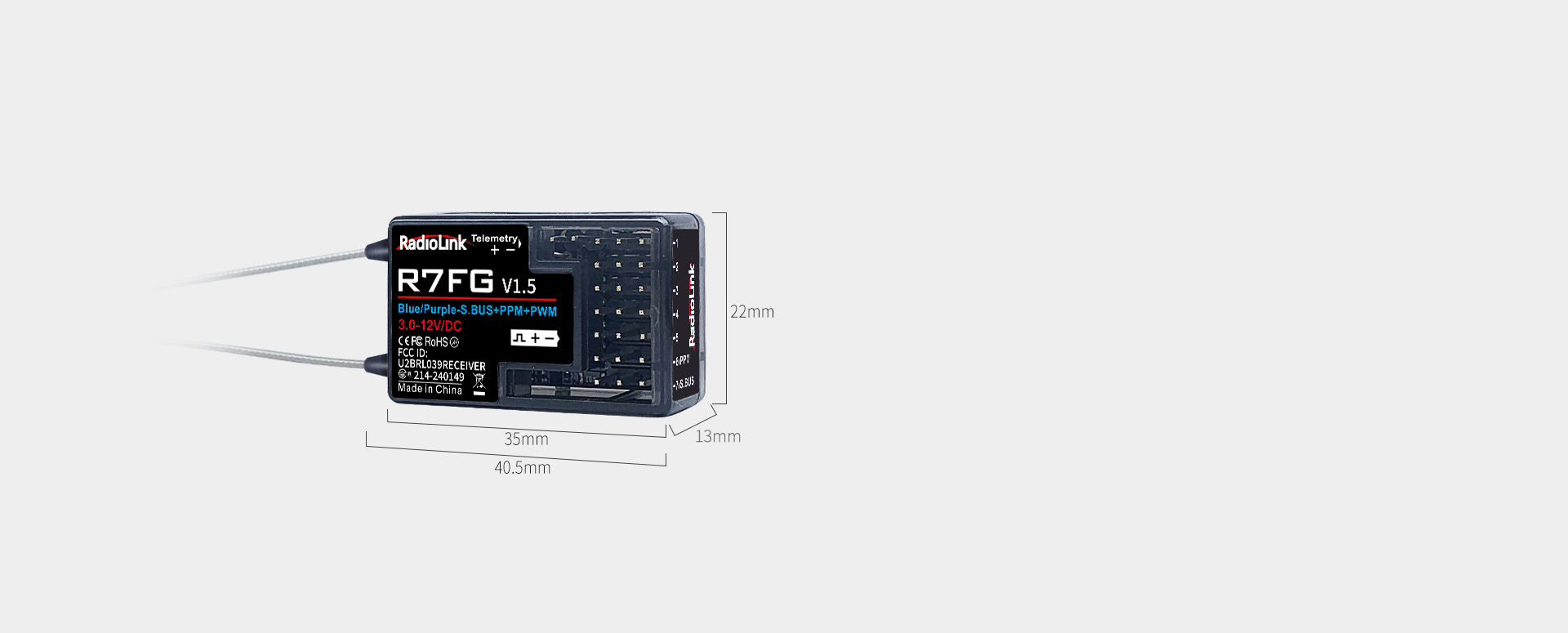

Antenna Length: 205mm(8.07")
Channel quantity: 7
Signal Output: PWM&PPM/PWM&SBUS
Model Application: Car/Boat
Frequency: 2.4GHz ISM
Spread Spectrum Mode: FHSS 67-channel pseudo random frequency hopping
Voltage Range: 3~12V
Operation Current: 30mA (base on power voltage)
Control Distance: 600 meters on the ground
Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/
RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /

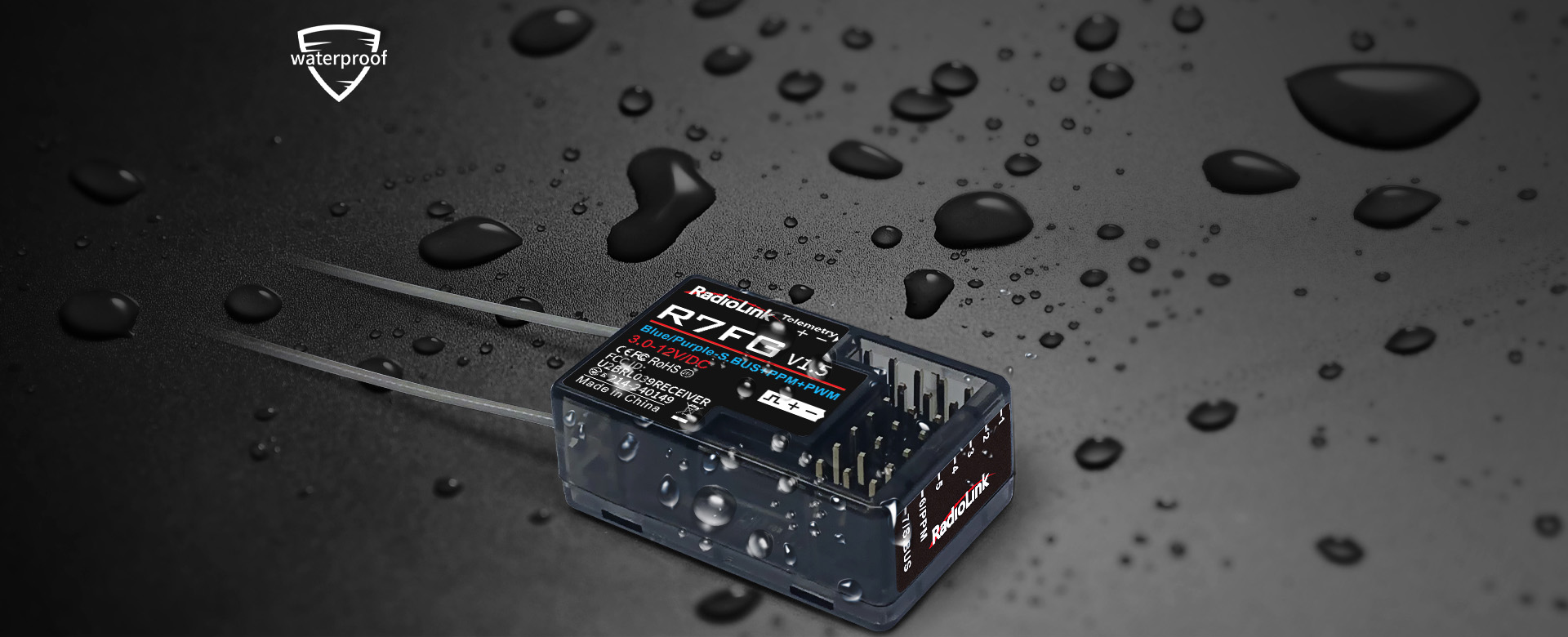

Water Splash Proof (IPX4)
The PCB board and pins of R7FG have the same waterproof treatment as the mobile phone, that is, nano-coating technology treatment and the waterproof grade is IPX4.
IPX4: The IP×× rating standard recommended by the International Electrotechnical Commission (IEC). Both the V1.2 and V1.3 versions of R7FG have been designed as Water Splash Proof (IPX4).
Standard receiver R7FG packed is the receiver with built-in gyro and supports high voltage servo.
It is anti-slip and keeps the uni-direction. With the integrated gyro in R7FG installed, the vehicle turns more smoothly, and drifting from high speed can be prevented.
