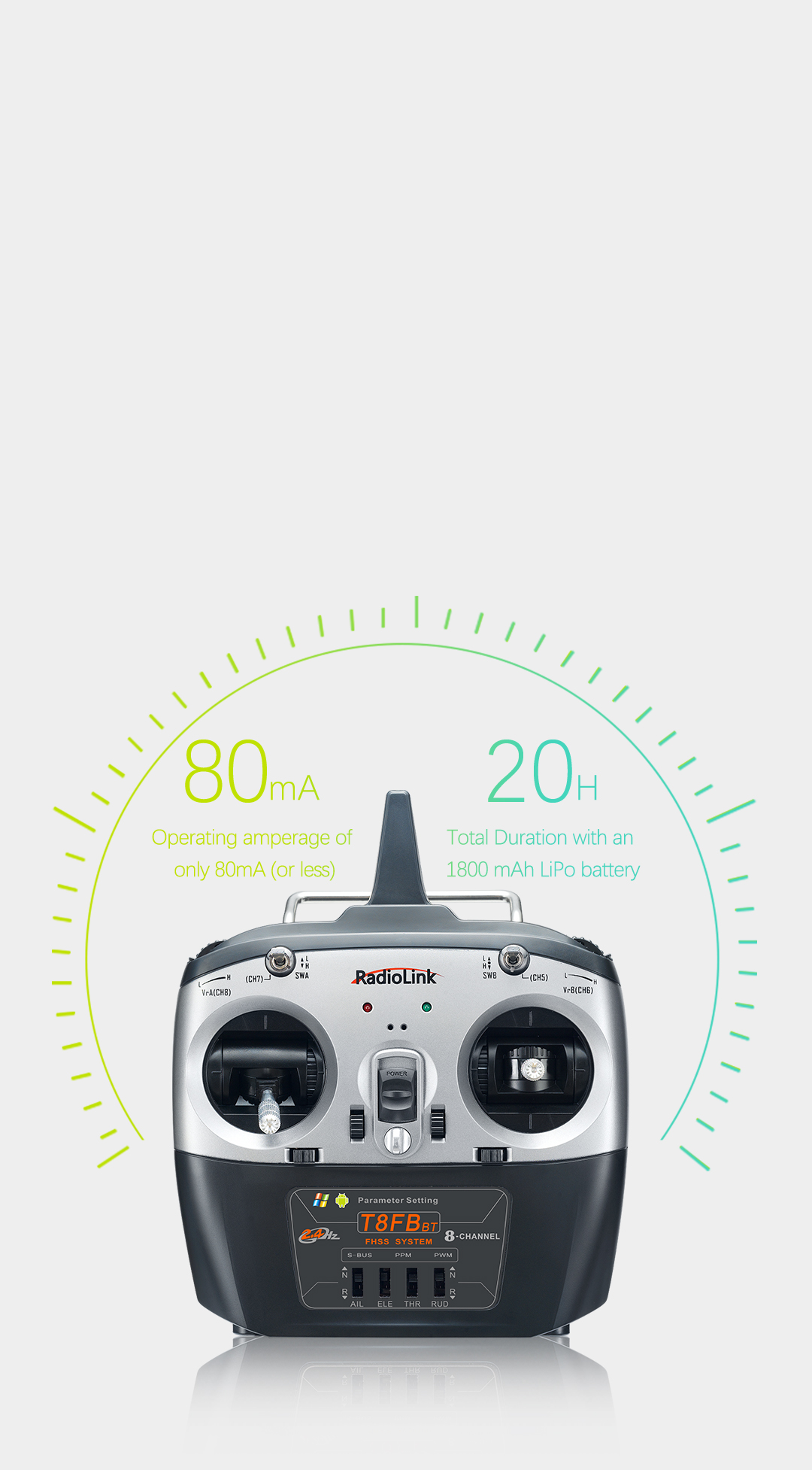

Low Consumption of Battery

Switching Mode Power Supply(SMPS) keeps the operating current of T8FB less than 80mA.

With a 3S 1800mAh LiPo battery in T8FB(BT), the RC fun lasts more than 20 hours.

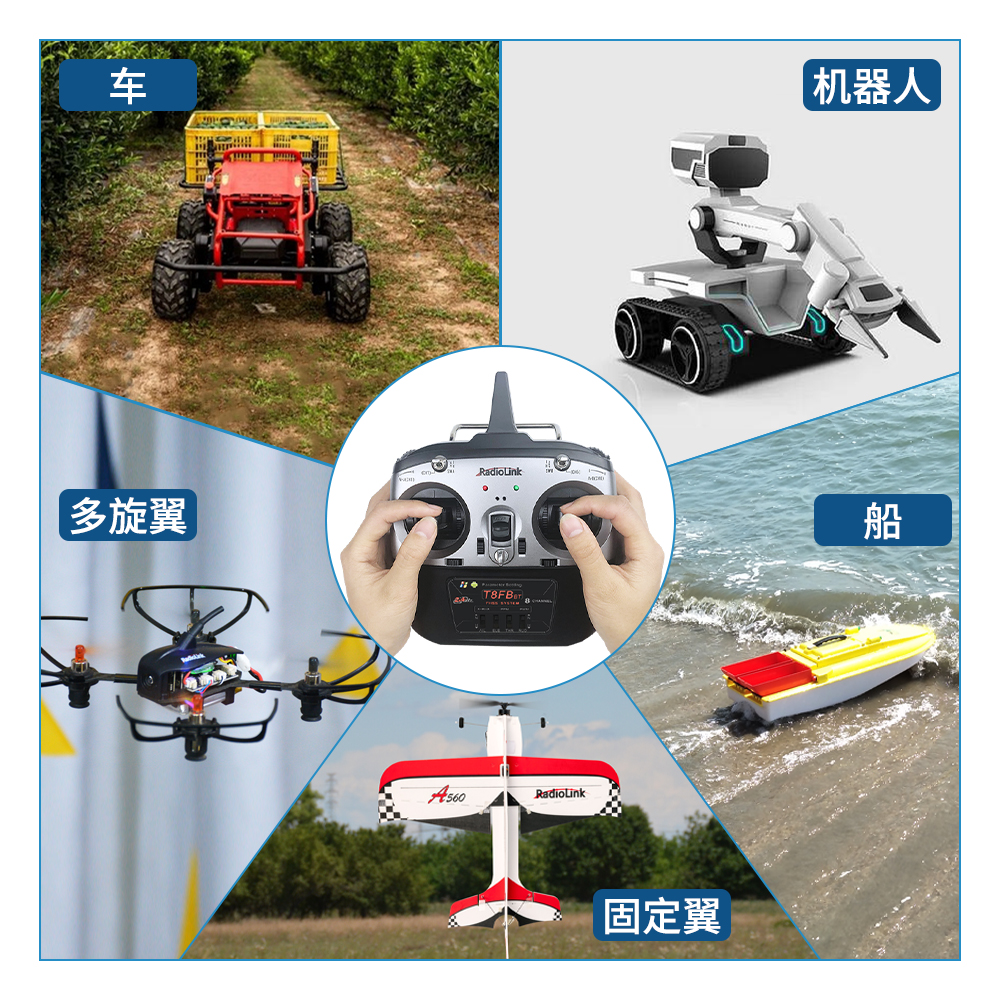

Adapts to Multiple Models

Adaptable models include Fixed Wing, Glider, Multicopter, Car, Boat, and Robot.

Transmitter automatically switches layout depending on the selected mode.

The receiver with 21cm (8.27”) antenna is also perfect for easy RC boat control.

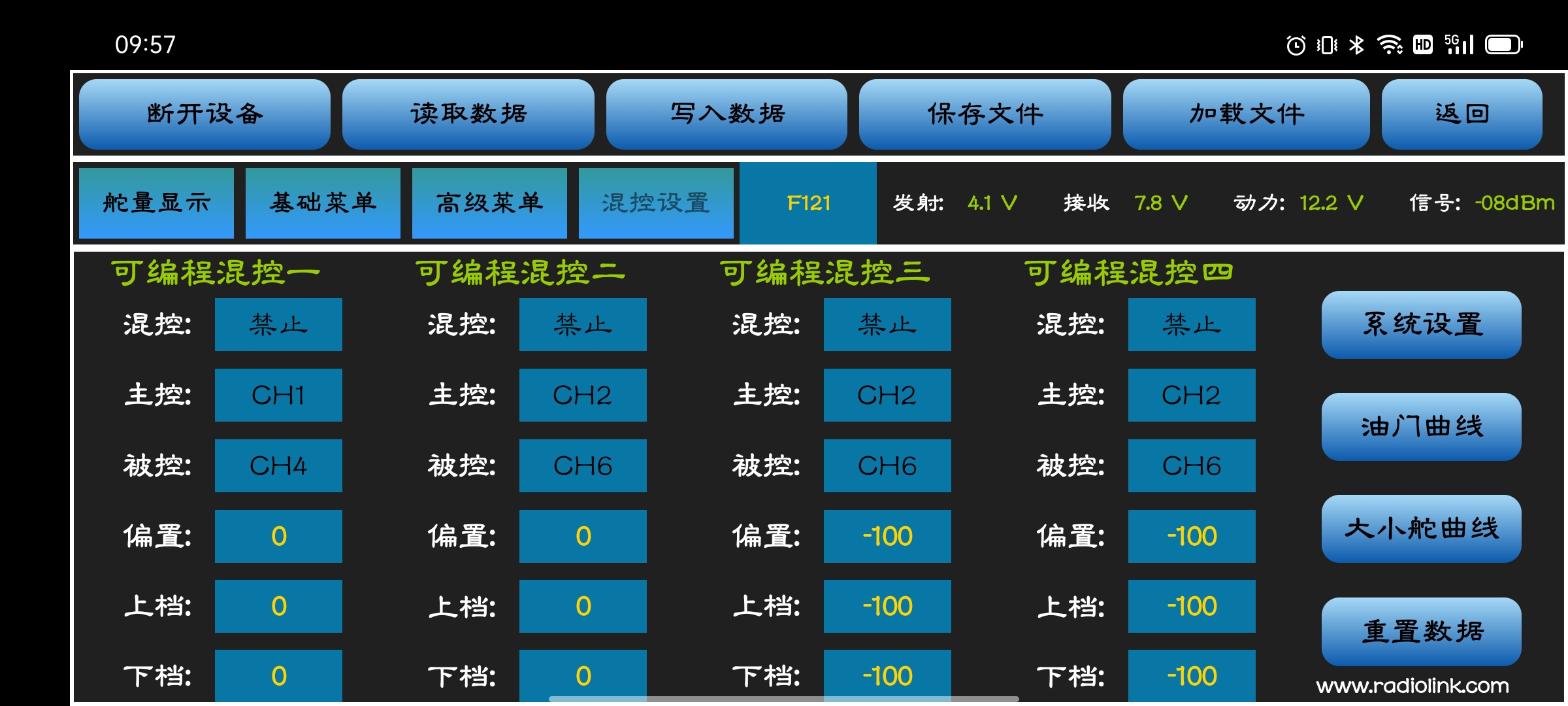

Programmable Mix Control

Channels five through eight can be programmed to any advanced setting

Flight modes are set with the two 3-way switches in the flight controller PIX by default.

Even beginners can enjoy T8FB without a manual.

Anti-polarity Connect Protection

The voltage protection software technology of RadioLink ensures both transmitter and receiver are protected from a reverse polarity connection.

*Battery Case Dimensions: 115(L)*35.5(W)*24(H)mm (4.53"*1.4"*0.94")

T8FB(BT)

Easy to use, certainly worth its value

Best choice for beginners

Compatible with R8EF, R8FM, R8SM, R8XM, R8FG, R8F, R7FG, R6FG, R6F, R4FGM, R4F

* T8FB(BT) firmware upgrade software is compatible with win7, win8, win10, and XP OS.

* Parameter setup APP supports both Android and iOS.

* The App displayed language will automatically set as the mobile.

USB Upgrade

APP Parameter Setup

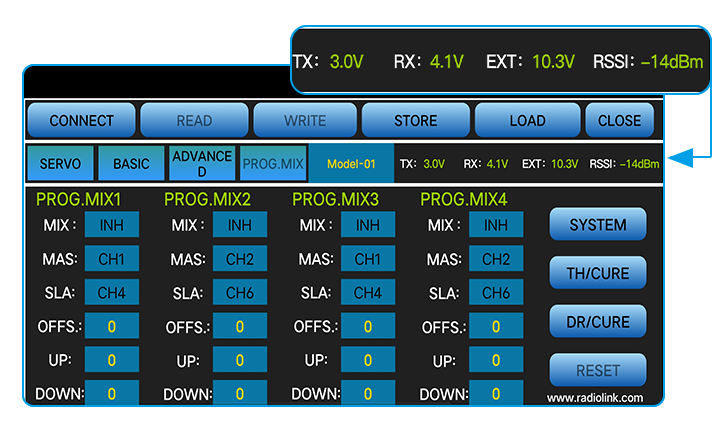

Parameters can be easily set up and modified with Android or iOS mobile phone APP connected via Bluetooth.

Parameters also can be set up by computer tools connected via USB cable.

USB upgrades with new functions added and keeps T8FB(BT) always advanced.

Countless sets of model data can be stored.

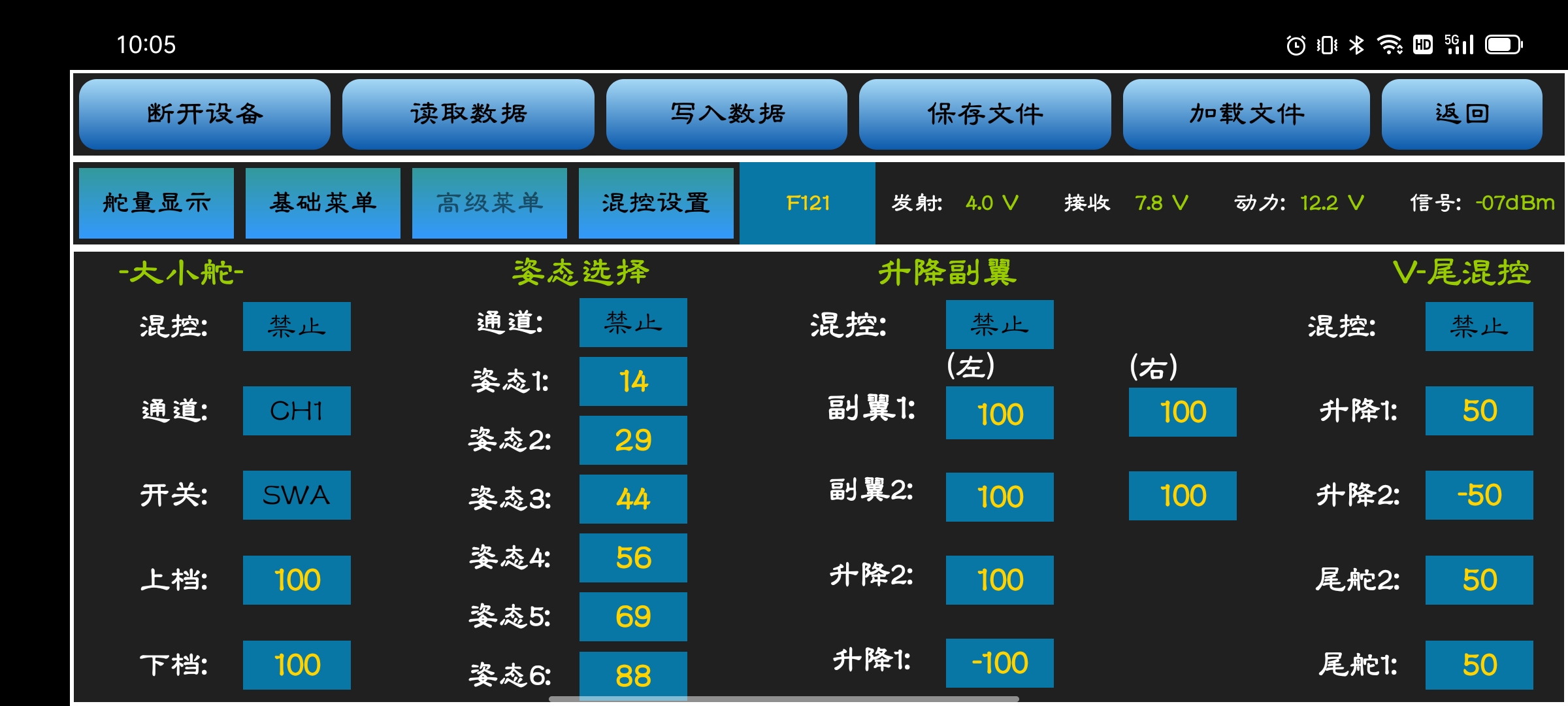

① Parameters setup by Android or iOS mobilephone APP

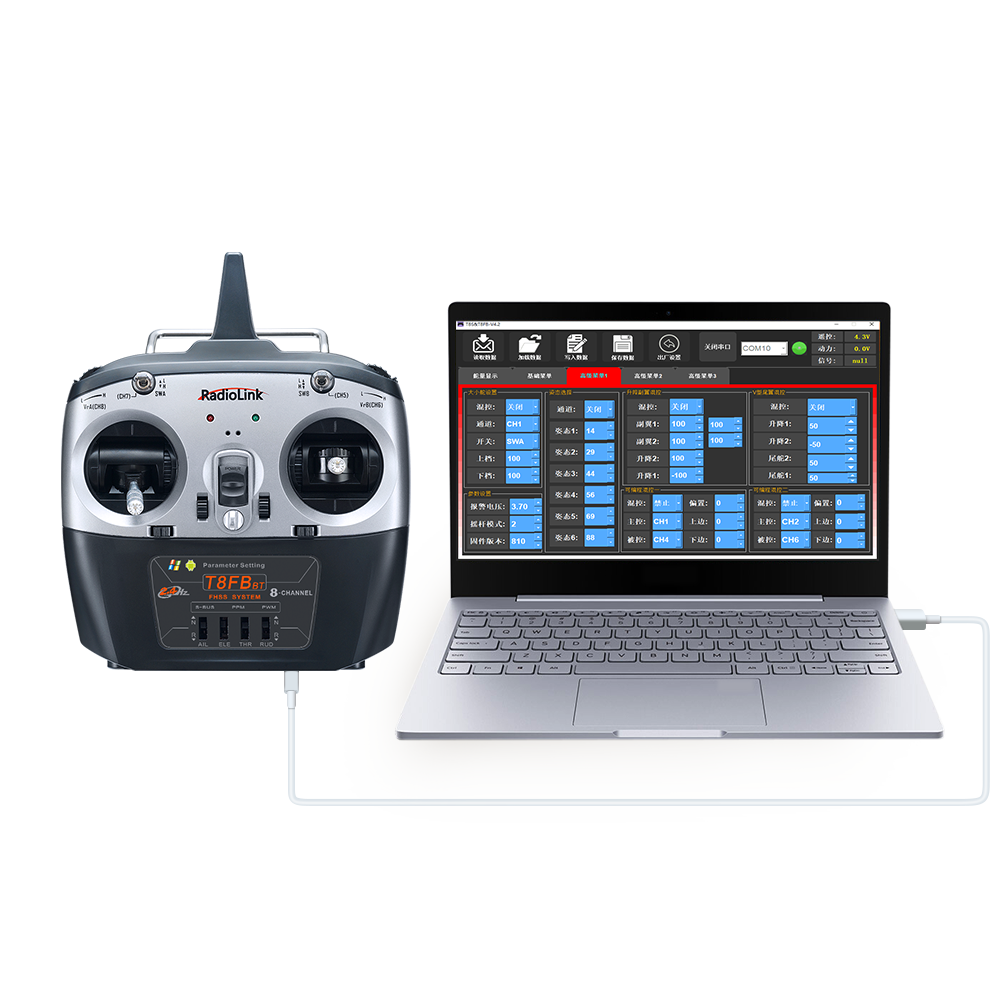

② Parameters setup by computer APP

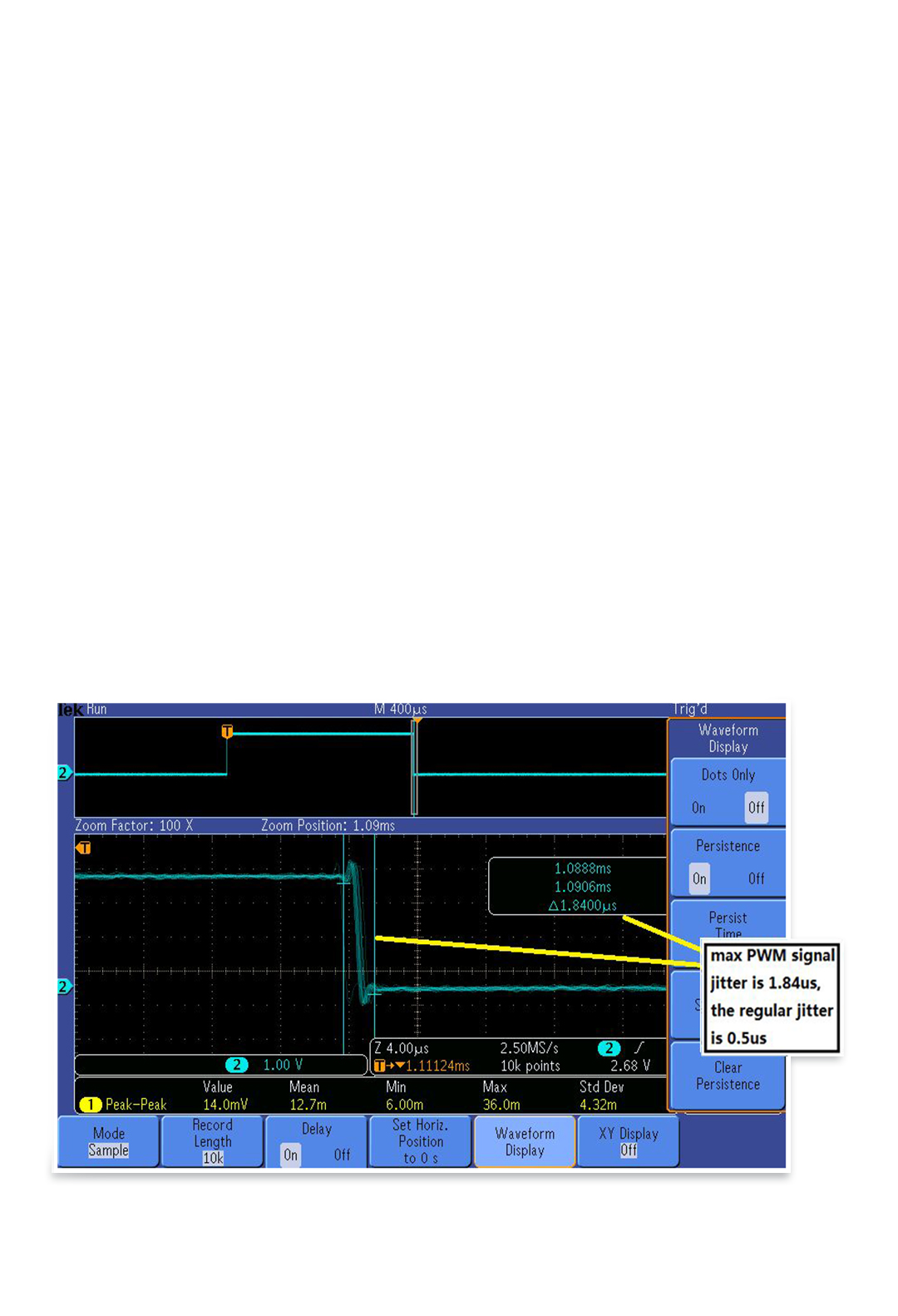

0.5us Gimbal Precision

The optimal design of the PCB layout ensures maximum PWM jitter of 1.84us with a standard of just 0.5us. It is 14 times better than regular jitter 7us of the mainstream 16-channel transmitter in the market. The same joysticks components as AT9S Pro.

2000 Meters Control Distance

T8FB(BT), with the same FHSS algorithm of AT9S Pro and 67 channels pseudo-random frequency sequence hopping,

the chip TI CC2500(same as the Open TX Frsky X9D) and the transmission rate (which three times faster than Open TX),

achieving the better anti-interference ability to both the same frequency band and different frequency bands.

The control distance of T8FB is 2000 meters(1.24Miles) in air.

SBUS/PPM/PWM

Battery Polarity Control

APP Param. Setup

Mini Receiver

 Wide Operating

Voltage Tolerance

FHSS& 67 Channels Pseudo-Random

Frequency Hopping

8CH Complete Functions

Operating current

of 80mA

Inherits Industrial Design

Designed by the same professional company of AT9S Pro, T8FB(BT) is the perfect choice for RC fun with innovation and independent design concept.

Elevator Phase Switch

Three-way switch(SWB)

Mode 1

Holder

LED Indicator

Throttle Phase Switch

Knob switch(VrB)

Aileron/Throttle Gimbal Stick

Power Switch

Throttle Trim

Aileron Trim

Rudder Phase Switch

Antenna

Two-way switch(SWA)

Knob switch(VrA)

LED Indicator

Elevator/Rudder Gimbal Stick

Elevator Trim

Rudder Trim

Hook

Aileron Phase Switch

Real-time Built-in Telemetry

Real-time model data feedback function allows users to receive the transmitter voltage and RSSI information.

When paired with receiver R8FG, R8F or R7FG, the model voltage will display on the mobile phone APP.

Output RSSI Value From Receiver To FPV Monitor

Real-time RSSI Telemetry When Racing

* How to output RSSI value from receiver to FPV when the transmitter is T8S/T8FB and the flight controller is F4/F7?

* How to output RSSI value from receiver to FPV when the transmitter is T8FB/T8S and the flight controller is Mini Pix/TURBO PiX/PIXHAWK？

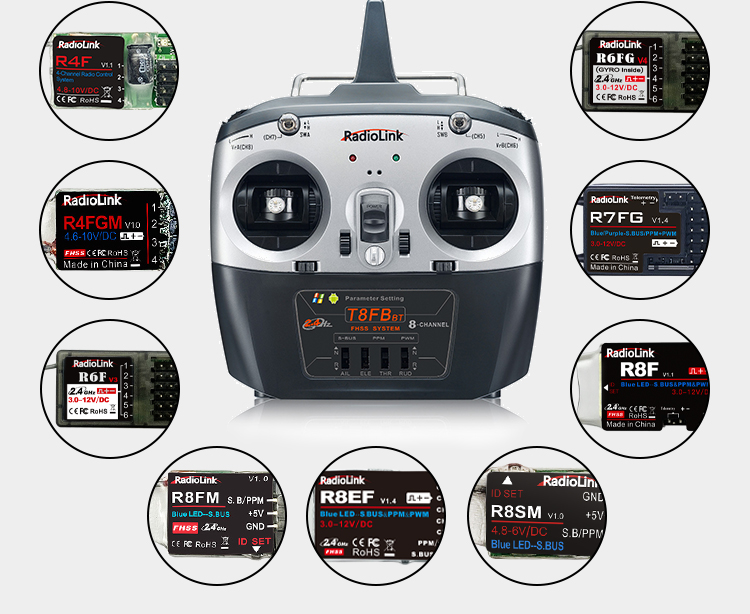

Compatible with Multiple Receivers

SBUS/PPM/PWM Supported

Standard receiver R8EF supports SBUS, PPM, and PWM signals output, no need for extra cables or any signal converter, reducing the weight of aircraft.

When outputting the SBUS and PPM signals, channel 3 to 8 can also output corresponding PWM signal at the same time and work with the T8S turn switch to control PTZ and landing gear. With the T8S in hand to have all functions, R/C fans can fully enjoy with fun!

Pay attention: if you use a 18650 Lithium to power for T8FB, please make sure the 18650 Lithium is with a JST connector and the dimension of the battery case is 115(L)*35.5(W)*24(H)mm (4.53"*1.4"*0.94")

Wide Operating Voltage Tolerance

Wide Operating Voltage Tolerance：4.8V~18V

Universal JST connector allows T8FB(BT) easily adapted for various battery layouts: 4pcs AA batteries or a 2S-4S LiPo or 18650 Lithium battery.

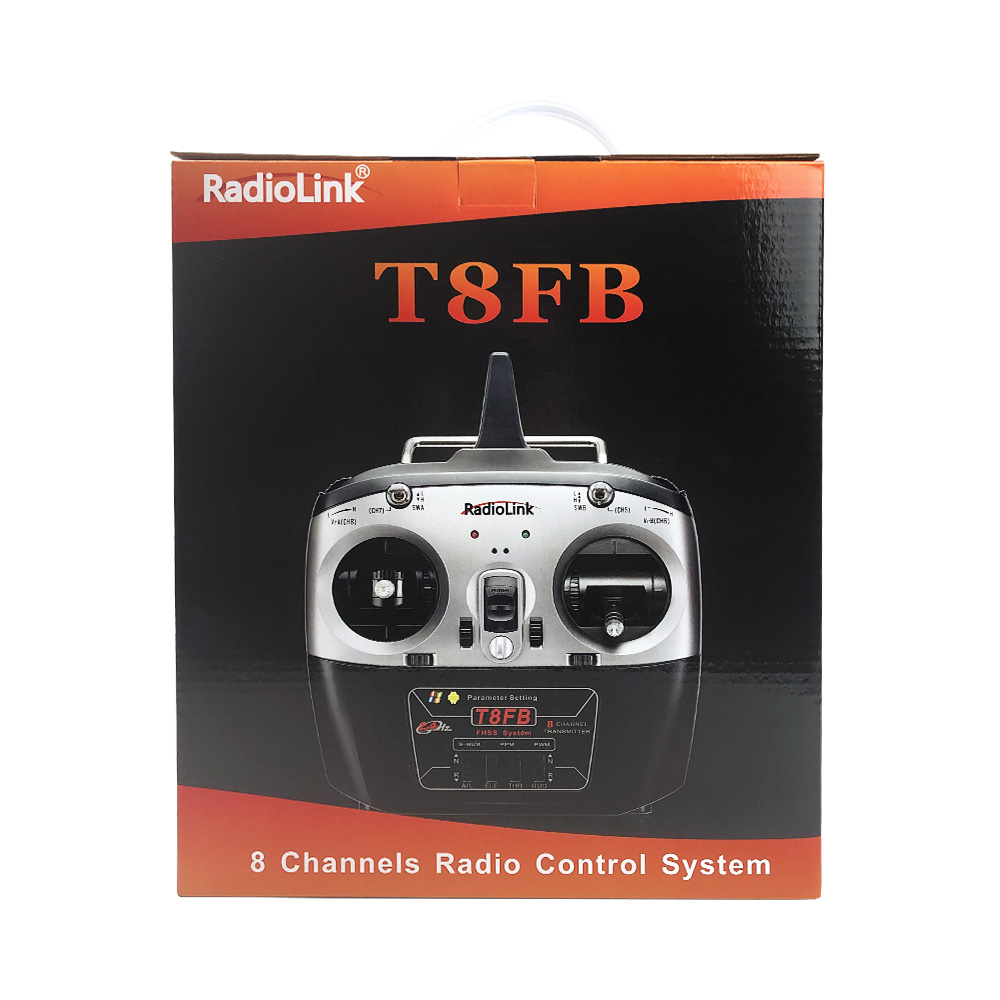

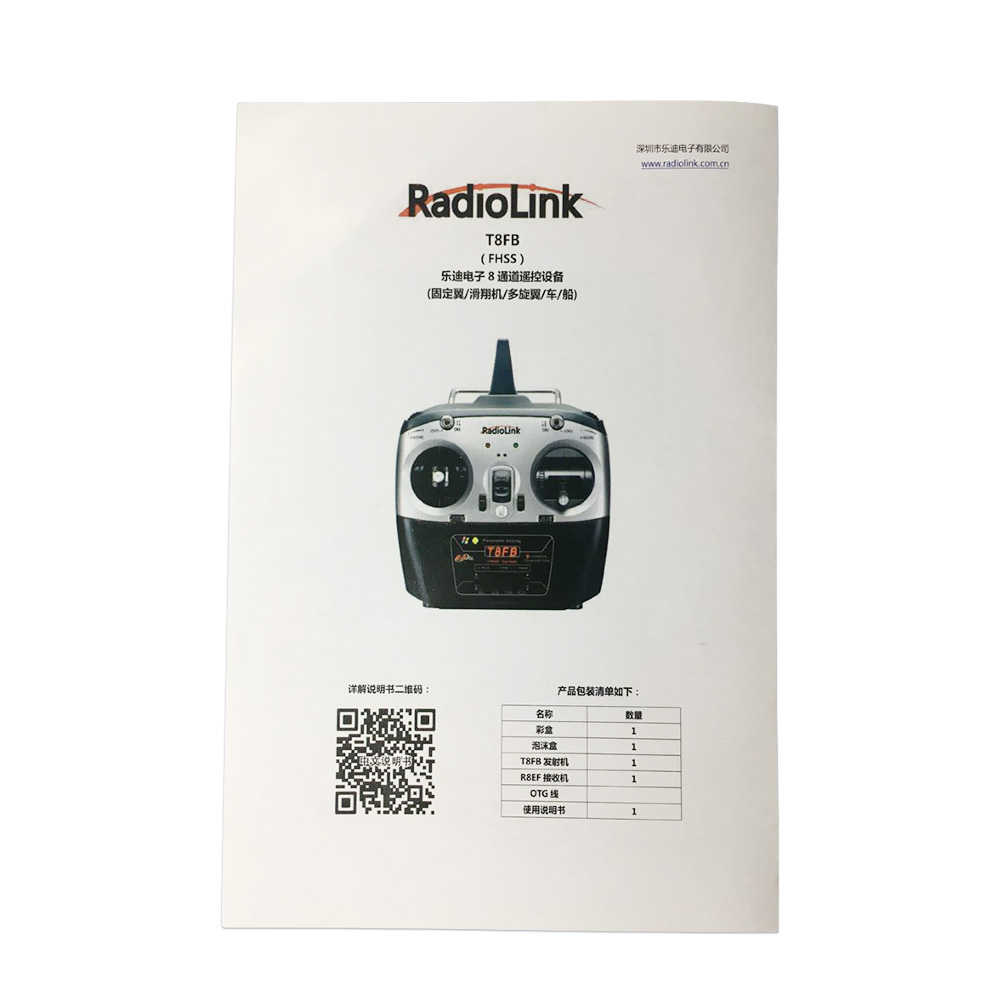

T8FB(BT) Packing List

(For the actual packing list, please refer to the sales page of the T8FB(BT) that you purchase,

or confirm it with the shop sales first.)
