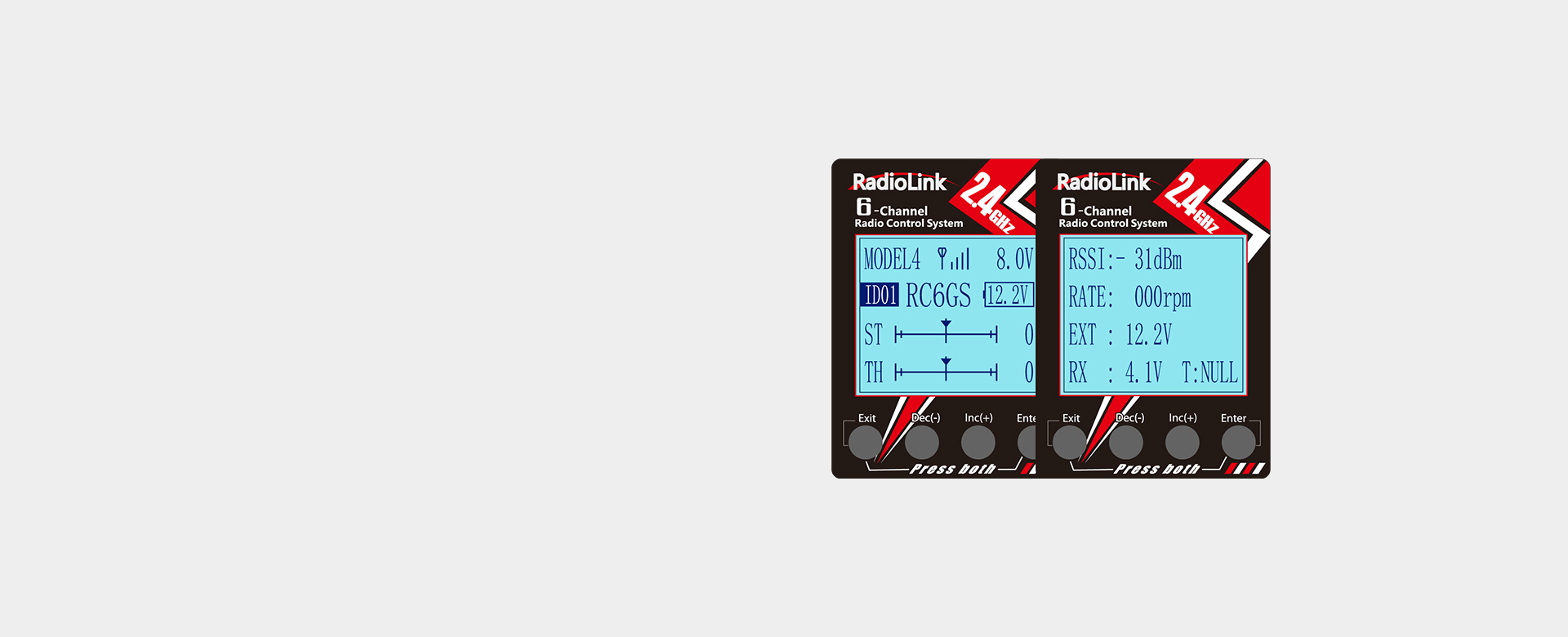

Two-way Transmission
Capable of real-time transmission of RSSI, receiver, and model voltage. The RSSI value and receiver voltage will display on the screen once the binding complete between transmitter and receiver.
The model voltage will display on the screen by connecting the battery to the Telemetry port via the voltage feedback cable (come with R8F), without extra backhaul module needed.
The real-time maximum voltage can be up to 8S battery.
To support the two-way transmission function, the corresponding latest firmware needs to be flashed.
FHSS Hopping Communication, Anti-Interference
FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance, perfect for multiplayer complete synchronously.

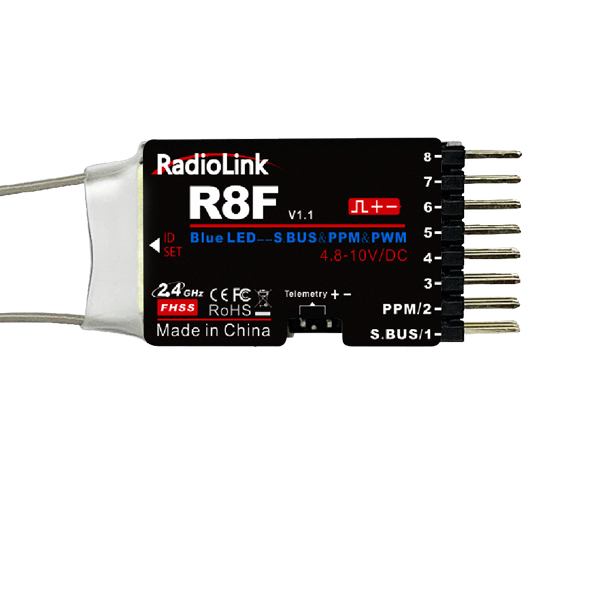

SBUS/PPM/PWM Supported

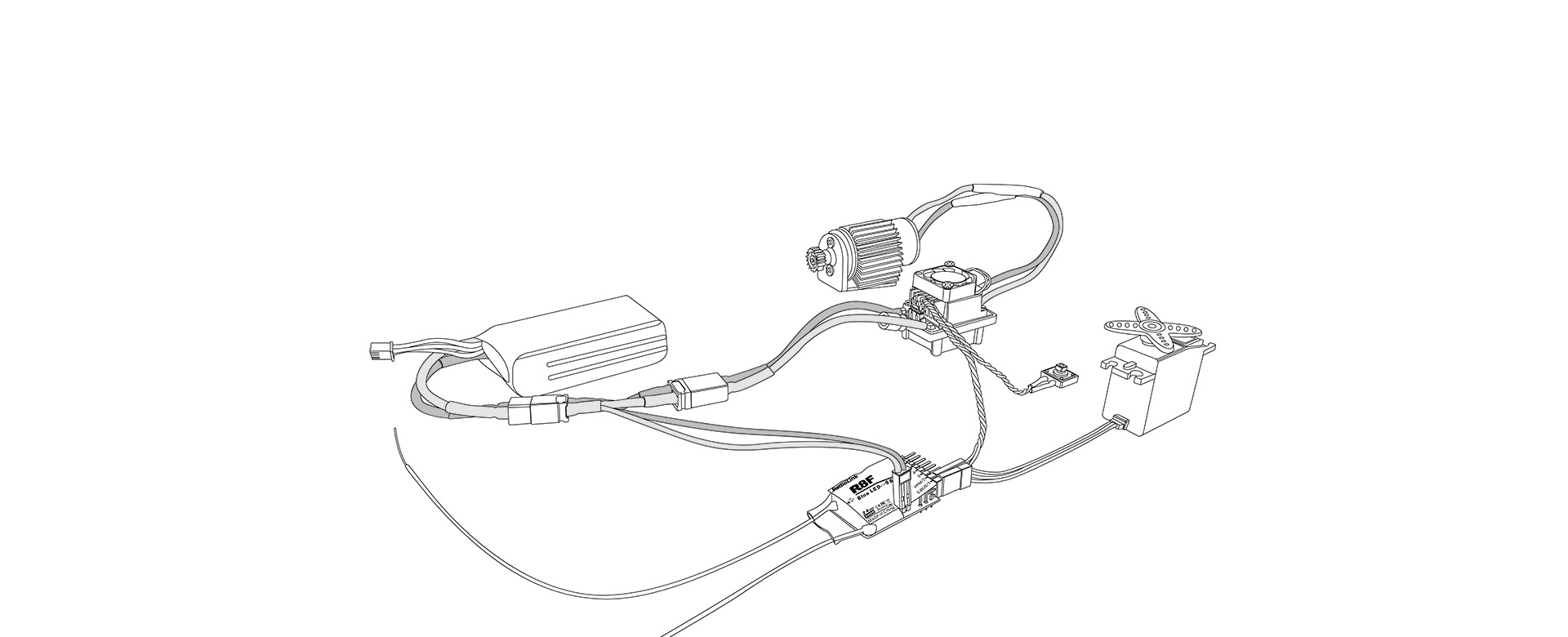

When at standard working mode, channel (CH) 1 to channel 8 are PWM signal output. Besides CH1 for steering and CH2 for throttle, CH3 to CH8 are auxiliary channels to connect extended functions such as light modules and buzzers.

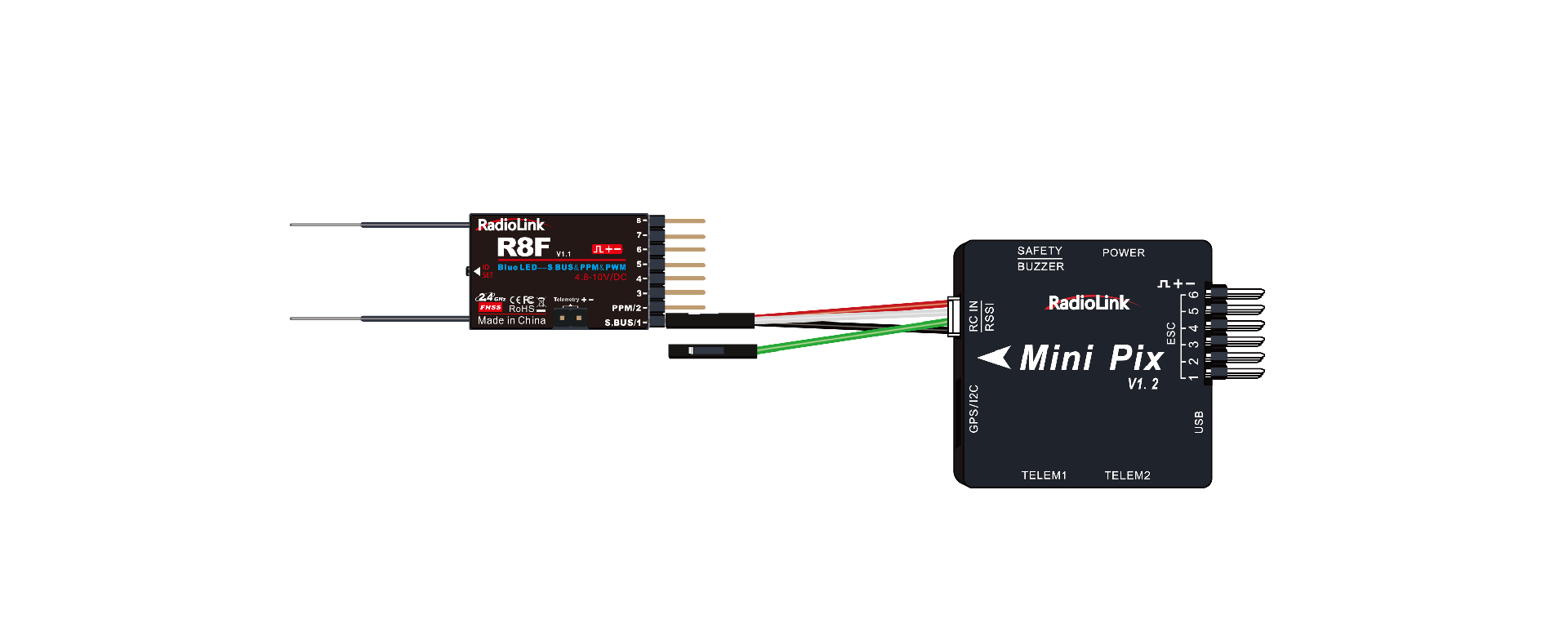

When at SBUS/PPM signal output, the flight controller can be connected and works with GPS to realize the RTL function of the shipping boat or setup of Mecanum models.
① CH1-Steering
② CH2-Throttle
③ CH3-Auxiliary Channel
④ CH4-Auxiliary Channel
⑤ CH5-Auxiliary Channel
⑥ CH6-Auxiliary Channel
⑦ CH7-Auxiliary Channel
⑧ CH8-Auxiliary Channel
Standard Mode-Red light on(without FC)
① SBUS
② PPM
③ CH3-Auxiliary Channel
④ CH4-Auxiliary Channel
SBUS/PPM Mode-Blue light on(with FC)
⑤ CH5-Auxiliary Channel
⑥ CH6-Auxiliary Channel
⑦ CH7-Auxiliary Channel
⑧ CH8-Auxiliary Channel
⑧
①
②
④
③
⑤
⑥
⑦
Specifications

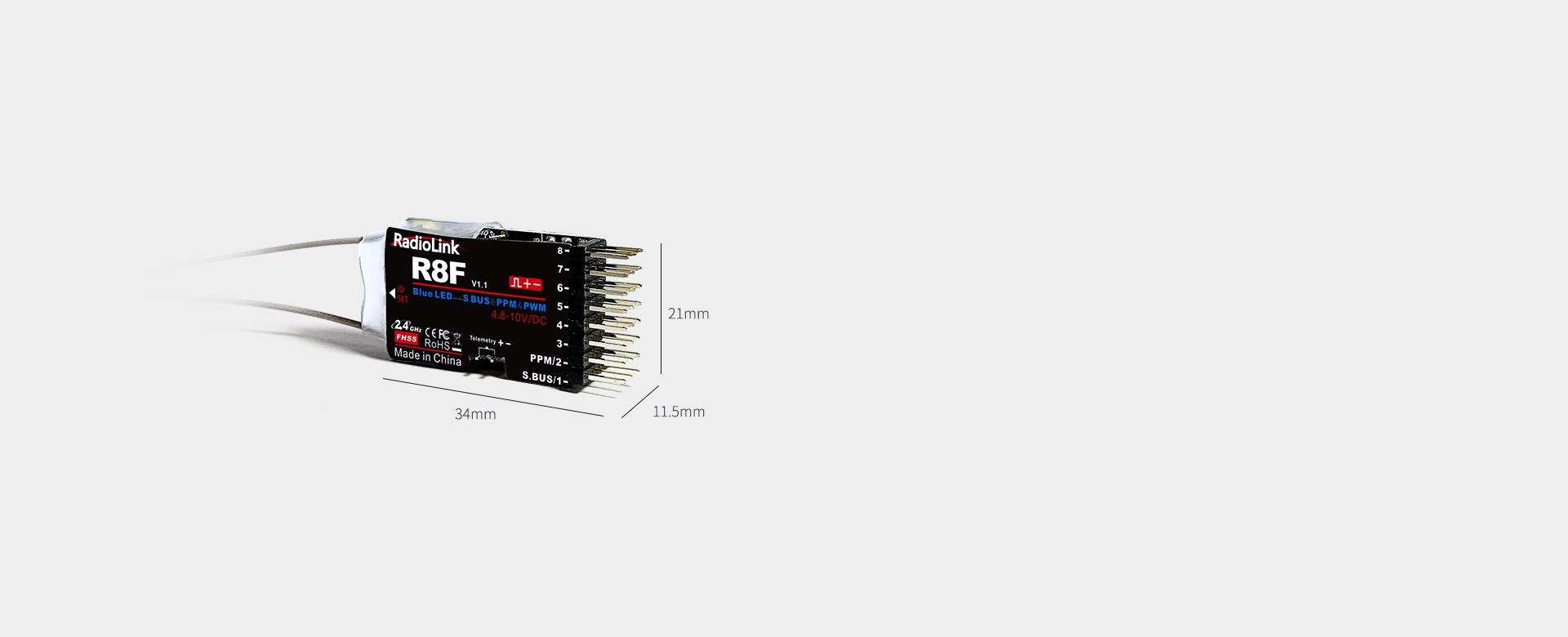

Dimension: 34*21*11.5mm(1.34"*0.83"*0.45")
Antenna Length: Dual antenna, 205mm(8.07")
Weight: 6.5g(0.23oz)
Channel Quantity: 8 channels
Output Signal: PWM/PPM/SBUS
Transmission: Return of Signal, RSSI, Model battery voltage
Model Application: Car/Boat/Fixed-wing/Glider/Multirotor
Frequency: 2.4GHz ISM(2400MHz to 2483.5MHz)
Spread Spectrum Mode: FHSS 67-channel pseudo-random frequency hopping
Voltage Range: 4.8-10V DC
Operating Current: 30mA (based on power voltage)
Control Distance: 800 meters on the ground
Telemetry: The maximum real-time voltage can be up to 8S battery.
Compatible transmitter:
RC8X/RC6GS V3/RC4GS V3/
RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /
T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)
Anti-polarity Connect Protection, Power by Wide Voltage
Even the polarities are mistakenly connected, the receiver will not get damaged.
The power of 3~12V supports high voltage servo.

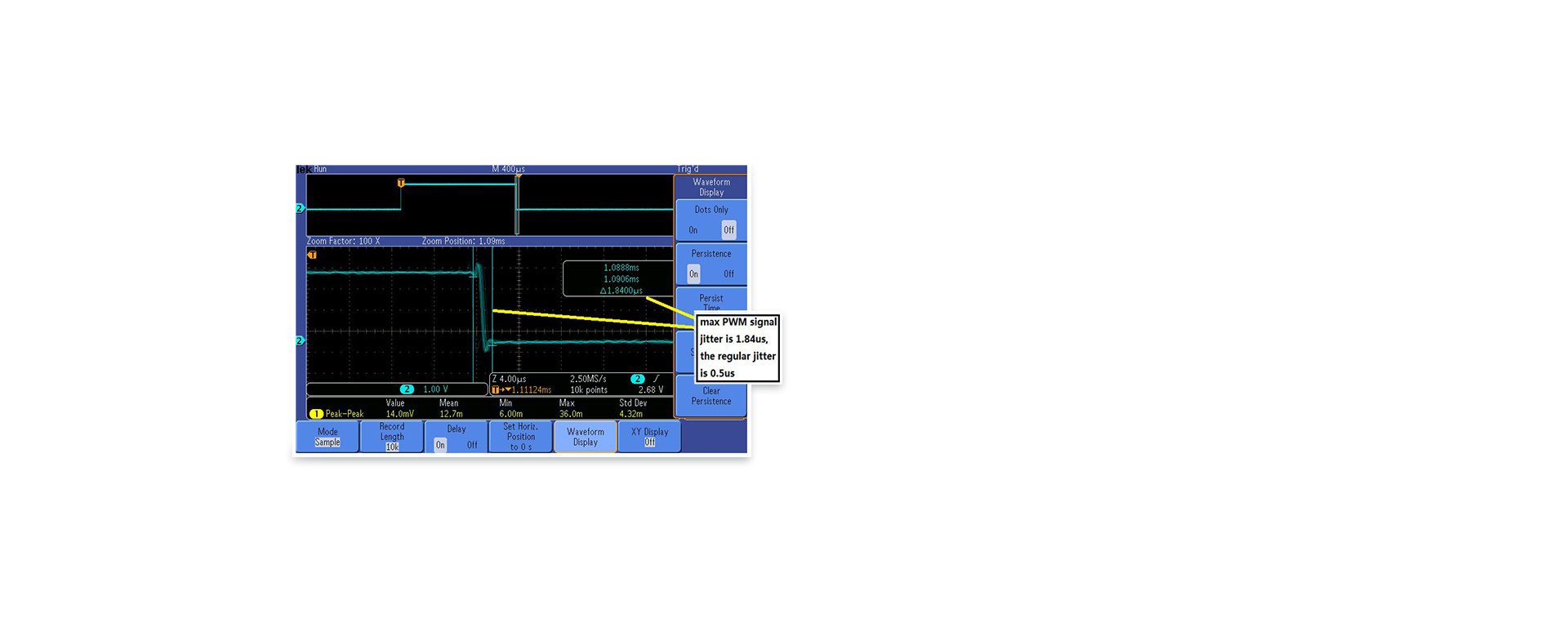

4096 Precision, 12ms Fast Response
The high-resolution ratio of 4096, the stability of 0.5us, the low drop-out rate, and the high-speed processor of 48MHz M0 ensure the extremely fast response within 12ms.
视频播放失败,请联系站点管理员!
Package List for R8F
