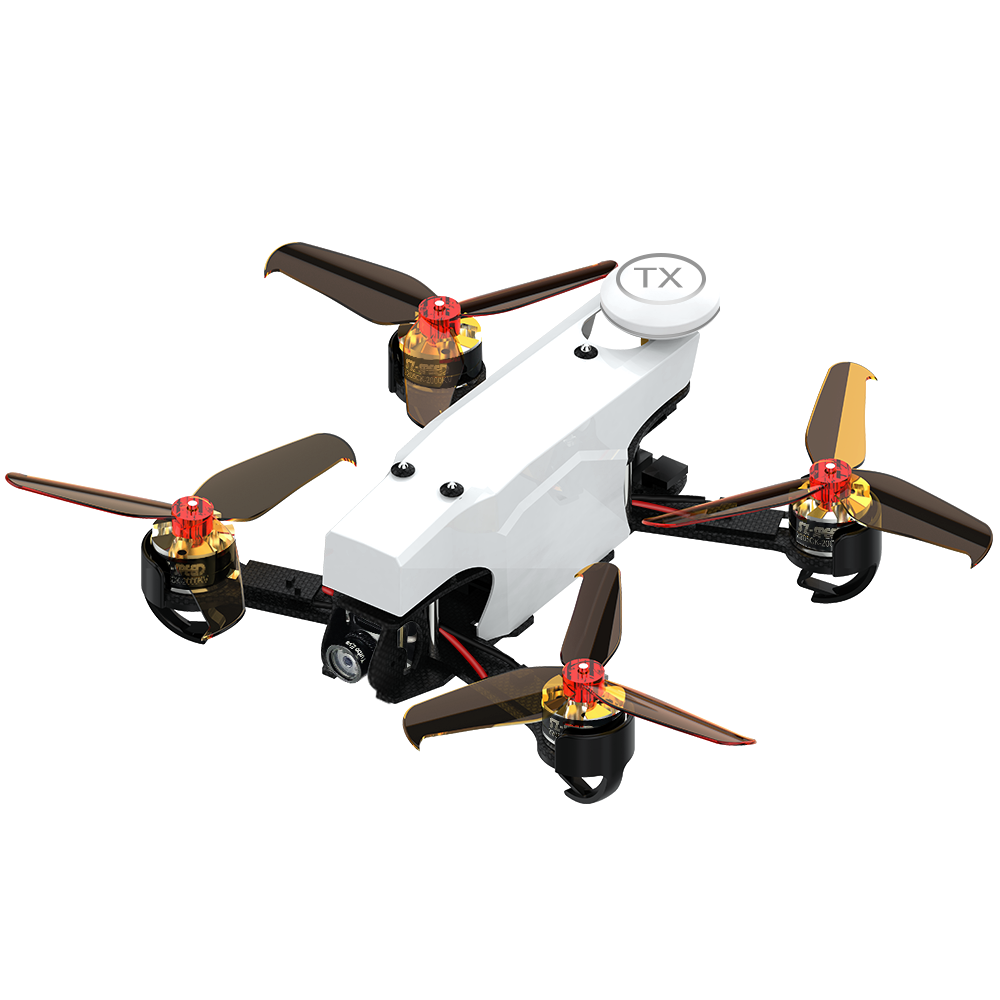

WOLF QAV210 Advanced
120KM/H High-Speed Aerial Videography
Racing Trainer Aircraft, Racing at the First Flight
120KM/H 10 Minutes Flight Time DVR Real-time Camera Multiple Flight Modes
RTL High-speed Brake Auto pilot Gesture Visualization of OSD information
Seemly Plain Outside
Extremely Cool Inside
One Step from Beginner to Master
High-Speed Aerial Videography Drone
QAV210 Advanced uses RADIOLINK flight controller MINIPIX, which has a series of powerful functions, such as Pos-Hold, Auto Flight Mode, Waypoints Mode and RTL, perfectly works with RADIOLINK GPS with centimeter position accuracy to realize the pos-hold videography.
The Kalman Filter Algorithm applied in MINIPIX correctly calculates the value changes of acceleration and gravity at high speed and makes QAV210 Advanced possible to realize fast elevation at Alt-hold mode and well record every moment with super-fast movements.
Beginners can start from Pos-Hold Mode to Stablize Mode to Acro Mode, easy and handy.
Competitive pilots can choose Manual Mode to compete or make freestyle and fully enjoy the challenge and passion of air F1 with the up to 120km/h maximum speed.
The frame of QAV210 Advanced is carbon fiber, minimizing the total weight and increasing the flight efficiency.
Carbon Fiber Frame, Firm and Solid
The case of QAV210 Advanced is white and paintable, pilots can personalize your drones.

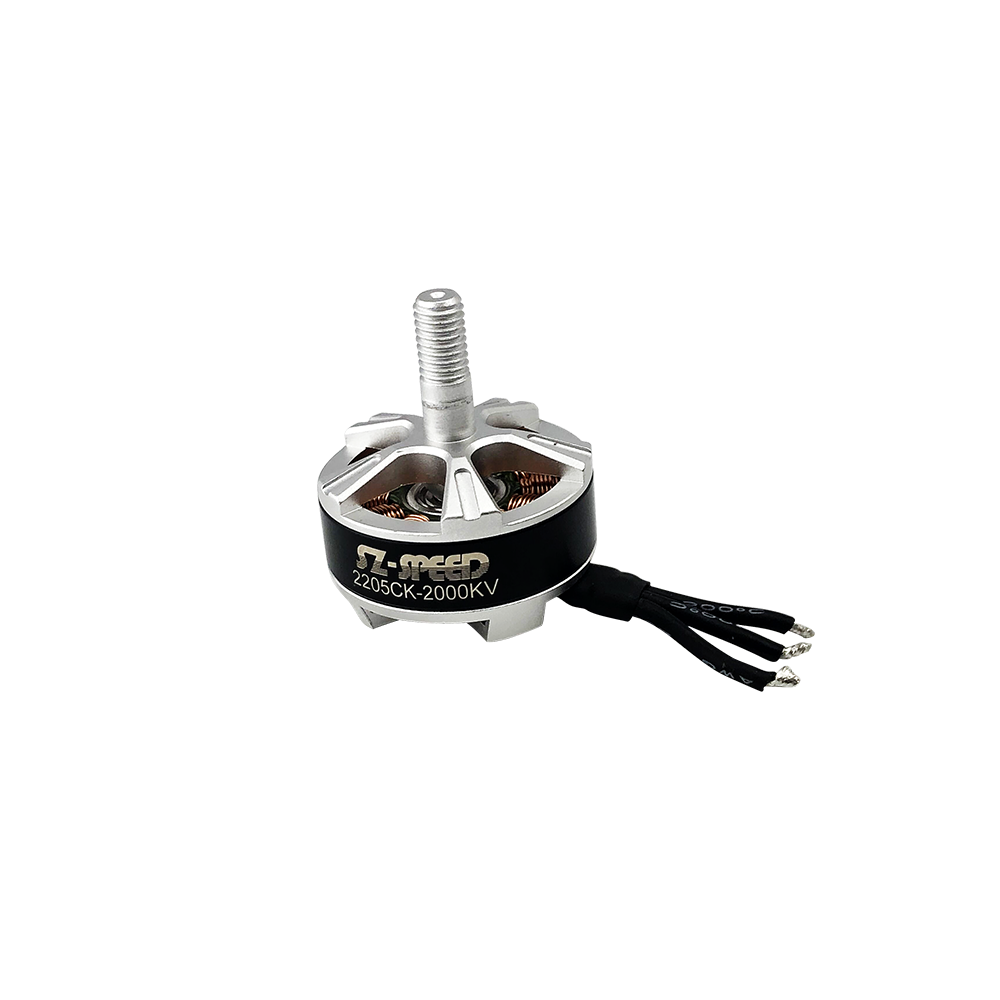

The motor of QAV210 Advanced is 2205CK－2000KV from SZ-SPEED. With direct cooling from propeller wind and NSK bearing, the heat dissipation ability is enhanced when motors run at high speed and motors’ lifespan is extended. Each motor weights 24g and closely works with the magnet to achieve high performance. The maximum thrust of 5152S propellers is 650g with linear output power to ensure the steady flight and clear videography.
Extensive testings of rough flights and falling prove that the motors can bear the repeated violent collision at high speed, which relieves the worries from drone damage during practices and competitions.

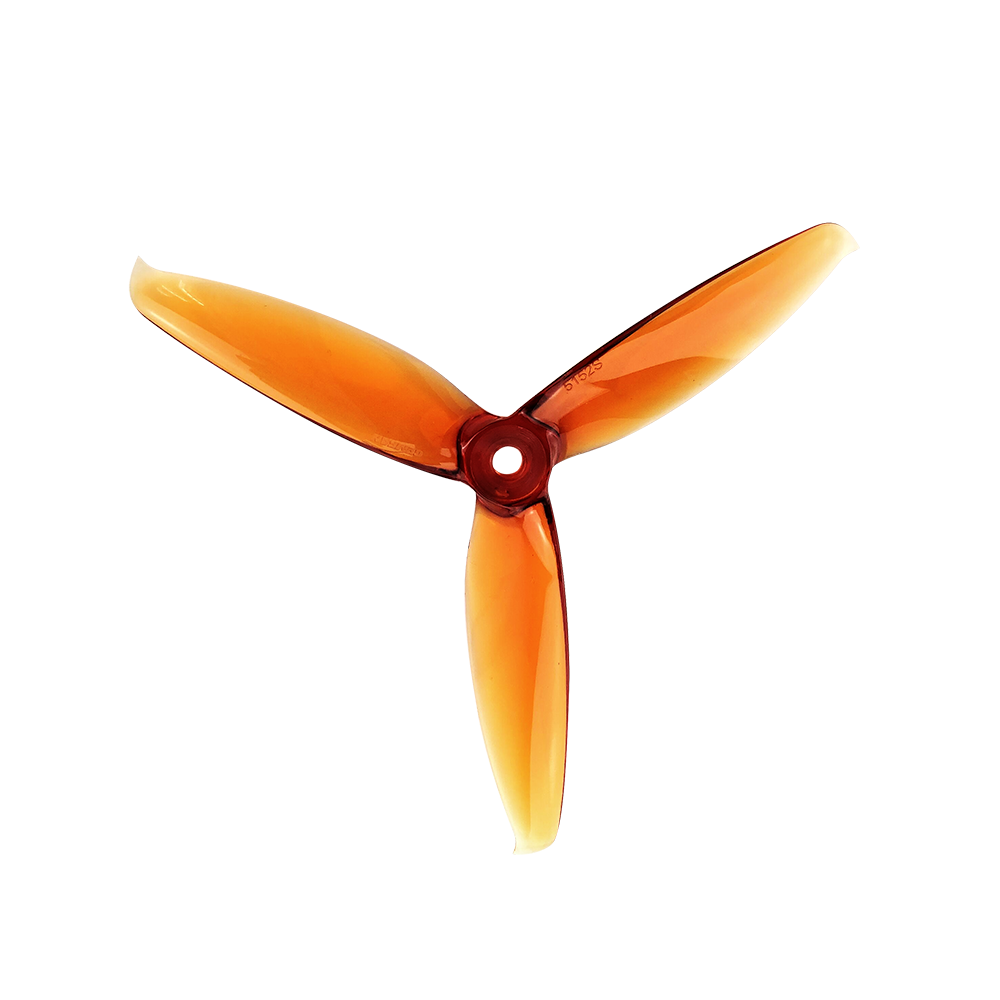

The FLASH 5152S propeller from GEMFAN takes full advantages of aerodynamics and is repeatedly tested and modified, basing on its weight and the effects from thickness distribution on rotary inertia.
The propellers use polycarbonate and are bending resistant. The fold-down design decreases the vortex downwash effect of propeller tip. Every detail from appearance to function is carefully polished to achieve high efficiency and increase the continuous pulling force up to 898g. With extremely fast response and no vibration under high speed, the propellers offer pilots unforgettable flight experience.
Power System of High Performance
Choice of China National Team
The power system is assembled with renowned components in drone industry to maximize the efficiency and offer the best athletic experience with best power.

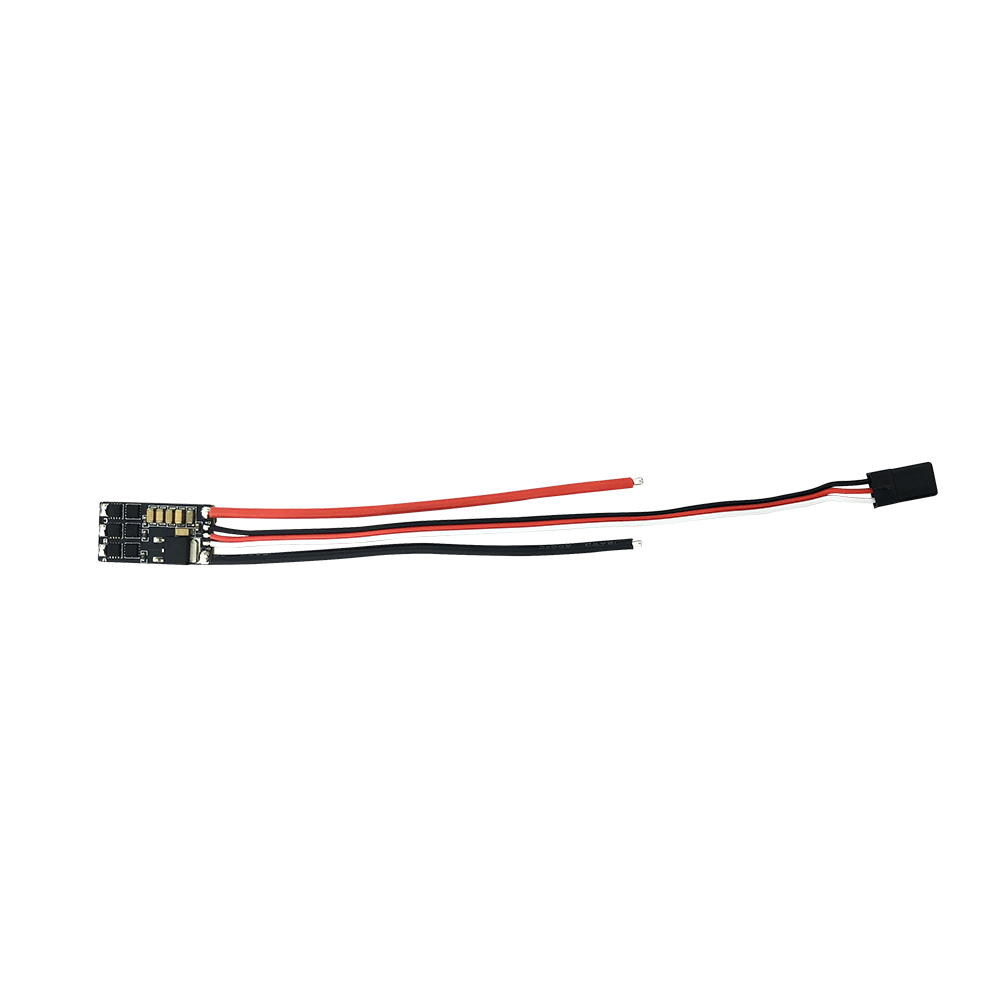

Electronic Speed Control (ESC) is 30A FAIRY from FLYCOLOR. With more than 10 years of R&D experience in electric industry, FLYCOLOR decreases the ESC dimension to minimize the weight of ESC and the whole drone and ensures the playtime. As the ESC is upgraded both on circuit and PCB layout, the propellers will stop running when encounter obstacles to realize the defensive function of locked rotor and offer maximum protection to both drone and pilot.

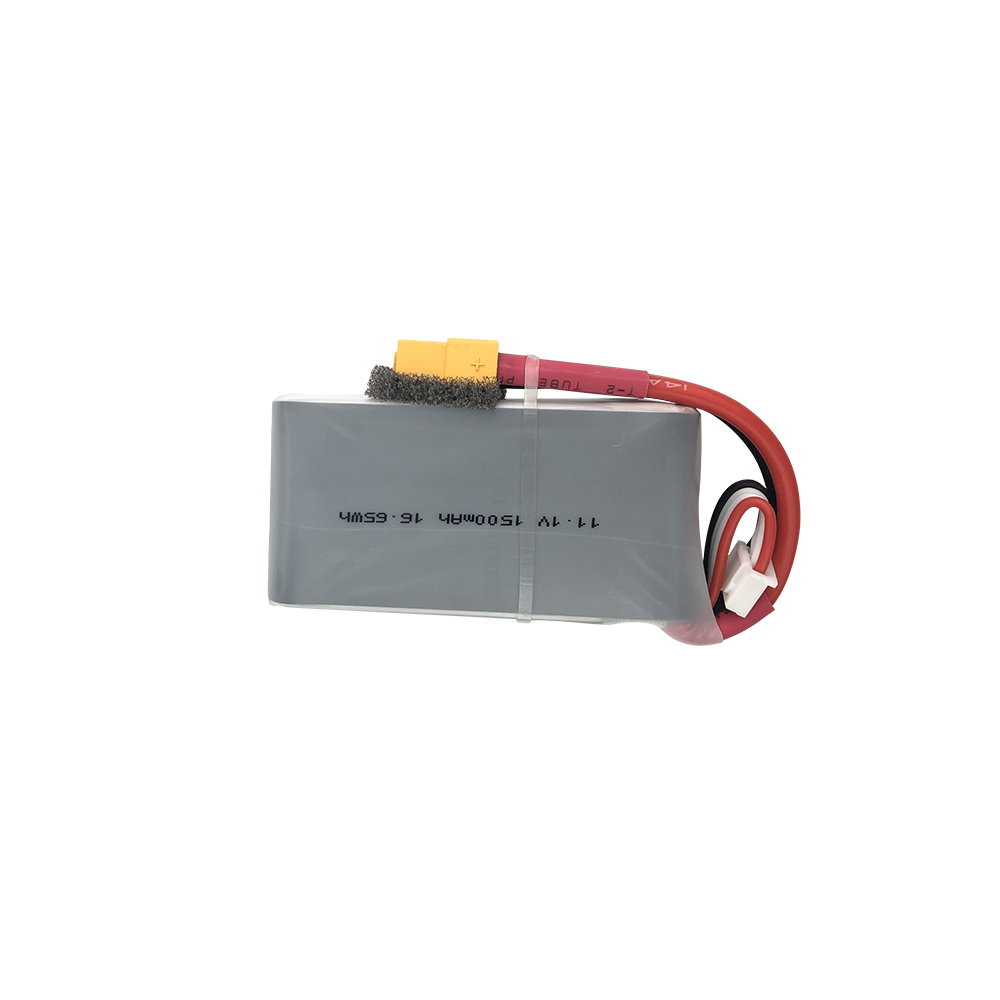

The battery of QAV210 Advanced is 11.1V 1500mAh 25C lithium battery from FULLYMAX with high quality cell. The strong power and good heat dissipation effect ensure longer playtime and lifespan.
FPV, Integration of Pilot and Aircraft

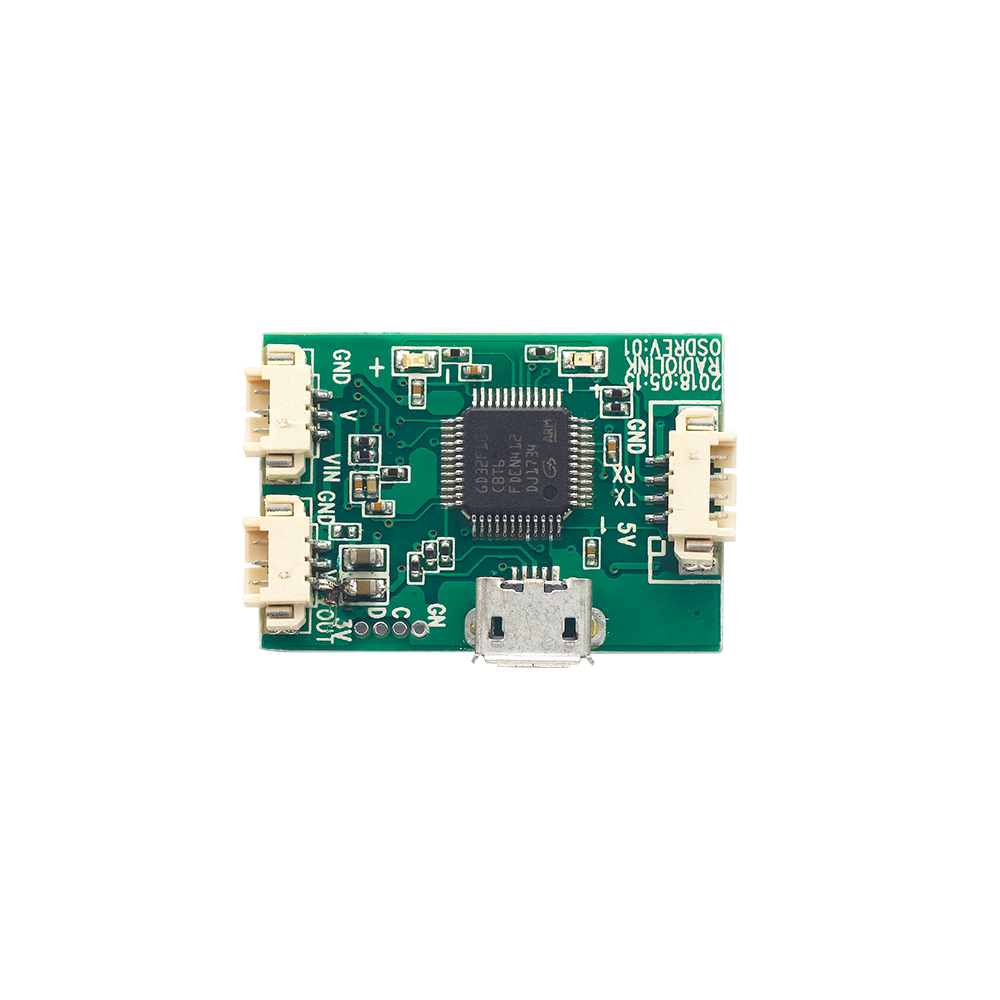

OSD Real-time Display Module
The integrated backhaul module of Image Transmission OSD works with English parameter setup app, whose parameter display can be personalized.
Real-time visualization of flight gestures makes pilots easier to follow the battery voltage and longitude/latitude information to ensure safer flight.
Online upgrade with USB port always ensures the latest functions and better flight experience.

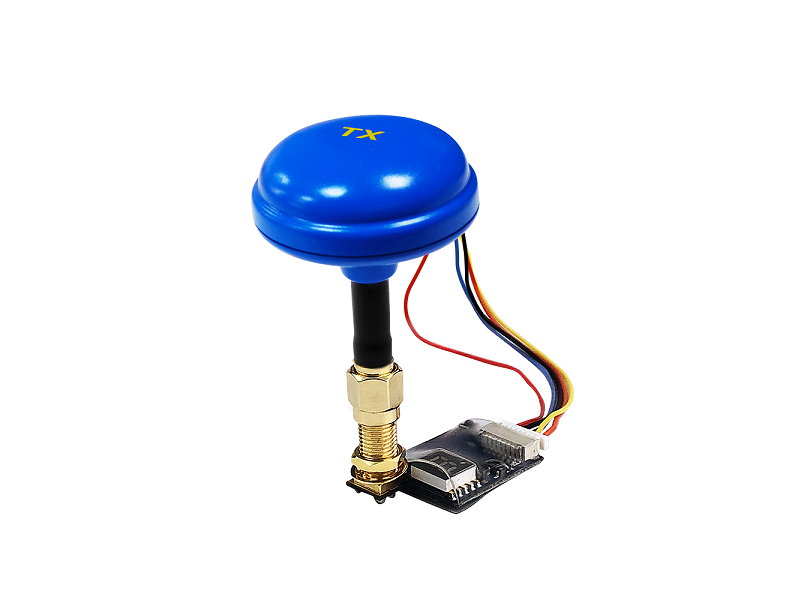

Image Transmission with long distance
The image transmission function of QAV210 Advanced adopts EWRF Tech 5.8G 200mW, ensuring stable transmission with distance of 2km and good video photography.
AT9S Pro, Radio of DSSS&FHSS Dual Hybrid Spread Spectrum
The 10/12-channel AT9S Pro from RadioLink adopts DSSS&FHSS dual hybrid spread spectrum and 16 channels pseudo random frequency hopping, ensuring excellent anti-interference performance. Functions are stable and easy to control even under the complicated urban environment with aerial control distance 3.4km, realizing visible and controllable racing in the city.

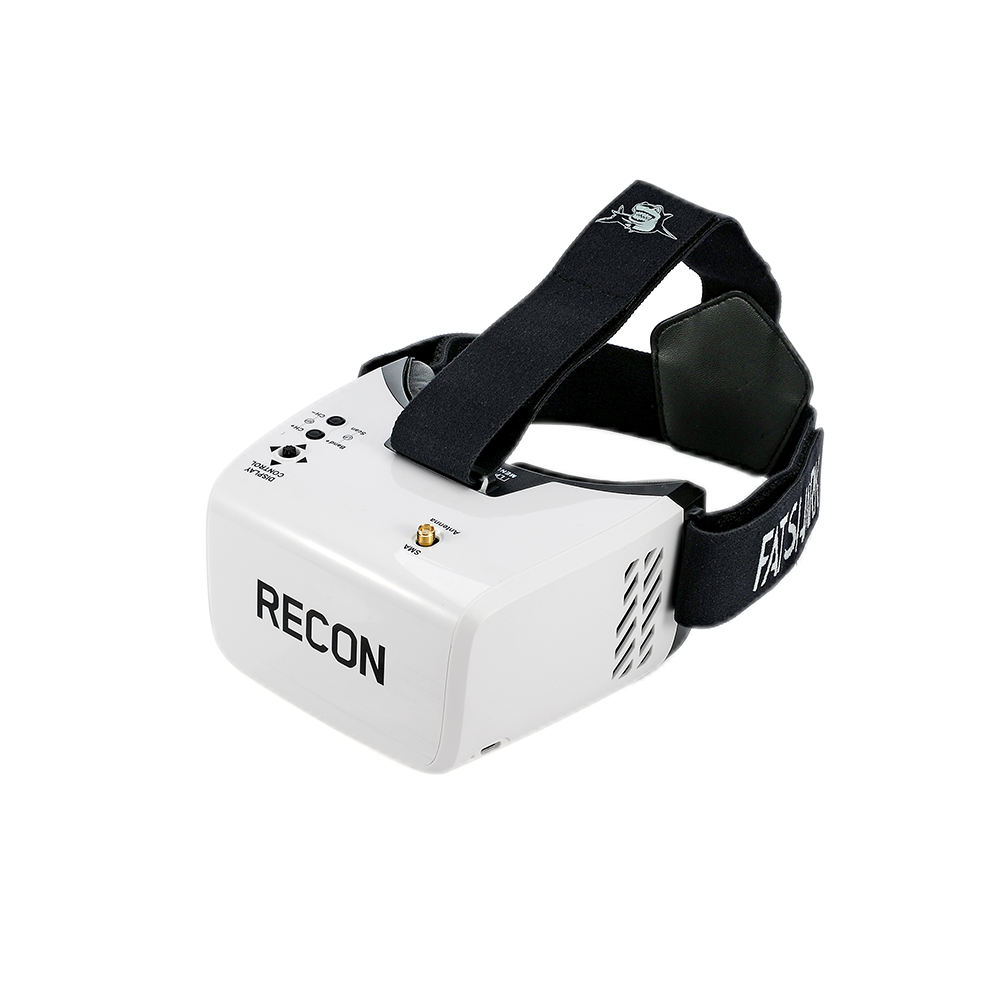

FAT SHARK 4.3 Inch Recon V2 FPV Goggle
Being ultra-immersive FPV, the RECON goggle from FAT SHARK with stable signal ensures message return without delay. No matter you are short-sighted or long-sighted, the design taking fully advantage of optics makes pilots always comfortable to wear. RECON uses the integrated channel scanner to pick up the strongest nearby feed and replaceable 2600mAh battery, which easily recharged with USB charging mode. RECON puts ease-of-use first and lets pilots focus on the full FPV experience.
CADDX FPV&DVR Dual Function Camera
Specially for racing drone, Caddx 1080P 60fps mini video camera (Model: TURTLE) has acute light sensation and is clear even in backlighting. Pilots can record HD images in any angles. The DVR transmits the images and records simultaneously, memorizing every exciting moment.
Packing List for Wolf QAV210 Advanced
Image Transaction and Antenna x1

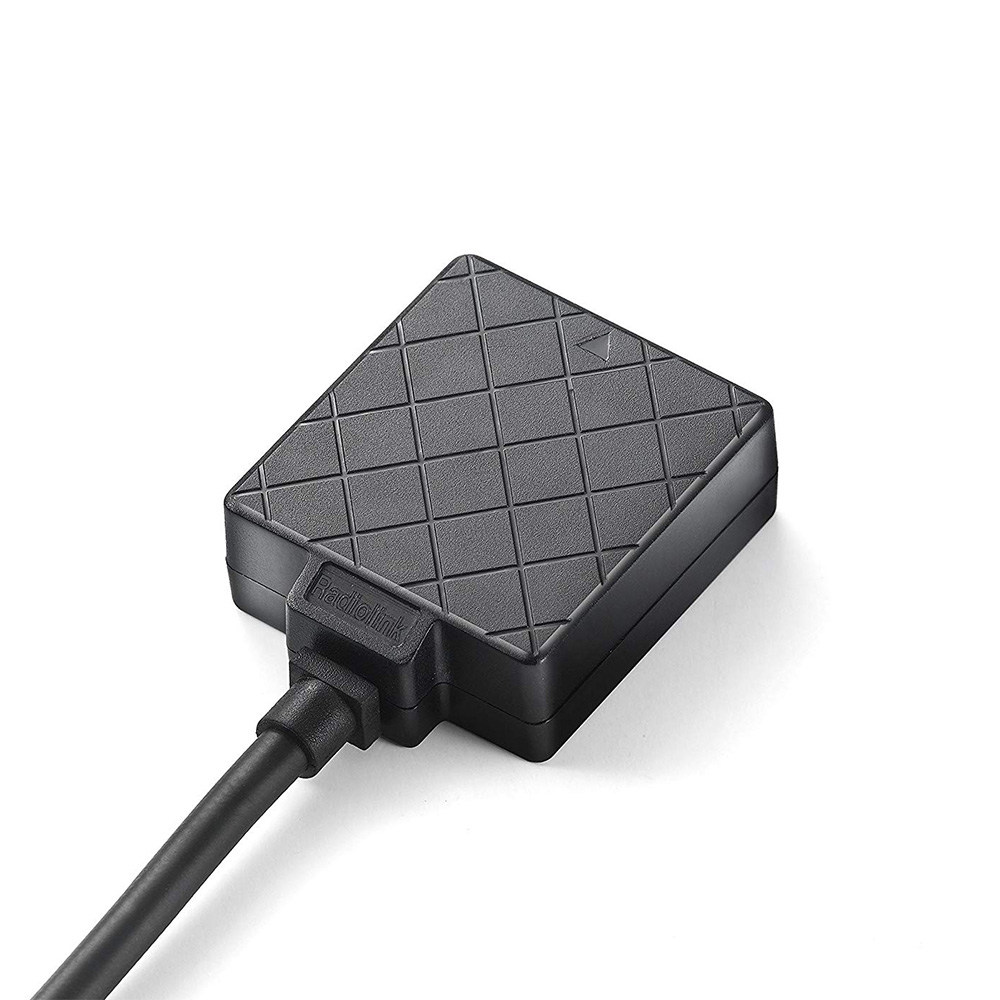

MINI M8N GPS TS100 x1
Main Plate(Carbon Fiber Frame) x1
Transmitter AT9S Pro x1
Fat Shark Recon V2 FPV Goggles x1
SZ-SPEED 2212 1000KV Motor x4
Receiver R12DSM x1
FLYCOLOR 30A FAIRY ESC x4

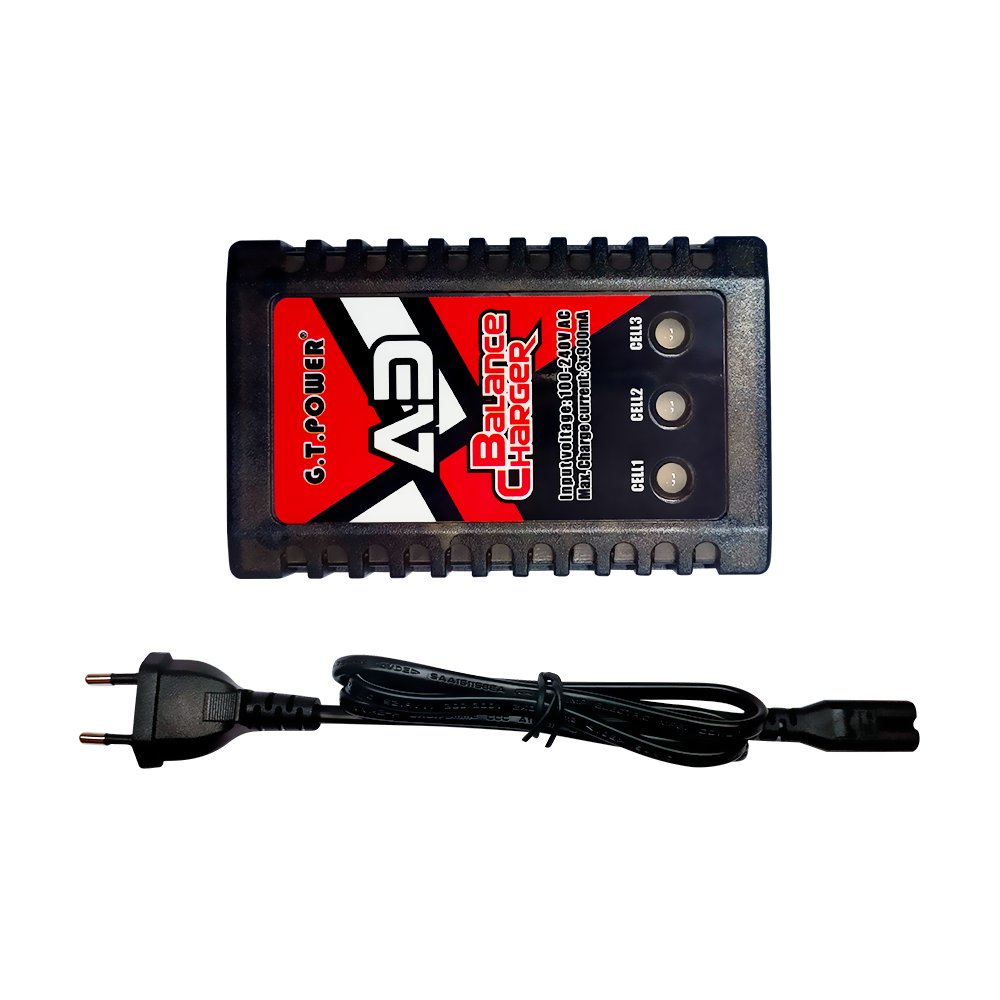

G.T. Power A3 Charger x1

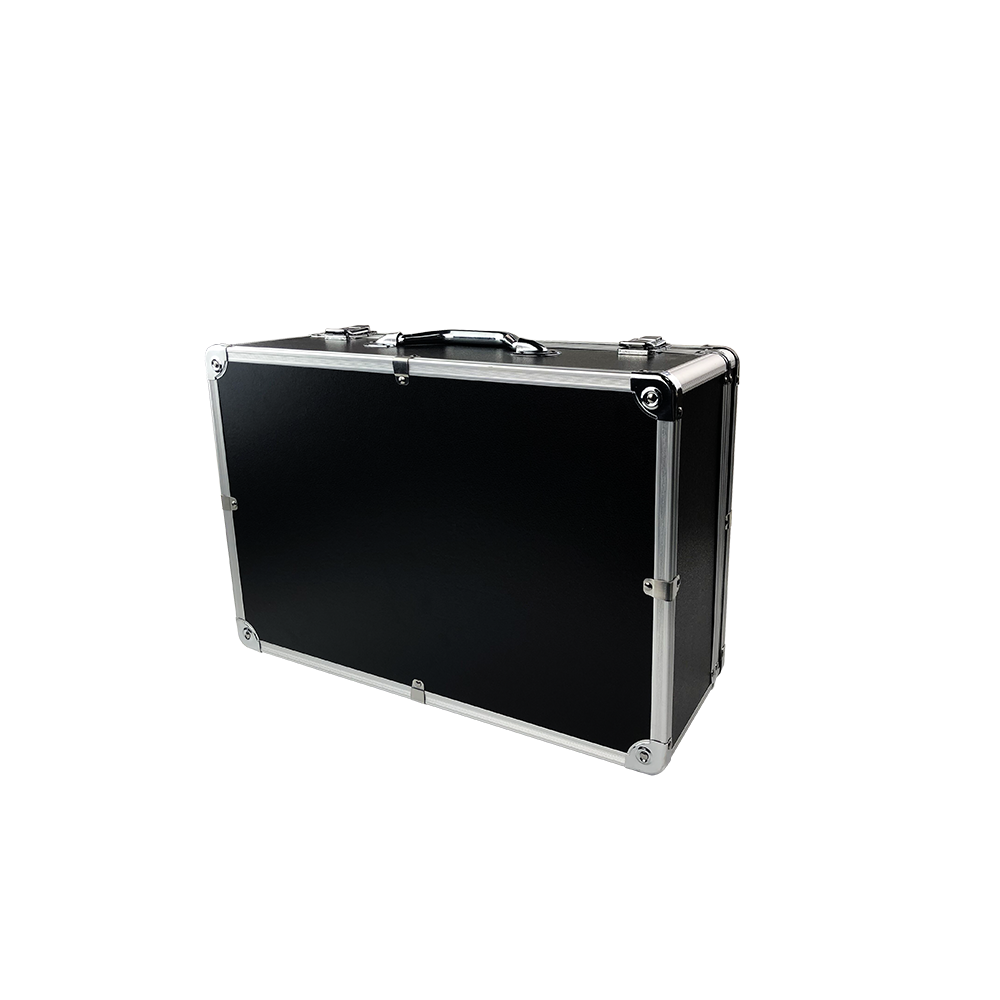

Aluminum Case x1
Mini Pix x1
FULLYMAX 11.1V 1500mAh 25C x1
Caddx 1080P 60fps camera x1
Radiolink OSD Module x1

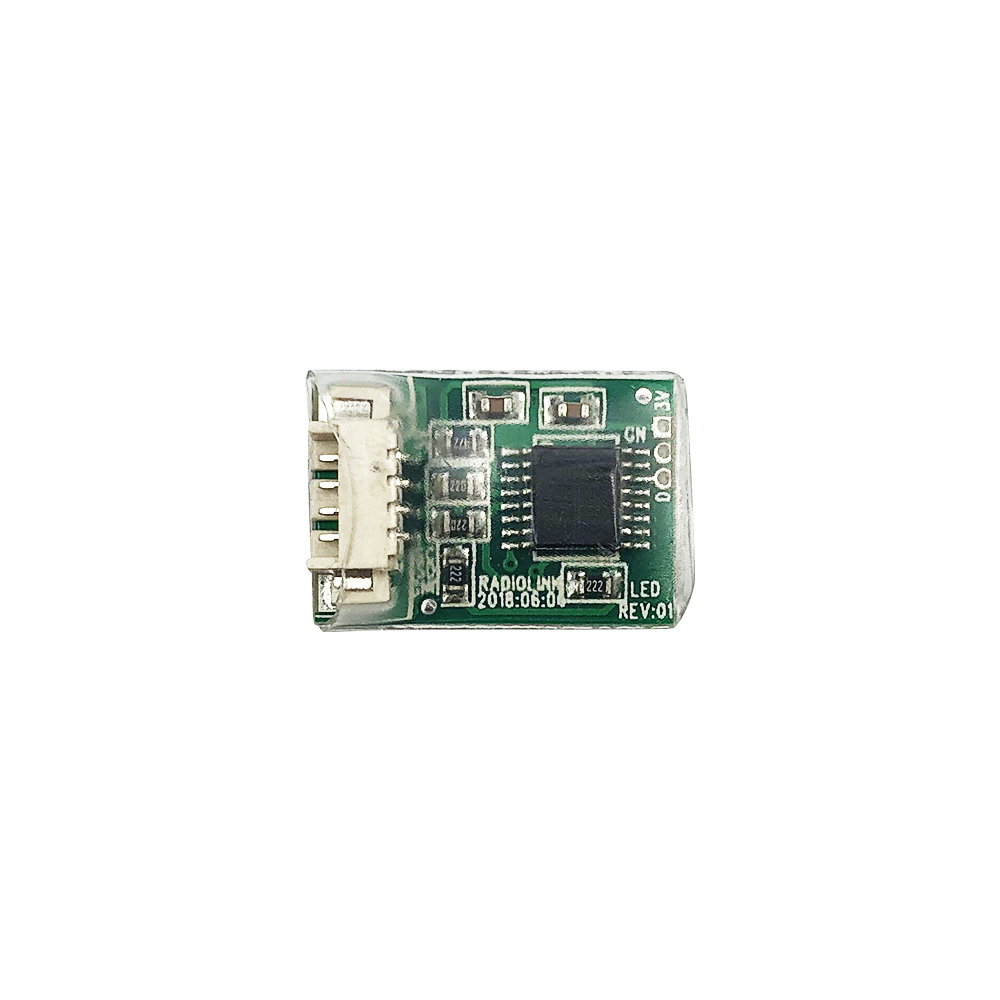

Status Indicate LED x1
GEMFAN FLASH 5152S Propeller x8
