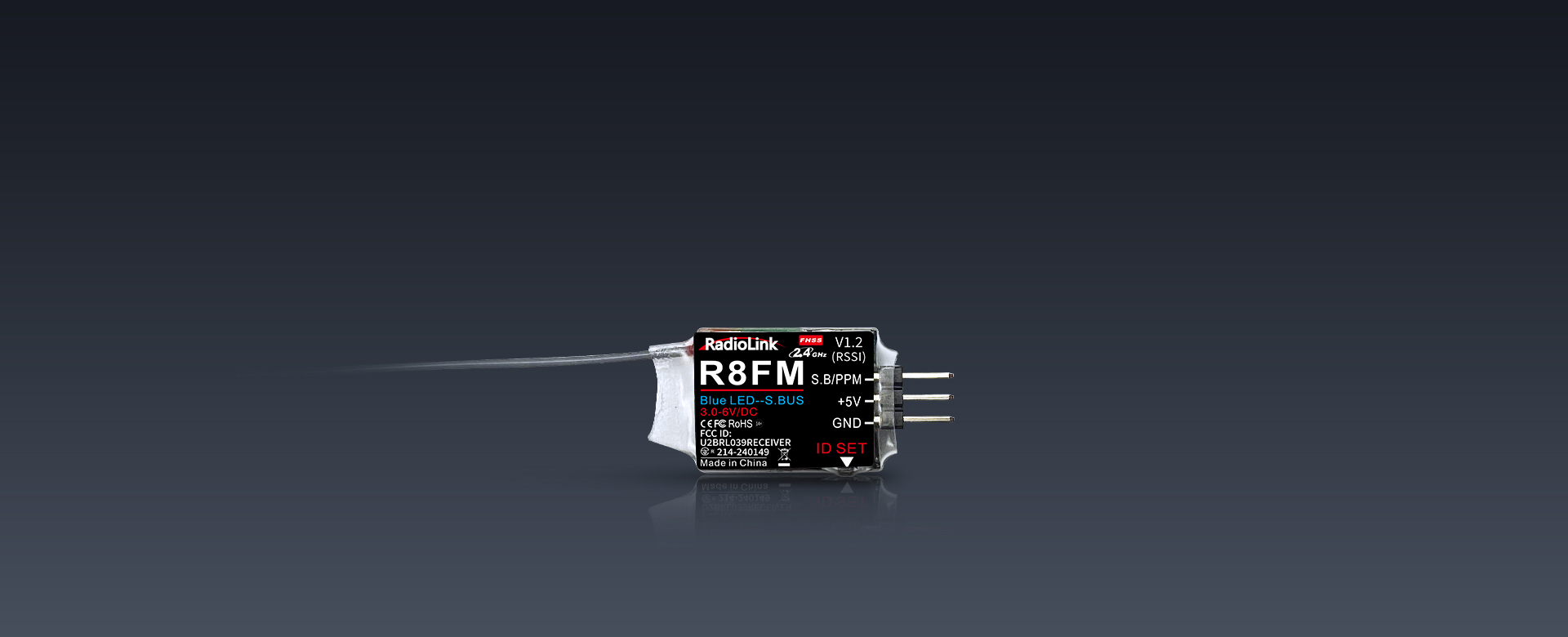

R8FM

8 Channels MINI Receiver

2000 Meters Control Distance

Same FHSS* spread spectrum algorithm as AT9S Pro and 67-channel pseudo-random frequency hopping help reduce overall signal interference.

2000 meters (1.24 Miles) * range enables all possible RC fun.

* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.

* Maximum range is tested in an unobstructed area free of interference.

① How to output RSSI value from receiver R8SM/R8FM to FPV when connect to Betaflight F4/F7

https://www.radiolink.com/newsinfo/504919.html

② How to output RSSI value from receiver R8SM/R8FM to FPV when connect to the Mini Pix/TURBO PiX/PIXHAWK

https://www.radiolink.com/newsinfo/504912.html

SBUS or PPM Signal Output

8 channels of SBUS/PPM signal output.

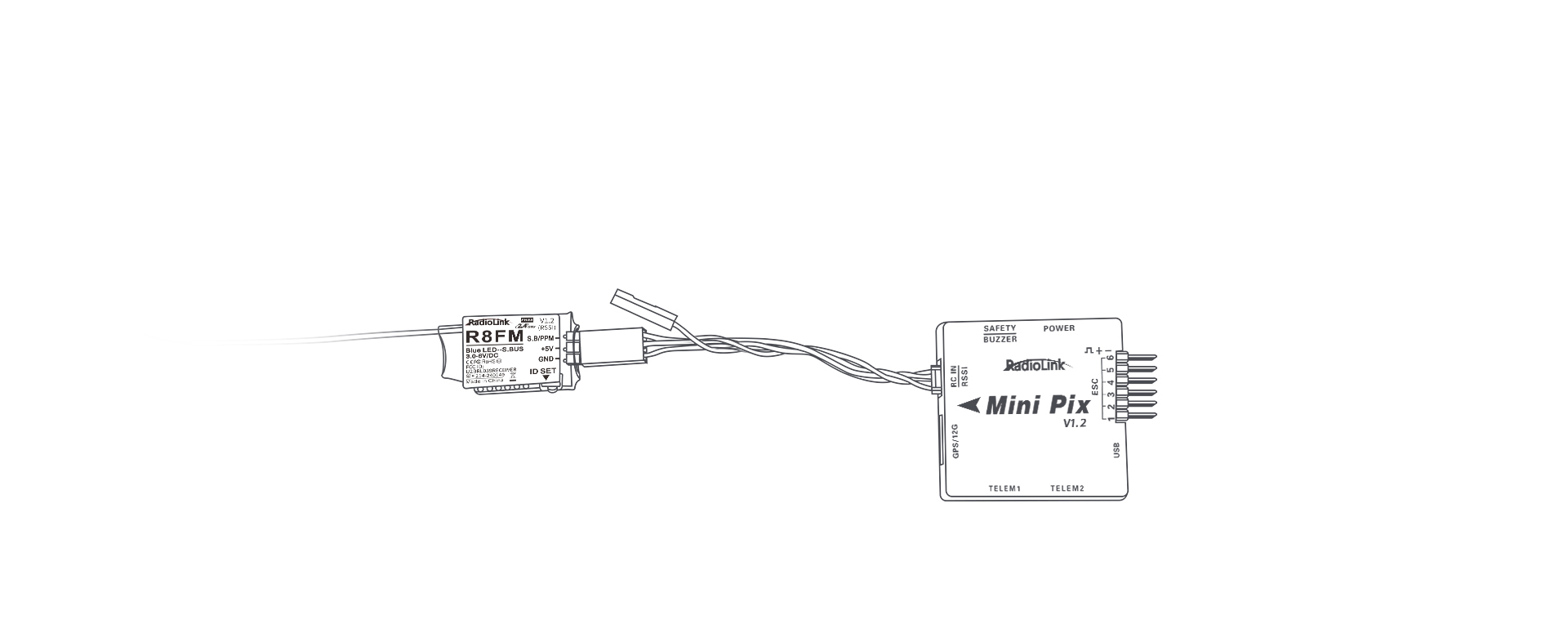

Compatible with PIXHWAK, MINI PIX, TURBO PIX, and APM flight controllers which support SBUS or PPM signal.

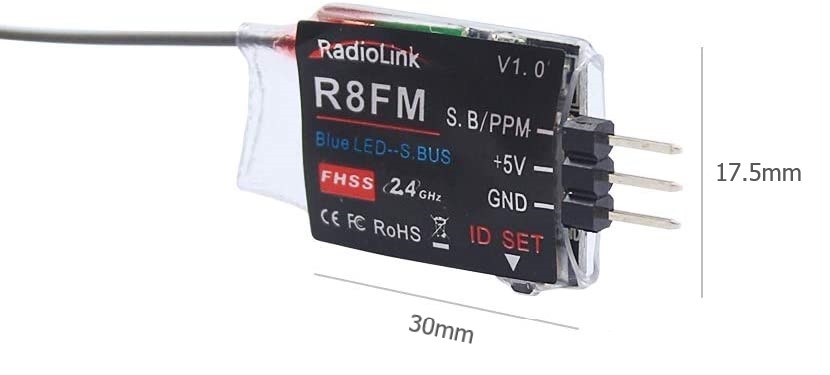

Weight of 2.5g(0.09oz) and small size of 30*17.5mm (1.18"*0.69") make R8FM is tiny enough even for mini racing drone and glider.

Specifications

Size: 30*17.5mm (1.18"*0.69")

Weight: 2.5g(0.09oz)

Channels Qty: 8 channels

Signals: SBUS/PPM

Operating Voltage: 3~6V

Operating Current: 38-45mA@5V

Antenna Length: 85mm

Section Precision: 4096, 0.25us per section

Control distance: 2000 meters (1.24Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Compatible transmitter:

T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/

RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS(must work with flight controller)
