A: The standard packed receiver with AT10II is R12DS, which is a 12-channel receiver that supports SBUS and PWM signals synchronously with 2.4G DSSS&FHSS spread spectrum technology.

Besides R12DS, there are also other compatible receivers with different channel quantities available.

R6DS- 6 channels(PWM signal output); 10 channels (SBUS/PPM signal output)

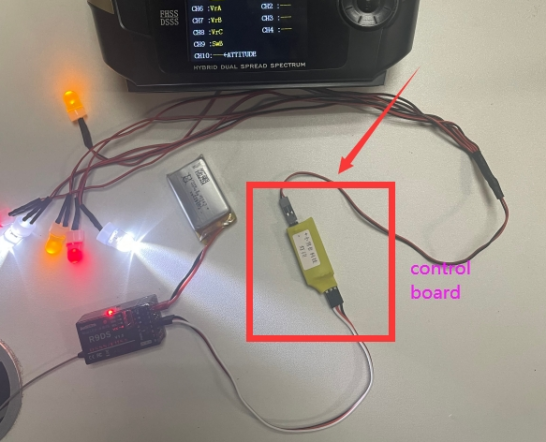

R9DS- 9 channels(PWM signal output); 10 channels (SBUS signal output)

Mini receivers: R6DSM- 10 channels (SBUS/PPM signal output)

R12DSM- 12 channels (SBUS/PPM signal output)

Note

The default channel quantity of AT10II is 12 to work with the standard packed receiver R12DS. When working with the non 12-channel receivers (R6DS,R6DSM,R9DS), the channel quantity of AT10II should be changed as 10.

Long press the Mode key to enter the BASIC MENU -> Rotate the scroll Dial to highlight the SYSTEM option and press Push to enter -> Select the CH-SELECT and change the Number as required.

* All RadioLink transmitters are not open sourced and can only bind to receivers developed by RadioLink.

A: Power on the transmitter and receiver with both antenna as parallel and straight and within the distance of 30cm.

Long press the Mode key to enter the BASIC MENU -> Toggle the CURSOR to highlight the TELEMETRY option and press Push to enter

Then check the RSSI value. Range between 0~-30dBM is normal when the distance between transmitter and receiver is around 30cm, and if the value gets closer to 0, the signal is stronger. If the value is between -30~-90, signal is not good and the control distance would be limited.

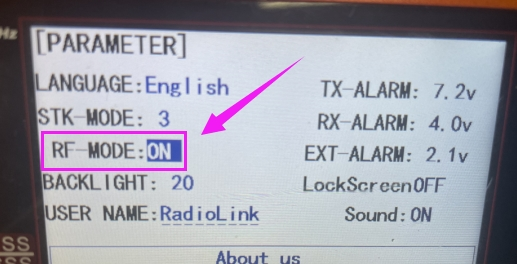

A:  1) check transmit mode is on or off, if it is off, the green light is off.

2) check whether the receiver is powered on or not and whether the binding procedures are correct.

3)  If still can’t bind it after checking the above situation, please kindly return them to the factory for maintenance.

A:

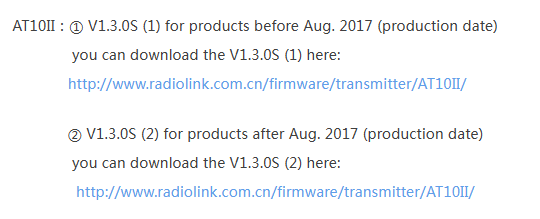

1) Check whether the firmware was flashed before its blank screen. If yes, reflash the newest firmware, if it is still blank, please kindly contact our after-sales personnel.

2) Check whether the battery voltage is too low to supply enough power to the transmitter, thus causing a blank screen.

A:

1) Check whether the power supply is normal, whether there is an insufficient power supply, or whether the battery is inserted backward.

2) If it can’t be turned on after flashing the firmware, please follow the correct steps to flash the firmware again

3)If the power supply is normal and firmware hasn’t been flashed, for domestic customers, please return it to the factory for repair;  for foreign customers, please check whether there is a power switch problem. Steps as below:

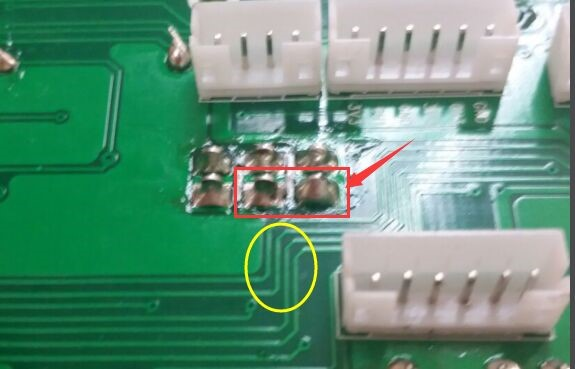

Short-circuit the two pins in the red box (avoid connecting the wire in the yellow box), if the transmitter can be turned on after short-circuiting, it means there is a problem with the power switch, if still can’t turn on, replace the board.

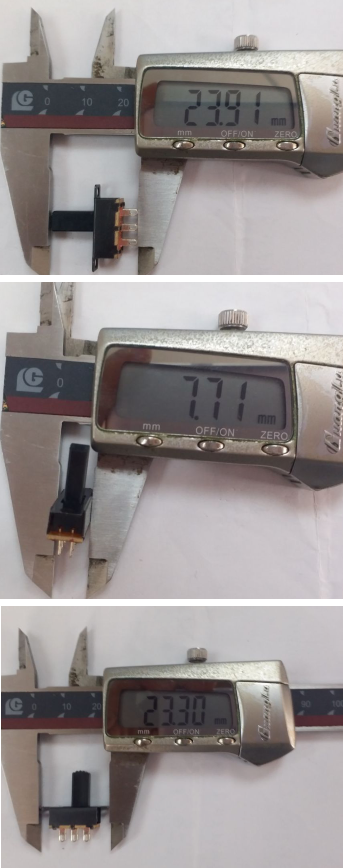

Power switch parameter： Item number SS-22F32

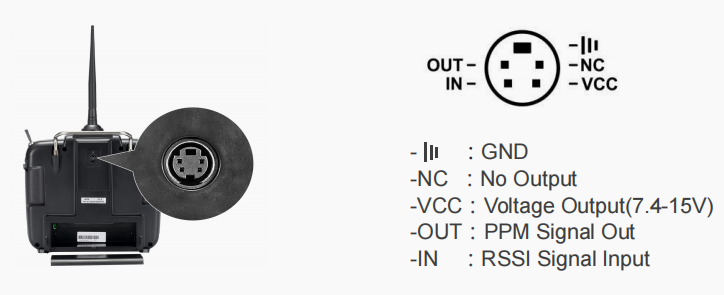

A: For the trainer function, it needs to connect by a specialized trainer cable, e.g. Radiolink wireless trainer cable.

A: Please click below link to check the tutorial video

https://www.youtube.com/watch?v=8IrO2mEr6Co&t=397s

A: Please click below link to check the tutorial video

https://www.youtube.com/watch?v=UA1GjnnHnY0

A: When adjusting L or H, need to know which switch control is set for each channel first. For example: if channel 5 is controlled by a VRB switch, it will need to toggle the VRB switch to adjust the value set to the L position.

A:  PRM-01 is capable of returning model battery voltage in real-time.

A: The battery display is related to the alarm voltage set by the remote control. The lower the alarm voltage is, the more power can be used and the fuller the battery display is. ( Tips: Please set the low voltage alarm value according to the battery you use. For example, if you are using a 3S battery, the low voltage alarm value should be set to 3.7V * 3 = 11.1V)

A: Long press the MODE key to enter the BASIC MENU -> Rotate the scroll Dial to highlight the MODE TYPE option, choose the mode type needs to restore to factory settings,  and press Push to enter -> Select RESET: Execute, Press PUSH key again as required, then show out “ Please waiting” and DEE sound. The factory setting is successfully restored after Dee's sound disappears.

A: No. The firmware upgrade won't change any personalized parameters already set.

A: Yes, it can control two receivers at the same time, like CH1 to CH2 connect to R12DS, CH5 to CH9 connect to R6DS.

A: No, the SBUS signal can only be tested via oscilloscope or flight controller.

A: Yes, all Radiolink receivers support digital servos and analog servos.

A: The factory default model of AT10II is the helicopter. CH3 and CH6 are combined in helicopter mode. If the model type is not a helicopter, please kindly check if the mix control is turned on.

A: The default attitude mode of AT10II is CH5 for MULTIROTOR. While connecting the DJI flight controller, if the receiver output signal is SBUS, change CH7 for ATTITUDE, if the receiver output is PWM, choose CH5 for ATTITUDE.

A: The servo range of DJI A2 and A3 is between 0-20000, while that of AT10II is 0-2000, the difference is 10 times. Therefore, it is normal when servo range jitters within a dozen range during setting parameters on DJI flight controllers.

A:  DJI flight controller needs to be calibrated via Mission Planner when changing transmitters of different brands.

A: Check if the signal output of your receiver is compatible with your flight controller. For example: your flight controller ask for SBUS signal, then please keep your receiver R12DSM keep green LED which output SBUS signal.

A: Enter the basic menu- MODEL TYPE- choose boat type. Then go to the basic menu and advanced menu to set up the function you want.

A: Enter the basic menu -- set Throttle Cut.

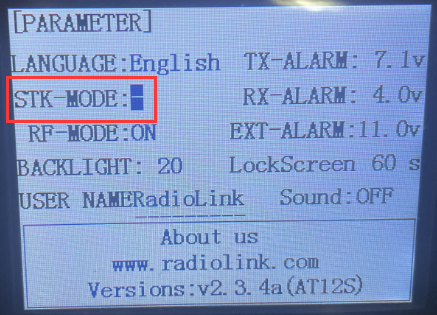

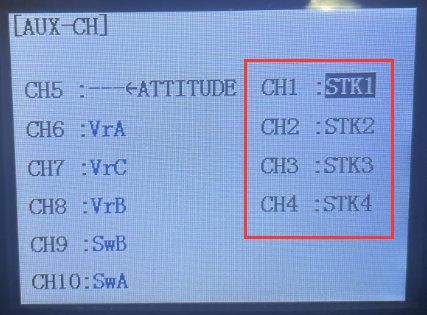

A: That's because of the different stick modes. You can change the stick mode and the slots will be changed. Just choose the mode you like. It's in the menu PARAMETER- STK MODE.

A: The USB port of AT10II/AT10 is for upgrading the firmware. It cannot be used on the computer as a simulator.

Do not use the USB port as a charging port, or it will damage the transmitter.

A: The screen is locked because of the LockScreen function.

Long press the PUSH button, and the screen will be unlocked. You can set the time from 1s to 255s. Enter the BASIC menu- PARAMETER- set LockScreen to OFF.

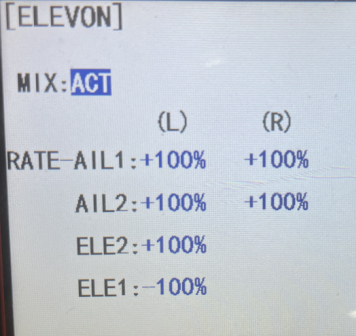

A: Set the two RATE, then the slave channel can move together with the master channel. The positive and negative number of the RATE means the direction of the slave channel. If you want the trim button to be available for the two channels, set TRIM to ON.

A: The secondary transmitter’s model doesn’t need to be the same as that of the primary transmitter. E.G. AT10II and AT10 are compatible with the trainer function.

Q: Why does the servo range of AT10II/AT10/AT9S/AT9 jitter in different ranges?  There is an error between the servo range and the actual operation.

A:

1) Calibrate the joystick and restore the factory settings (please change the model before restoration to prevent the parameters in the original model from being reset)

2) If after centering the joystick, there are still 1, 2, and 3 servo ranges, and the trim and END POINT have not been set, please flash the latest firmware.

3) Check whether has changed the joystick with the new potentiometer, if has changed the joystick without flashing firmware, please flash the latest firmware.

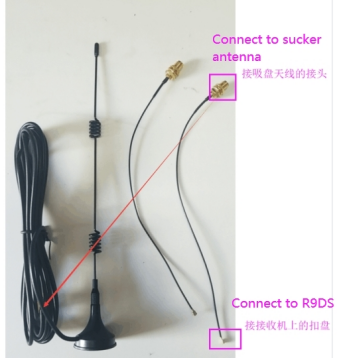

A: If the R12DS receiver needs to be installed in a car/boat with a full metal casing, it is recommended to use an IPEX to SAM with a sucker antenna. The antenna needs to be drawn out, because if the receiver antenna is enclosed in a metal shell, the metal material will weaken the signal of the receiver, thereby affecting the control distance.

The antenna connector of the R12DS receiver is IPEX. Make sure the sucker antenna has the IPEX connector. Please refer to the picture below:
